BDL16045 - Schneider Electric 45A 1-Pole PowerPact B-Frame Circuit Breaker 600Y/347VAC 14kA Thermal Magnetic

BDL16045

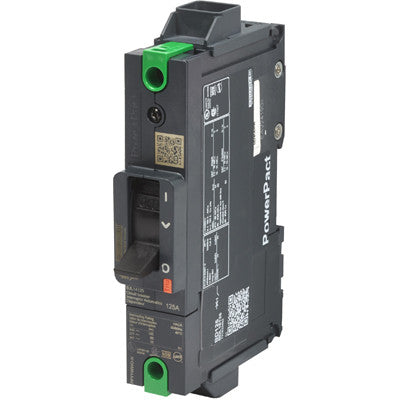

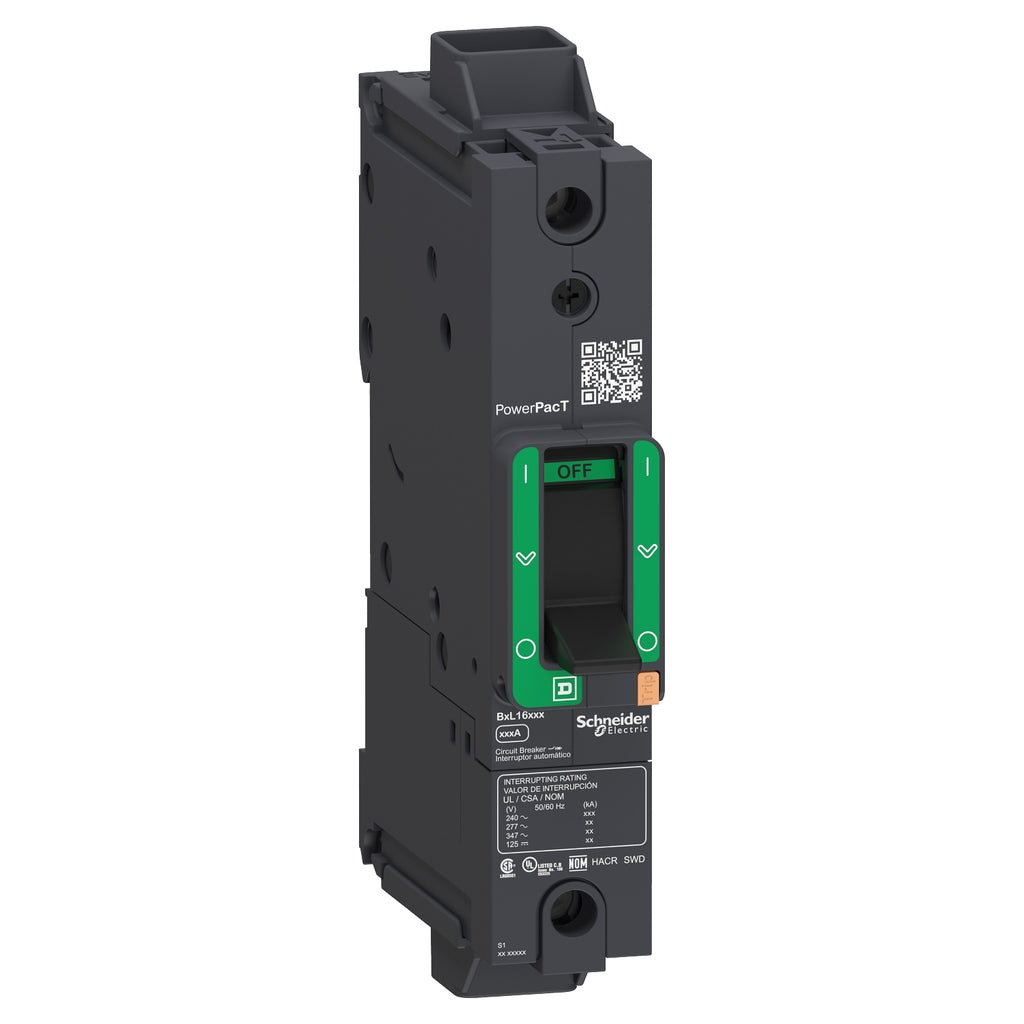

BDL16045 is a Schneider Electric PowerPact B-Frame circuit breaker rated for 45 amps, 1 pole, and 600Y/347 volts AC with a 14kA interrupting rating.This thermal magnetic circuit breaker provides reliable overcurrent protection with a breaking capacity of 14kA at 600Y/347VAC. It features EverLink lugs on both ends for secure connections and is designed for use in industrial and commercial power distribution applications. The breaker is part of the PowerPact B series, known for robust construction and compliance with industry standards.

• Amperage: 45A
• Voltage Rating: 600Y/347VAC
• Number of Poles: 1
• Interrupt Rating: 14kA at 600Y/347VAC
• Series/Frame: PowerPact B-Frame
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line
• Connection: EverLink lugs both ends
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL16045
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 45
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648114851
• GTIN : 03606481148513
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1
• Standards : UL 489, EN/IEC 60947-5-1, NEMA AB1, EN/IEC 60947-2, NMX J-266, CSA C22.2 No 5, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
