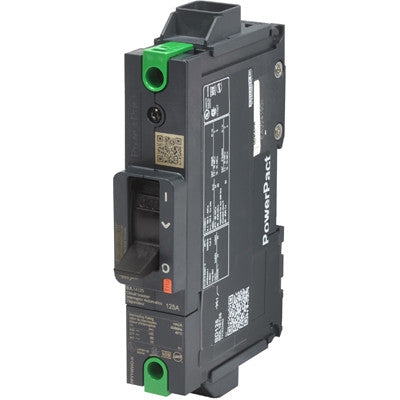

BDL16020 - Square D PowerPact B Molded Case Circuit Breaker, 20A, 1 Pole, 600Y/347V, 14kA, Thermal Magnetic, 80% Rated, Unit Mount

BDL16020

BDL16020 is a Square D PowerPact B series molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic trip unit breaker features a 20A continuous current rating (80% rated), 1 pole, and is rated for 600Y/347V AC. It offers a 14kA interrupting capacity at 600Y/347V, unit mounting style, and is part of the PowerPact B frame. The breaker is UL 489 listed and suitable for a wide range of electrical distribution needs.

Key Specifications
• Amperage: 20A (80% rated)
• Voltage: 600Y/347V AC
• Poles: 1
• Mounting Type: Unit
• Interrupt Rating: 14kA at 600Y/347V
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Certifications: UL 489
• Terminal Connection: Everlink lug both ends
• Min. Wire Size: 6 AWG, 14 AWG
• Operating Temp: -13°F to 158°F
• Dimensions: 1.06" W x 3.15" D x 5.39" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL16020
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 606481148462
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.264
• Standards : NEMA AB1, EN/IEC 60947-2, UL 489, GB 14048.2, NMX J-266, CSA C22.2 No 5, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
