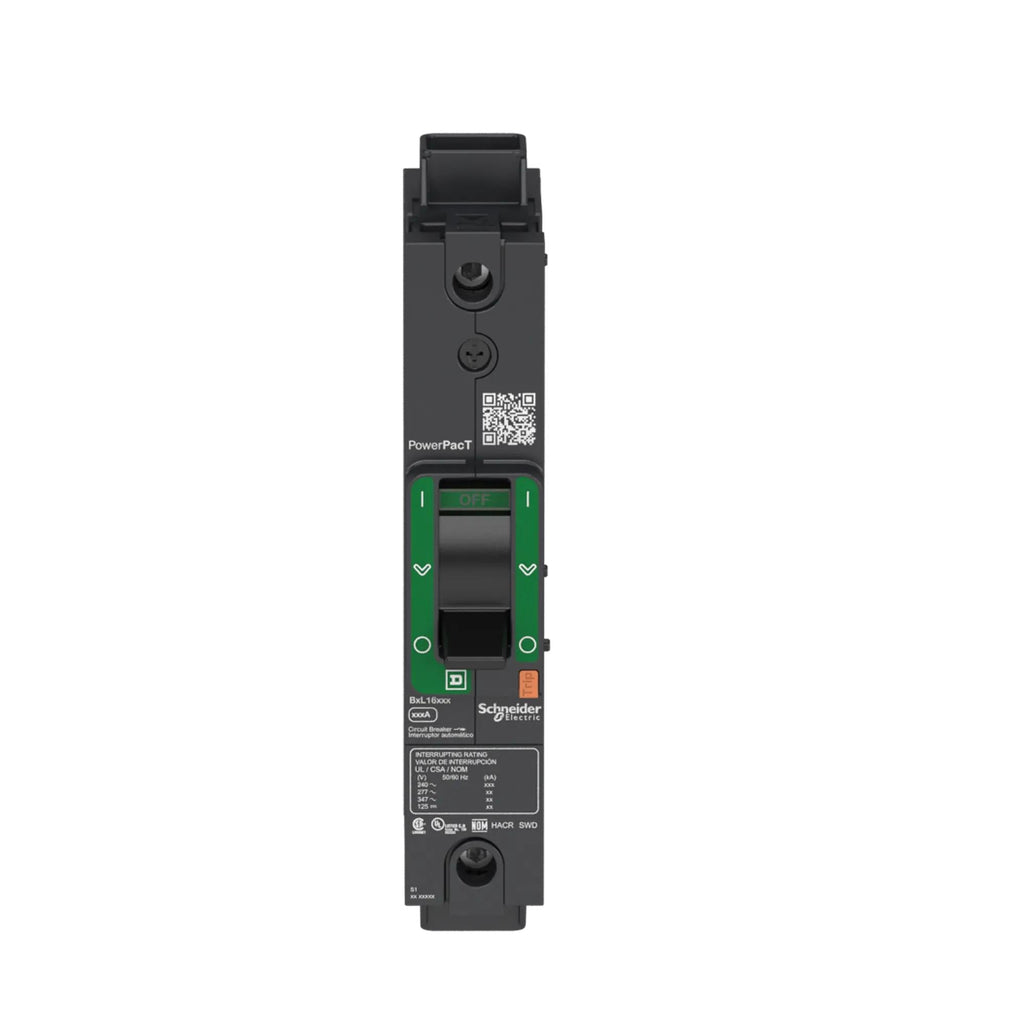

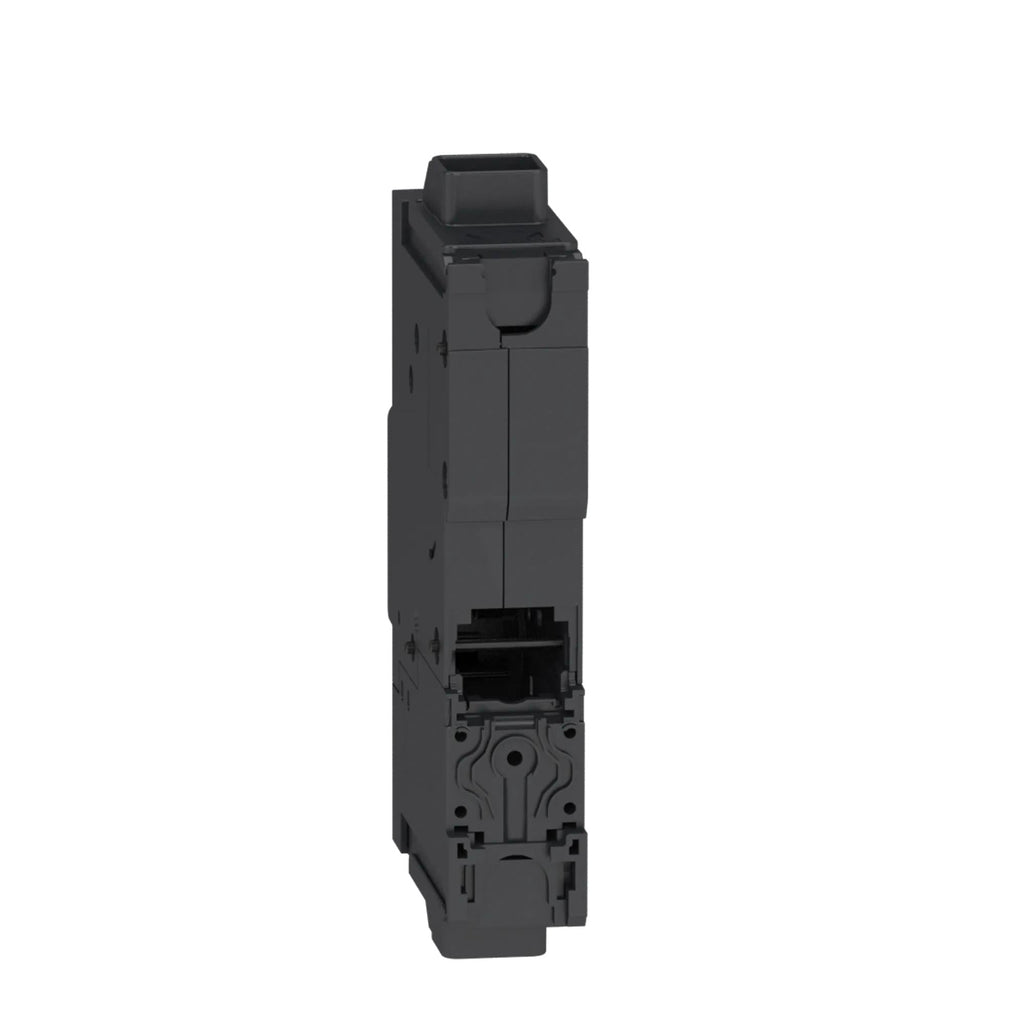

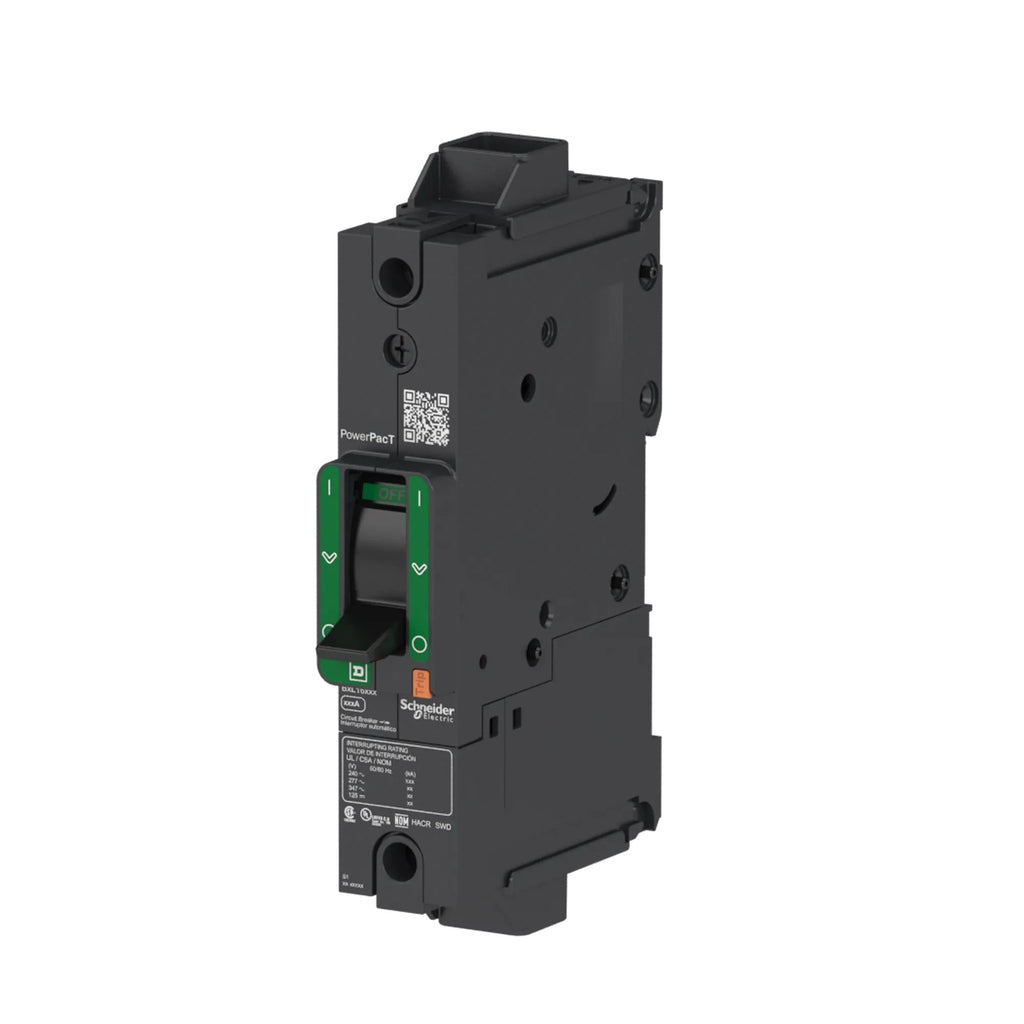

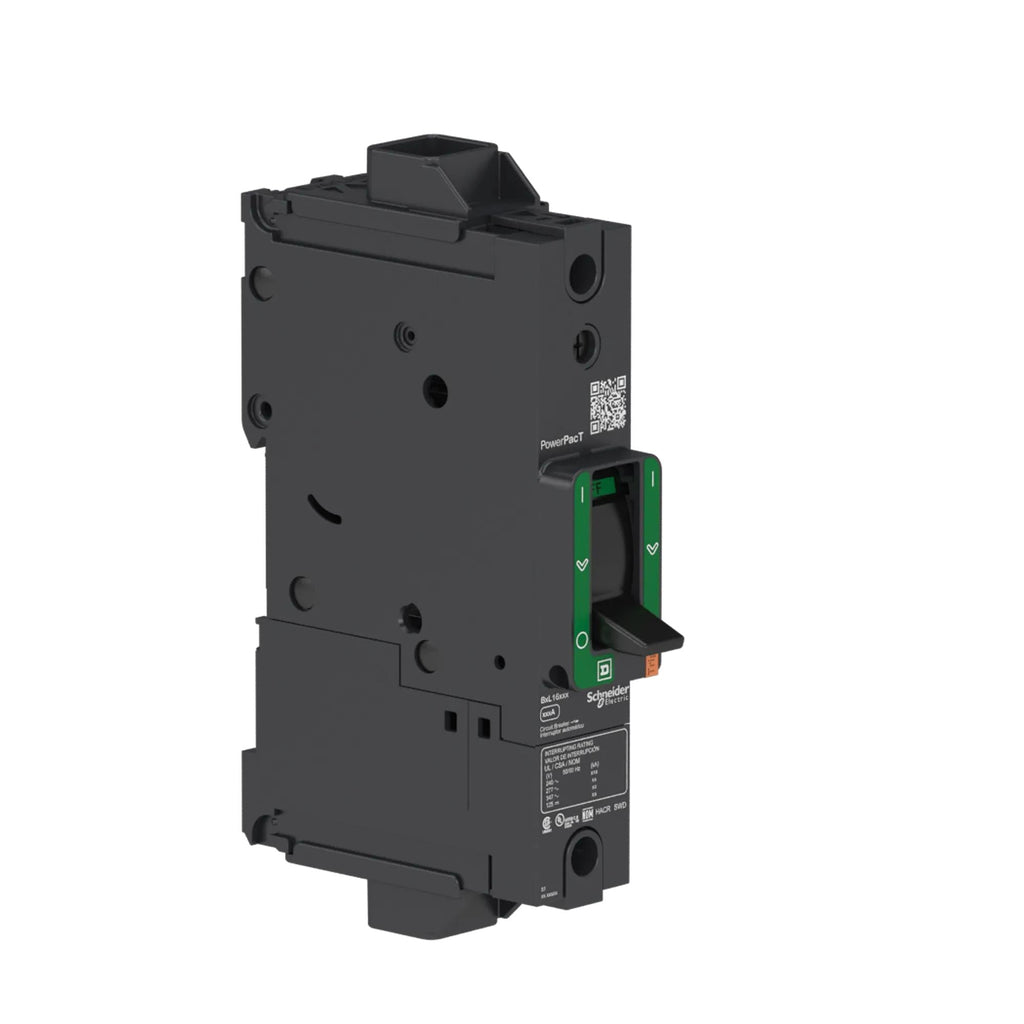

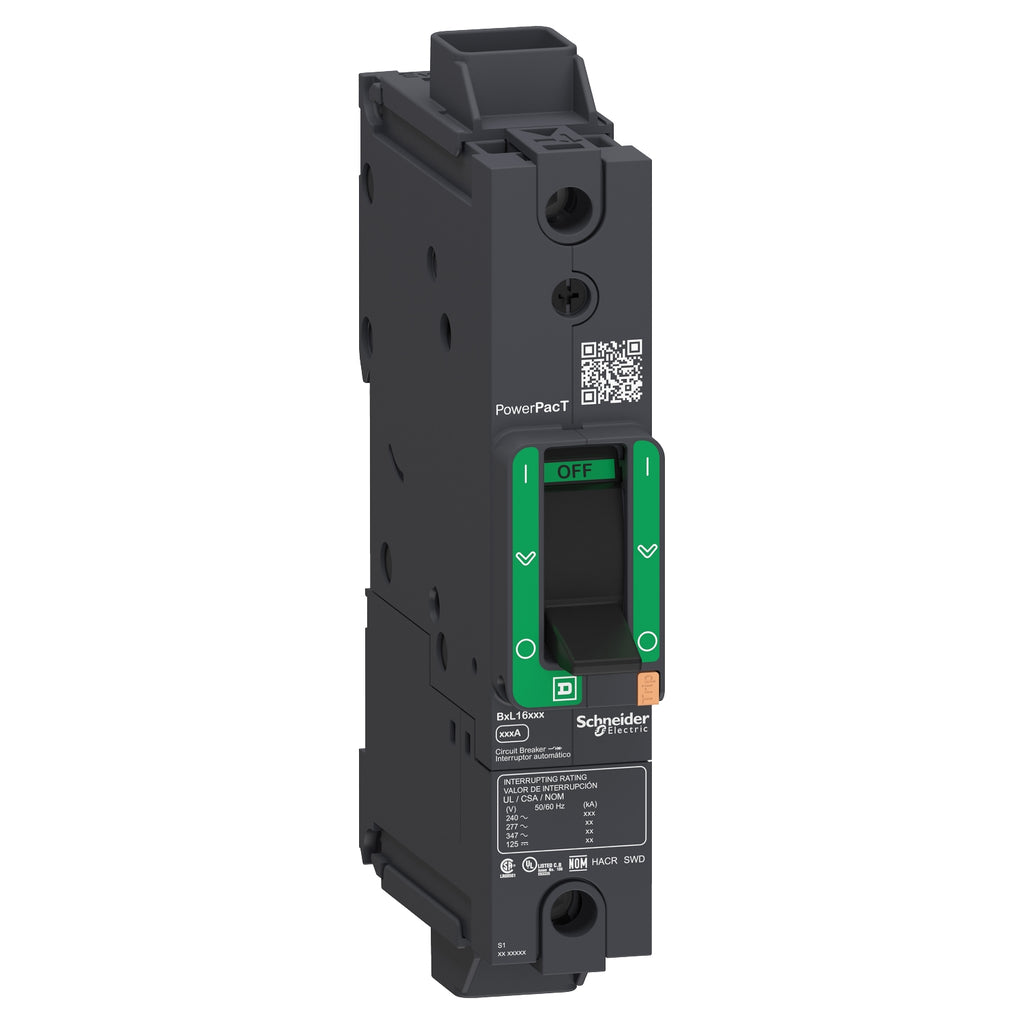

BDL16015 - Square D 15A 1 Pole PowerPact B Molded Case Circuit Breaker 600Y/347VAC 14kA Thermal Magnetic

BDL16015

BDL16015 is a Square D PowerPact B series molded case circuit breaker rated for 15 amps and 1 pole operation at 600Y/347VAC voltage. It features thermal magnetic trip technology for reliable protection.BDL16015 offers a breaking capacity of 14kA at 600Y/347VAC and supports continuous current rating of 80%. It is designed for use in power distribution systems requiring a 1.06 inch width frame size and lug-type mounting. This breaker complies with industry certifications and is part of the trusted PowerPact B frame family.

• Amperage: 15 Amps
• Voltage Rating: 600Y/347VAC
• Poles: 1
• Interrupt Rating: 14kA at 600Y/347VAC
• Trip Unit: Thermal Magnetic
• Series/Frame: PowerPact B
• Mounting Type: Lug
• Continuous Current Rating: 80%
• Width: 1.06 inches
• Country of Origin: Mexico
• Certifications: Industry standard compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL16015
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648114845
• GTIN : 03606481148452
• Country of Origin : Mexico

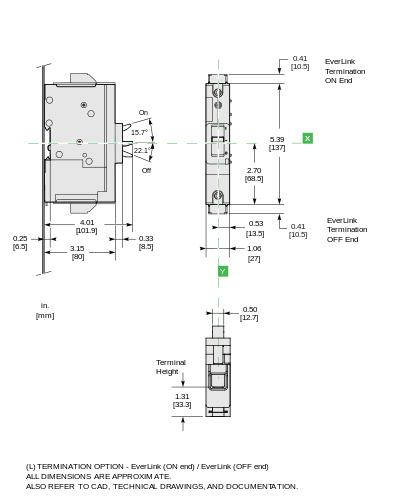

• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.5
• Standards : NMX J-266, EN/IEC 60947-5-1, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-2, NEMA AB1, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
