Description

BDA36100


BDA36100 is a Schneider Electric PowerPact B molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This 3-pole circuit breaker features a 100A amperage rating, 600Y/347VAC voltage, and a 14kA interrupt rating at 600Y/347V. It is designed for I-Line mounting, offers a thermal magnetic trip unit, and is rated for 80% continuous current. The breaker is part of the PowerPact B series, is UL 489 listed, and is mercury-free and RoHS compliant.

    Key Specifications
  • Amperage: 100A
  • Voltage: 600Y/347VAC
  • Poles: 3
  • Mounting Type: I-Line
  • Interrupt Rating: 14kA at 600Y/347VAC (also 25kA at 208Y/120VAC, 18kA at 480/277VAC)
  • Series/Frame: PowerPact B
  • Trip Unit: Thermal magnetic, non-interchangeable
  • Continuous Rating: 80%
  • Certifications: UL 489 listed
  • Connection: ABC phase
  • Color: Gray
  • Environmental: RoHS compliant, mercury-free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: BDA36100
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : I-Line
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901000181
  • GTIN : 03606481152725
  • Country of Origin : Mexico

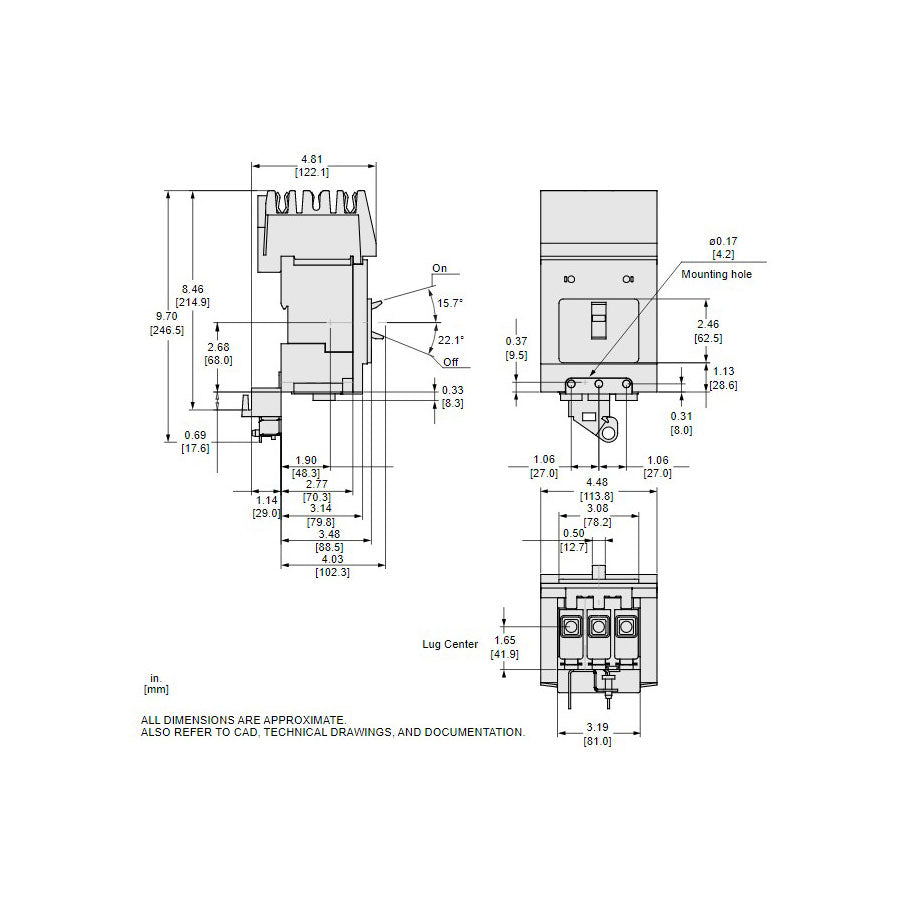

  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 4.12 lb
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NEMA AB1, CSA C22.2 No 5, GB 14048.2, UL 489, EN/IEC 60947-2, EN/IEC 60947-5-1, NMX J-266
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
