BDA24100Y1 - Square D 100A 2 Pole 480Y/277V AC I-Line Thermal Magnetic Circuit Breaker 18kAIC

BDA24100Y1

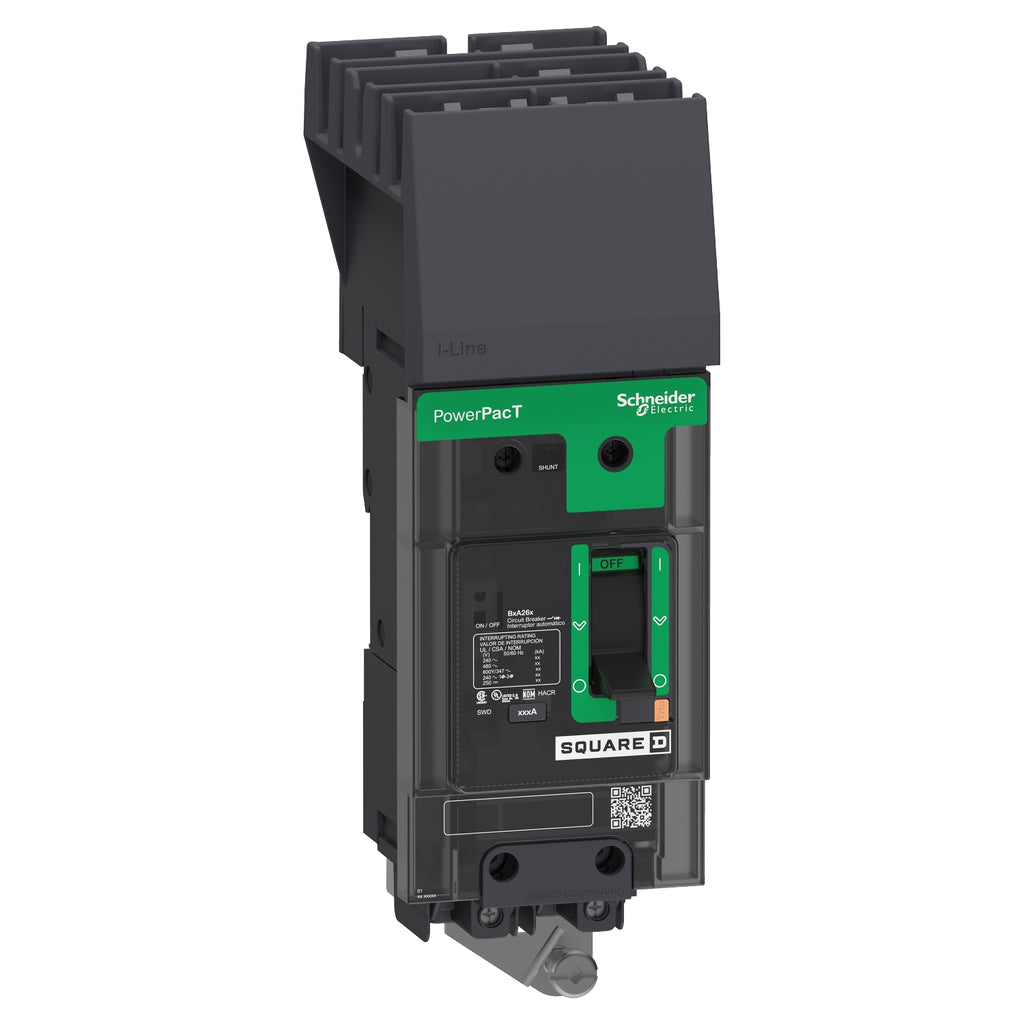

BDA24100Y1 is a Square D 2 pole, 100 amp thermal magnetic circuit breaker rated for 480Y/277VAC with an 18kA interrupting capacity.This BDA series breaker features an I-Line style plug-in mounting, long time and instantaneous trip functions, and is designed for reliable circuit protection in power distribution applications.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 480Y/277 VAC
• Number of Poles: 2
• Interrupting Rating: 18kAIC at 480V
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Frame/Series: BDA (PowerPact B)
• Terminal Connection: Line and Load Lug
• Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
• Certifications: UL, CSA, NOM, IEC, CE, RoHS
• Operating Temperature: -13 to 158°F
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA24100Y1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BDA
• Type : PowerPact Series
• Voltage : 480Y/277
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 18kAIC@480V
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Line and Load Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : AWG 14 to AWG 2/0 Aluminum/Copper
• Protection : Thermal Magnetic

Product Data

• UPC : 60648115195
• GTIN : 03606481151957
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.13
• Standards : UL 489, GB 14048.2, NMX J-266, CSA C22.2 No 5, EN/IEC 60947-5-1, EN/IEC 60947-2, NEMA AB1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
