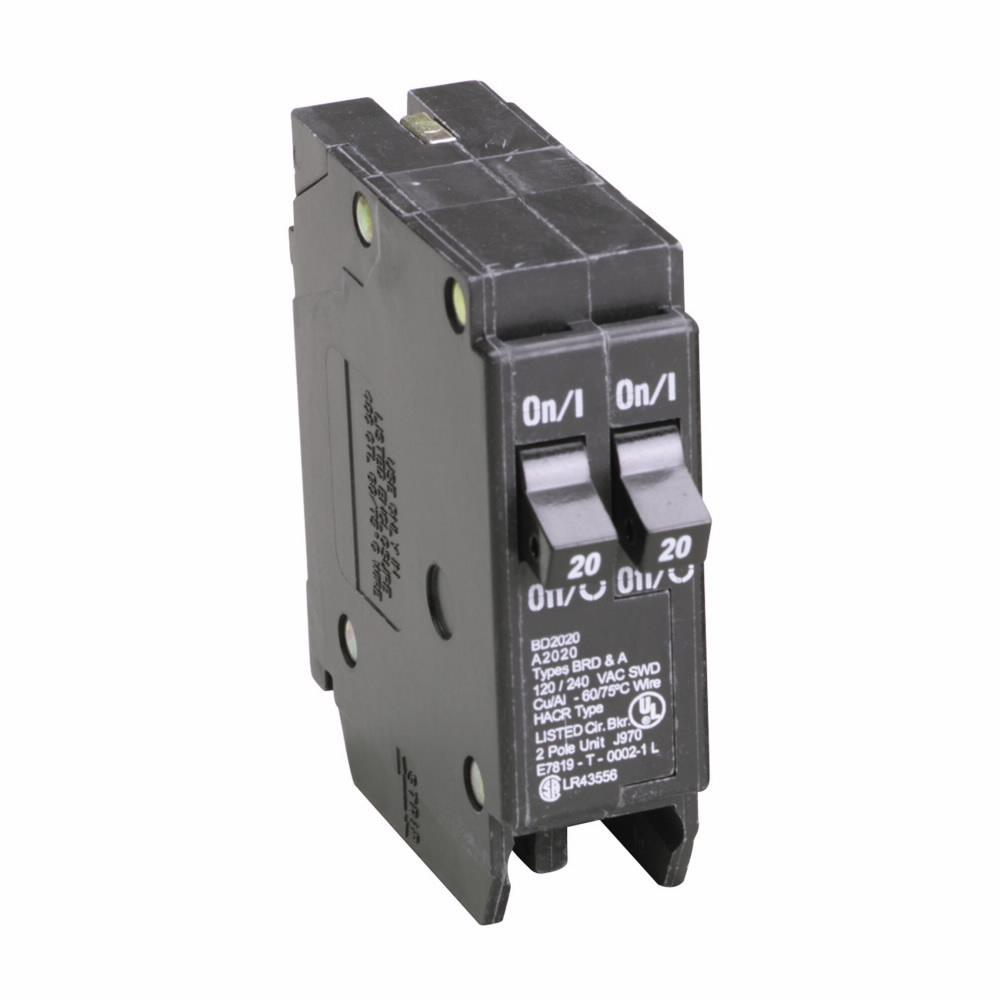

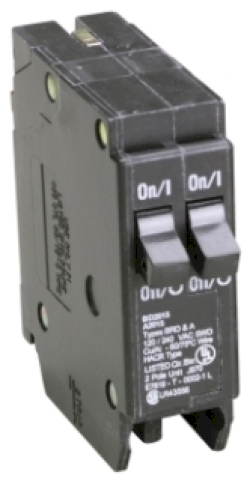

BD2020 - Eaton Cutler-Hammer 20/20 Amp 120V Duplex Plug-On Circuit Breaker 2 Pole 10kAIC

BD2020

BD2020 is a Eaton Cutler-Hammer 20/20 Amp duplex plug-on circuit breaker designed for reliable thermal magnetic protection.This tandem circuit breaker features a 2-pole design with 20 amps per pole, rated for 120 volts AC, and a 10,000 A interrupt rating. It supports copper or aluminum wire sizes 14-4 AWG at 60 or 75 degrees Celsius. The breaker includes a rejection tab feature for panel compatibility and is UL 489 listed and CSA certified for safety and performance.

• Manufacturer: Eaton Cutler-Hammer
• Part Number: BD2020
• Amperage: 20/20 Amps
• Voltage: 120 VAC
• Poles: 2 (Duplex)
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC
• Wire Size: #14-4 AWG Copper/Aluminum
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed, CSA Certified
• Rejection Tab Feature Included

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BD2020
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BD Series
• Type : BD
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786676369251
• GTIN : 00786676369251
• Country of Origin : United States
• Dimensions : 3 in x 1 in x 1.6 in (Length/Depth x Height x Width)
• Weight : 0.37
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 14 to AWG 4, Cu/Al
