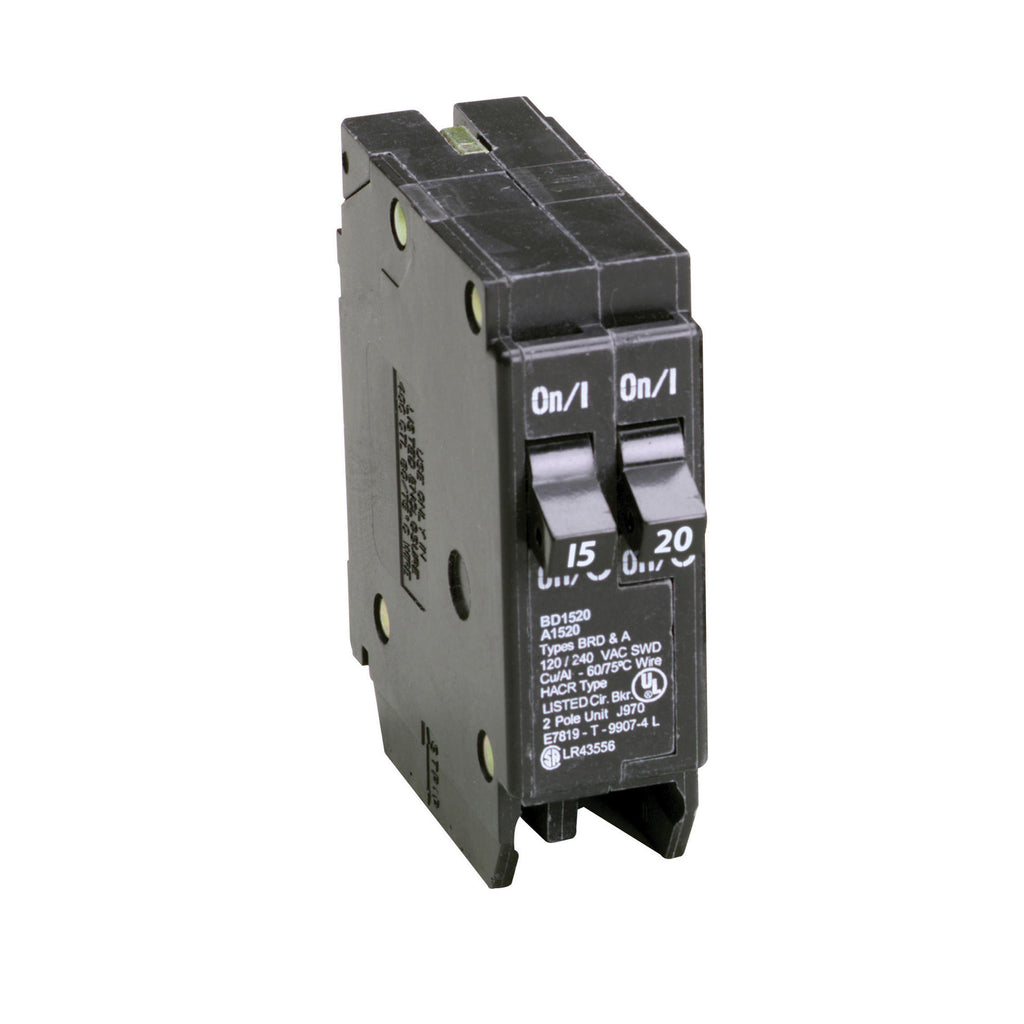

BD1520 - Eaton 15A/20A 1P 120V Type BD Tandem Circuit Breaker, 10 kAIC, Plug-On, Thermal Magnetic Trip, UL 489, for BR Load Centers

BD1520

BD1520 is an Eaton Type BD tandem circuit breaker designed for residential and light commercial electrical panels.

This thermal magnetic circuit breaker features two independent circuits (15A and 20A) in a single-pole, 1-inch form factor, with plug-on mounting for quick installation in Eaton BR load centers. It includes a rejection tab for code compliance and is rated for 120V operation with a 10 kAIC interrupting capacity. The breaker is suitable for copper or aluminum wire (#14-4 AWG) and is UL 489 listed for safety and reliability.

Key Specifications

• Part Number: BD1520
• Manufacturer: Eaton
• Amperage: 15A and 20A (tandem)
• Voltage: 120V
• Poles: 1 (single-pole, two circuits)
• Mounting Type: Plug-on (1-inch CTL)
• Interrupt Rating: 10 kAIC at 120V
• Series/Frame: Type BD, BR Load Centers
• Trip Unit: Thermal magnetic
• Certifications: UL 489
• Wire Size: #14-4 AWG Cu/Al
• Special Features: Rejection tab, tandem design
• Application: Residential, light commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BD1520
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BD Series
• Type : BD
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 4 AWG
• Breaker Type : Tandem
• Protection : Thermal Magnetic

Product Data

• UPC : 786676369107
• GTIN : 00786676369107
• Country of Origin : Dominican Republic
• Dimensions : 2.9 in x 2.6 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.35
• Panel Type : Type BR Loadcenters
• Standards : UL 489, Federal Specifications Classification W-C375
• Certification : UL 489, Federal Specifications Classification W-C375
• Wire Size : AWG 14 to AWG 4, Cu/Al
