Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
BCM6033PQ

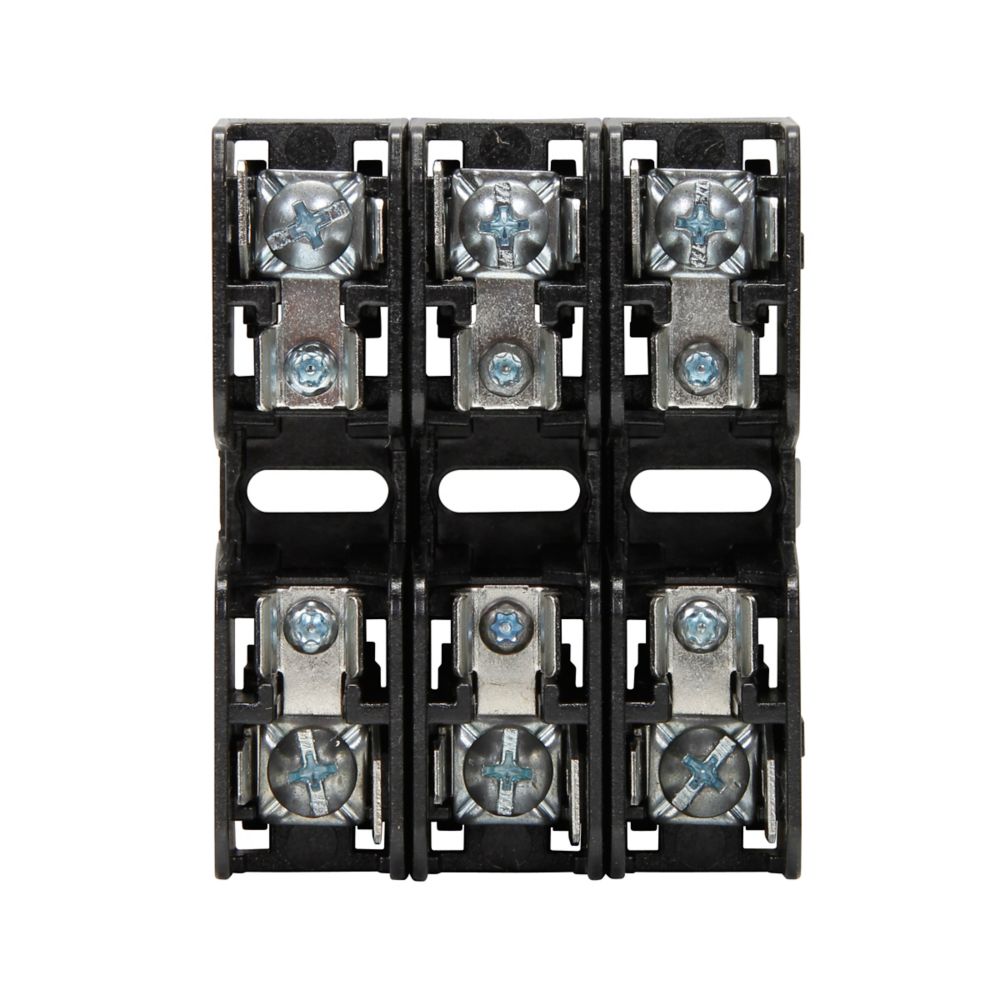

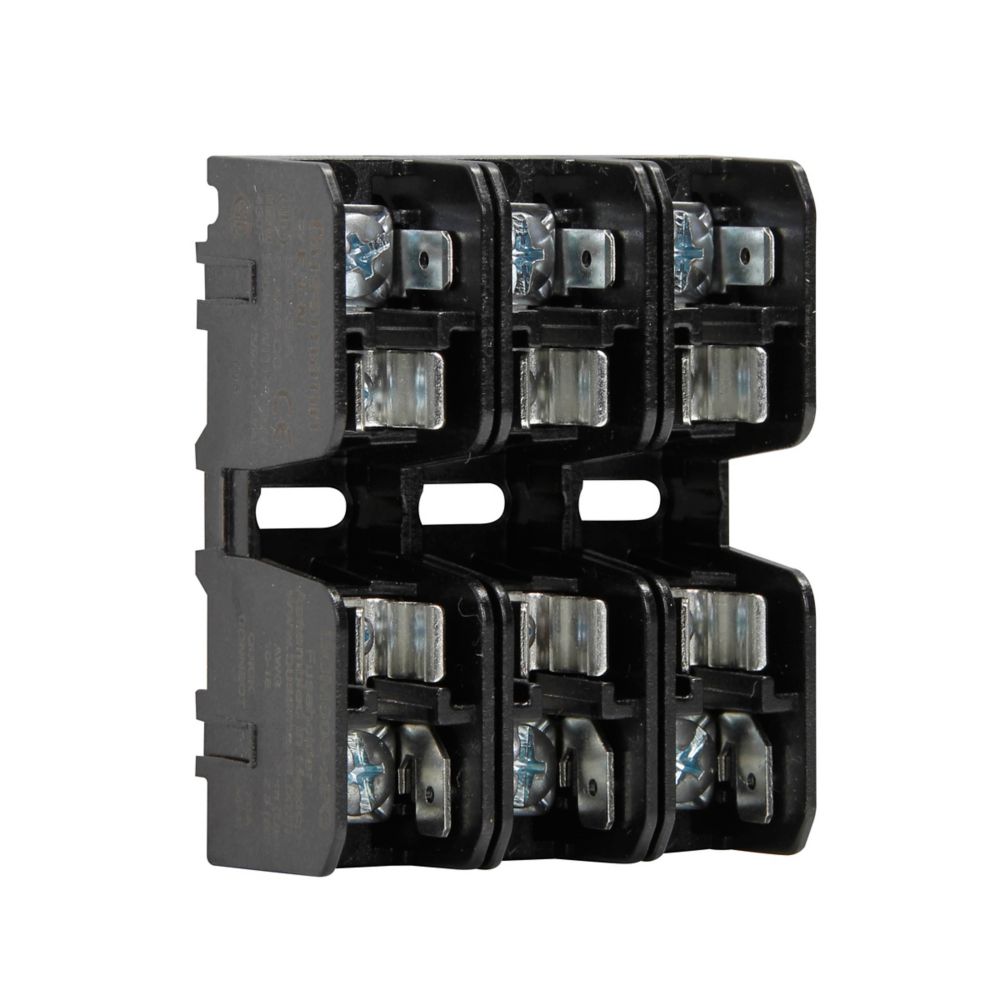

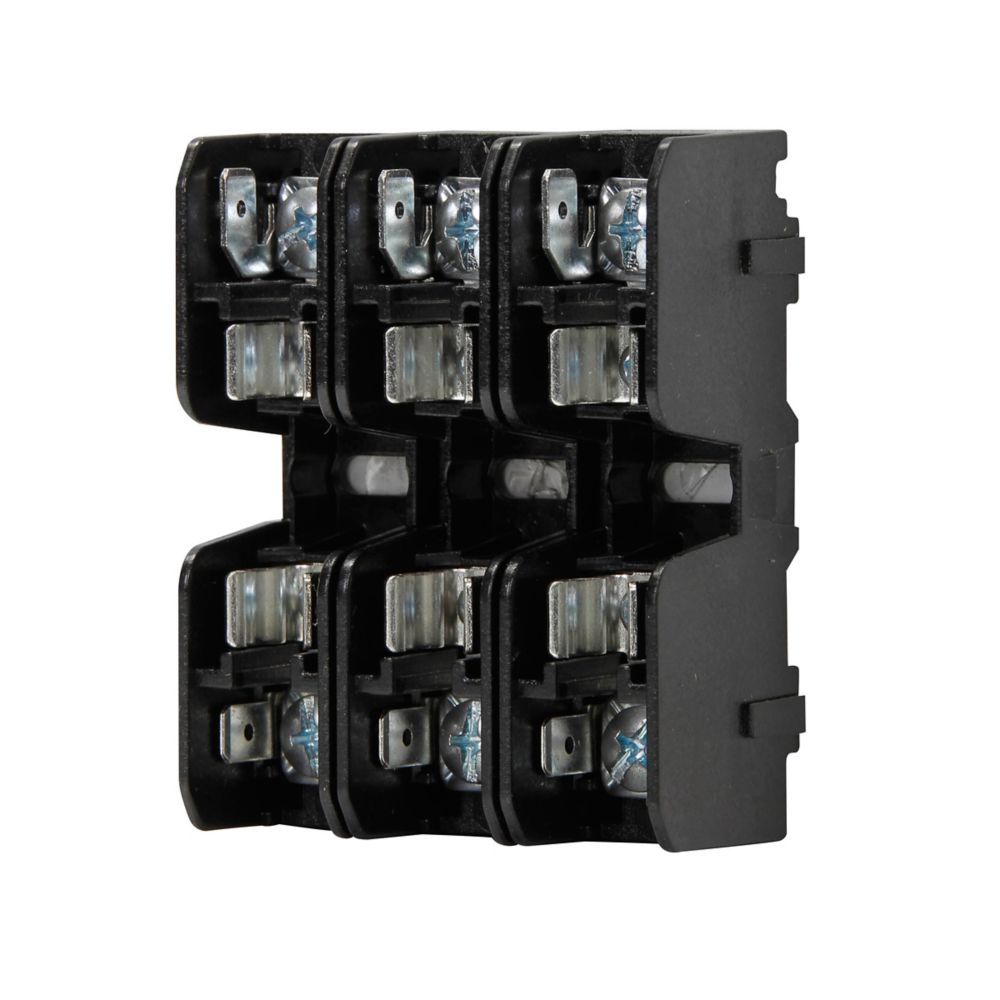

BCM603-3PQ is a 3-pole modular fuse block from Eaton's Bussmann series designed for Class CC fuses with pressure plate and quick connect terminals.This Eaton BCM603-3PQ fuse block supports up to 30 amps and 600 volts AC, featuring a modular design for easy installation on DIN rails. It uses pressure plate with quick connect terminals for secure and reliable connections. The fuse block is UL listed, CSA certified, RoHS compliant, and CE marked, ensuring safety and regulatory compliance.
- Manufacturer: Eaton
- Series: Bussmann BCM
- Fuse Class: Class CC
- Number of Poles: 3
- Current Rating: 30 Amps
- Voltage Rating: 600 VAC
- Terminal Type: Pressure Plate with Quick Connect
- Mounting Type: DIN Rail
- Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
- Fuse Size Held: 13/32 x 1-1/2 inch (Class CC)
- Weight: Approximately 0.212 lb
Specifications
- Part Number: BCM6033PQ
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : BCM
- Voltage : 600
- Amperage : 30
Product Data
- UPC : 5171248674
- GTIN : 00051712486743
- Weight : 0.08
