Product Info
- Manufacturer:Bussmann
Description
BCCM6033PQ

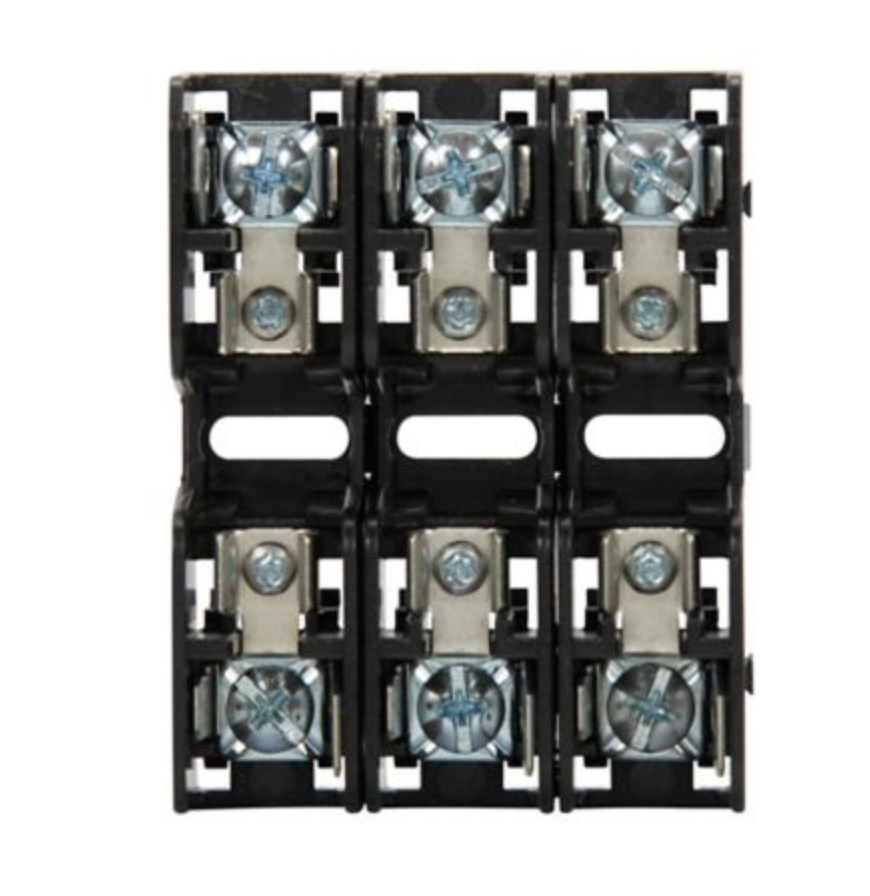

BCCM6033PQ is a Bussmann 3-pole Class CC fuse block rated for 30 amps and 600 volts with pressure plate connection and DIN rail mounting. This fuse block supports two Class CC fuses and one 10x38 mm midget fuse, designed for industrial power distribution applications. It features a pressure plate/quick connect connection type and is suitable for use in environments with operating temperatures from -40°C to 120°C. The unit is RoHS compliant and constructed for reliable performance in electrical protection systems.
- Amperage Rating: 30 A
- Voltage Rating: 600 V
- Number of Poles: 3
- Fuse Size Compatibility: 2 Class CC, 1 Midget (10x38 mm)
- Connection Type: Pressure Plate/Quick Connect
- Mounting Method: DIN Rail
- Operating Temperature Range: -40°C to 120°C
- Class: Class CC
- RoHS Compliant
Specifications
- Part Number: BCCM6033PQ
- Brand : Bussmann
Product Data
- Weight : 0.08
