Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
BC6033S

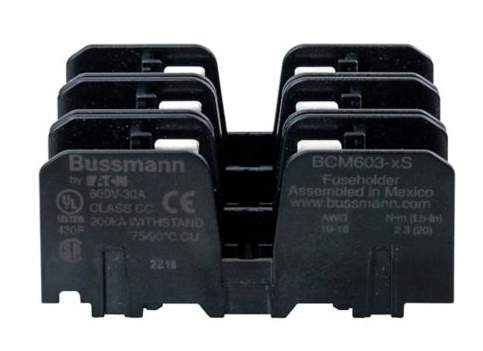

BC6033S is a 3-pole Class CC fuse block designed for panel mounting, rated for 30 amps and 600 volts AC.
This Eaton Bussmann Series fuse block supports Class CC fuses and is suitable for use in electrical circuit protection applications. It features a thermoplastic base with bright tin-plated bronze clips, is UL listed and CSA certified, and has a withstand rating of 200,000 RMS symmetrical amperes. The fuse block is designed for copper conductors only and accepts wire sizes from #10 to #14 AWG. It is compliant with UL 512 and CSA C22.2 No. 39 standards and has a UL 94V0 flammability rating.
- Manufacturer: Eaton
- Part Number: BC6033S
- Type: Class CC Fuse Block
- Amperage: 30 Amps
- Voltage Rating: 600 Volts AC
- Number of Poles: 3
- Mounting Type: Panel Mount
- Wire Range: #10-#14 AWG Copper Only
- Interrupt Rating: 200,000 RMS Symmetrical Amperes
- Certifications: UL Listed, CSA Certified
- Material: Thermoplastic Base, Tin-Plated Bronze Clips
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BC6033S
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Section : Fuse Block
- Family : BC Series
- Type : BC
- Voltage : 600
- Amperage : 30
- Mounting : Screw
Product Data
- UPC : 051712121897
- Weight : 3
