Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Fuse Block
Description
BC6031B

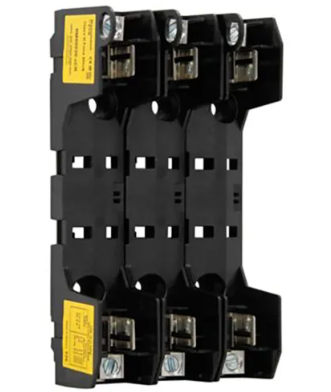

BC6031B is a Class CC fuse block from Edison Fuses designed for 30 ampere and 600 volt applications.
This fuse block features a thermoplastic base with bright tin-plated bronze clips and meets UL 94V0 flammability standards. It is rated for 600 volts AC/DC and 30 amps, suitable for low voltage branch circuit protection. The compact design supports Class CC fuses sized 13/32" x 1-1/2" (10mm x 38mm) and provides a maximum interrupt rating suitable for typical industrial and commercial electrical systems.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 VAC/DC
- Fuse Size Held: Class CC (13/32" x 1-1/2")
- Construction: Thermoplastic base, tin-plated bronze clips
- UL Flammability Rating: 94V0
- Mounting Type: Panel Mount
- Interrupt Rating: Suitable for Class CC fuse interrupting capacity
- Number of Poles: 1
- Part Number: BC6031B
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : BC Series
- Type : BC
- Voltage : 600
- Amperage : 30
- Mounting : Box
- UPC : 051712137430
- Country of Origin : Mexico
- Weight : 1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
