Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
BBS-6/10

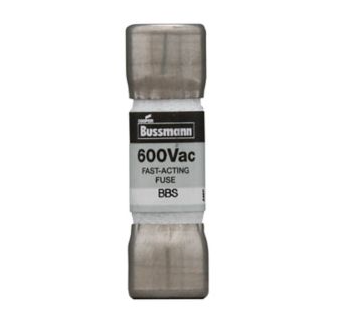

BBS-6/10 is a fast-acting midget fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a ferrule end style and is constructed with a fibre tube and nickel-plated brass endcaps for durability and consistent performance. The BBS-6/10 fuse is rated for 6/10 amps and 600 volts AC, making it suitable for a wide range of electrical systems. It is commonly used in fuse holders and is designed for easy installation and replacement. The fuse is non-indicating and provides a high interrupting rating for enhanced safety.
- Amperage: 6/10A
- Voltage Rating: 600V AC
- Mounting Type: Holder
- Interrupting Rating: 10,000A
- Fuse Size: 5AG Midget (10.3 mm x 38.1 mm)
- Endcap Material: Nickel Plated Brass
- Tube Material: Fibre
- Indicator Style: Without Indicator
- UL Listed: Yes
- CSA Certified: Yes
Specifications
- Part Number: BBS-6/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : BBS Series
- Type : BBS
- Voltage : 600
- Amperage : 6
- AIC rating : 10kA@600V
- Barrels : 1
Product Data
- UPC : 05171270735
- GTIN : 00051712707350
- Country of Origin : Mexico
- Dimensions : 1.38 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE, CSA, UL Listed
