BBS-10 - Eaton Bussmann 10 Amp 250 Volt Fast Acting Midget Fuse, Ferrule Type, 1 Pole

BBS-10

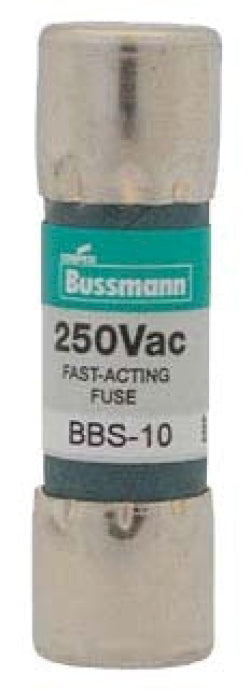

BBS-10 is a fast acting midget fuse from Eaton Bussmann designed for 10 Amp, 250 Volt AC applications.This fuse features a ferrule type construction with a fibre tube body and nickel-plated brass endcaps. It measures 13/32" x 1 3/8" and has a 10,000 Amp interrupting rating at 250 VAC. It is UL Listed to standard 248-14 and CSA Certified to C22.2 No. 248.14, ensuring reliable circuit protection.

Key Specifications
• Amperage: 10 Amps
• Voltage Rating: 250 Volts AC
• Fuse Type: Fast Acting
• Poles: 1
• Mounting Type: Ferrule End x Ferrule End
• Interrupting Rating: 10,000 Amps at 250 VAC
• Physical Size: 13/32" x 1 3/8"
• Body Material: Fibre Tube
• Endcaps: Nickel Plated Brass
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BBS-10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : BBS Series
• Type : BBS
• Voltage : 250
• Amperage : 10
• AIC rating : 10kA@250V
• Barrels : 1

Product Data

• UPC : 051712707503
• GTIN : 00051712707503
• Country of Origin : Mexico
• Dimensions : 0.37 in x 1.31 in x 0.37 in (Length/Depth x Height x Width)
• Weight : 0.1 lb
• Certification : CE, CSA, UL Listed
