Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
BBS-1

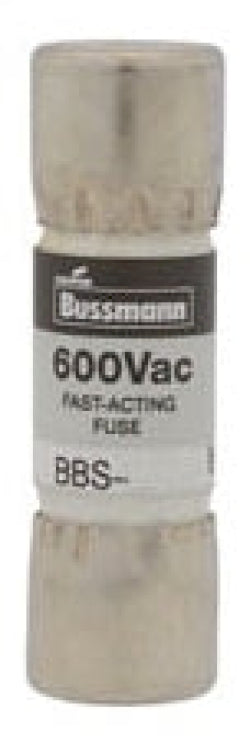

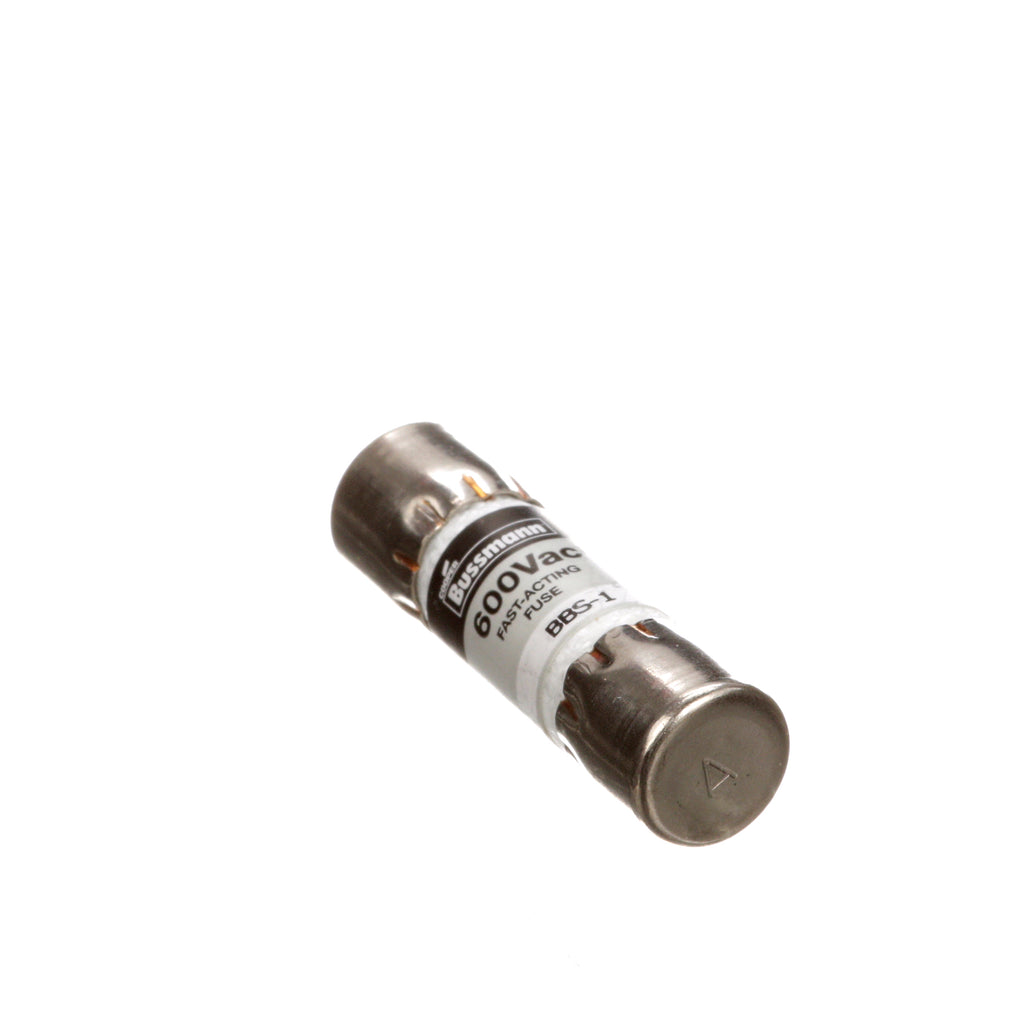

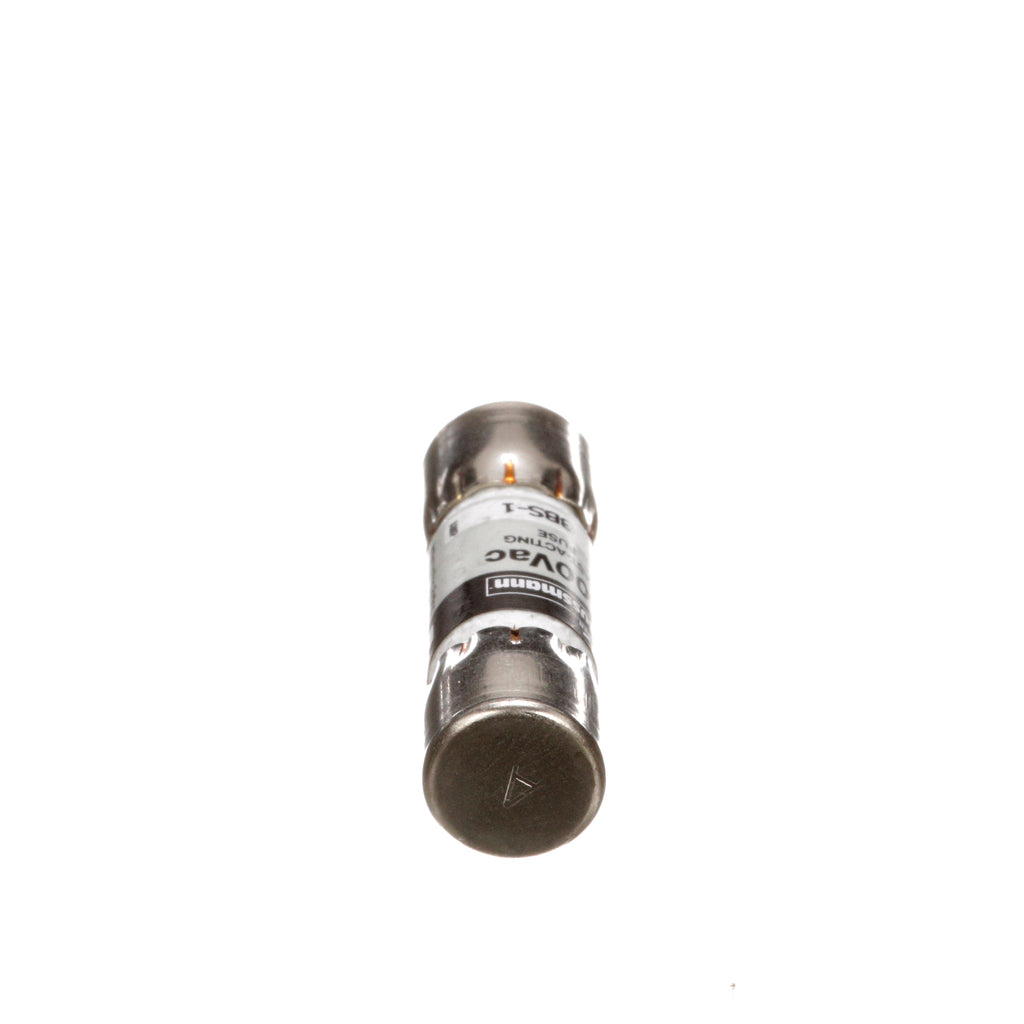

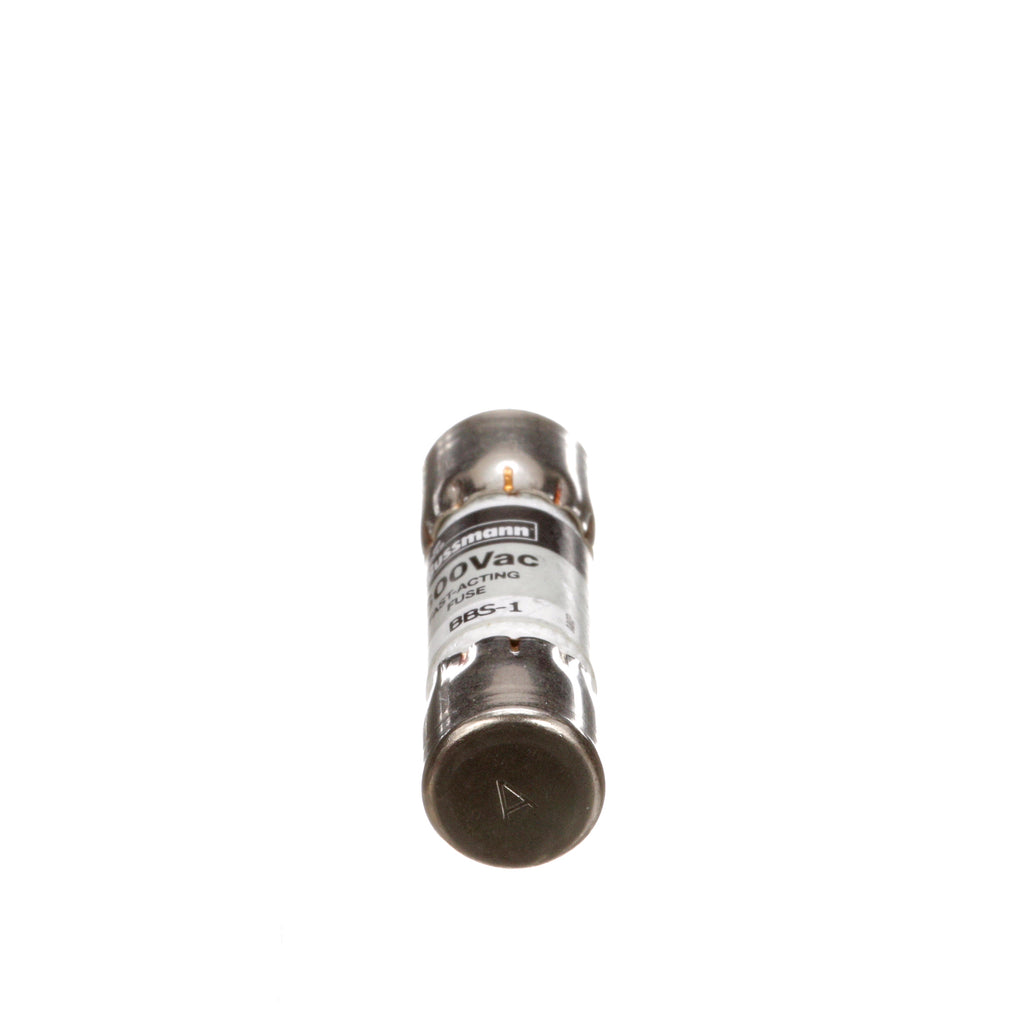

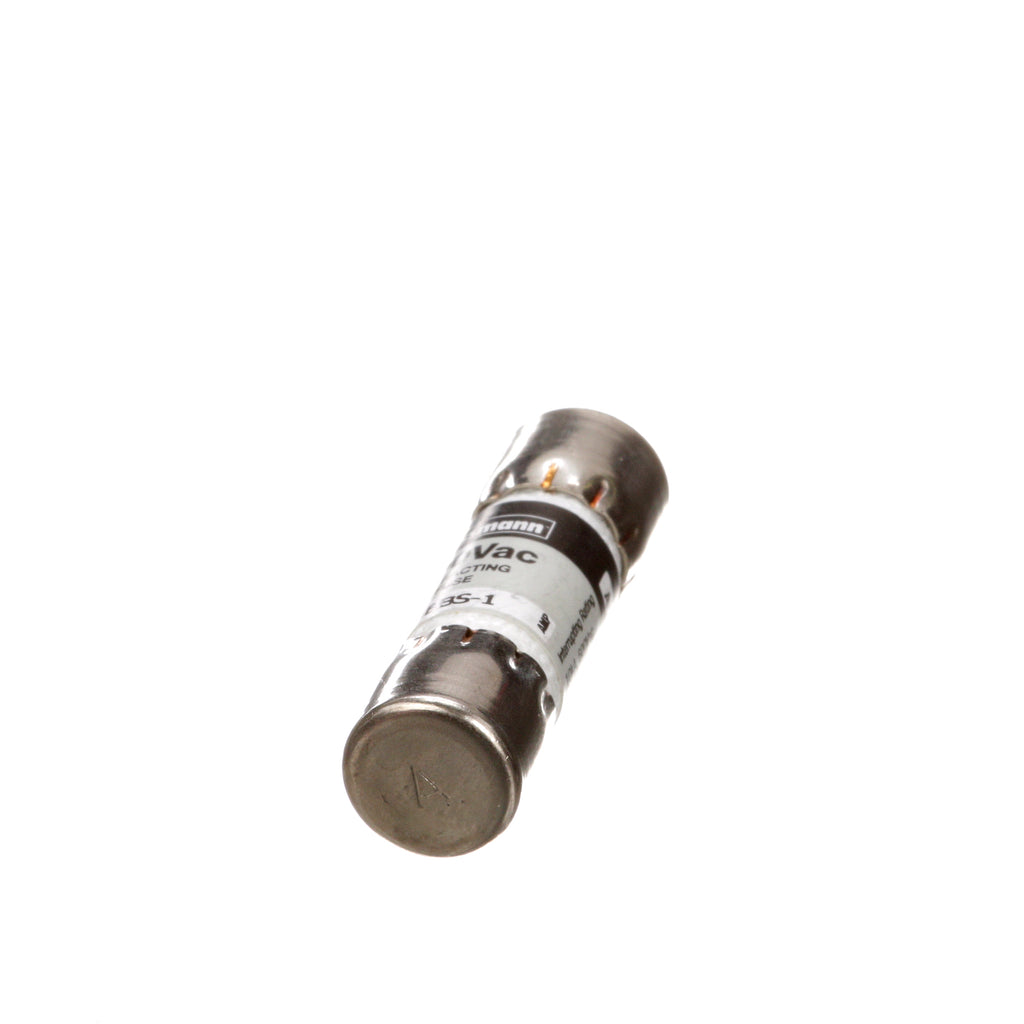

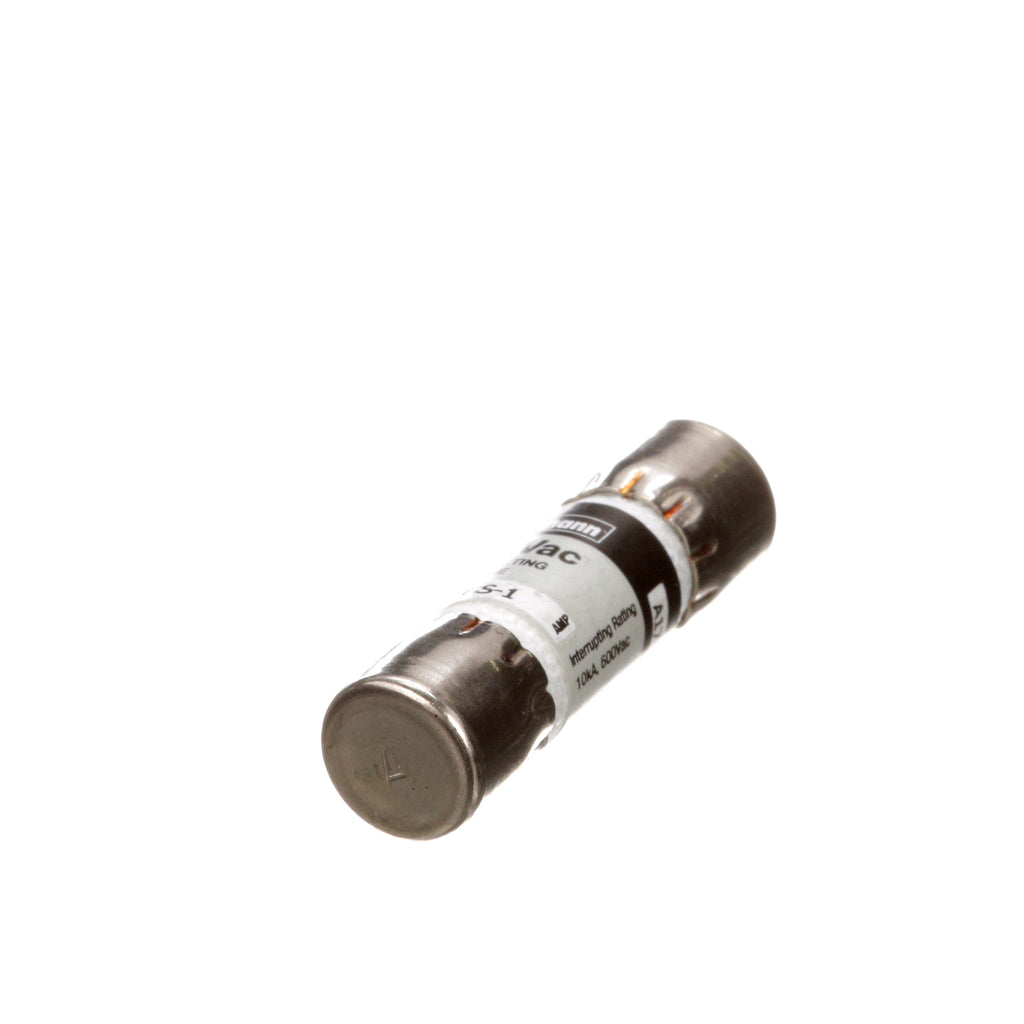

BBS-1 is a 1 Amp, 600 Volt AC fast-acting midget fuse from Eaton Bussmann series with ferrule end connections and a 10,000 A interrupting rating.
This fuse features nickel-plated brass endcaps, a fiber tube body, and is non-indicating. It measures 13/32 inch diameter by 1 3/8 inch length, designed for supplemental protection with a 10 kAIC interrupt rating at 600 Vac. The BBS-1 is UL listed (STD. 248-14 File #E19180), CSA certified (C22.2 No. 248.14), and CE marked, making it suitable for industrial and electrical applications requiring fast-acting protection.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 600 Volts AC
- Interrupting Rating: 10,000 Amps (10 kAIC) at 600 Vac
- Fuse Type: Fast Acting
- Connection Type: Ferrule End x Ferrule End
- Material: Nickel-plated Brass Endcaps, Fiber Tube
- Dimensions: 13/32 inch diameter x 1 3/8 inch length
- Certifications: UL Listed, CSA Certified, CE Marked
- Non-indicating Fuse
- Replacement for F16B fuses
- Part Number: BBS-1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : BBS Series
- Type : BBS
- Voltage : 600
- Amperage : 1
- AIC rating : 10kA@600V
- Barrels : 1
- UPC : 051712707435
- GTIN : 00051712707435
- Country of Origin : Mexico
- Dimensions : 1.38 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.1 lb
- Certification : CE, CSA, UL Listed
