BBS-1-6/10 - Eaton Bussmann 1.6A 600V Fast Acting Midget Fuse 10kA Interrupt Rating

BBS-1-6/10

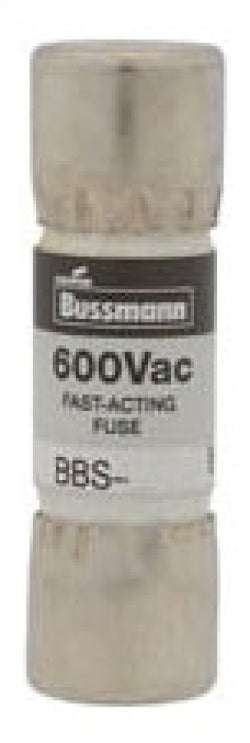

BBS-1-6/10 is a fast-acting midget fuse from Eaton Bussmann series designed for supplemental circuit protection.This fuse features a 1.6 ampere rating, 600 volts AC voltage rating, and a 10,000 amp interrupt rating. It has a cylindrical fiberglass body measuring 13/32 inch diameter by 1-3/8 inch length with nickel-plated brass endcaps. The fuse is non-indicating and compatible with BMM and CHM fuse blocks. It meets CE, CSA, and UL certifications.

Key Specifications
• Amperage: 1.6 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 10 kA
• Fuse Type: Fast Acting (Fast Blow)
• Body Material: Fiberglass
• Dimensions: 13/32" diameter x 1-3/8" length
• Endcaps: Nickel-plated brass
• Indicating: Non-indicating
• Series: Bussmann BBS
• Compatible Fuse Blocks: BMM, CHM
• Certifications: CE, CSA, UL Listed
• Mounting Type: Panel or DIN-rail compatible fuse holders
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BBS-1-6/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : BBS Series
• Type : BBS
• Voltage : 600
• Amperage : 1
• AIC rating : 10kA@600V
• Barrels : 1



Product Data

• UPC : 051712707381
• GTIN : 00051712707381
• Country of Origin : Mexico
• Dimensions : 0.36 in x 1.34 in x 0.36 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE, CSA, UL Listed
