Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
BBS-1-1/2

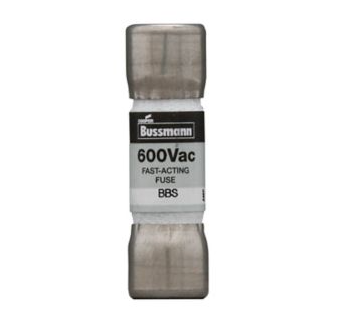

BBS-1-1/2 is a fast-acting, cylindrical midget fuse from Eaton, designed for supplemental circuit protection in electrical systems.
This fuse features a 1.5A current rating, 600VAC voltage rating, and a 10kA AC interrupting rating. It is constructed with a fiber tube and nickel-plated brass endcaps, and is color-coded for easy identification. The BBS-1-1/2 is part of the BBS Series, suitable for a wide range of low-voltage applications, and is certified by UL and CSA for safety and compliance.
-
Key Specifications
- Part Number: BBS-1-1/2
- Manufacturer: Eaton
- Amperage: 1.5A
- Voltage: 600VAC
- Poles: 1
- Mounting Type: Cylindrical (13/32" x 1-3/8")
- Interrupt Rating: 10kA AC
- Series/Frame: BBS Series, Midget
- Trip Unit: Fast-Acting (Fast Blow)
- Certifications: UL Listed (Std. 248-14), CSA Certified (C22.2 No. 248.14)
- Construction: Fiber tube, nickel-plated brass endcaps
- Color Code: Black (1/10-6A @ 600VAC)
- RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BBS-1-1/2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : BBS Series
- Type : BBS
- Voltage : 600
- Amperage : 1
- AIC rating : 10kA@600V
- Barrels : 1
Product Data
- UPC : 05171270753
- GTIN : 00051712707534
- Country of Origin : Mexico
- Dimensions : 0.36 in x 1.34 in x 0.36 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE, CSA, UL Listed
