BAF-9 - Eaton 9A 250V Fast-Acting Midget Fuse 200AIC 10kAIC Non-Indicating

BAF-9

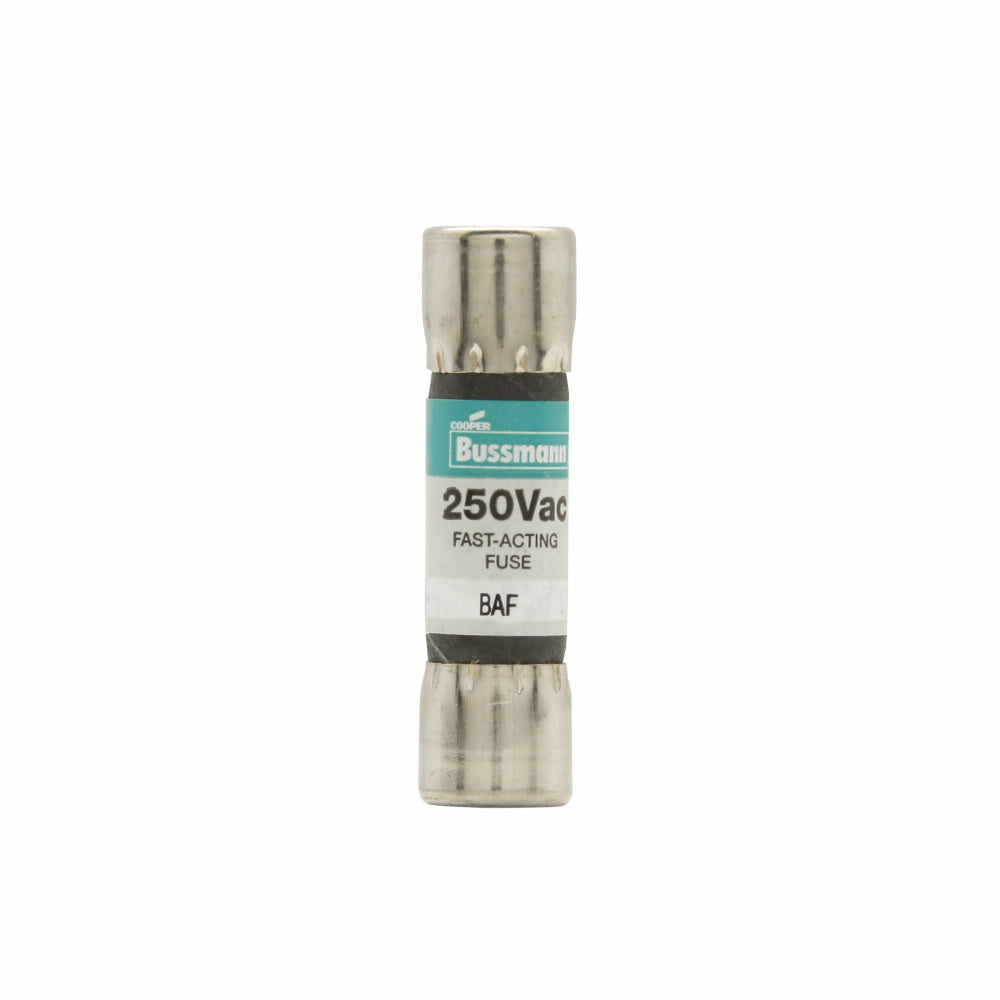

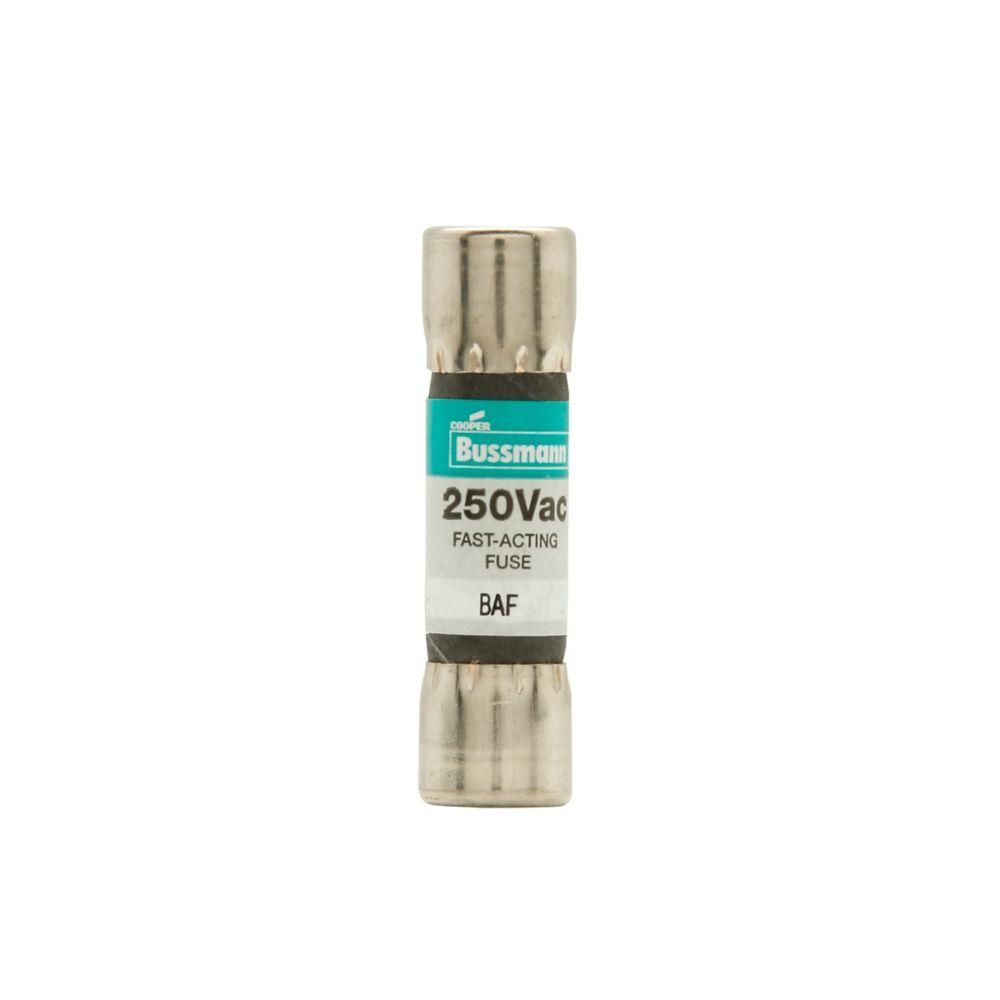

BAF-9 is a 9 amp, 250 volt fast-acting midget fuse from Eaton's Bussmann series designed for general purpose circuit protection.BAF-9 features a non-indicating design with nickel-plated brass endcaps and a fiber tube body. It has a high interrupting rating of 200 AIC at 250 Vac and 10 kAIC at 125 Vac, suitable for lighting and meter circuits. This fuse is a standard size 13/32" x 1-1/2" and complies with CE marking and UL standards.

Key Specifications
• Amperage Rating: 9 A
• Voltage Rating: 250 V AC
• Fuse Type: Fast-Acting (Fast Blow)
• Interrupting Rating: 200 AIC at 250 Vac, 10 kAIC at 125 Vac
• Poles: Single Pole
• Mounting Type: Midget Fuse Holder
• Material: Nickel-Plated Brass Endcaps, Fiber Tube
• Fuse Size: 13/32" x 1-1/2" (5AG Midget)
• Fuse Indicator: Non-Indicating
• Certifications: CE Marked, UL Listed
• Replacement for F16B fuses

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BAF-9
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : BAF Series
• Type : BAF
• Voltage : 250
• Amperage : 9
• AIC rating : 10kA@250V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712320146
• GTIN : 00051712320146
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.25 lb
• Certification : CE, CSA, UL Listed
