BAF-4 - Bussmann Eaton 4 Amp 250 Volt Fast Acting Midget Fuse 1-Pole 200AIC

BAF-4

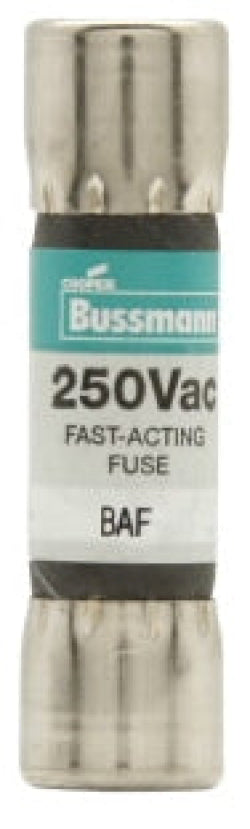

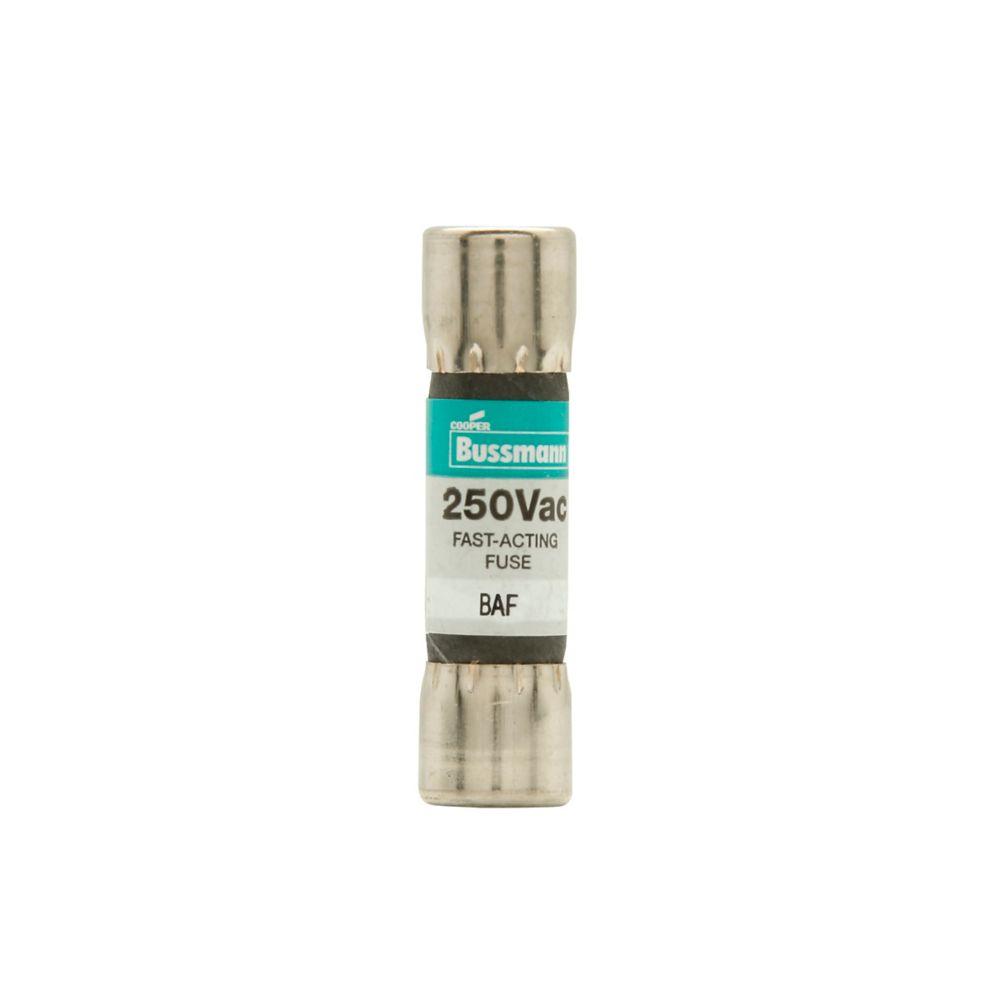

BAF-4 is a 4 Amp, 250 Volt fast acting midget fuse from Bussmann Eaton designed for supplemental circuit protection.This BAF series fuse features a fiber tube body with nickel-plated brass endcaps, measuring 13/32" x 1 1/2". It is rated for 250 VAC and 150 VDC with an interrupting rating of 200 AIC at 250 VAC and 10,000 AIC at 125 VAC. The fuse is UL recognized (File # E19180) and suitable for use in holder mounting styles.

Key Specifications
• Amperage: 4 Amps
• Voltage Rating: 250 VAC, 150 VDC
• Fuse Type: Fast Acting
• Poles: 1
• Mounting Type: Holder
• Interrupting Rating: 200 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
• Body Material: Fiber Tube
• Endcaps: Nickel Plated Brass
• Physical Size: 13/32" x 1 1/2"
• Series: BAF
• Certifications: UL Recognized (File # E19180)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BAF-4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : BAF Series
• Type : BAF
• Voltage : 250
• Amperage : 4
• AIC rating : 10kA@250V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712320047
• GTIN : 00051712320047
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.25 lb
• Certification : CE, CSA, UL Listed
