BAF-10 - Bussmann Eaton Fast-Acting 10A 250VAC Midget Fuse 1-Pole 200A Interrupt Rating

BAF-10

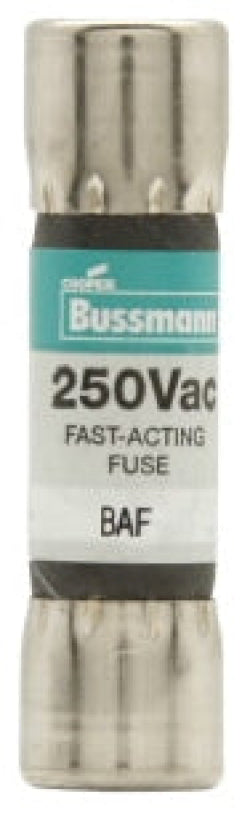

BAF-10 is a Bussmann Eaton fast-acting midget fuse rated for 10 amps and 250 volts AC.

This BAF series fuse features a 1-pole design with a fast blow characteristic, non-indicating and non-rejection type construction. It has nickel-plated brass end caps and a fiberglass tube body measuring 13/32 inch by 1 1/2 inch. The fuse provides a 200 amp interrupt rating at 250 VAC and 10 kA interrupt rating at 125 VAC, suitable for low voltage supplemental protection in various electrical applications. It is UL listed and CSA certified under standard 248-14.

Key Specifications
• Amperage: 10 A
• Voltage Rating: 250 VAC
• Poles: 1
• Fuse Type: Fast-Acting (Fast Blow)
• Interrupt Rating: 200 A at 250 VAC, 10 kA at 125 VAC
• Body Style: Midget, 13/32 in x 1 1/2 in
• End Caps: Nickel-plated brass
• Mounting Type: Cartridge fuse
• Series: BAF
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BAF-10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : BAF Series
• Type : BAF
• Voltage : 250
• Amperage : 10
• AIC rating : 10kA@250V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712320108
• GTIN : 00051712320108
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.25 lb
• Certification : CE, CSA, UL Listed
