Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

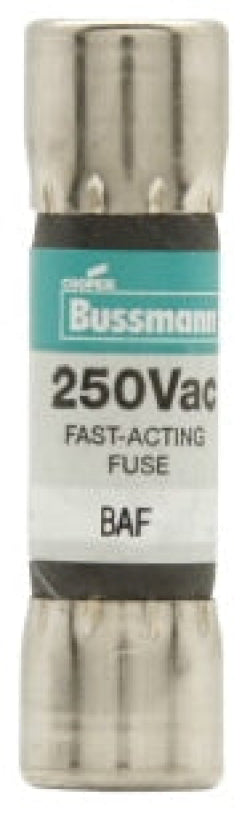

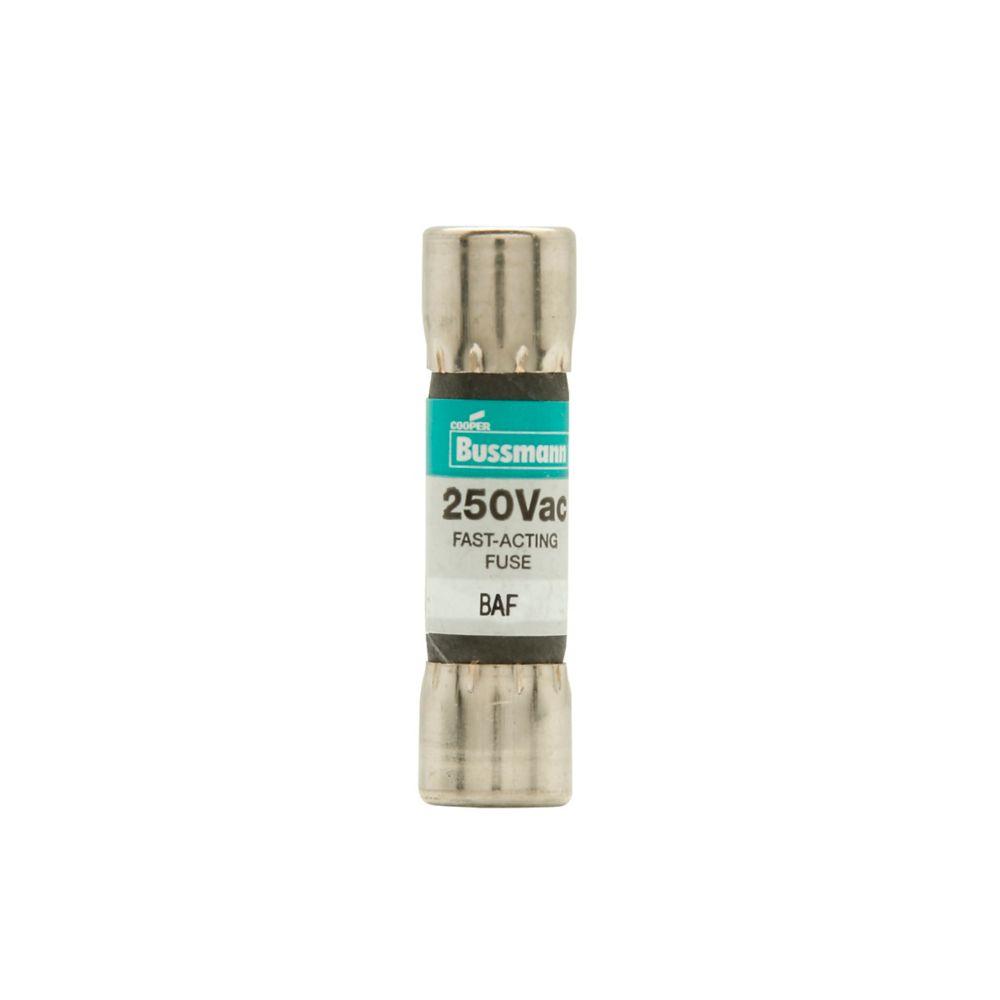

BAF-1
BAF-1 is a fast-acting supplemental fuse from Eaton Bussmann designed for low voltage circuit protection.
This fuse features a 1 ampere rating and 250 volt AC maximum voltage, with a compact size of approximately 0.4 x 1.5 inches. It is a single-element, non-rejection type intended for mounting in fuse holders. The BAF series is UL listed to standard 248-14 and CSA certified, with an interrupting rating of 35 amps at 250 VAC for the 1 amp size. It is color-coded green and suitable for supplemental protection in various electrical applications.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 250 Volt AC
- Fuse Type: Fast Acting
- Mounting Type: Fuse Holder
- Interrupting Rating: 35 Amps at 250 VAC
- Series: BAF
- Dimensions: Approximately 0.4 x 1.5 inches
- Certifications: UL Listed, CSA Certified
- Color Code: Green
- Fuse Element: Single Element Non-Rejection
- Part Number: BAF-1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : BAF Series
- Type : BAF
- Voltage : 250
- Amperage : 1
- AIC rating : 10kA@250V
- Diameter : 0.41
- Barrels : 1
- UPC : 051712320016
- GTIN : 00051712320016
- Country of Origin : Mexico
- Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.25 lb
- Certification : CE, CSA, UL Listed
