Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BAB3045H

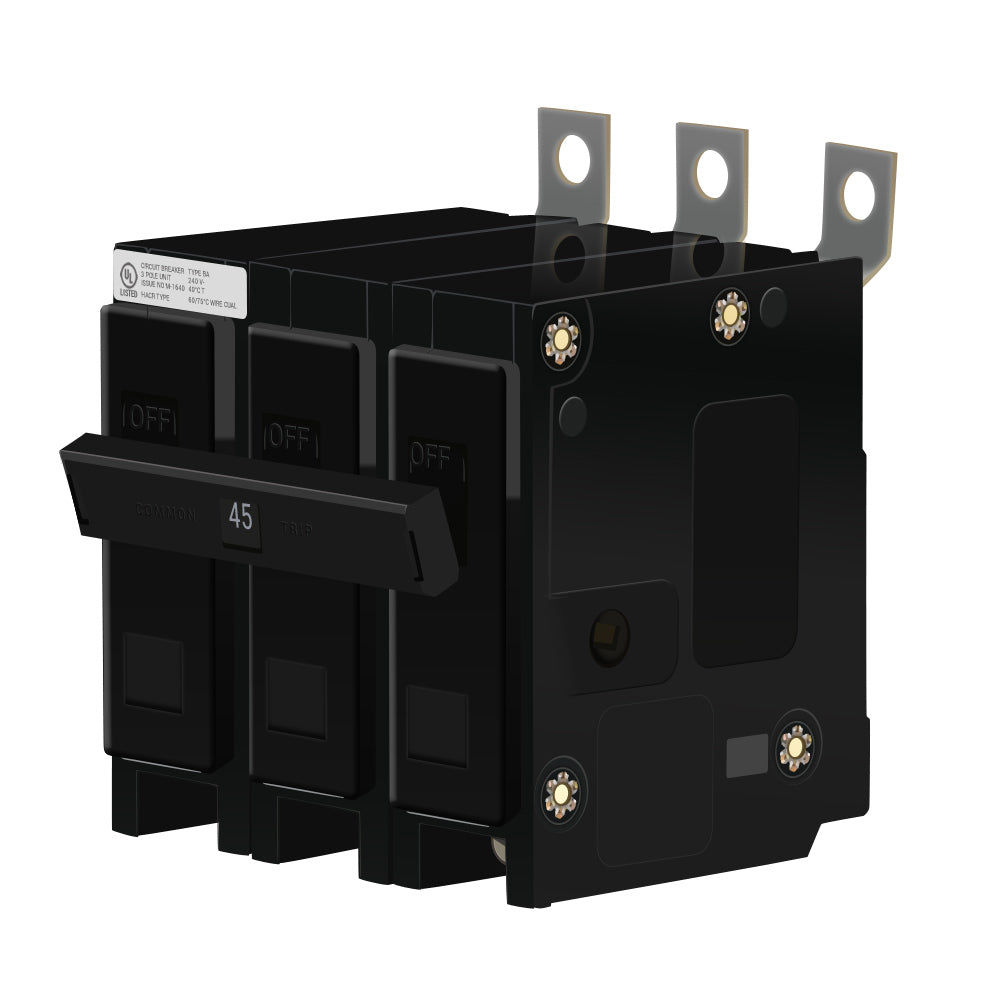

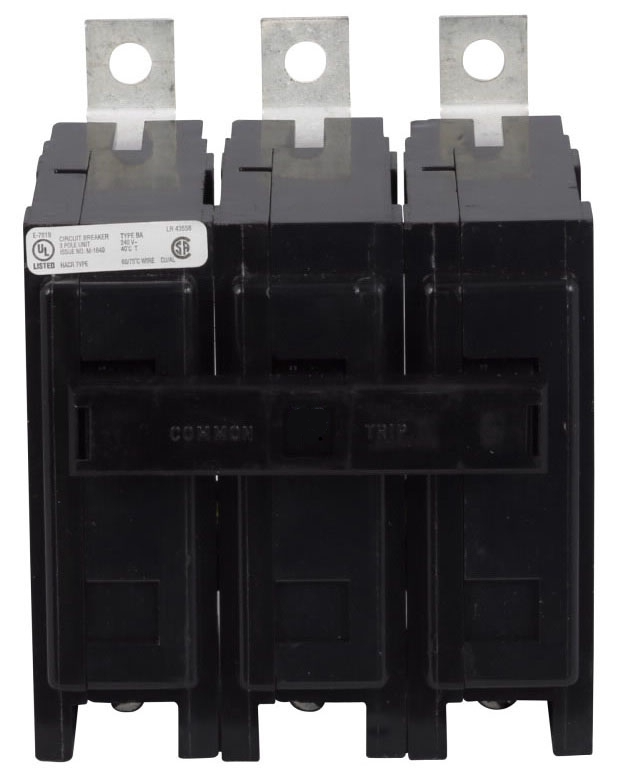

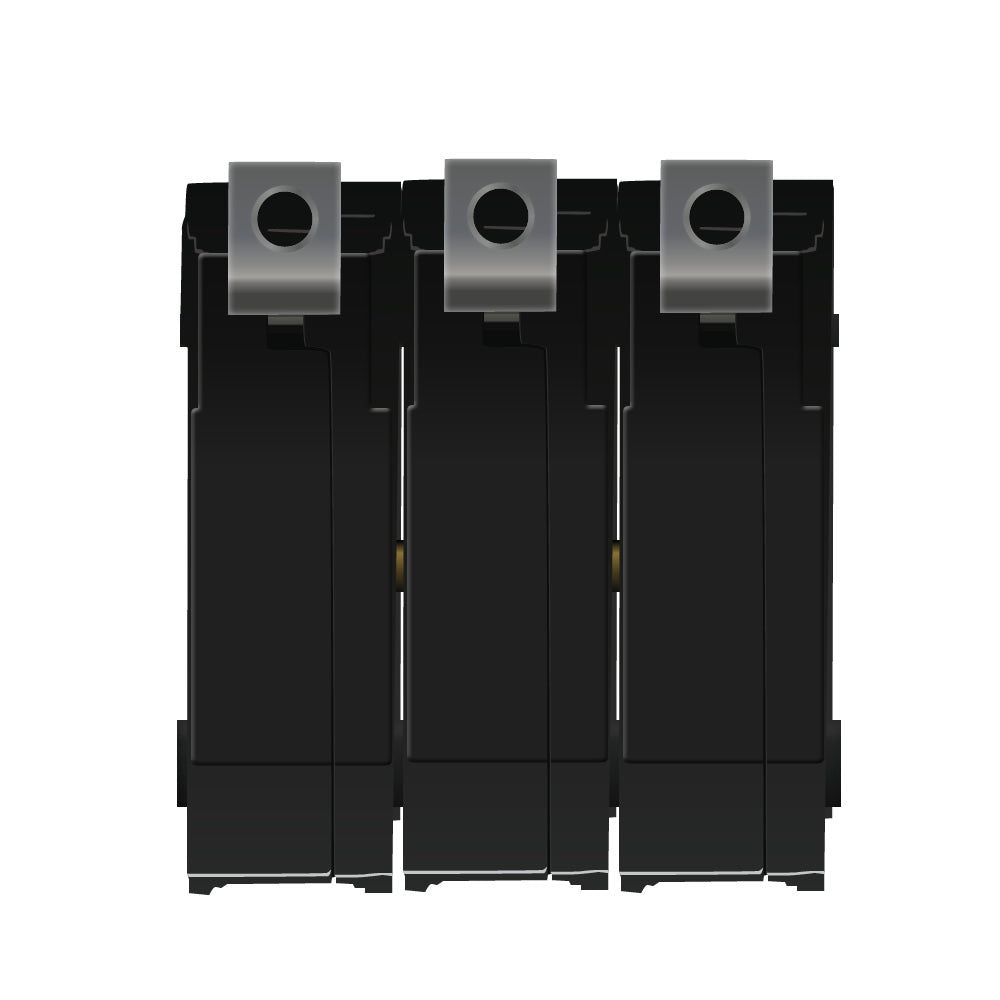

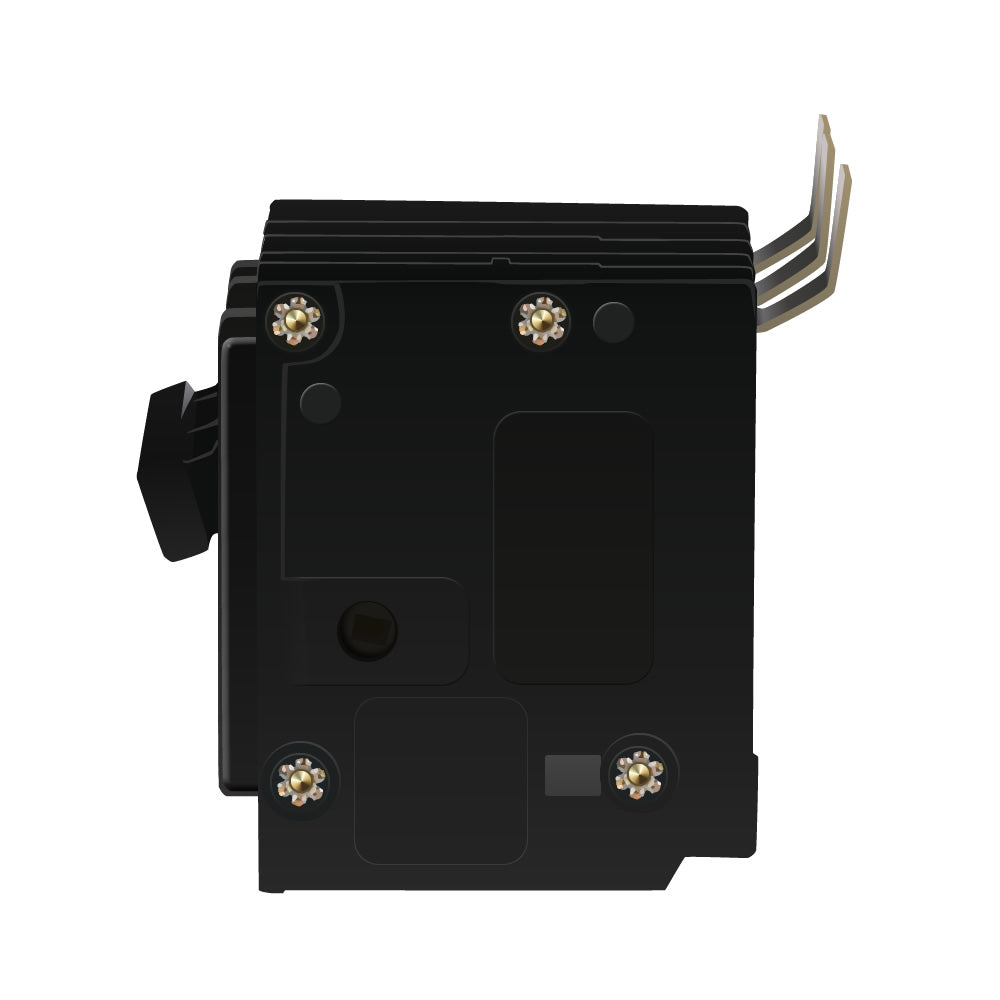

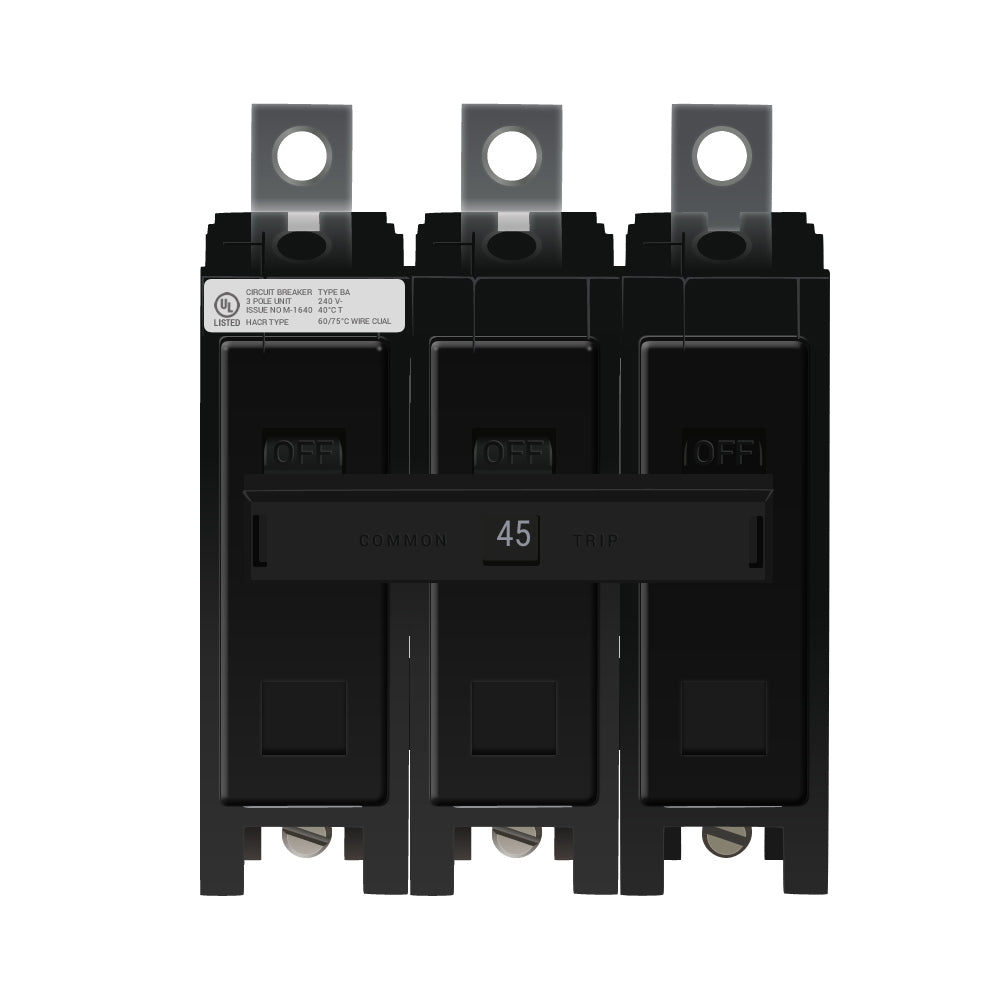

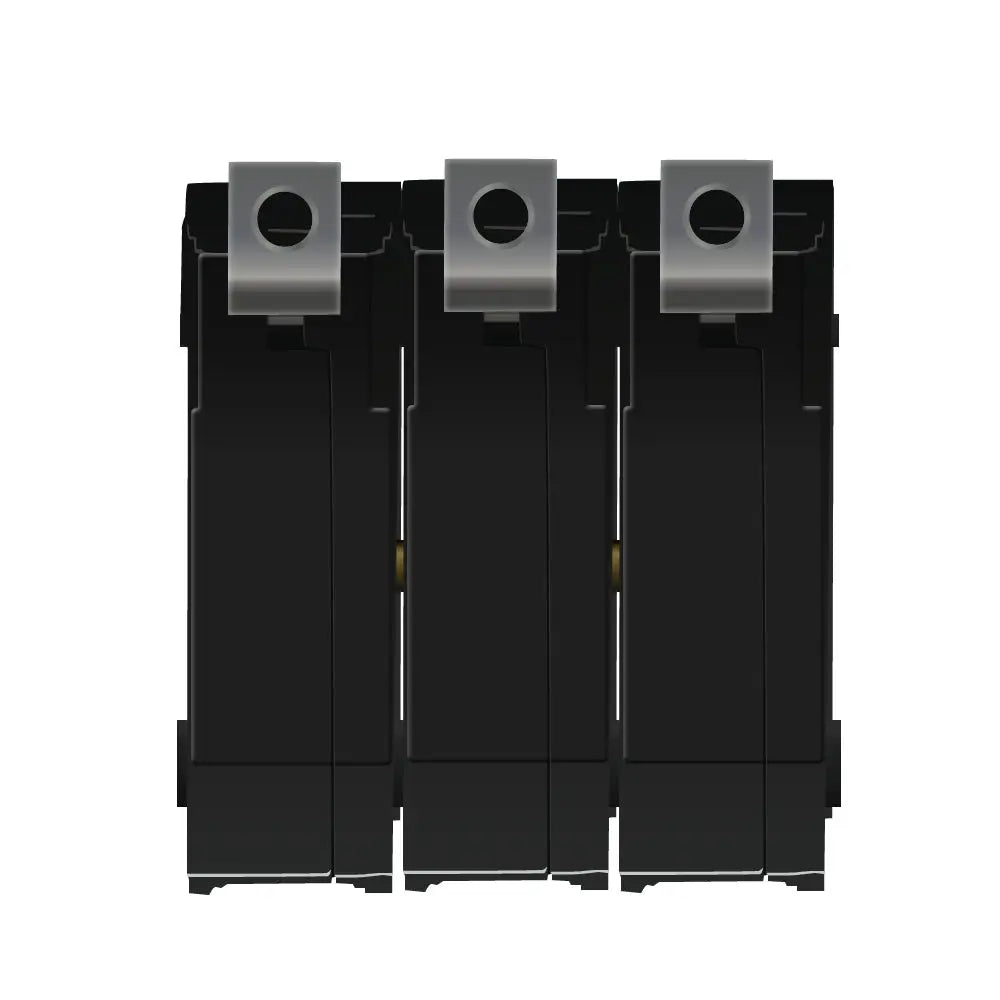

BAB3045H is a Cutler Hammer 3-pole thermal magnetic circuit breaker with a 45 amp rating and 240 VAC voltage suitable for industrial applications.This BAB series bolt-on breaker features a 10 kA interrupt rating, extended tang line and box lug load terminals, and UL 489 and CSA certifications.
- Key Specifications
- Amperage: 45 Amps
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10,000 Amps (10 kA)
- Series/Frame: BAB
- Trip Unit: Thermal Magnetic
- Terminal Type: Extended Tang Line and Box Lug Load Terminals
- Wire Size: 14 to 4 AWG Aluminum/Copper
- Certifications: UL 489 Listed, CSA Certified
Specifications
- Part Number: BAB3045H
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : BAB
- Voltage : 240
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679303450
- GTIN : 00786679303450
- Country of Origin : Dominican Republic
- Dimensions : 3.5 in x 3.5 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.95
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
- Wire Size : 14 To 4 Awg (Aluminum/Copper Load)
