Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BAB3040HS

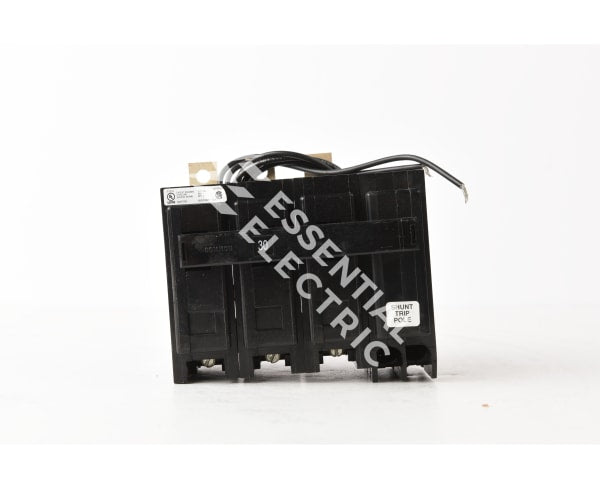

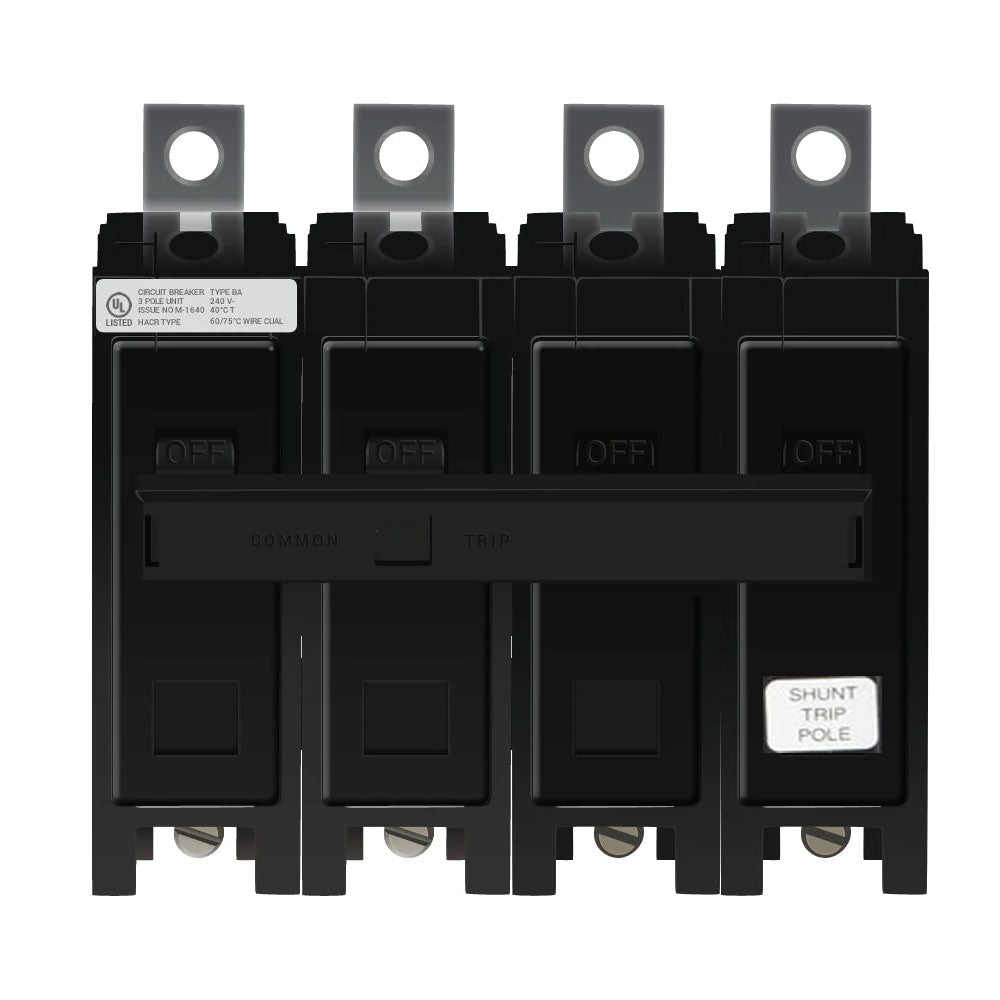

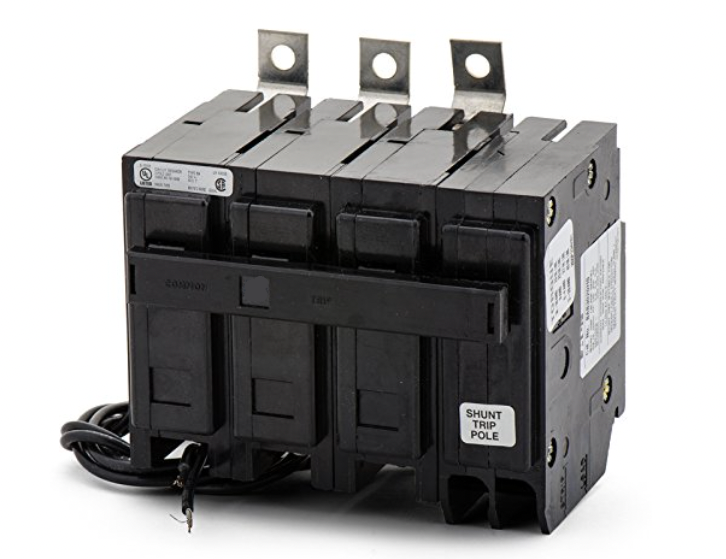

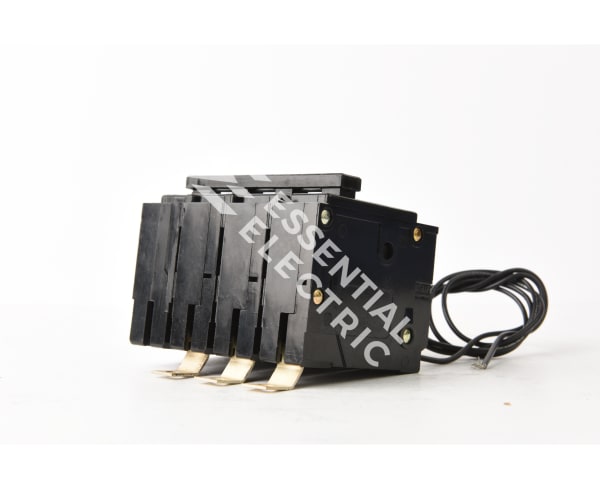

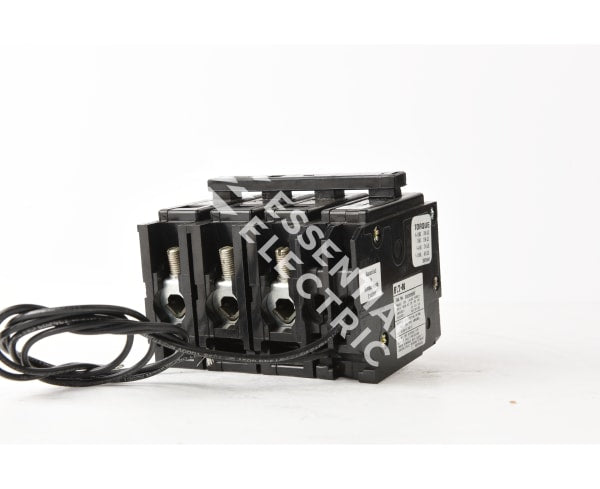

BAB3040HS is a Westinghouse 3 pole, 40 amp, 240 volt bolt-on circuit breaker designed for industrial and commercial applications.This BAB series Quicklag thermal-magnetic circuit breaker features a 10 kA interrupt rating at 240V, non-interchangeable trip unit, and a 120V shunt trip. It is UL Listed, CSA Certified, and HACR rated for reliable performance. The breaker supports aluminum and copper wiring with extended tang line terminals and box lug load terminals for easy installation.
- Manufacturer: Westinghouse (Eaton / Cutler-Hammer)
- Part Number: BAB3040HS
- Amperage: 40 A
- Voltage: 240 V AC
- Poles: 3
- Interrupt Rating: 10 kAIC
- Mounting Type: Bolt-On
- Trip Type: Thermal-Magnetic, Non-Interchangeable
- Frame Type: BAB
- Shunt Trip: 120 V AC
- Certifications: UL Listed, CSA Certified, HACR Rated
- Wire Size Range: 14 to 4 AWG Aluminum/Copper
Additional Information
complete with 120V shunt trip
Specifications
- Part Number: BAB3040HS
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : BAB
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679509661
- GTIN : 00786679509661
- Country of Origin : Dominican Republic
- Dimensions : 4 in x 3.3 in x 3.6 in (Length/Depth x Height x Width)
- Weight : 1.25
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
- Wire Size : 14 To 4 AWG (Aluminum/Copper
