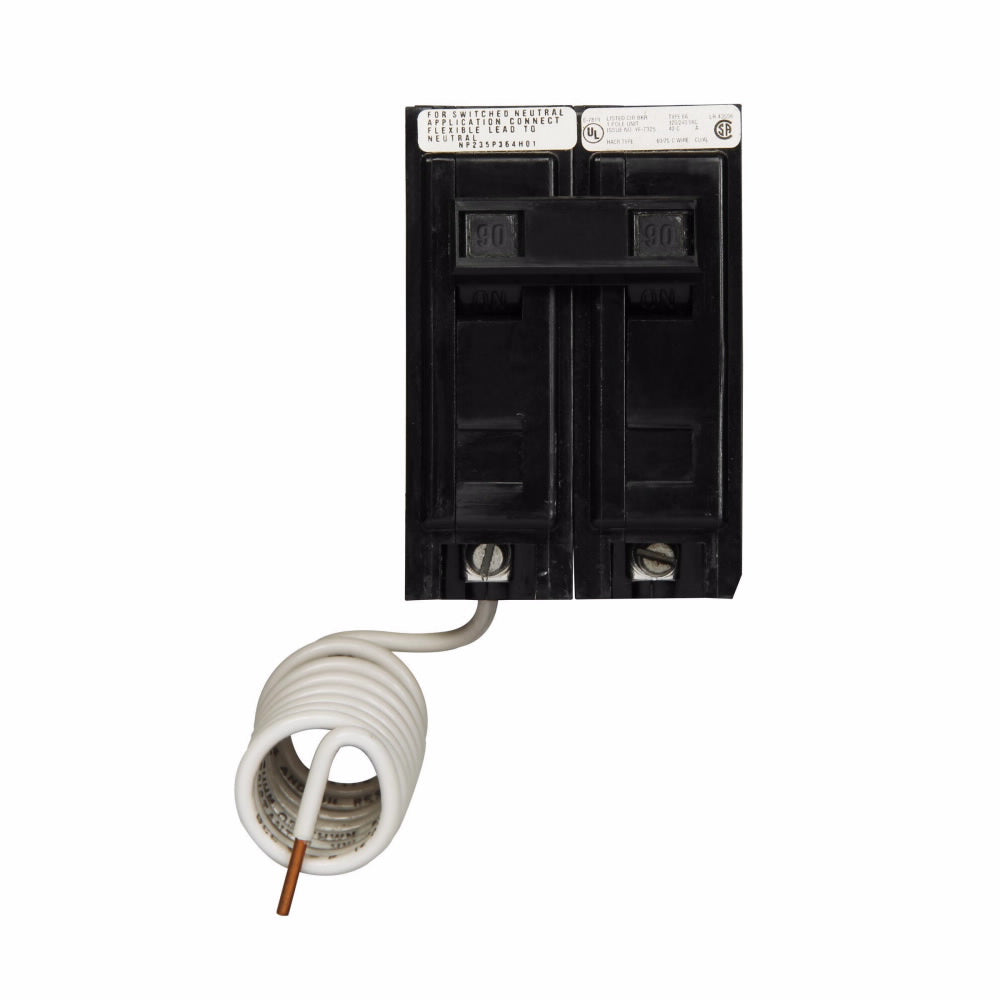

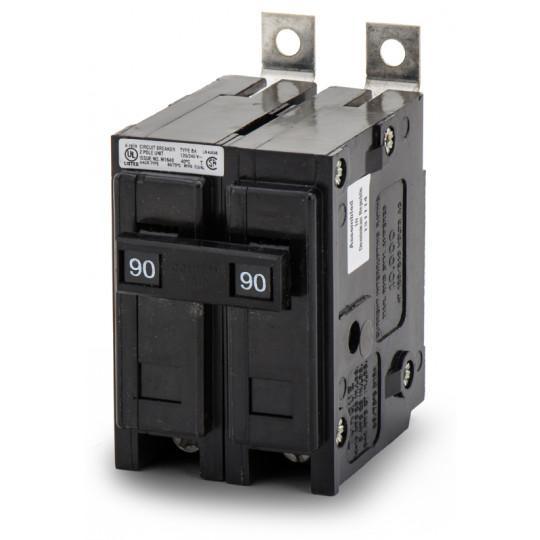

BAB2090S - Westinghouse 2 Pole 90 Amp 240VAC BAB Series Bolt-On Molded Case Circuit Breaker, 10 kAIC, Thermal Magnetic Trip, Non-Interchangeable

BAB2090S

BAB2090S is a Westinghouse 2 pole, 90 amp, 240VAC molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This BAB series circuit breaker features a thermal magnetic trip mechanism, non-interchangeable trip unit, and a bolt-on mounting style for secure installation. It is rated for 10 kA interrupting capacity at 240V, ensuring robust performance in demanding environments. The compact, panel-mount design is suitable for a wide range of power distribution equipment.

Key Specifications
• Part Number: BAB2090S
• Manufacturer: Westinghouse
• Category: Circuit Breaker
• Amperage: 90A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC at 240V
• Series/Frame: BAB
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: Not specified
• Connection: Bolt-On

At Essential Parts, we offer fast shipping, lowest price, and expert support&lt(more...)

Additional Information

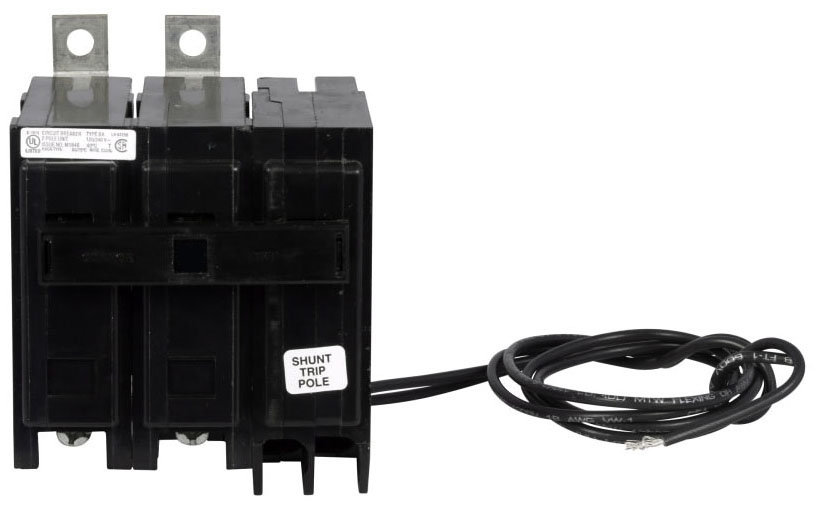

complete with 120V shunt trip

Specifications

• Part Number: BAB2090S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679377420
• GTIN : 00786679377420
• Country of Origin : Dominican Republic
• Dimensions : 3.9 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 8 to 1/0 AWG Aluminum/Copper
