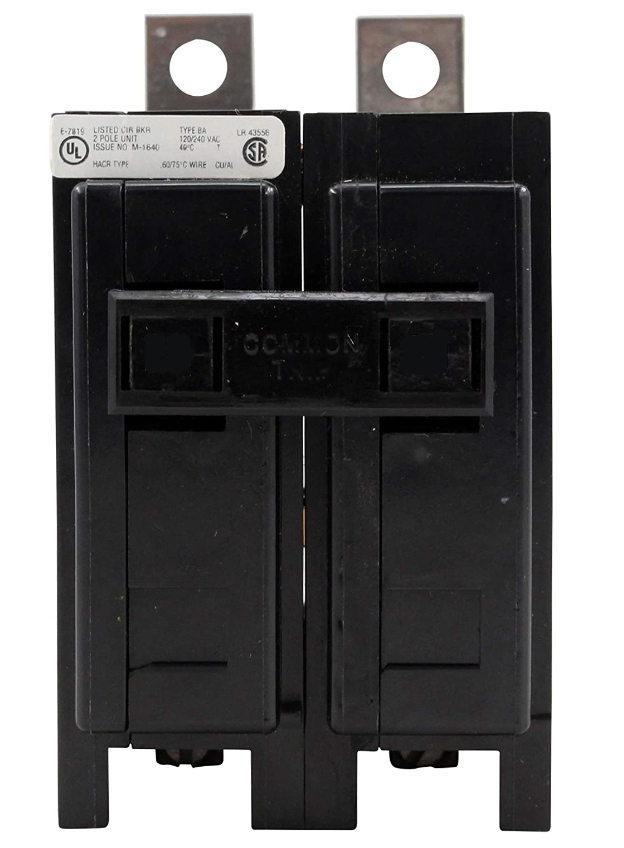

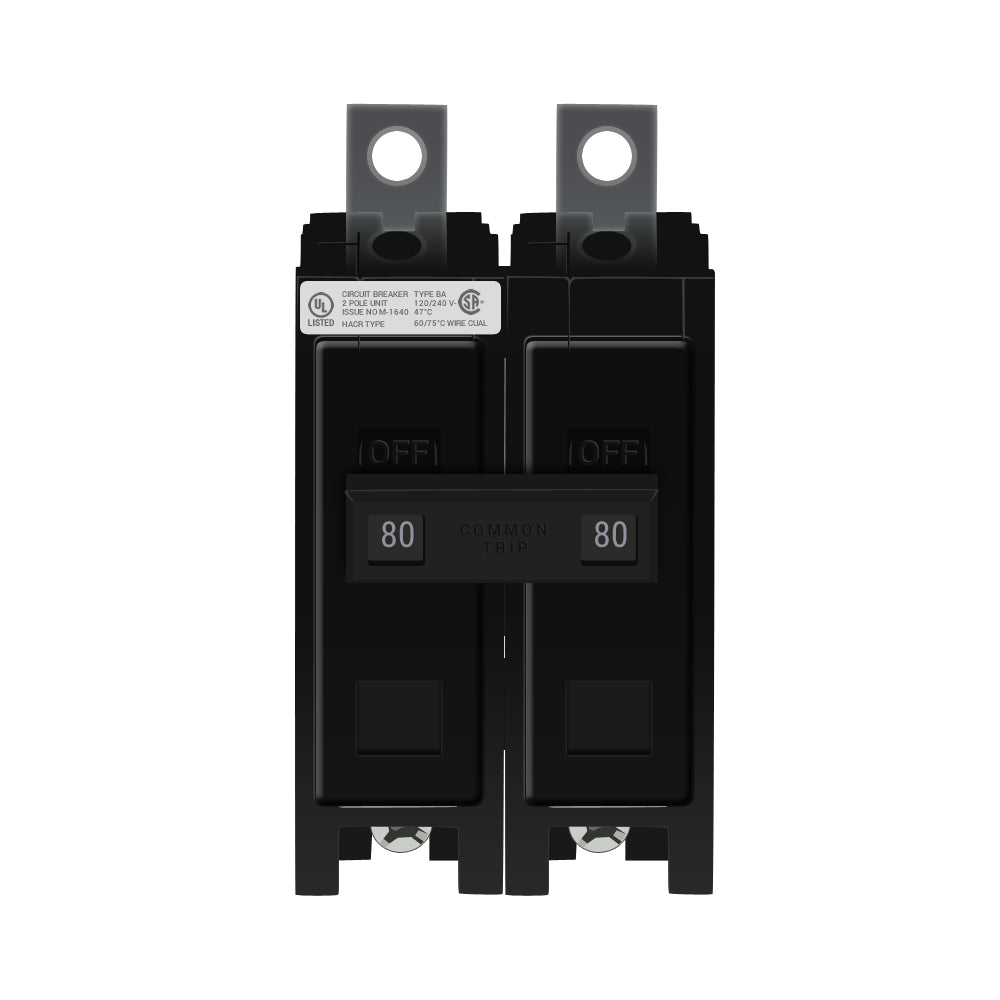

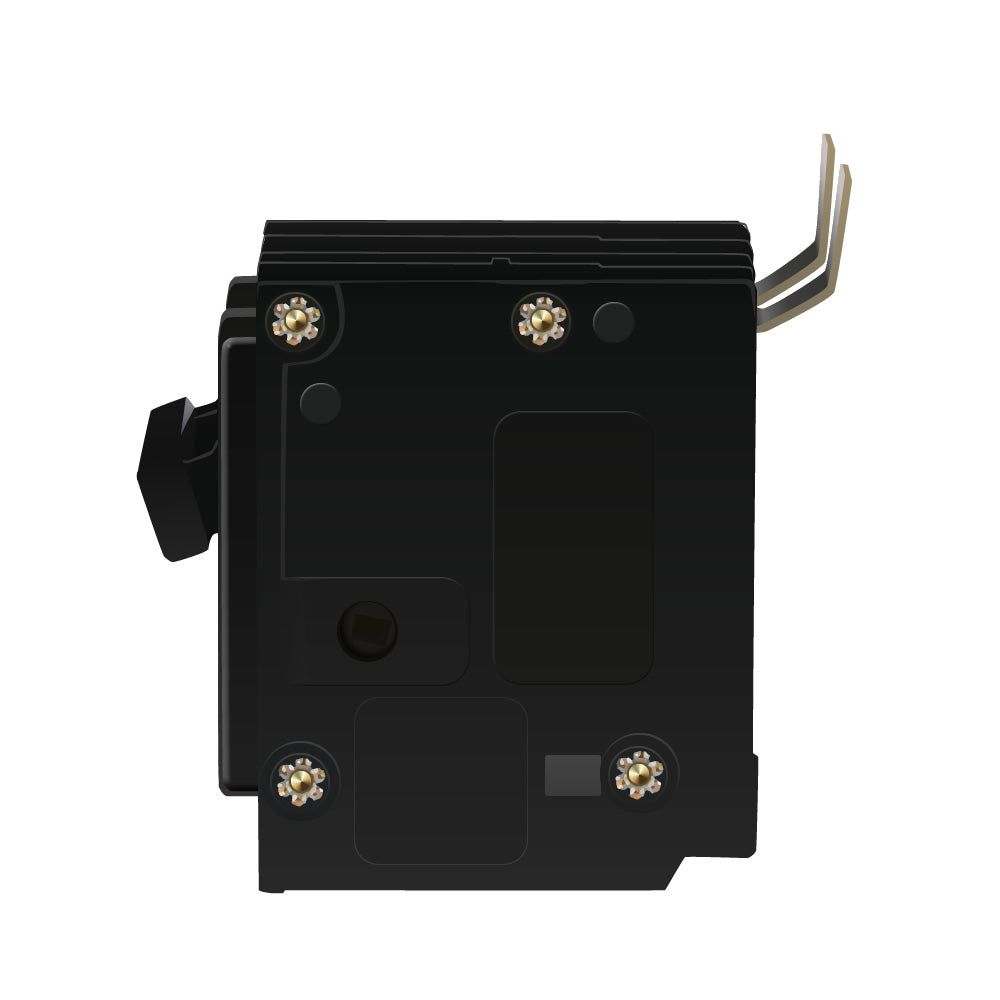

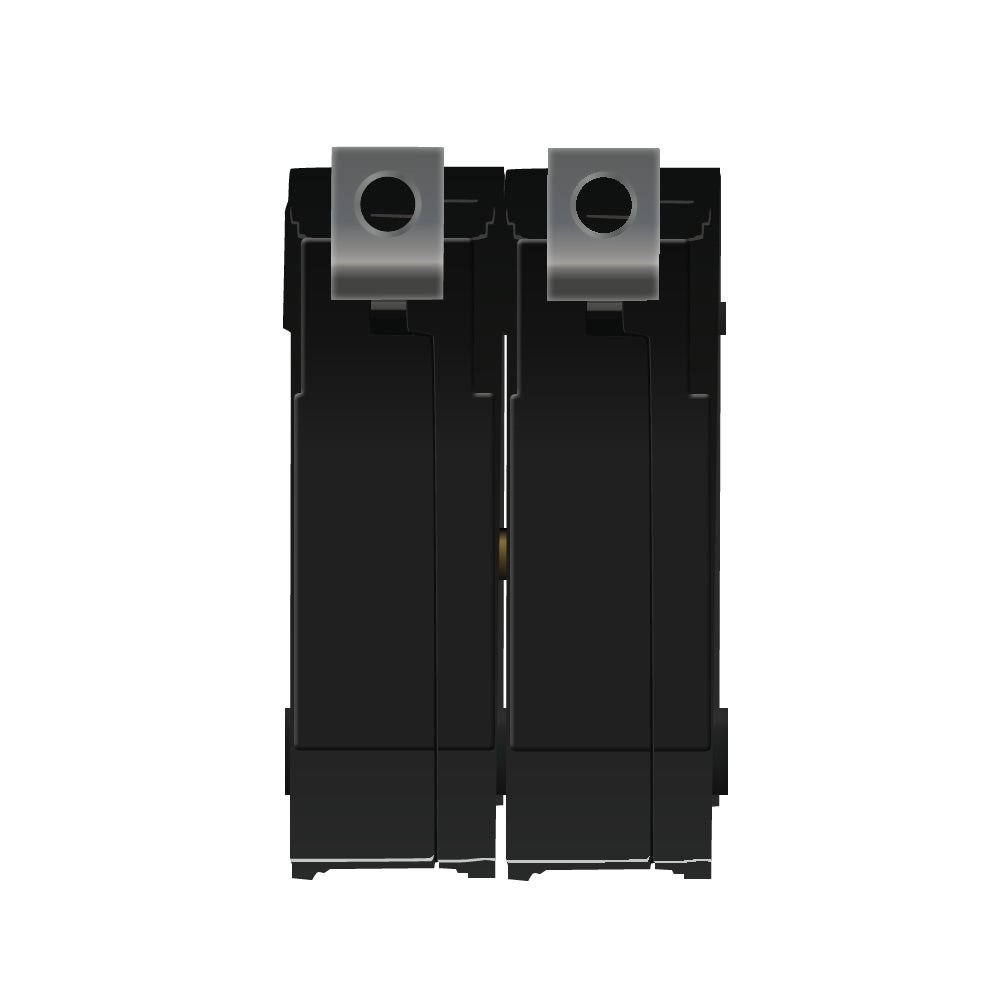

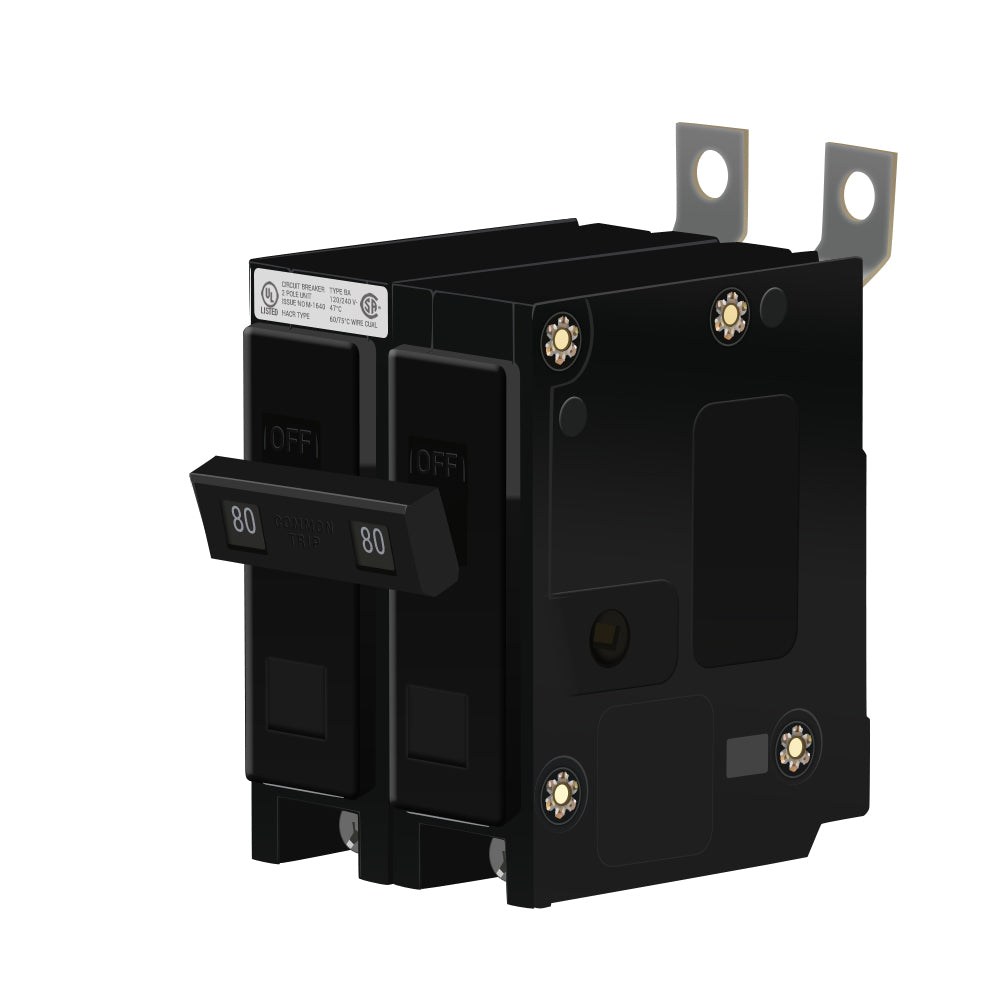

BAB2080 - Cutler Hammer 80 Amp 120/240V 2 Pole Thermal Magnetic Circuit Breaker BAB Frame Bolt-On

BAB2080

BAB2080 is a Cutler Hammer 2 pole thermal magnetic circuit breaker rated for 80 amps and 120/240 volts with bolt-on mounting.This Eaton Cutler Hammer BAB2080 circuit breaker features a 10 kA interrupting rating at 240V, thermal magnetic trip unit with long-time and instantaneous trip functions, and is UL listed and CSA certified. It is designed for industrial applications requiring reliable overcurrent protection with a bolt-on connection and HACR rating.

• Amperage: 80 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC at 240V
• Frame/Series: BAB
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: UL Listed, CSA Certified
• HACR Rated
• Dimensions: 3.9" L x 2.2" W x 4.8" H
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BAB2080
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679302804
• GTIN : 00786679302804
• Country of Origin : Dominican Republic
• Dimensions : 3.9 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.7
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 8 To 1/0 AWG (Aluminum/Copper
