Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BAB2070

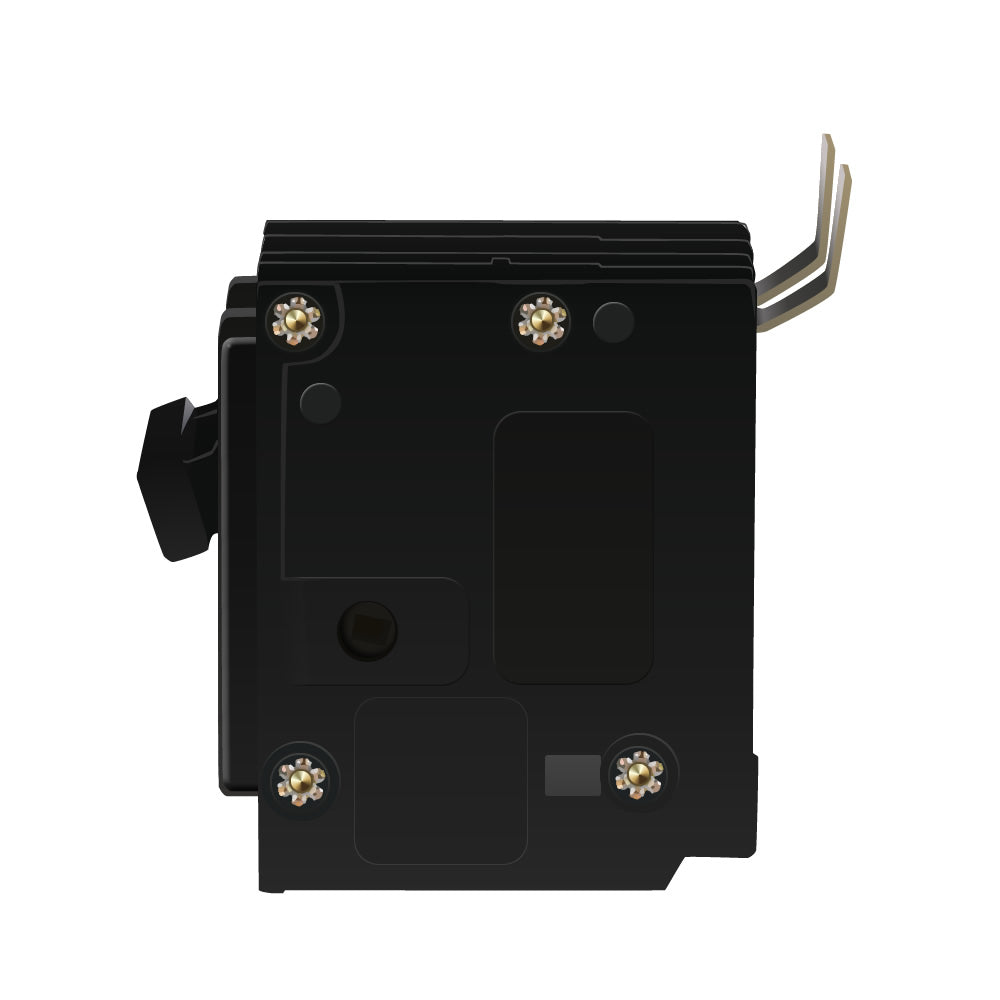

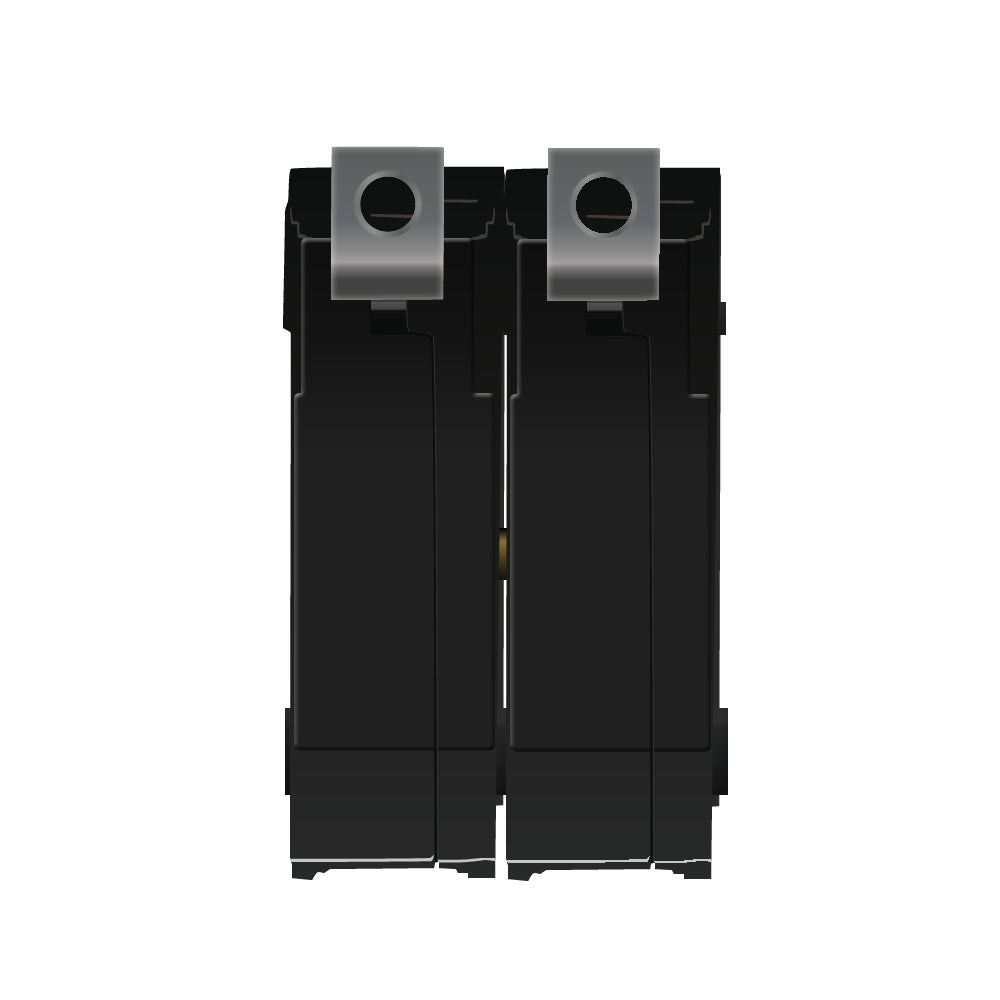

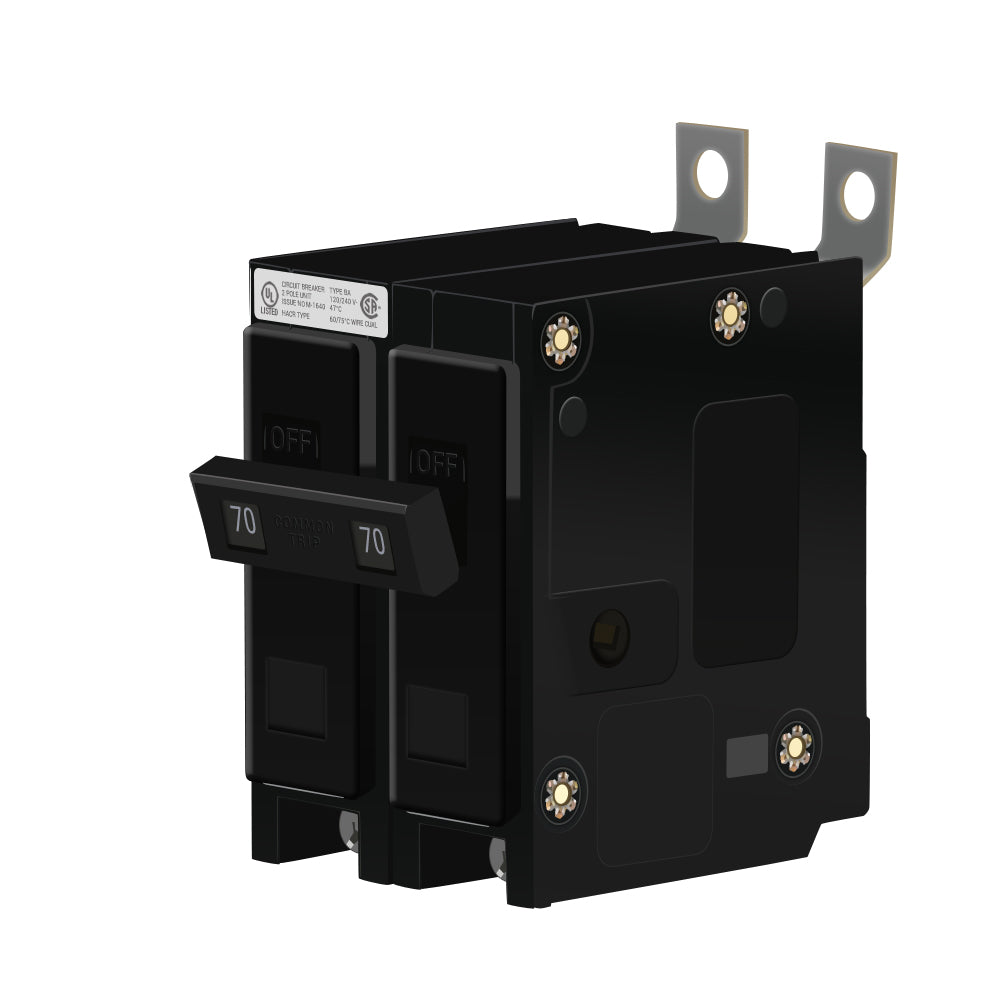

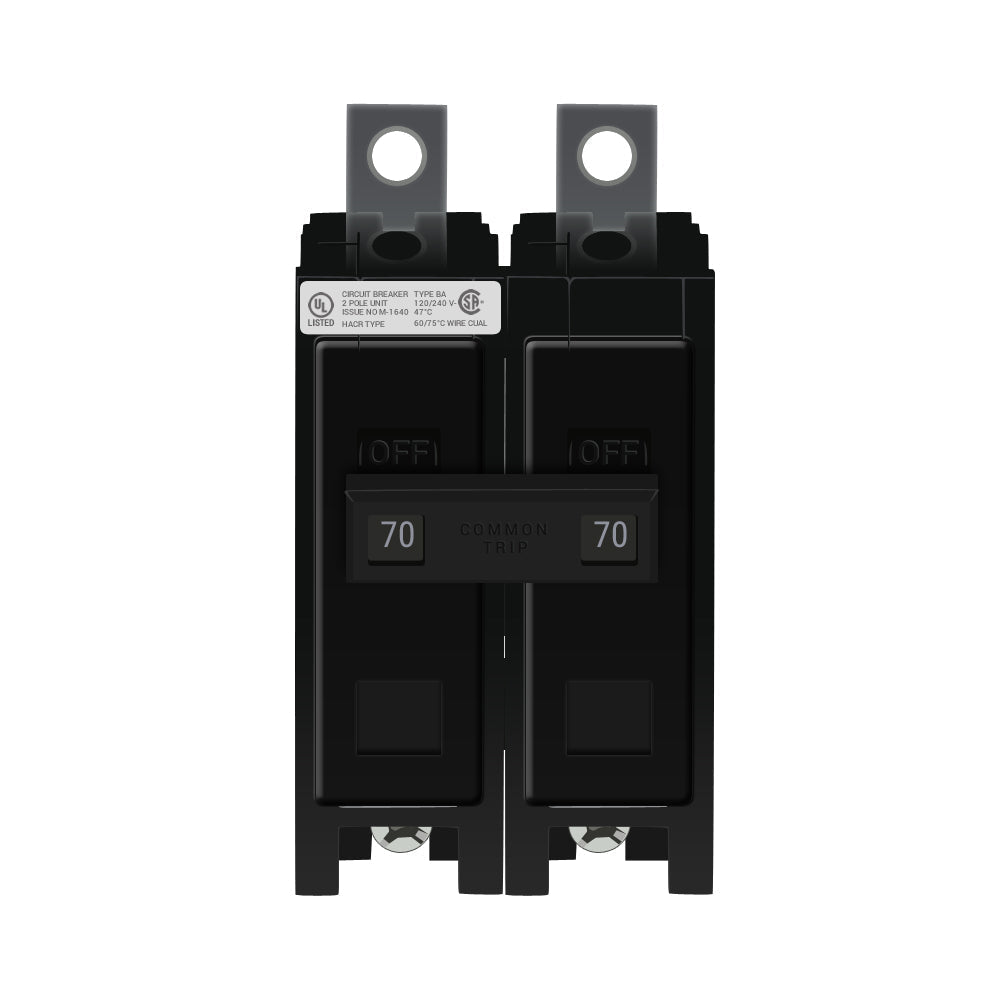

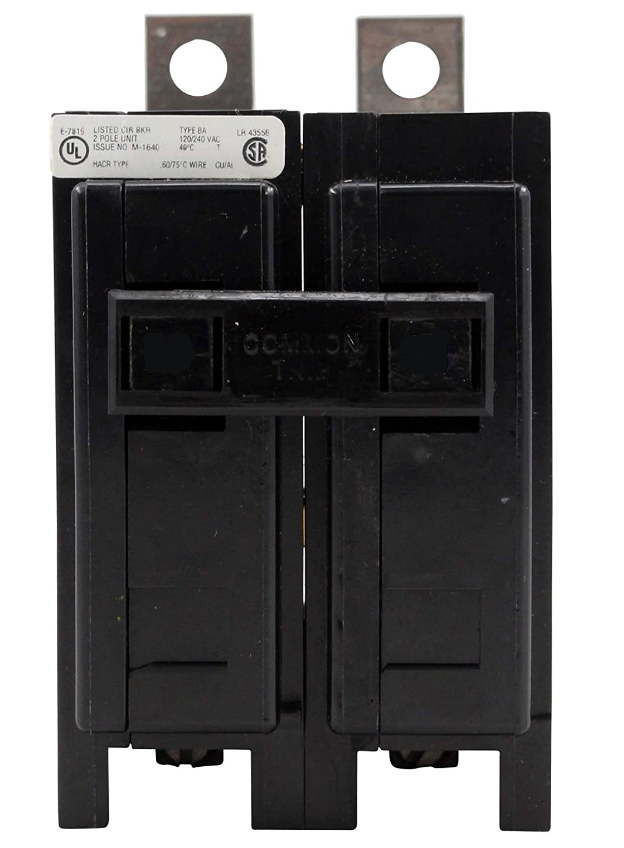

BAB2070 is a 70 Amp, 2 pole thermal magnetic circuit breaker from Crouse-Hinds designed for bolt-on mounting in industrial and commercial applications.This BAB series Quicklag industrial circuit breaker features a 10 kA interrupting rating at 120/240 VAC, non-interchangeable trip unit, and is UL listed and CSA certified. It offers reliable overcurrent protection with thermal magnetic trip technology and complies with HACR standards.
- Key Specifications
- Amperage: 70 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 10 kA at 240 V
- Trip Type: Thermal Magnetic, Non-Interchangeable
- Series/Frame: BAB
- Certifications: UL Listed, CSA Certified, HACR Rated
- Dimensions: 3.6 in Length x 2.2 in Width x 3.7 in Height
- Weight: Approx. 1.5 lb
Specifications
- Part Number: BAB2070
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : BAB
- Voltage : 240
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679302705
- GTIN : 00786679302705
- Country of Origin : Dominican Republic
- Dimensions : 3.6 in x 3.7 in x 2.2 in (Length/Depth x Height x Width)
- Weight : 1.5
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
