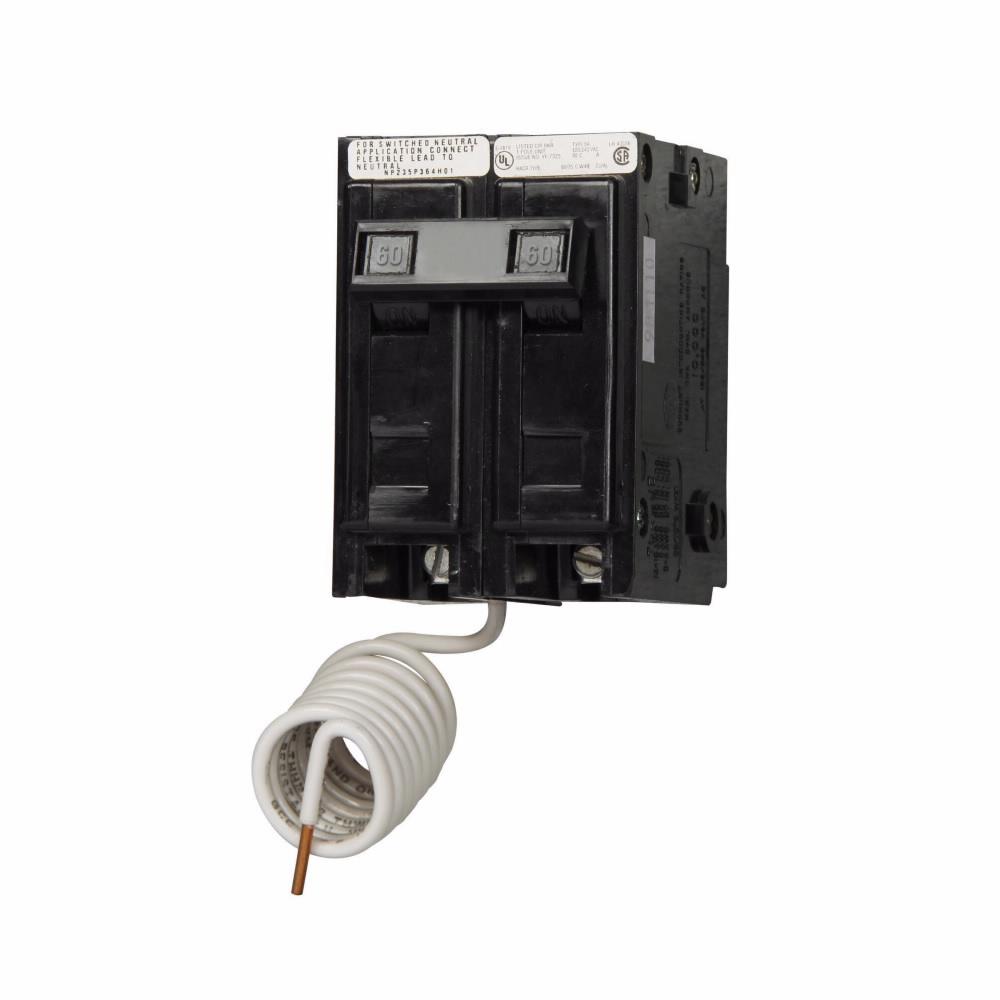

BAB2060S - Cutler-Hammer 60 Amp 2 Pole Bolt-On Circuit Breaker, BAB Series, 120/240VAC, 10 kAIC, Thermal Magnetic Trip, UL 489 & CSA Certified

BAB2060S

BAB2060S is a Cutler-Hammer industrial thermal-magnetic circuit breaker designed for reliable circuit protection in demanding applications.

This two-pole, bolt-on miniature circuit breaker features a 60 Amp current rating at 40¡C, a voltage rating of 120/240VAC, and a high interrupting capacity of 10,000 Amps. It is part of the BAB series, offers non-interchangeable fixed trip, and is certified for safety and performance.

Key Specifications
• Part Number: BAB2060S
• Manufacturer: Cutler-Hammer (Eaton)
• Amperage: 60A at 40¡C
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC @ 120/240VAC
• Series/Frame: BAB
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: UL 489 Listed, CSA Certified
• Termination: Line Side Ð Bolt-On; Load Side Ð Lugs
• Application: Industrial, Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get th(more...)

Additional Information

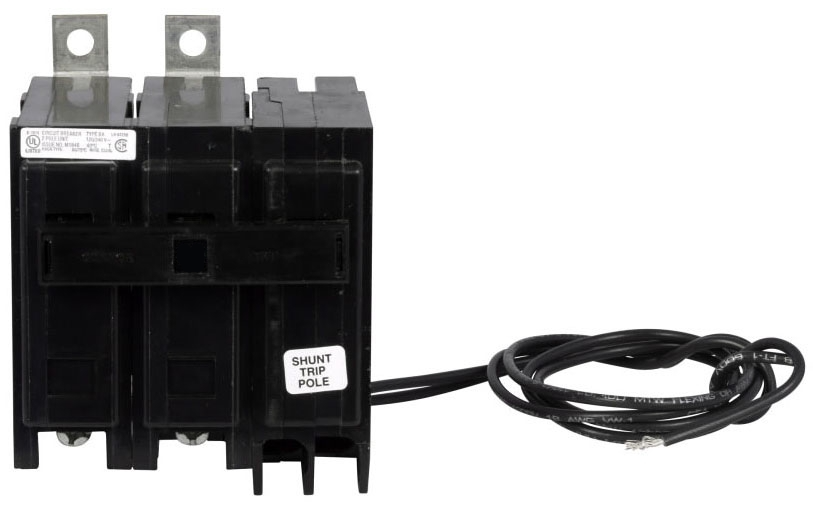

complete with 120V shunt trip

Specifications

• Part Number: BAB2060S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679313008
• GTIN : 00786679313008
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.9 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 1 lb
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 8 To 1/0 Awg (Aluminum/Copper Load)
