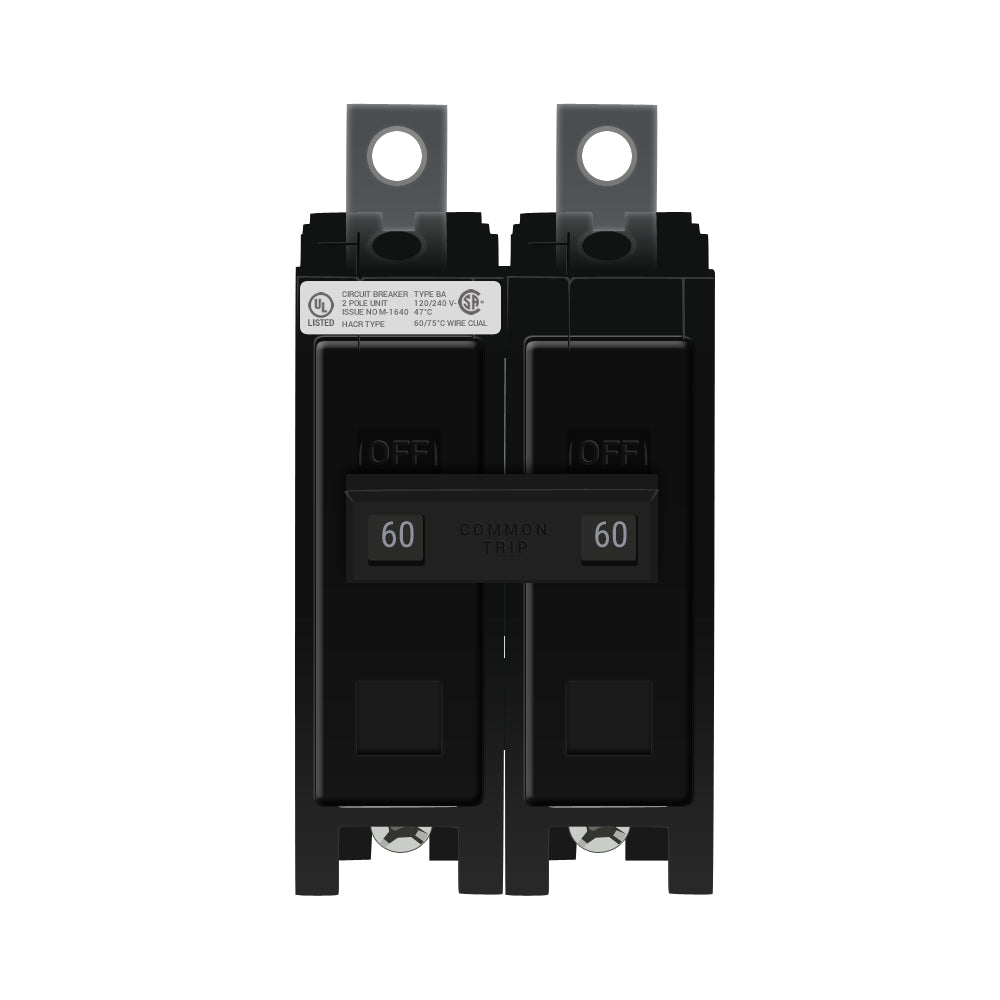

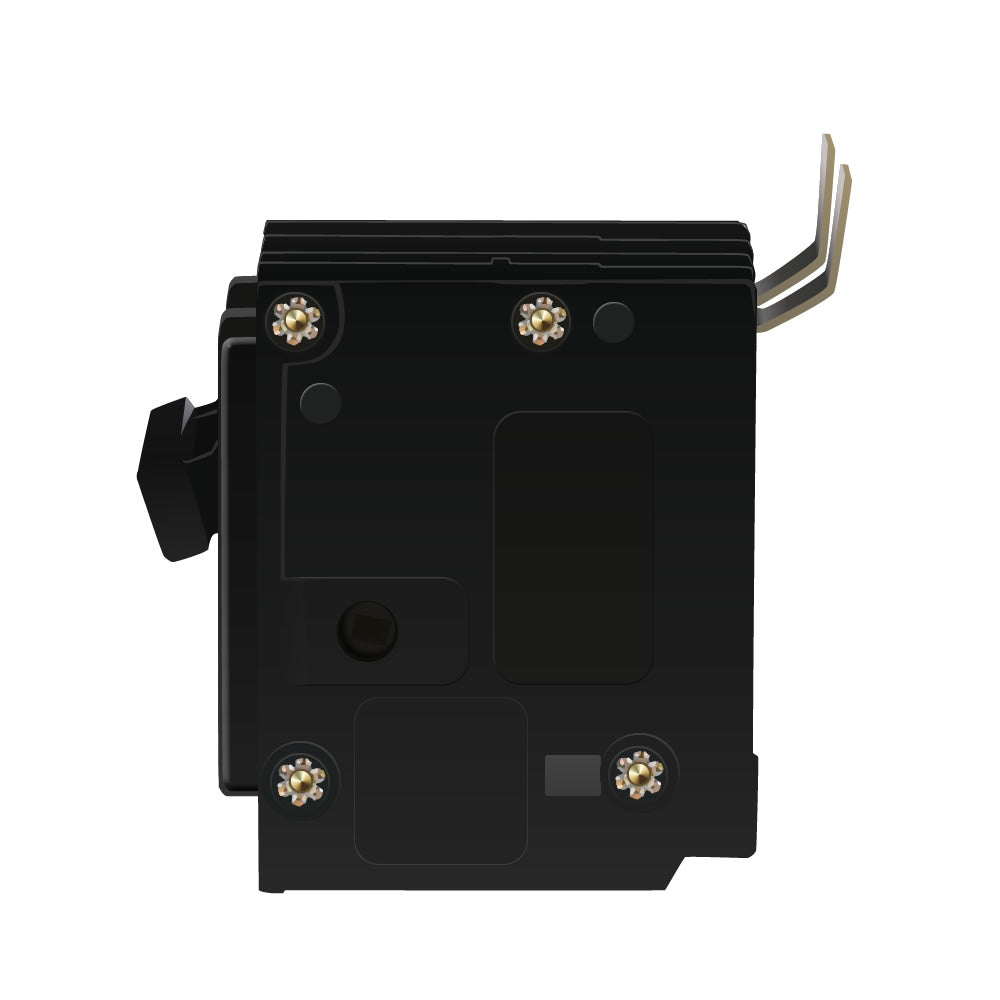

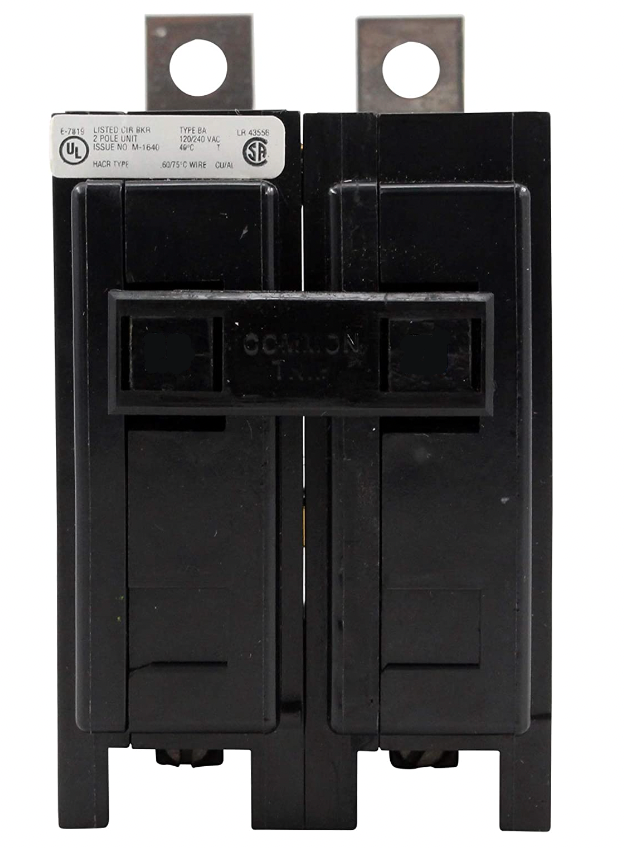

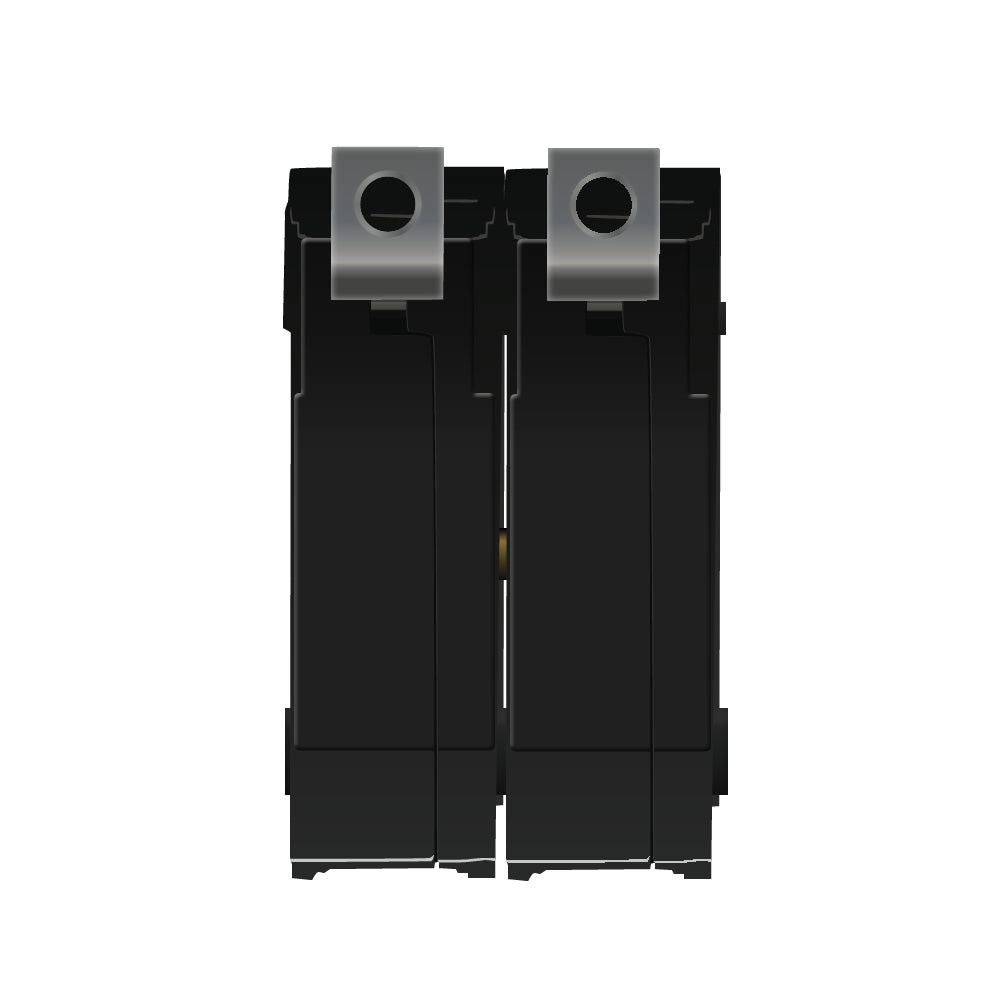

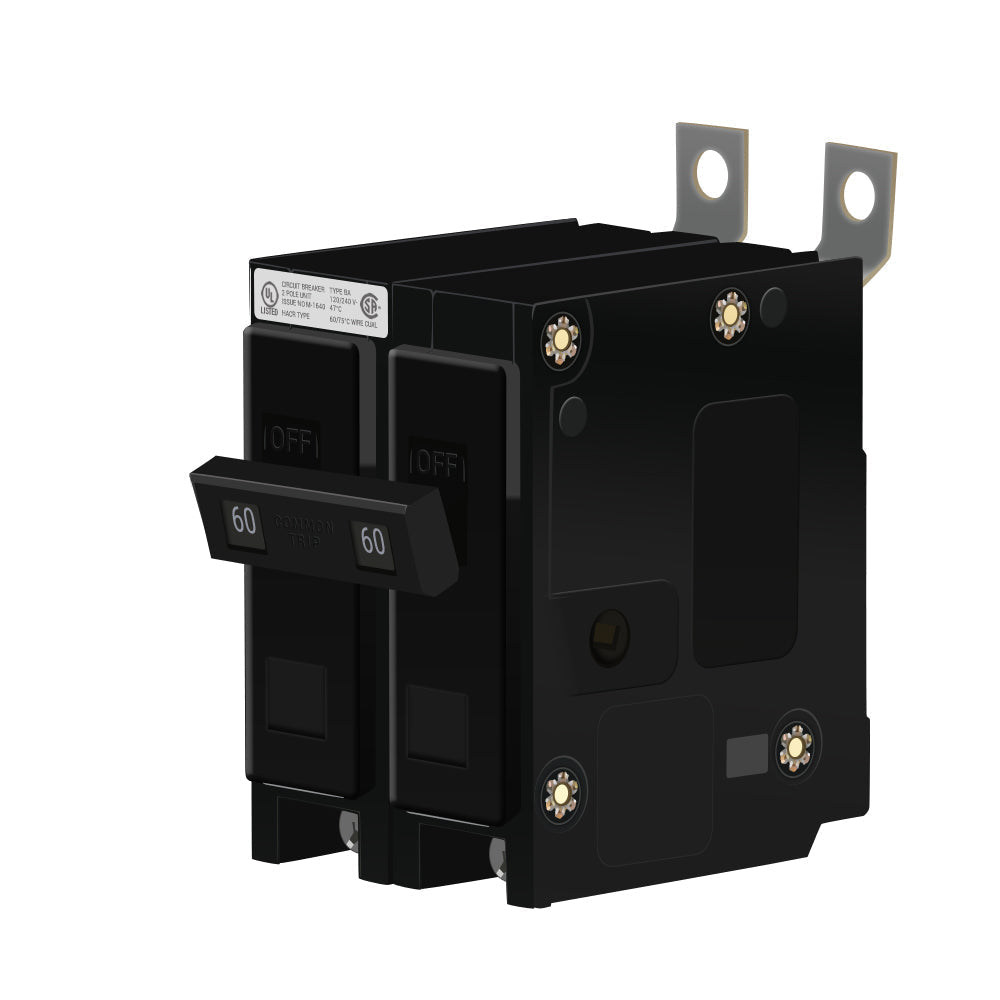

BAB2060 - Cutler Hammer 60 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker Bolt-On

BAB2060

BAB2060 is a Cutler Hammer 2 pole thermal magnetic circuit breaker rated for 60 amps and 120/240 volts AC with bolt-on mounting. BAB2060 features a 10 kA interrupting rating at 240V, long-time and instantaneous trip functions, and is UL Listed and CSA Certified. It is designed for industrial and commercial applications requiring reliable circuit protection with HACR rating and a compact form factor.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10 kAIC at 240V
• Trip Type: Thermal Magnetic, Non-Interchangeable
• Series/Frame: BAB
• Certifications: UL Listed, CSA Certified
• HACR Rated
• Dimensions: 3.8 in L x 2.2 in W x 4.8 in H
• Weight: 0.65 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BAB2060
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679302606
• GTIN : 00786679302606
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.65
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 8 To 1/0 AWG (Aluminum/Copper
