BAB2035S - Cutler Hammer 35A 240V 2 Pole Bolt-On Thermal Magnetic Circuit Breaker 10kAIC BAB Frame

BAB2035S

BAB2035S is a Cutler Hammer 2 pole, 35 amp, 240 Volt thermal magnetic circuit breaker with bolt-on mounting and 10kA interrupt rating.This BAB series circuit breaker features long-time and instantaneous trip functions, a BAB frame, and is UL and CSA certified. It is designed for 1-phase applications with a 240V AC rating and a 10,000 AIC interrupt capacity. The breaker includes a bolt-on connection type and meets HACR standards for HVAC equipment protection.

Key Specifications
• Amperage: 35 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: BAB
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL, CSA
• Phase: 1
• Connection Type: Bolt-On
• Standards: HACR
• Temperature Rating: 40 ¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

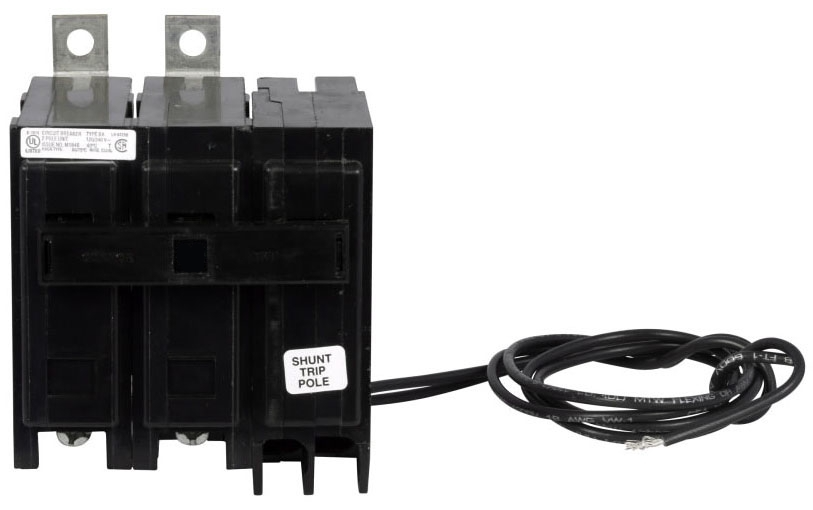

complete with 120V shunt trip

Specifications

• Part Number: BAB2035S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679369685
• GTIN : 00786679369685
• Country of Origin : Dominican Republic
• Dimensions : 3.75 in x 3.25 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.909
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 14 to 4 AWG
