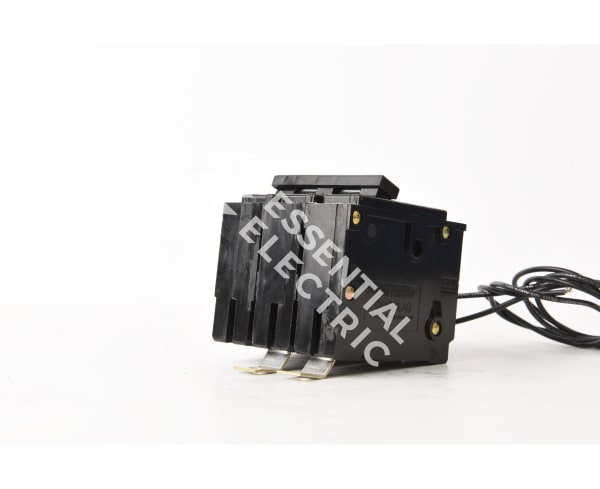

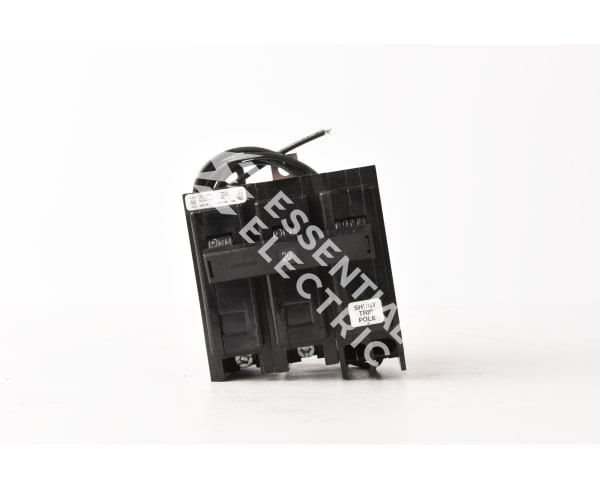

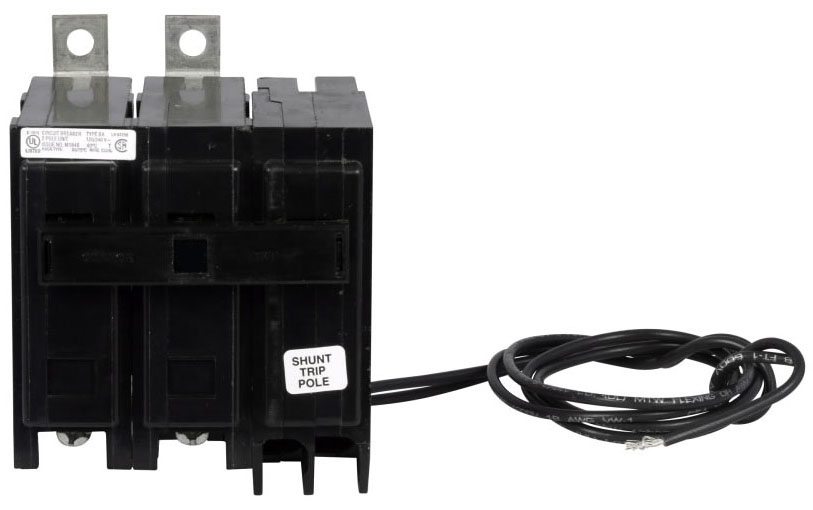

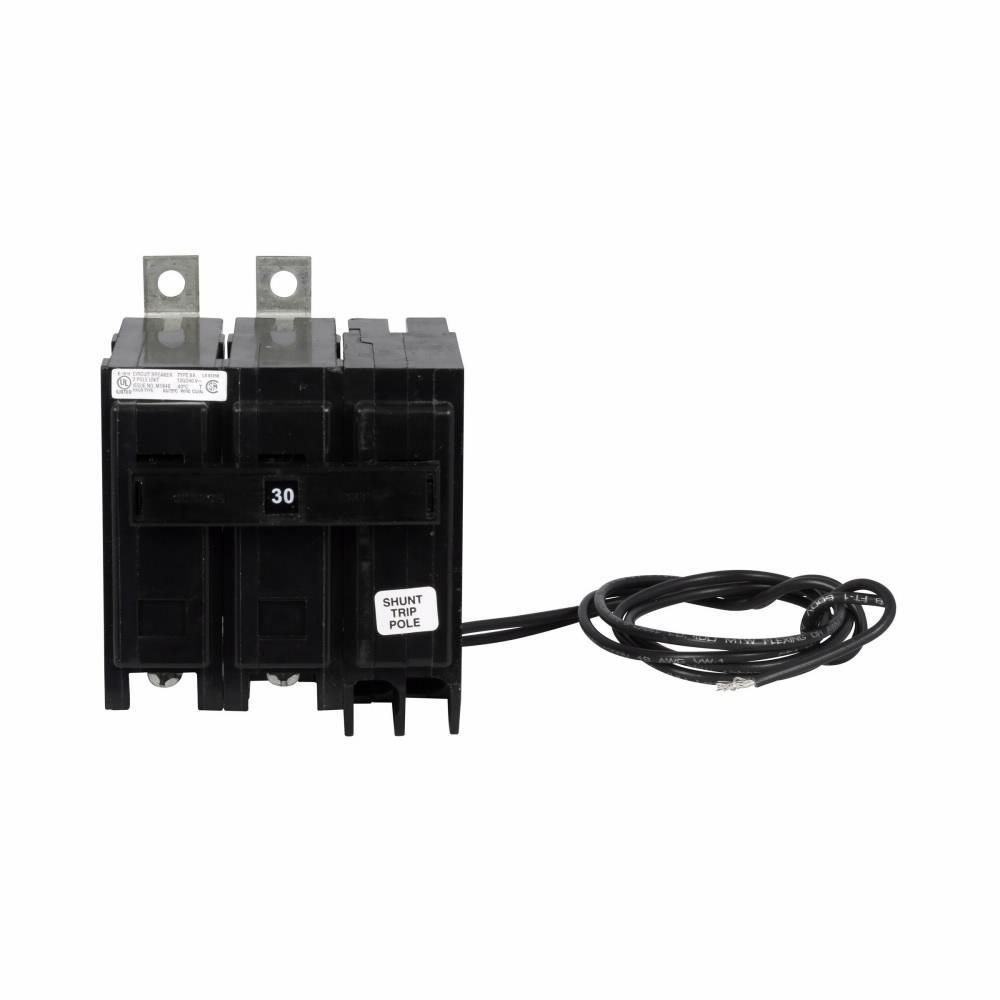

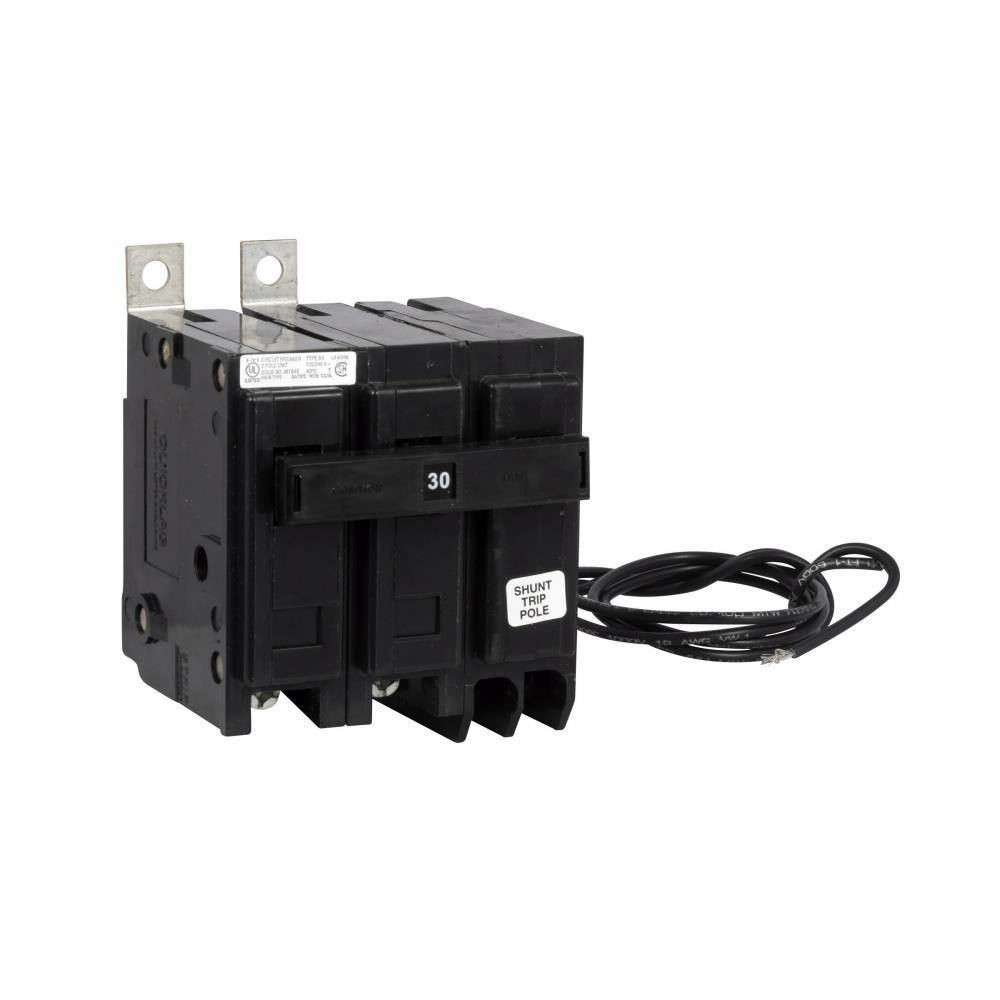

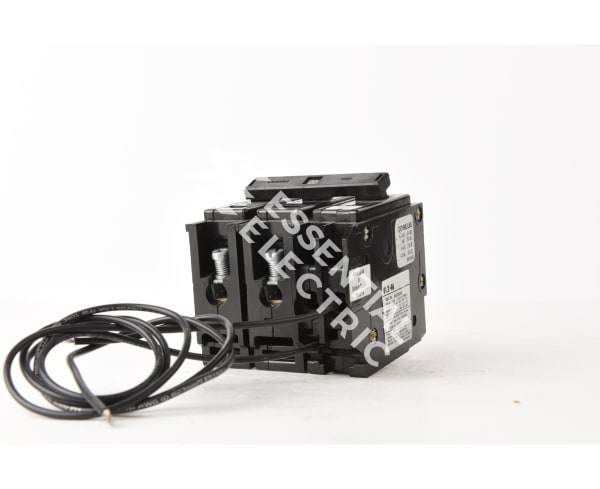

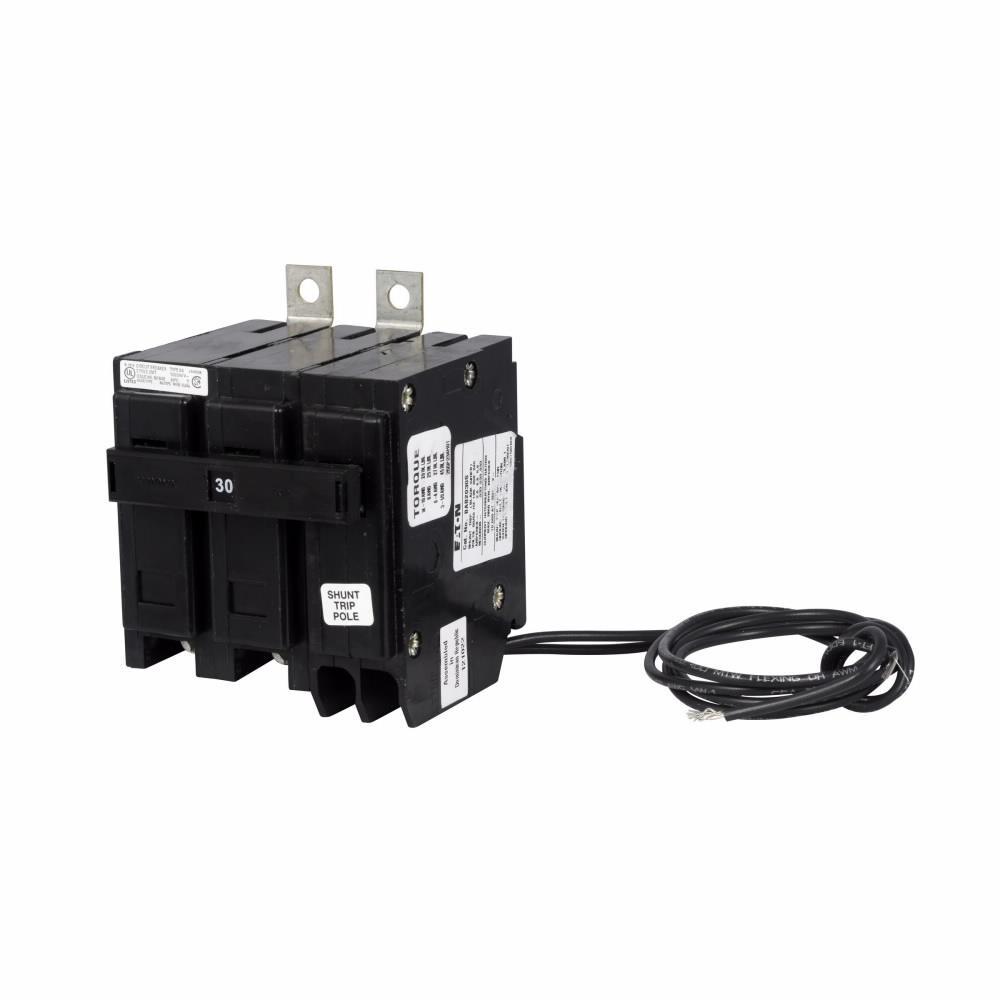

BAB2030S - Cutler Hammer 30 Amp 2-Pole 120/240V Thermal Magnetic Circuit Breaker with Shunt Trip

BAB2030S

BAB2030S is a Cutler Hammer 30 Amp, 2-pole thermal magnetic circuit breaker with a 120/240V rating and 120V shunt trip feature.This BAB series breaker features bolt-on mounting, a 10,000 A interrupt rating at 120/240 VAC, and is UL listed and CSA certified. It is designed for industrial applications requiring reliable thermal magnetic protection with a non-interchangeable trip unit and Quicklag terminal design.

• Amperage: 30 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 10,000 A at 120/240 VAC
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Shunt Trip: 120 V
• Series/Frame: BAB
• Terminal Type: Extended Tang Line Terminal, Box Lug Load Terminal
• Certifications: UL Listed, CSA Certified
• HACR Rated
• Wire Size: 14-4 AWG Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: BAB2030S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667950962
• GTIN : 00786679509623
• Country of Origin : Dominican Republic
• Dimensions : 3.5 in x 4.5 in x 3.7 in (Length/Depth x Height x Width)
• Weight : 0.85
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 14 To 4 AWG (Aluminum/Copper
