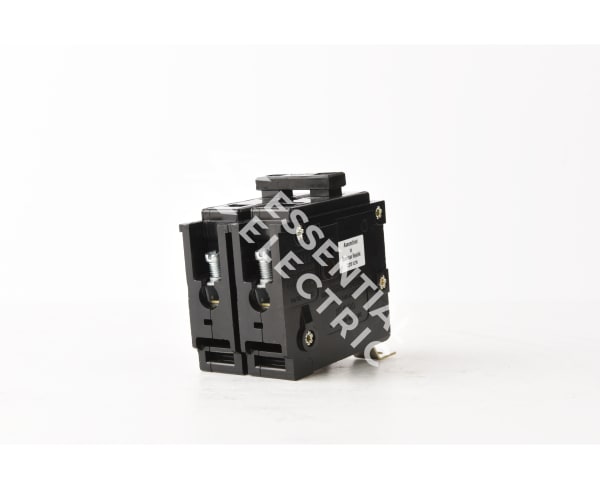

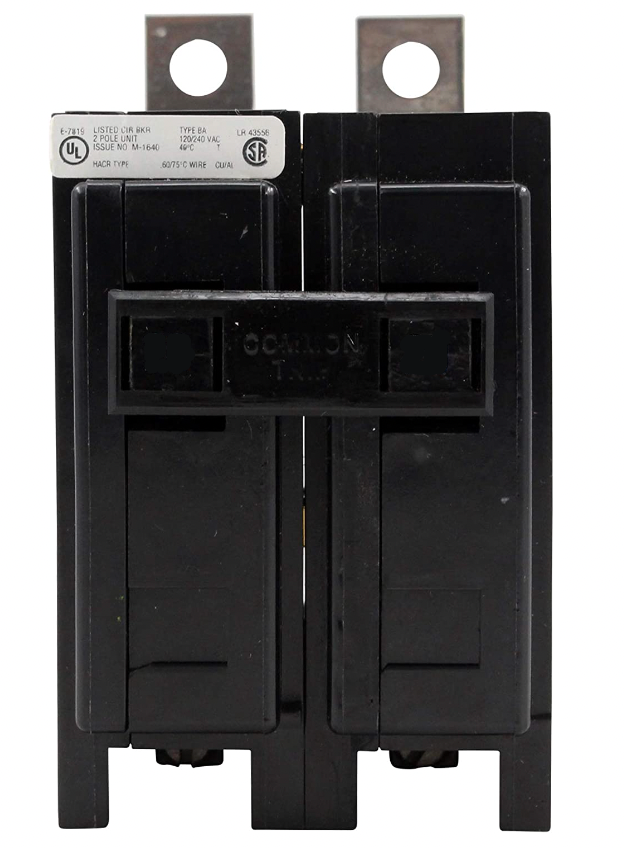

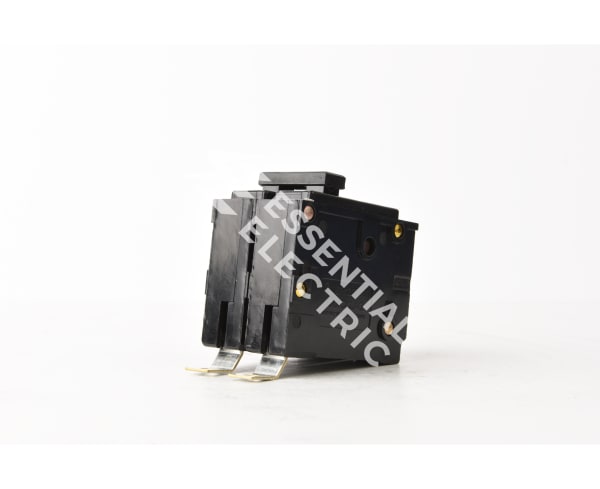

BAB2030H - Eaton 30 Amp 240 Volt 2-Pole Thermal Magnetic Circuit Breaker Bolt-On 10kA Interrupt

BAB2030H

BAB2030H is a 30 Amp, 240 Volt, 2-pole thermal magnetic circuit breaker by Eaton designed for bolt-on mounting with a 10 kA interrupt rating.This Eaton BAB2030H circuit breaker features a thermal magnetic trip unit, non-interchangeable design, and is UL 489 and CSA approved. It supports 240 VAC operation with a 10,000 A interrupting capacity at 120/240 VAC and 5,000 A at low DC voltages. The breaker uses bolt-on mounting and extended tang line terminals suitable for 14 to 4 AWG aluminum or copper wiring. Compact and reliable, it is ideal for panelboard protection and switching duty applications.

Key Specifications
• Amperage: 30 Amp
• Voltage Rating: 240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 VAC
• Trip Unit: Thermal Magnetic
• Series/Frame: BAB Type
• Terminal Type: Extended Tang Line Terminal, Box Lug Load Terminal
• Wire Size: 14 to 4 AWG Aluminum/Copper
• Certifications: UL 489, CSA
• Non-Interchangeable Design

At Essential Parts, we offer fast ship(more...)

Specifications

• Part Number: BAB2030H
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679302323
• GTIN : 00786679302323
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3.5 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.65
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
