Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BAB2030

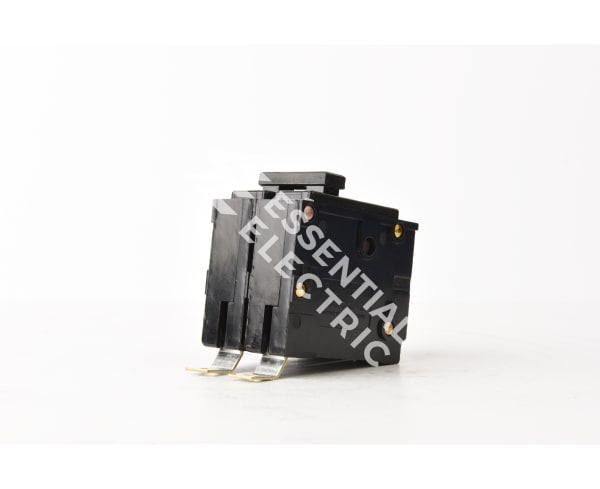

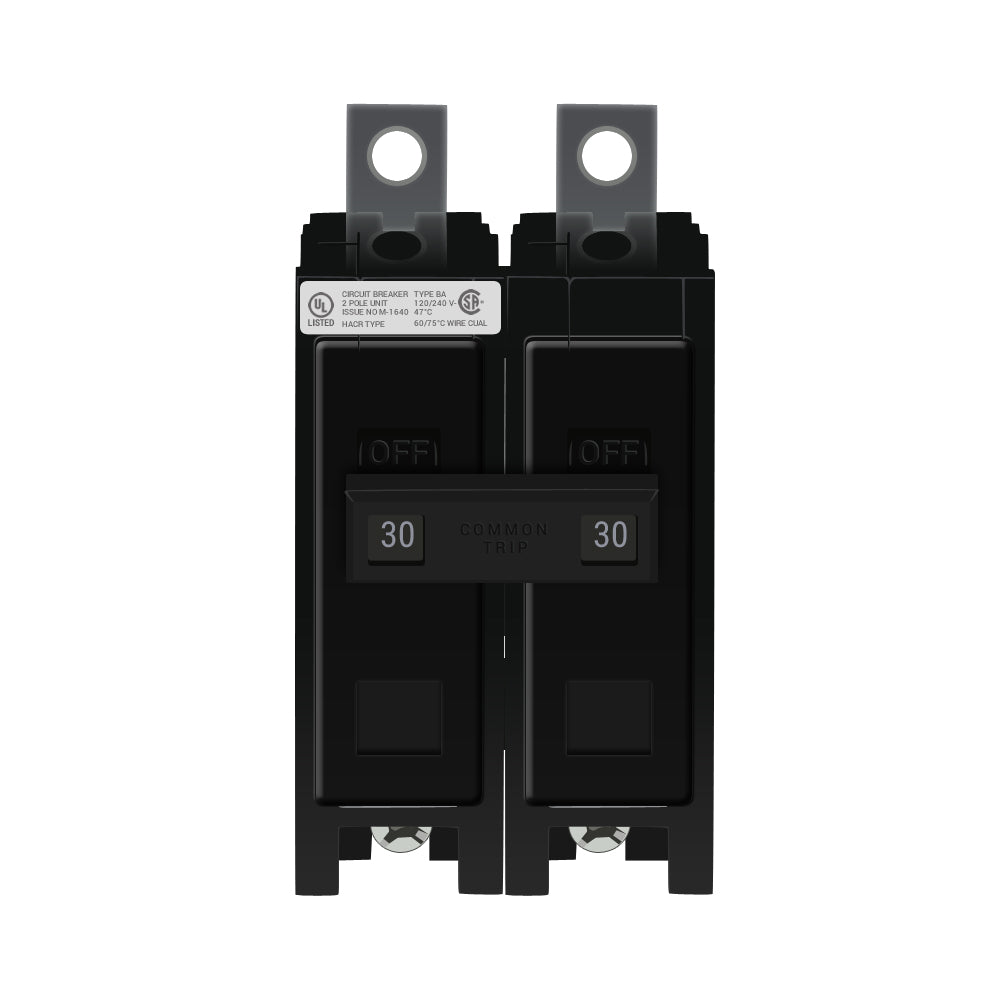

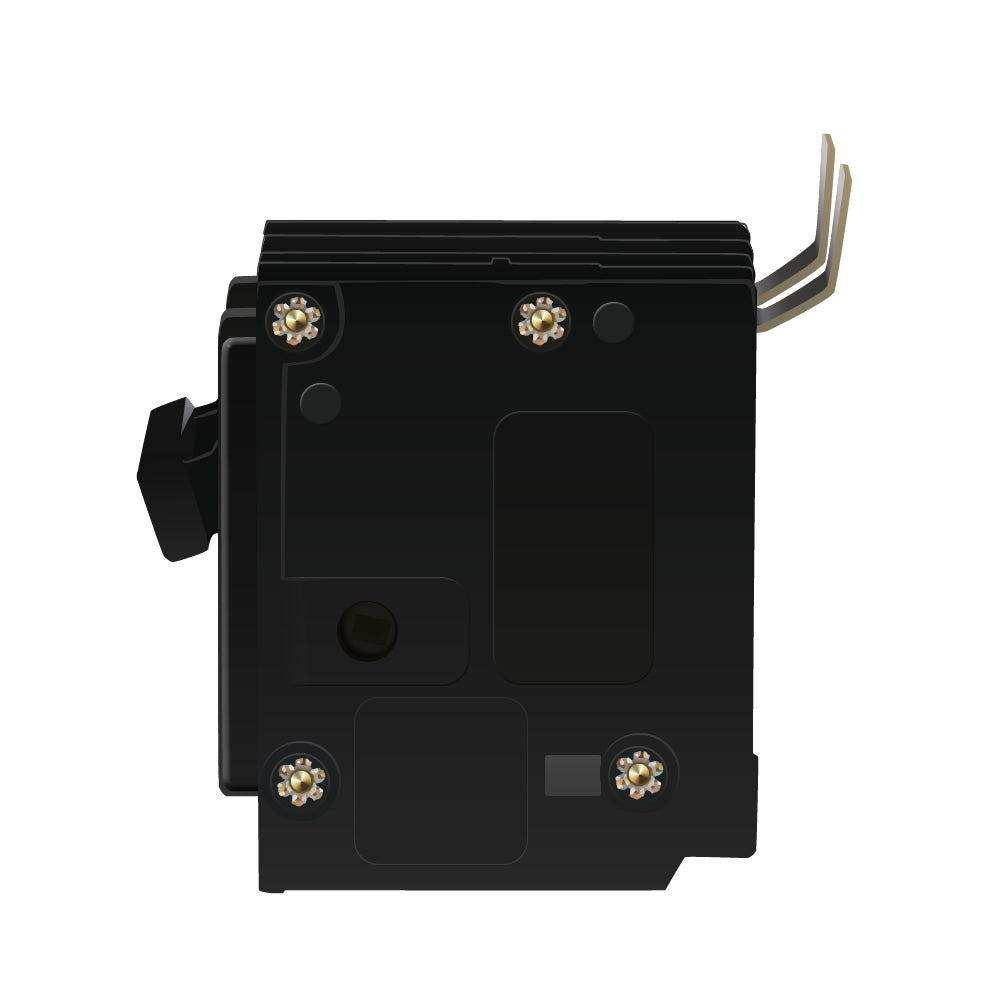

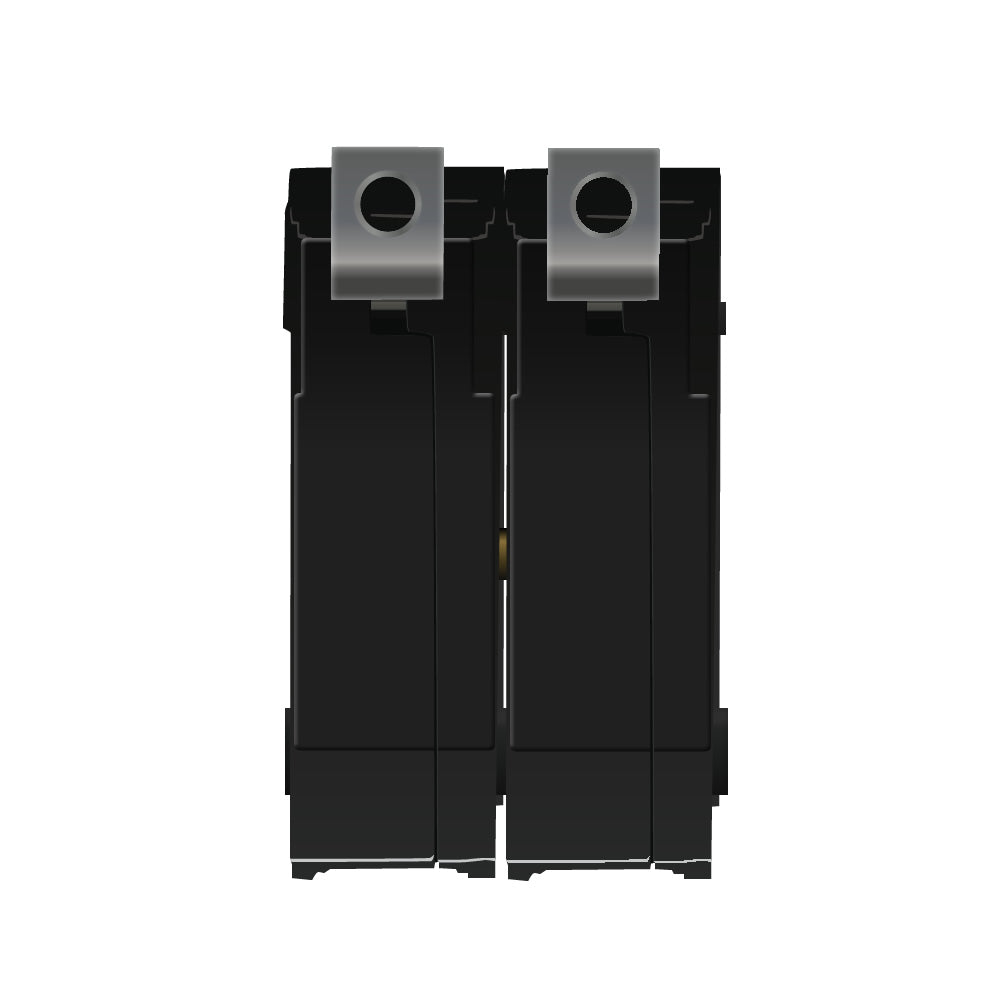

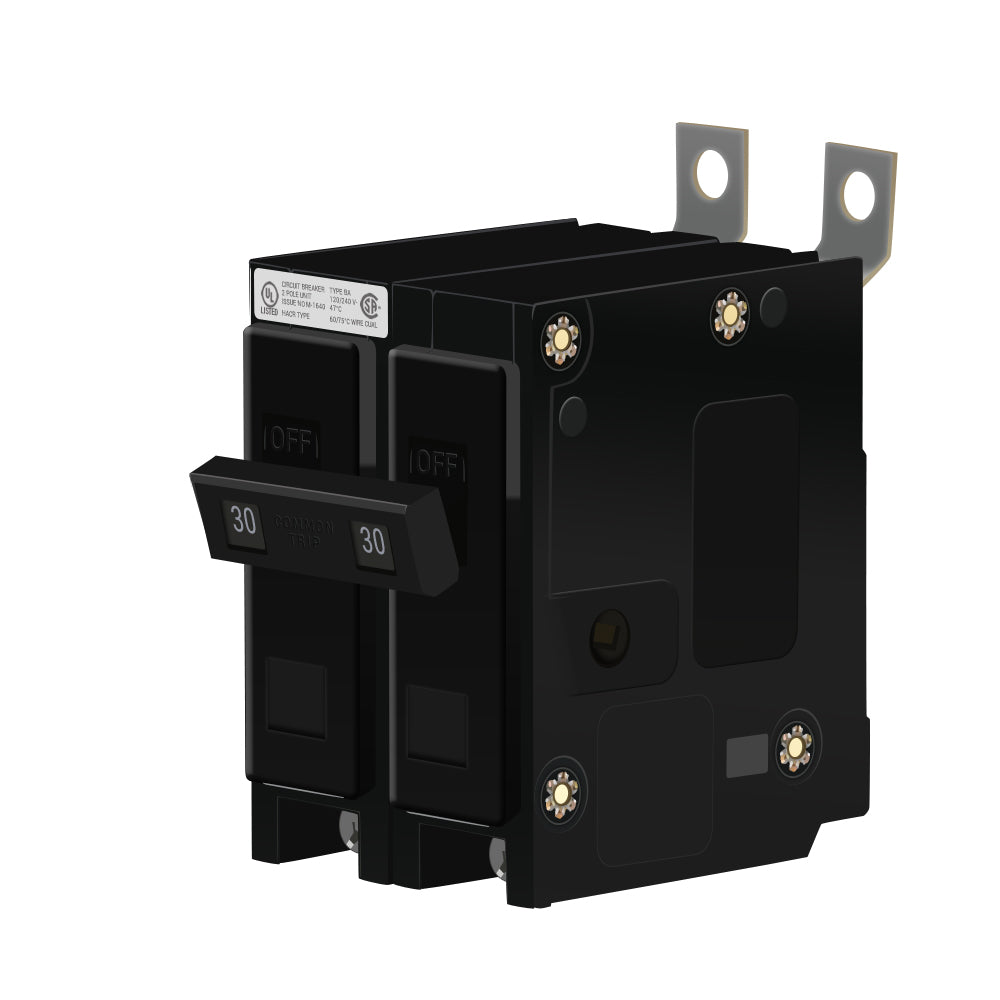

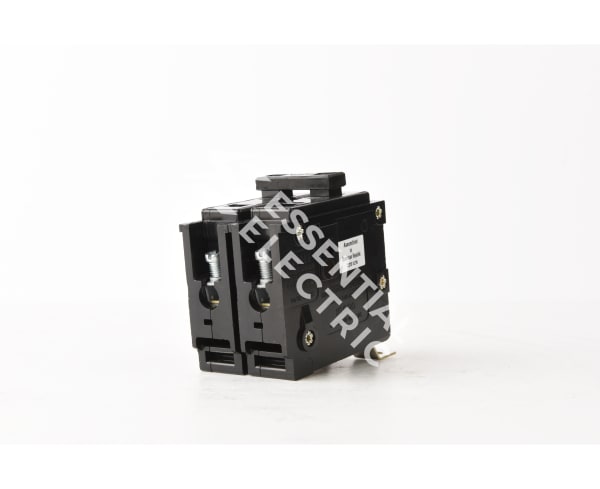

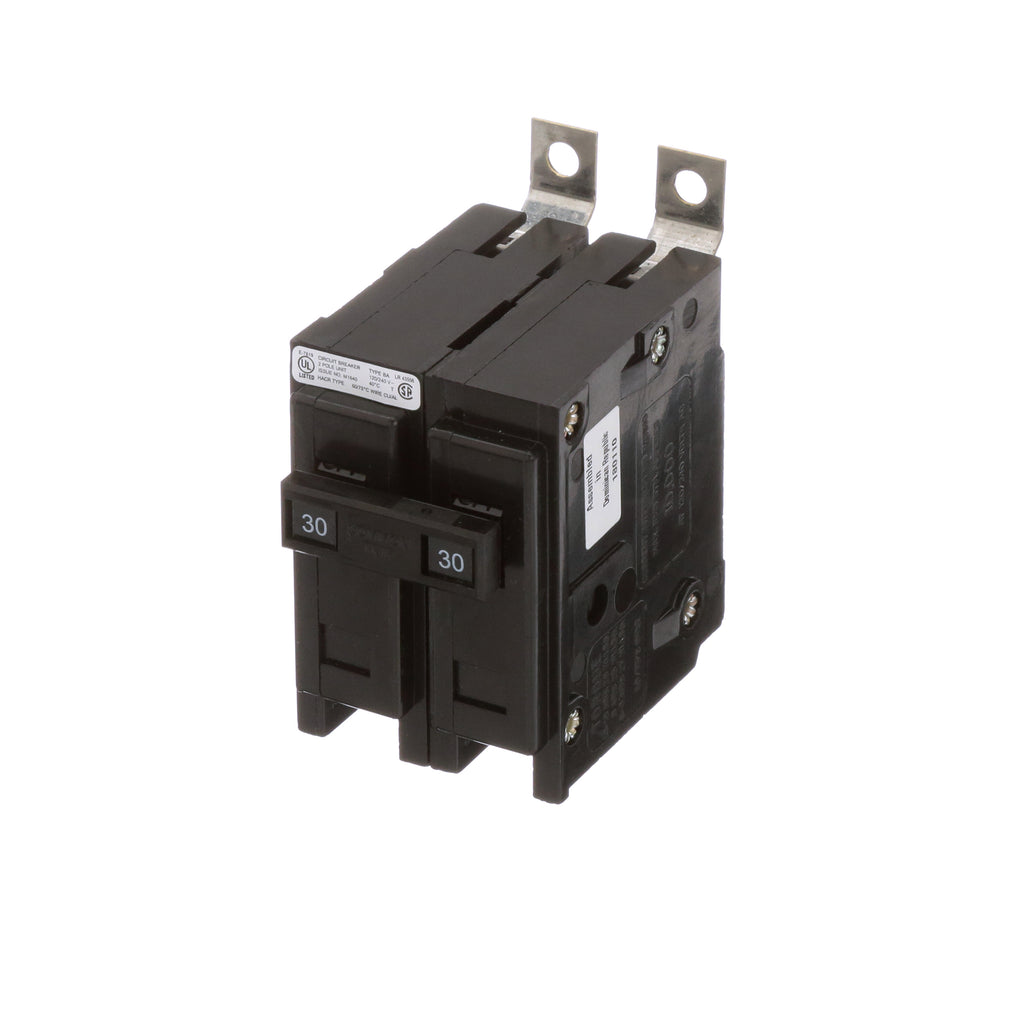

BAB2030 is a Cutler Hammer 2 pole, 30 amp, 120/240 VAC thermal magnetic circuit breaker with a bolt-on mounting type designed for industrial and commercial applications.This BAB series circuit breaker features a 10 kA interrupting rating at 240V, long-time and instantaneous trip functions, and ring or spade lug terminal connections. It is UL listed, CSA certified, and HACR rated, suitable for panel board mounting with a temperature rating of 40¡C.
- Manufacturer: Cutler Hammer
- Part Number: BAB2030
- Amperage: 30 A
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kAIC at 240V
- Trip Type: Thermal Magnetic, Long-Time and Instantaneous
- Terminal Connection: Ring or Spade Lug
- Certifications: UL Listed, CSA Certified, HACR Rated
- Series/Frame: BAB
- Temperature Rating: 40¡C
Specifications
- Part Number: BAB2030
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : BAB
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78667930230
- GTIN : 00786679302309
- Country of Origin : Dominican Republic
- Dimensions : 3.9 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
- Weight : 0.55 lb
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
- Wire Size : 14 To 4 AWG (Aluminum/Copper
