BAB2015S - Cutler Hammer 15 Amp 2 Pole 240V Bolt-On Circuit Breaker, BAB Series, 10kA Interrupt, Thermal Magnetic Trip, UL/CSA Certified

BAB2015S

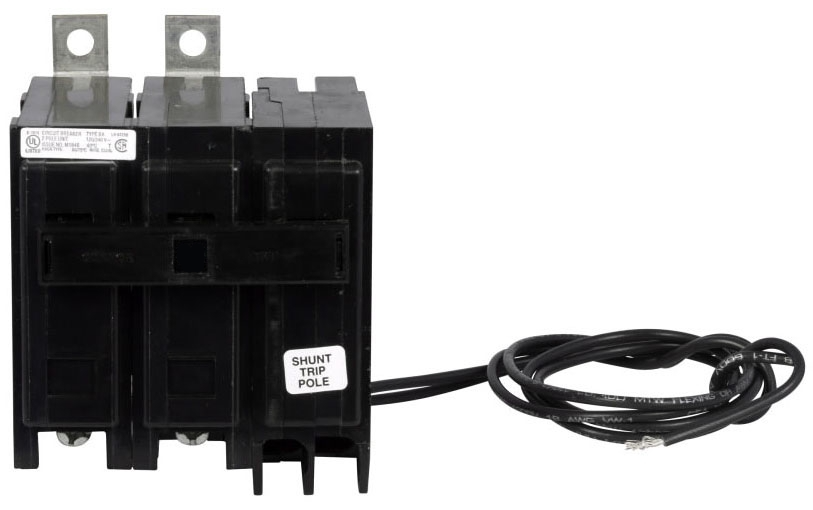

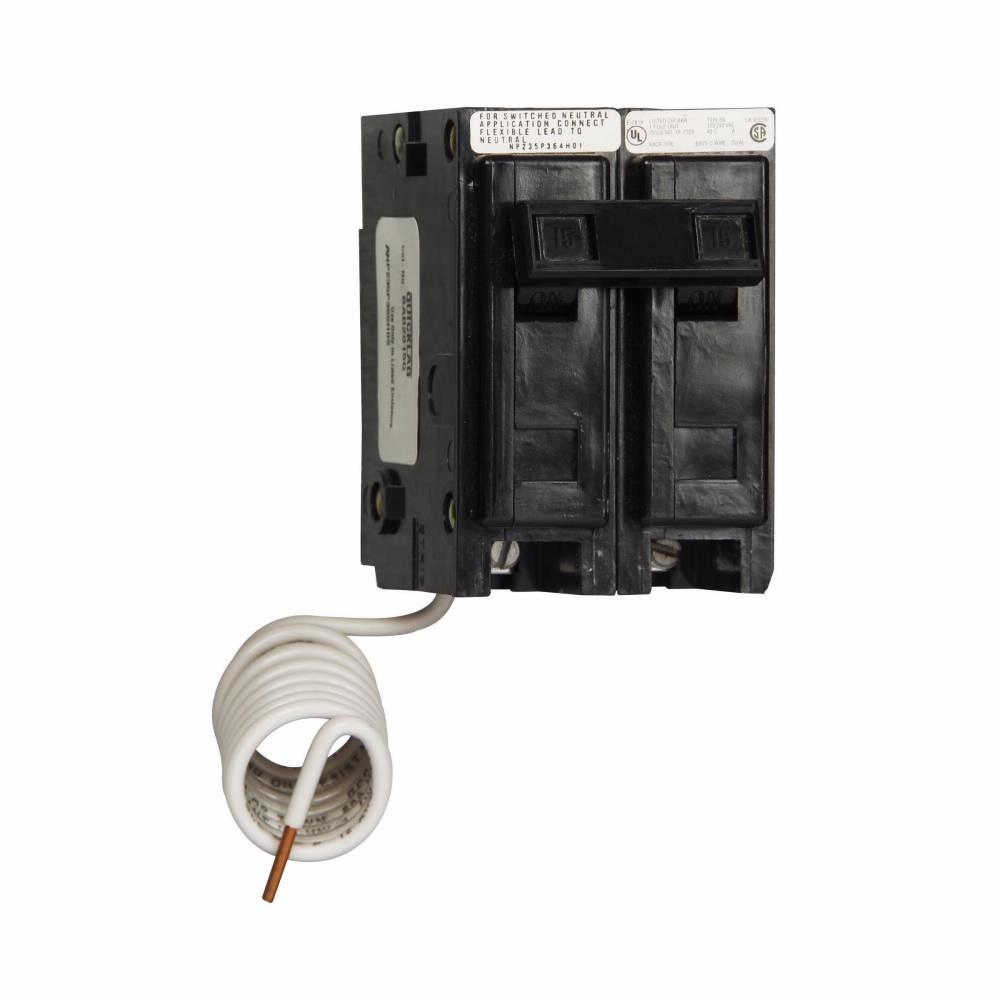

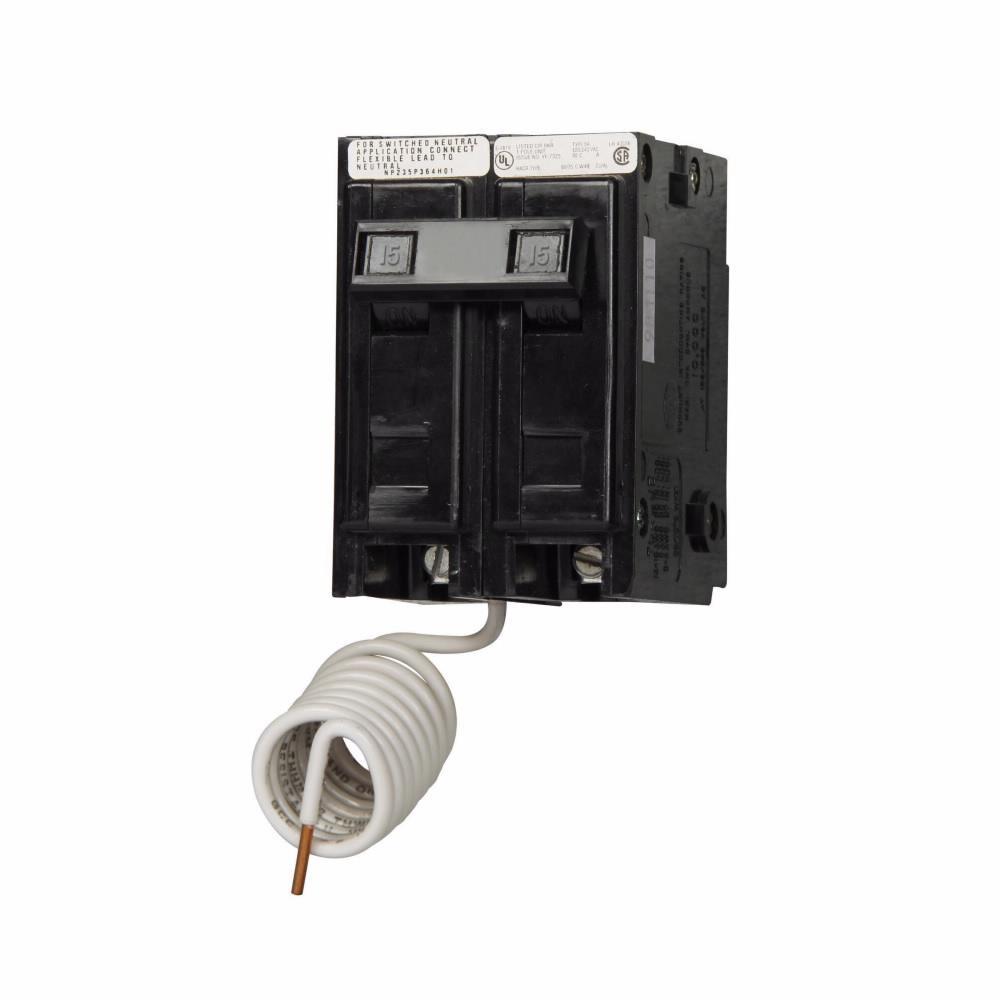

BAB2015S is a Cutler Hammer (Eaton) 2-pole, 15 amp, 240V bolt-on circuit breaker designed for reliable protection in industrial and commercial applications.

This BAB Series molded case circuit breaker features a fixed thermal magnetic trip unit for both overload and short-circuit protection. It is rated for 10kA interrupting capacity at 240V, ensuring robust performance in demanding environments. The bolt-on mounting provides a secure, vibration-resistant connection, and the unit is UL Listed and CSA Certified for safety and compliance.

Key Specifications
• Part Number: BAB2015S
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 15 A
• Voltage: 240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC at 240V
• Series/Frame: BAB (QUICKLAG)
• Trip Unit: Fixed Thermal Magnetic (Non-Interchangeable)
• Certifications: UL Listed, CSA Certified
• Shunt Trip: 120V (optional)
• Dimensions: 3" L x 2.5" H x 2.2" W
• Weight: 0.8 lb

At Ess(more...)

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: BAB2015S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667936938
• GTIN : 00786679369388
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 2.5 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
