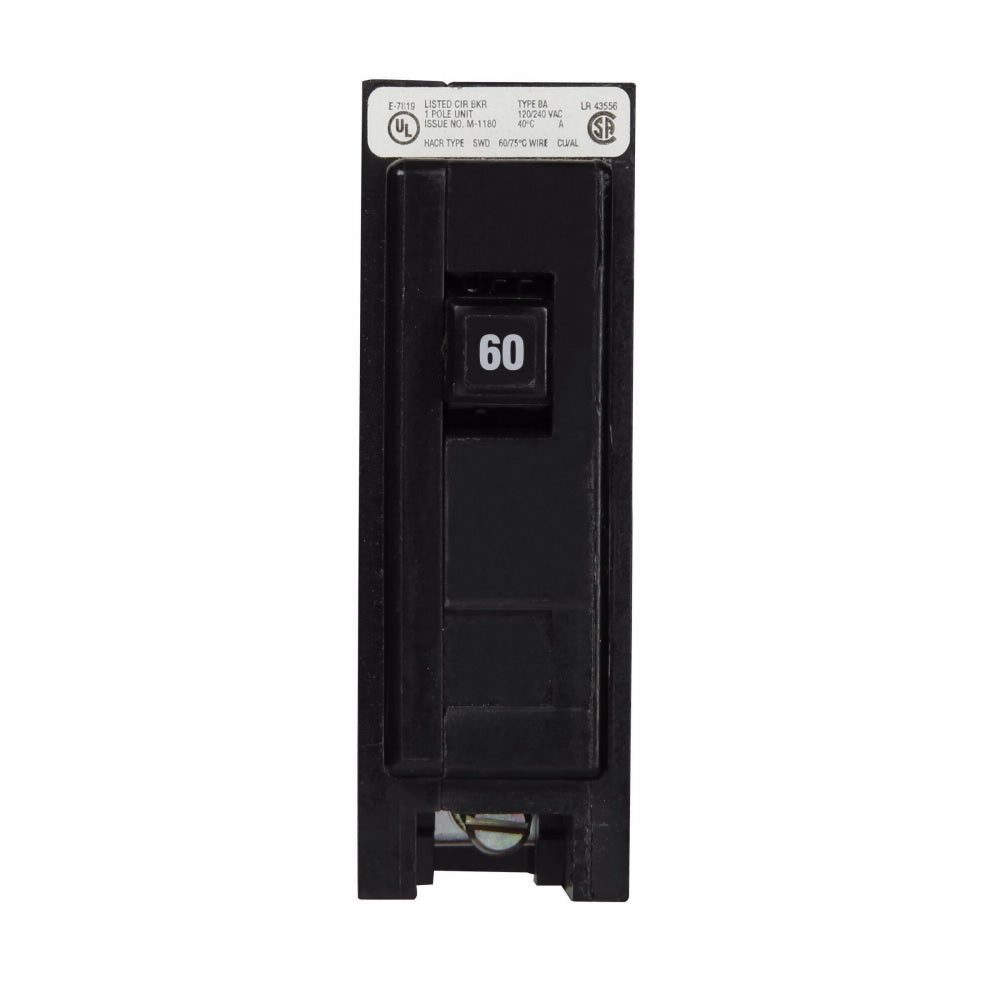

BAB1060S - Cutler Hammer 60 Amp 1 Pole 240V Thermal Magnetic Shunt Trip Circuit Breaker

BAB1060S

BAB1060S is a single-pole thermal-magnetic circuit breaker designed for industrial and commercial applications requiring remote circuit interruption capability.

This Quicklag industrial circuit breaker features a 60-ampere rating at 50 degrees Celsius calibration with a 10,000-ampere interrupt rating at 240 VAC. The shunt trip mechanism enables remote operation for emergency shutdown and safety applications. The breaker accommodates aluminum and copper wire sizes 8 AWG to 1/0 AWG and includes both extended tang line terminals and box lug load terminals for flexible installation. Bolt-on mounting provides secure connection to standard panelboards.

• Amperage Rating: 60 A
• Voltage Rating: 240 VAC
• Poles: 1
• Interrupt Rating: 10 kAIC at 240 VAC
• Trip Unit: Thermal-Magnetic with Shunt Trip
• Mounting Type: Bolt-On
• Series: BAB
• Frame Type: ED
• Calibration: 50 degrees Celsius
• Wire Size: 8 AWG to 1/0 AWG
• Terminals: Extended Tang Line and Box Lug Load
• Certification: UL 489 Listed and CSA Certified&l(more...)


  Additional Information

  complete with 120V shunt trip




  Specifications

  • Part Number: BAB1060S
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Quicklag
  • Type : BAB
  • Voltage : 240
  • Amperage : 60
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic



  Product Data

  • UPC : 786679369029
  • GTIN : 00786679369029
  • Country of Origin : Dominican Republic
  • Dimensions : 3.7 in x 4.8 in x 1.2 in (Length/Depth x Height x Width)
  • Weight : 0.3
  • Standards : HACR rated
  • Certification : UL Listed,CSA Certified
