Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BAB1030S

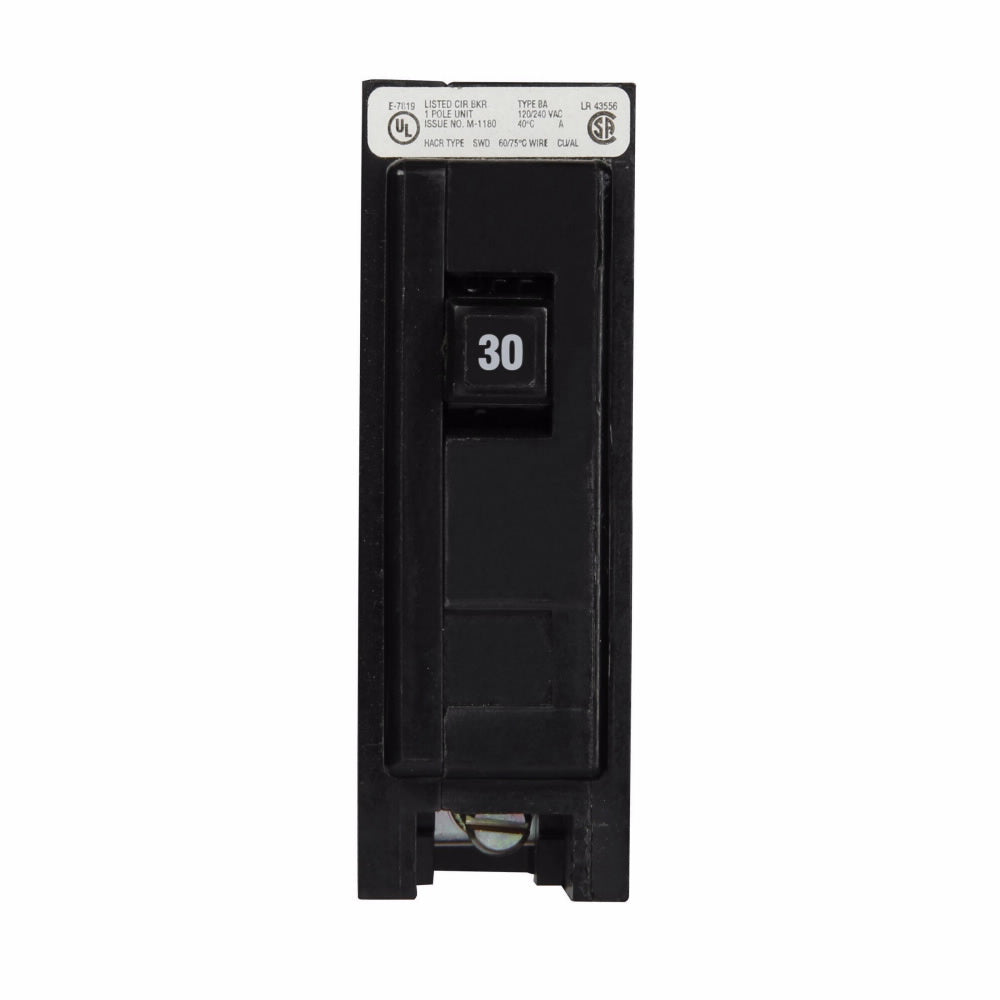

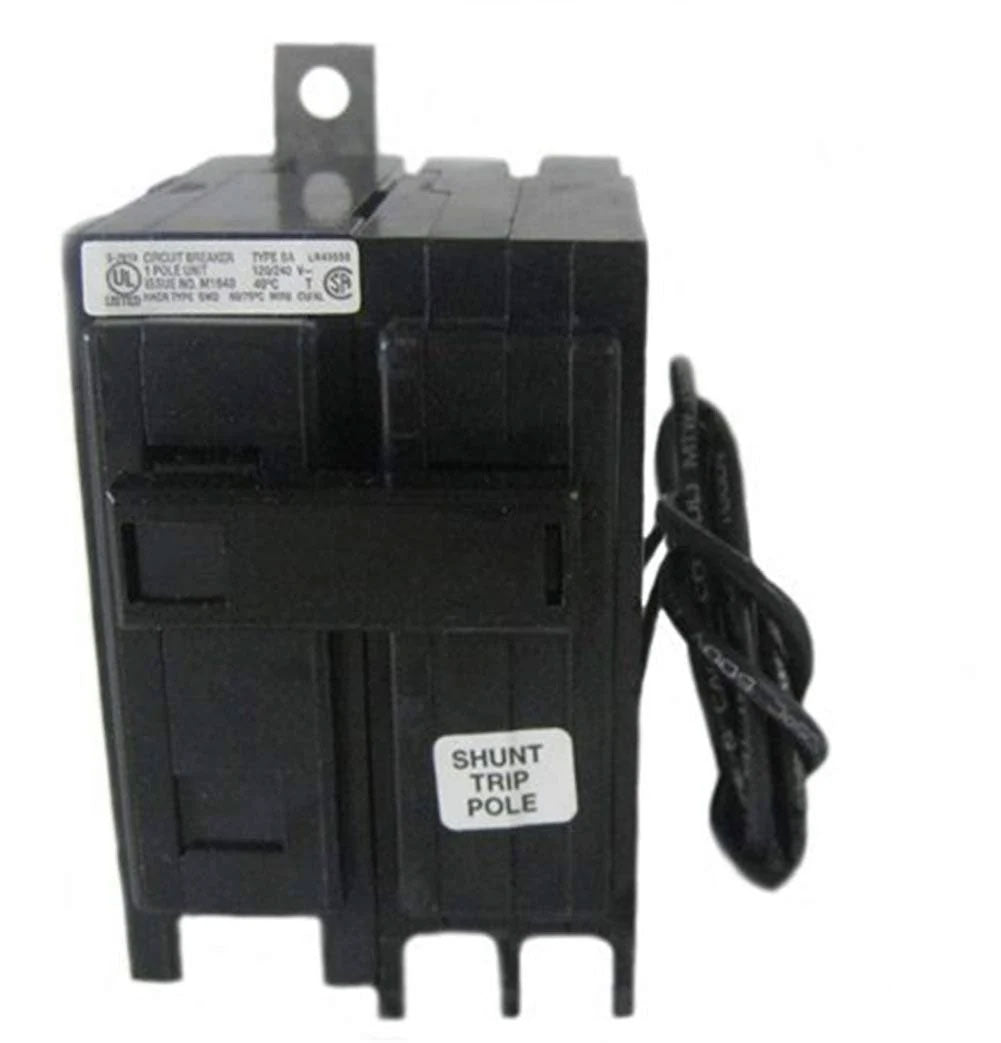

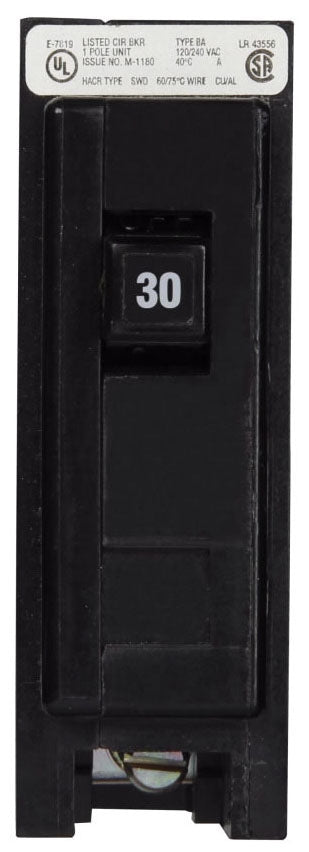

BAB1030S is a Westinghouse 30 amp, 120/240 Volt, 1 pole circuit breaker with a 10kA interrupt rating and 120V shunt trip feature.This BAB series Quicklag industrial thermal-magnetic circuit breaker offers bolt-on mounting, non-interchangeable Q7 frame, and UL/CSA certifications. It is designed for reliable overcurrent protection in commercial and industrial applications.
- Amperage: 30A
- Voltage: 120/240V AC
- Poles: 1
- Interrupt Rating: 10kA @ 240V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic with 120V Shunt Trip
- Series/Frame: BAB, Q7 Frame
- Certifications: UL, CSA
- Non-Interchangeable
- Industrial Quicklag Design
Additional Information
complete with 120V shunt trip
Specifications
- Part Number: BAB1030S
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : BAB
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679368442
- GTIN : 00786679368442
- Country of Origin : Dominican Republic
- Dimensions : 3.9 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
- Weight : 0.6
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
- Wire Size : 14 To 4 AWG (Aluminum/Copper
