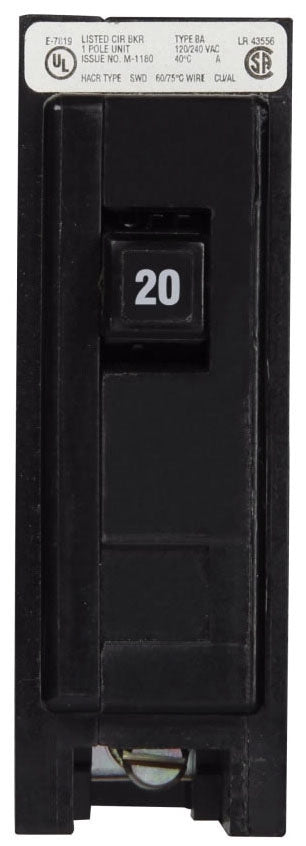

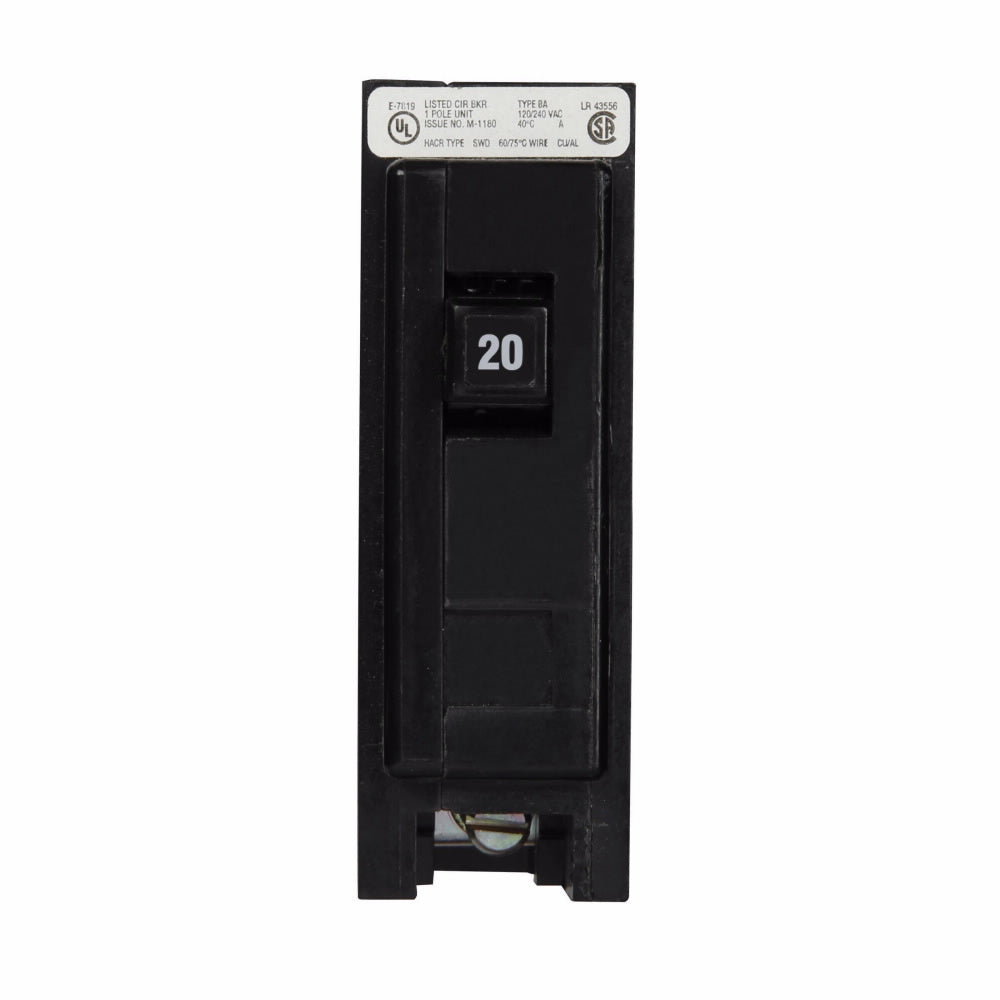

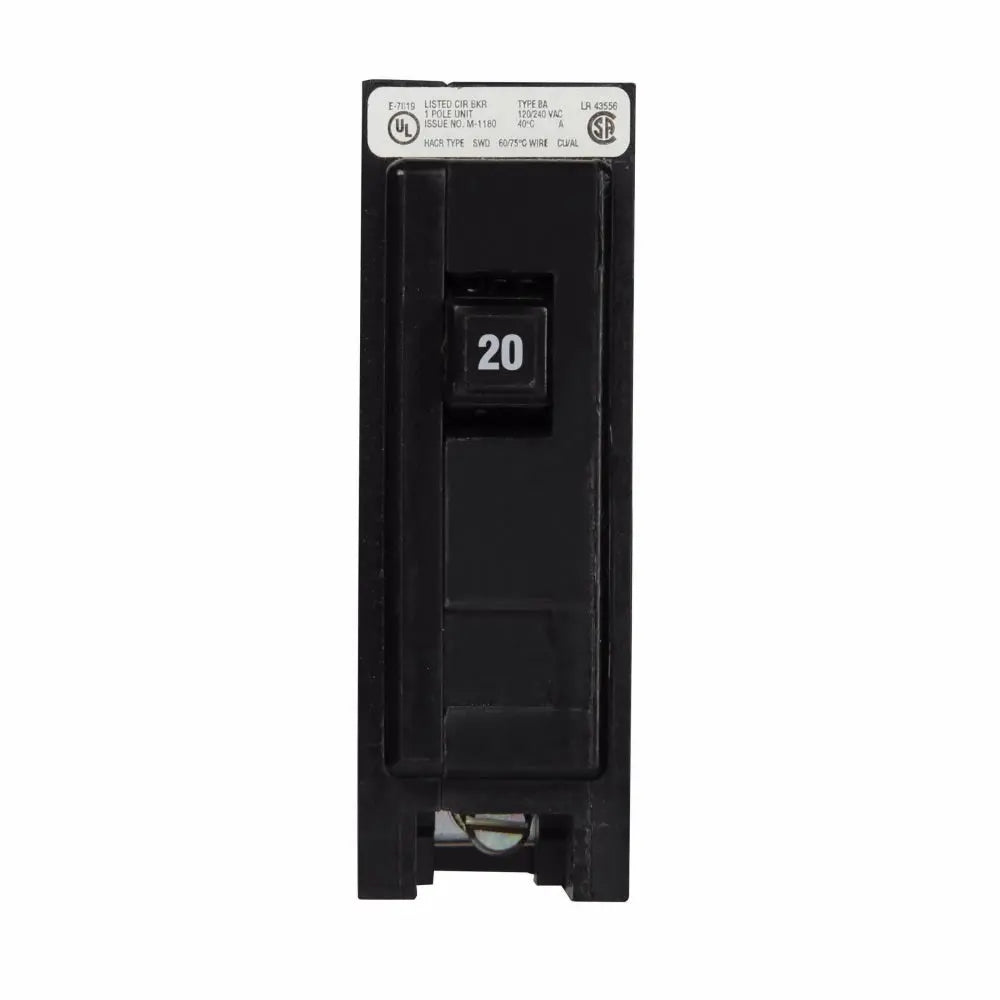

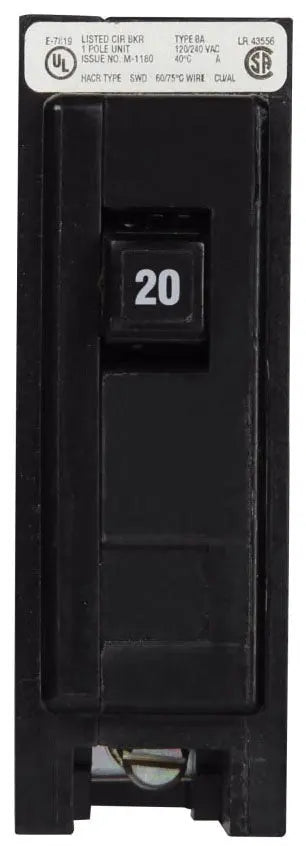

BAB1020D - Eaton 20A Single Pole 120/240V Thermal Magnetic Circuit Breaker

BAB1020D

BAB1020D is an Eaton Quicklag industrial thermal-magnetic circuit breaker designed for reliable overcurrent protection in power distribution applications. This single-pole breaker features bolt-on mounting for easy installation in loadcenters and offers non-interchangeable trip characteristics for consistent performance across 120/240V systems. The BAB1020D delivers a 10 kAIC interrupt rating, making it suitable for industrial and commercial installations requiring robust circuit protection. Built with high-intensity discharge technology, this breaker combines thermal and magnetic trip elements to protect against both overload and short-circuit conditions.

• Amperage Rating: 20A
• Voltage Rating: 120/240V
• Number of Poles: Single-pole
• Mounting Method: Bolt-on
• Interrupt Rating: 10 kAIC
• Trip Type: Non-Interchangeable
• Circuit Breaker Type: BAB Quicklag
• Certifications: UL Listed, CSA Certified
• HACR Rated: Yes
• Product Weight: 0.3 lb
• Warranty: 1 year

At Essential Parts, we offer fast shipping, <(more...)

Specifications

• Part Number: BAB1020D
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679153130
• GTIN : 00786679153130
• Country of Origin : Dominican Republic
• Dimensions : 3.7 in x 4.7 in x 1.2 in (Length/Depth x Height x Width)
• Weight : 0.3
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
