BAB1015S - Westinghouse 15A 1-Pole 120/240V Bolt-On BAB Series Thermal Magnetic Circuit Breaker, 10kA Interrupt Rating, QUICKLAG, Non-Interchangeable Trip

BAB1015S

BAB1015S is a Westinghouse 1-pole thermal magnetic circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This BAB series breaker features a bolt-on mounting style, non-interchangeable trip unit, and a robust QUICKLAG frame. It is rated for 15A at 120/240V AC, with a high interrupting capacity of 10,000A at 240V. The thermal magnetic trip mechanism provides both long-time and instantaneous overcurrent protection, ensuring safety and equipment longevity.

Key Specifications
• Part Number: BAB1015S
• Manufacturer: Westinghouse (Eaton/Cutler-Hammer)
• Amperage: 15A
• Voltage: 120/240V AC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000A @ 240V
• Series/Frame: BAB, QUICKLAG
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: Not specified in available data
• Application: Molded case circuit protection
• Trip Functions: Long-time and instantaneous

At Essential Parts, we offer fast shipping&(more...)

Additional Information

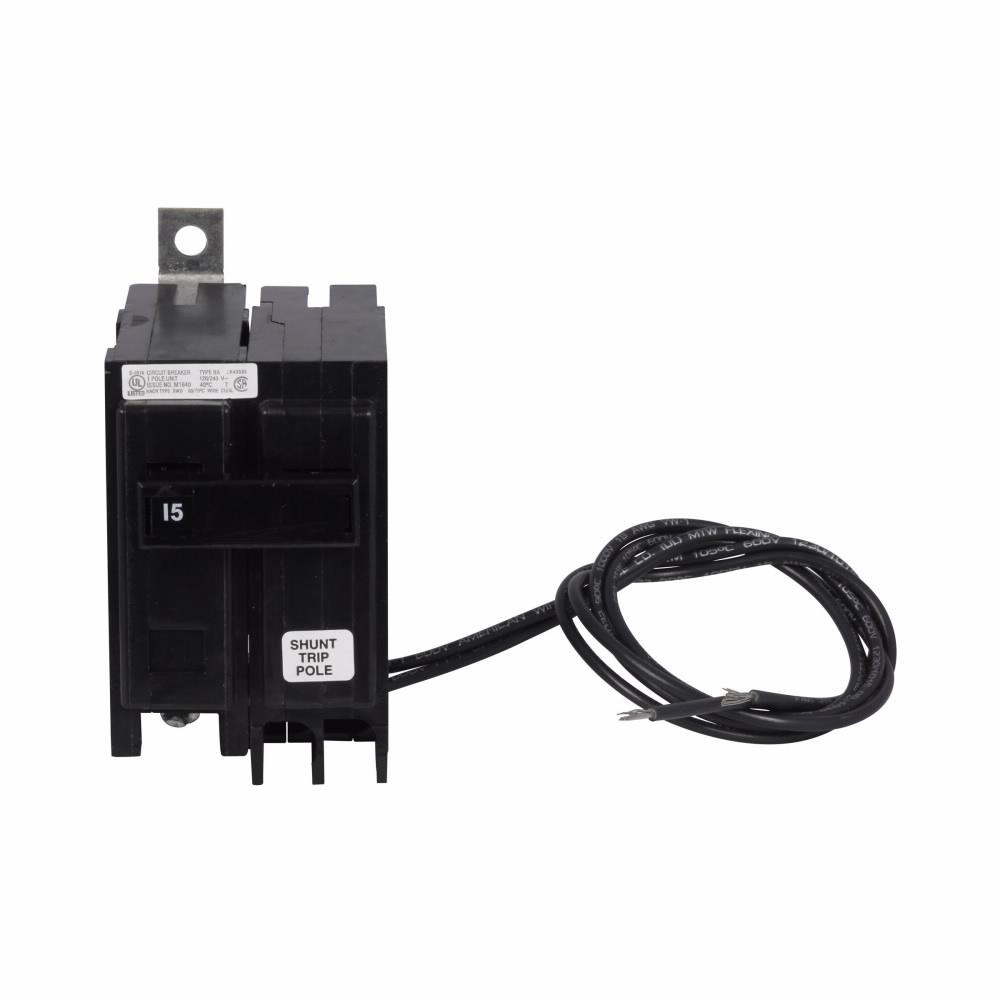

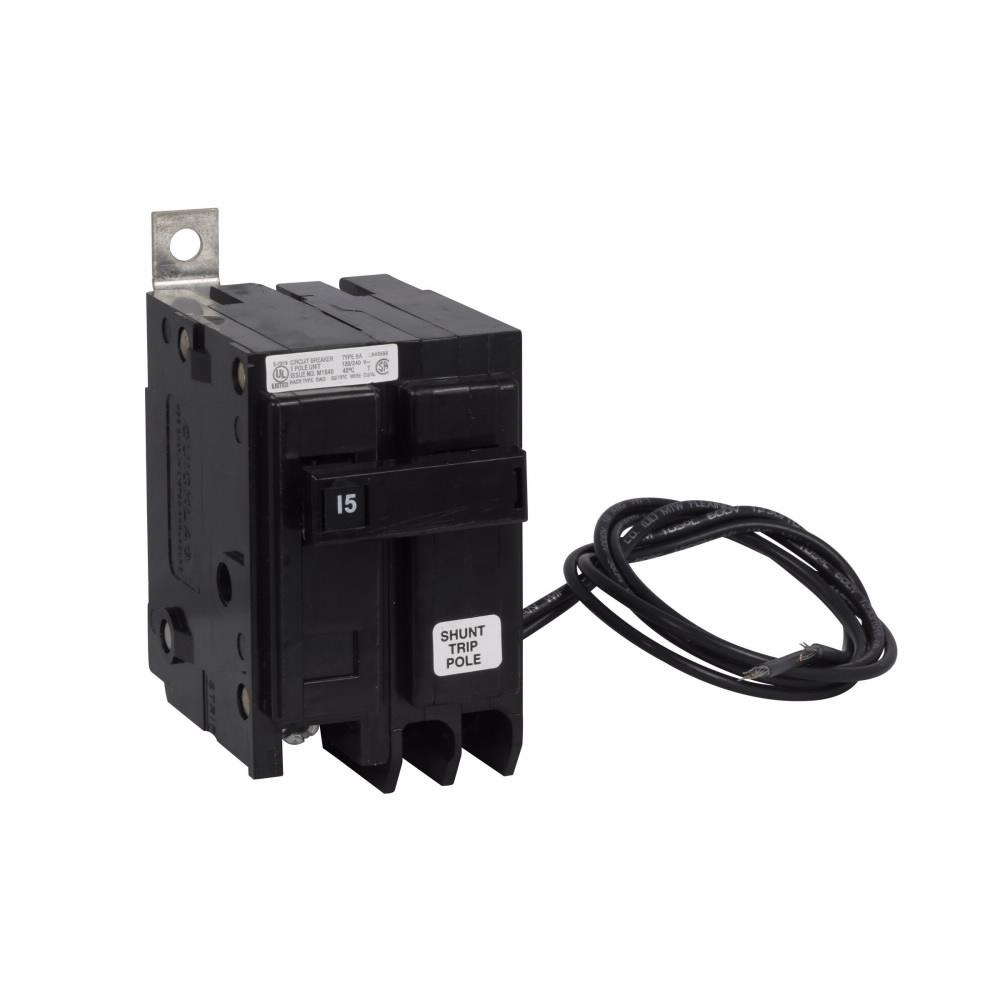

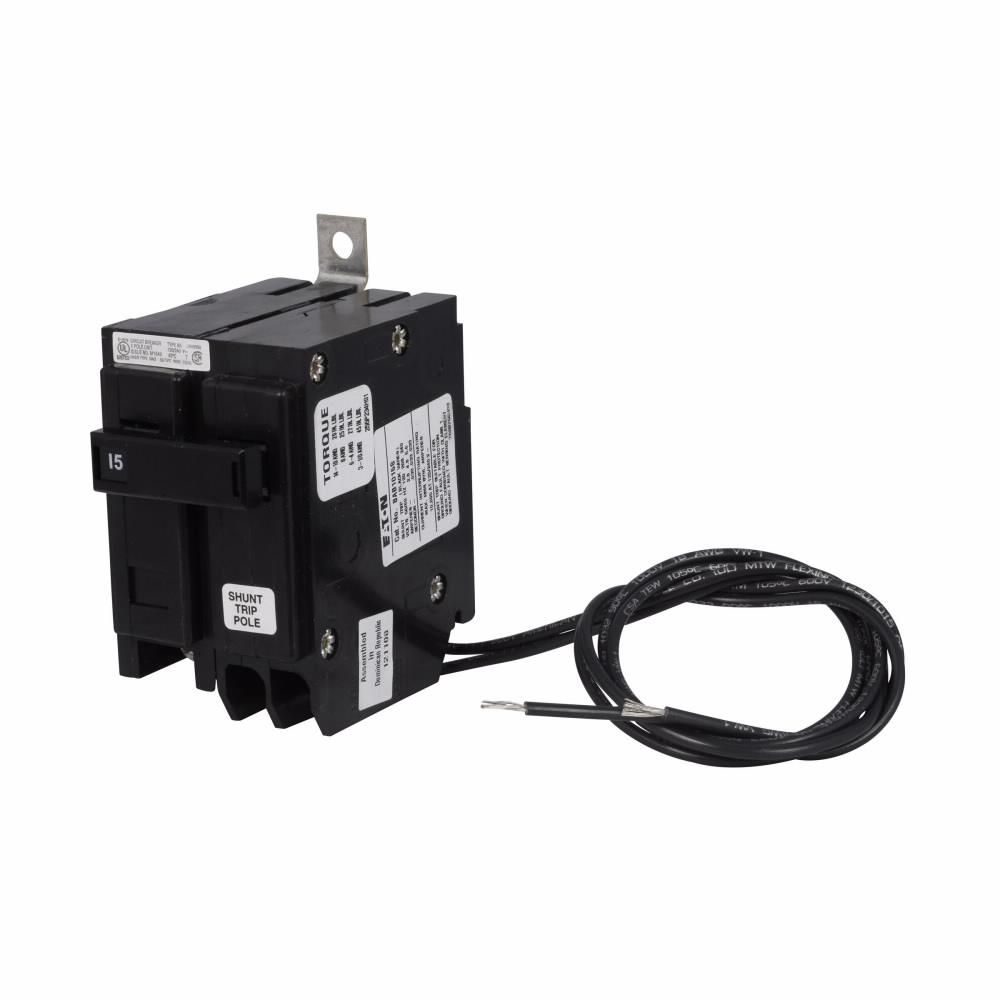

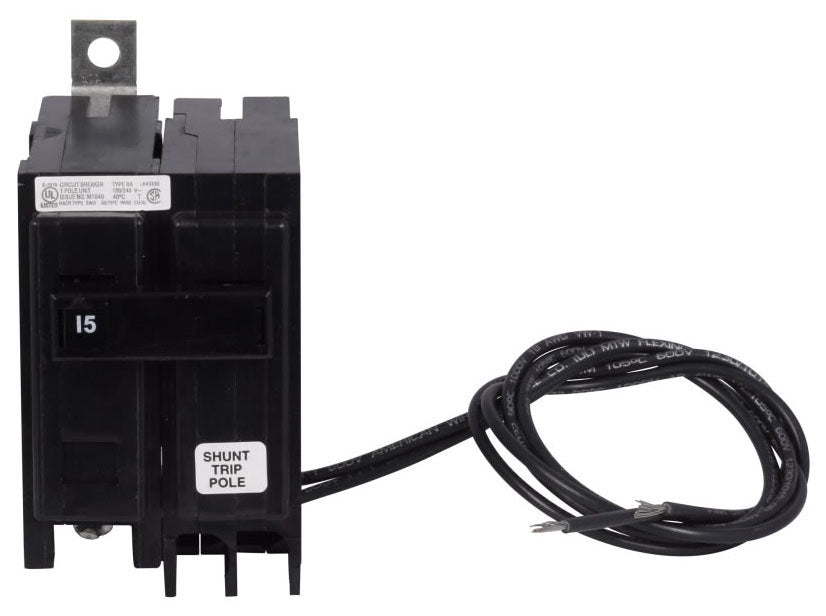

complete with 120V shunt trip

Specifications

• Part Number: BAB1015S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : BAB
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667936818
• GTIN : 00786679368183
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
