Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
BA23JP

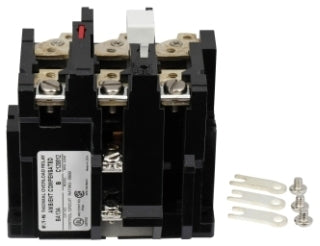

BA23JP is a Cutler Hammer thermal overload relay designed for motor control applications with an adjustable amperage range of 26.3 to 45 amps.BA23JP features a three-pole, panel-mounted design compliant with NEMA A200 standards. It uses a Type B thermal trip unit with Class 20 characteristics and includes 1NC auxiliary contact. The relay is ambient compensated and requires heaters for operation. It is CSA certified and UL listed for safety and reliability.
- Manufacturer: Cutler Hammer (Eaton)
- Amperage Range: 26.3-45A adjustable
- Poles: Three-pole
- Mounting Type: Panel mounted
- Interrupt Rating: NEMA A200
- Trip Unit: Thermal Type B, Class 20
- Auxiliary Contact: 1NC
- Ambient Compensated
- Certifications: CSA Certified, UL Listed
- Frame Type: BA
- Weight: 0.95 lb
- Warranty: Eaton Selling Policy 25-000, 1 year installation or 18 months shipment
Specifications
- Part Number: BA23JP
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Relay Style : Thermal
- Amperage Maximum : 45
- Amperage Minimum : 263
Product Data
- UPC : 786678003030
- GTIN : 00078667800303
- Country of Origin : United States
- Dimensions : 4.8 in x 3.4 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.95
- Certification : UL Listed,CSA Certified
