Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Overload Relay
Description
BA23J

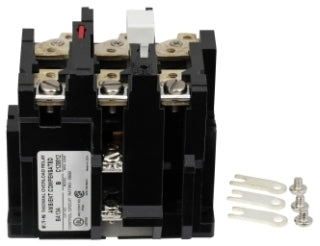

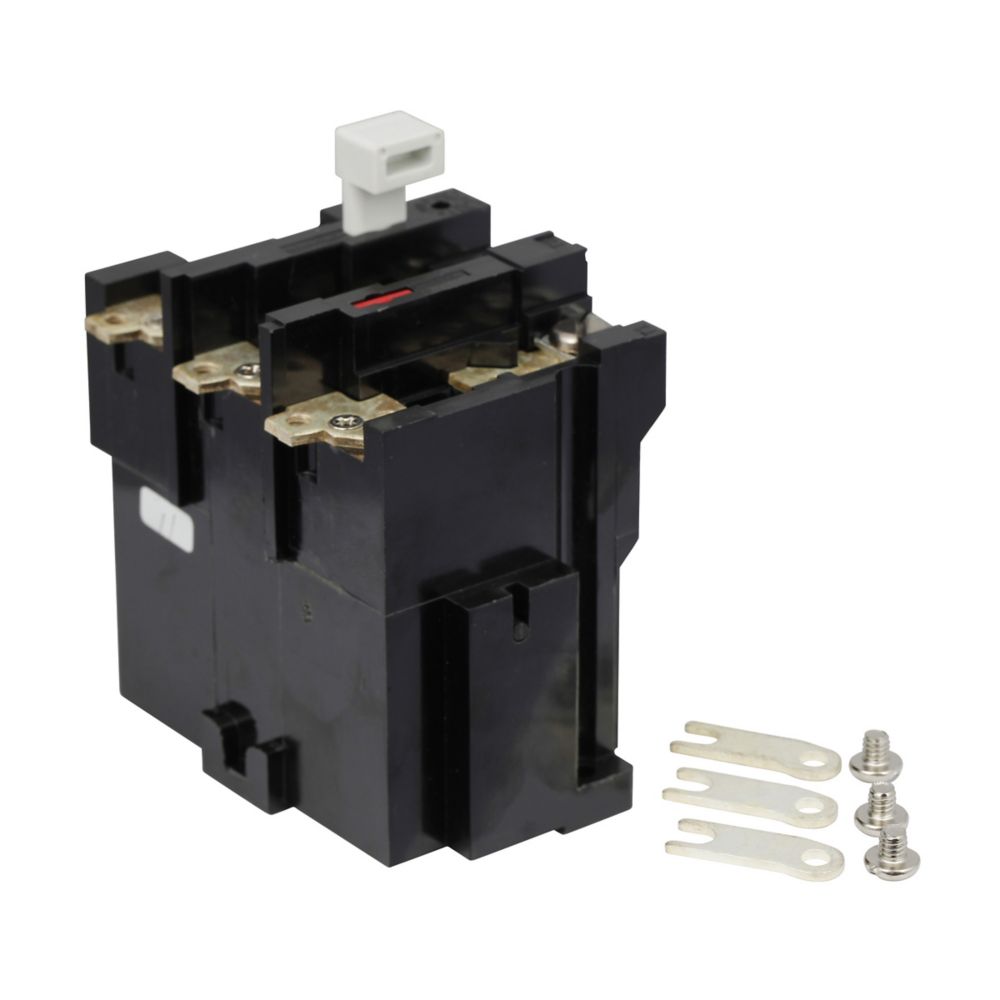

BA23J is a Cutler Hammer NEMA A200 Thermal Overload Relay designed for motor control applications.BA23J is a three-pole, starter-mounted thermal overload relay with an adjustable amperage range of 26.3 to 45 amps. It features Thermal Type B, Class 20 trip characteristics, 1NC auxiliary contact, and ambient compensation for accurate motor protection. This relay is UL Listed and CSA Certified, ensuring compliance with industry safety standards.
- Adjustable amperage range: 26.3-45A
- Three-pole design
- Starter mounted
- NEMA A200 series
- Thermal Type B, Class 20 trip unit
- 1NC auxiliary contact
- Ambient compensated
- UL Listed and CSA Certified
- Weight approx. 2 lbs
Specifications
- Part Number: BA23J
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : A200 Series
- Type : B
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 4
- Amperage Maximum : 45
- Amperage Minimum : 26.3
Product Data
- UPC : 786679709597
- GTIN : 78667801317
- Dimensions : 6.1 in x 5.1 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 1.15 lb
