Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Heater Element
Description
B70.0

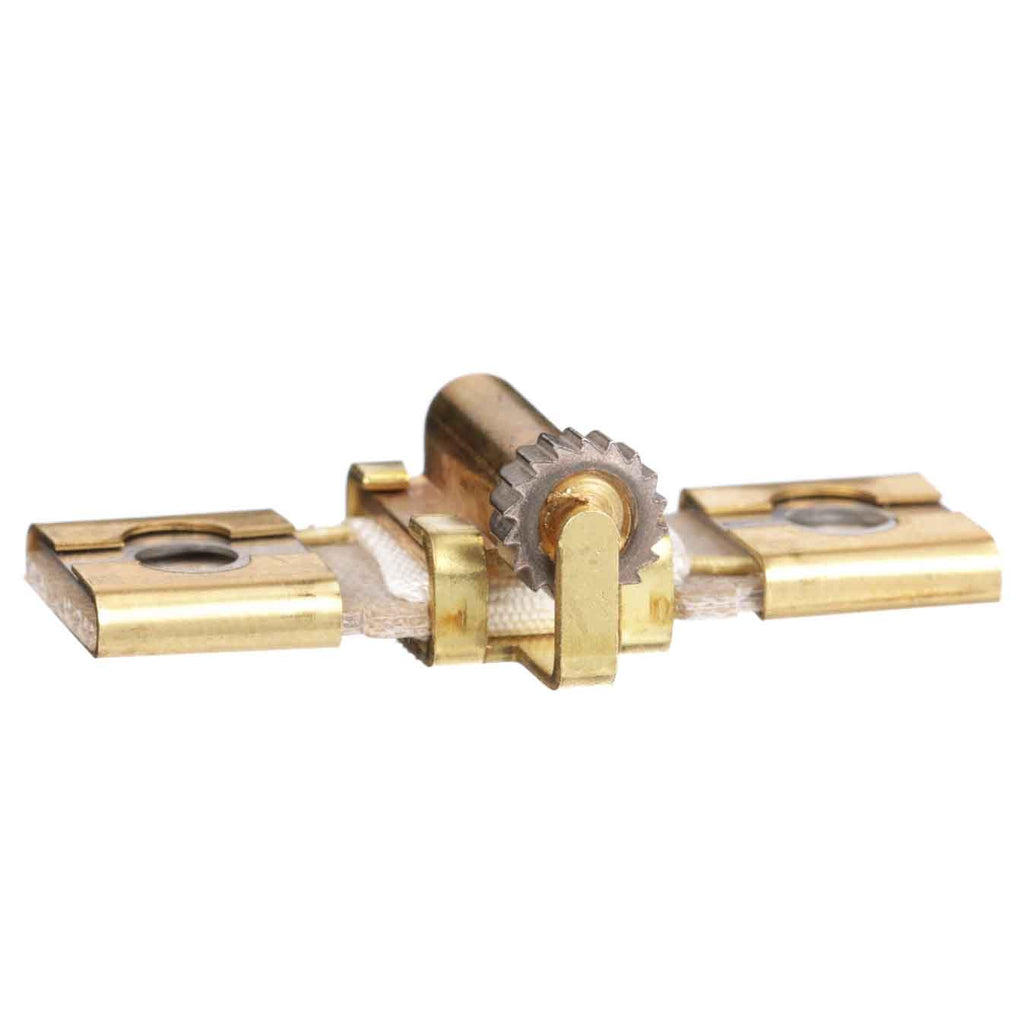

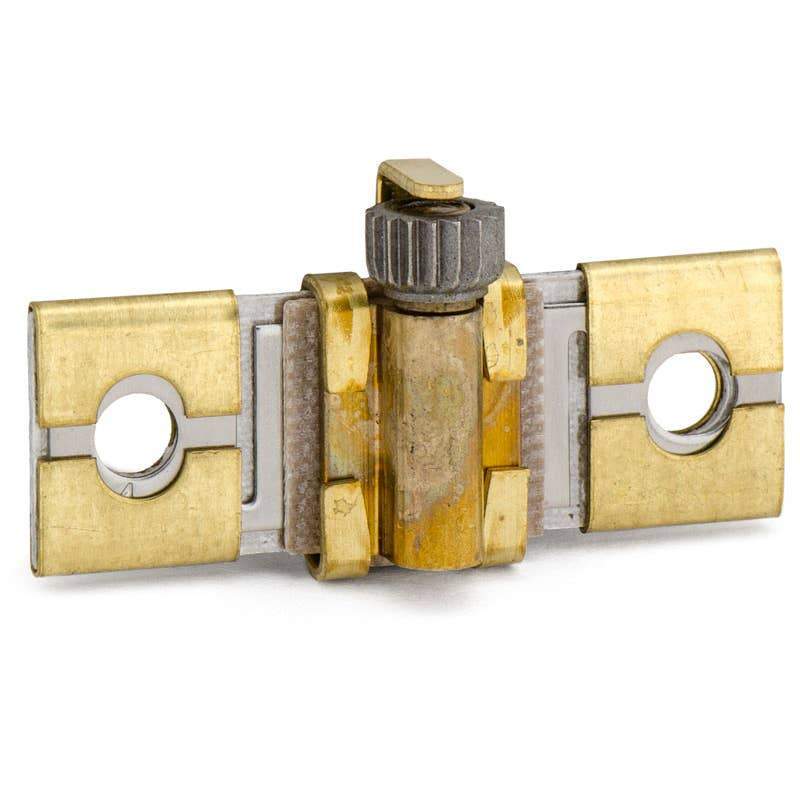

B70.0 is a Square D thermal unit overload relay designed for motor control applications with a full load amperage range of 32.2 to 45 amps and Class 20 trip rating.This thermal unit features a melting alloy sensing method and plug-on mounting type, compatible with NEMA Size 2 motor starters. It provides reliable standard trip protection for motors, ensuring safe operation within a 600V maximum voltage rating. The unit is part of the B series and is designed for use in ambient temperatures up to 40°C.
- Key Specifications
- Manufacturer: Square D
- Part Number: B70.0
- Amperage Range: 32.2 to 45 A
- Trip Class: 20
- Mounting Type: Plug-On
- Sensing Method: Melting Alloy
- NEMA Size: 2
- Voltage Rating: Up to 600 V
- Trip Type: Standard Trip
- Series: B
Specifications
- Part Number: B70.0
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Heater Element
- Full Load Amps : 35.4 to 50.0
Product Data
- UPC : 785901587651
- GTIN : 00785901587651
- Country of Origin : Mexico
- Dimensions : Width 0.79 in (20 mm) Height 0.24 in (6 mm)
- Weight : 0.04
- Certification : CE
