Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Heater Element
Description
B7.70

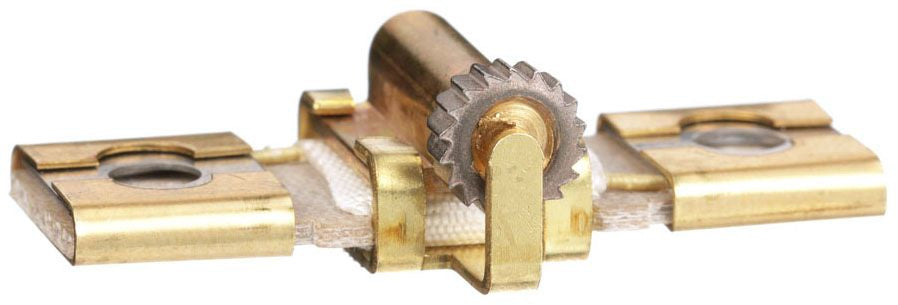

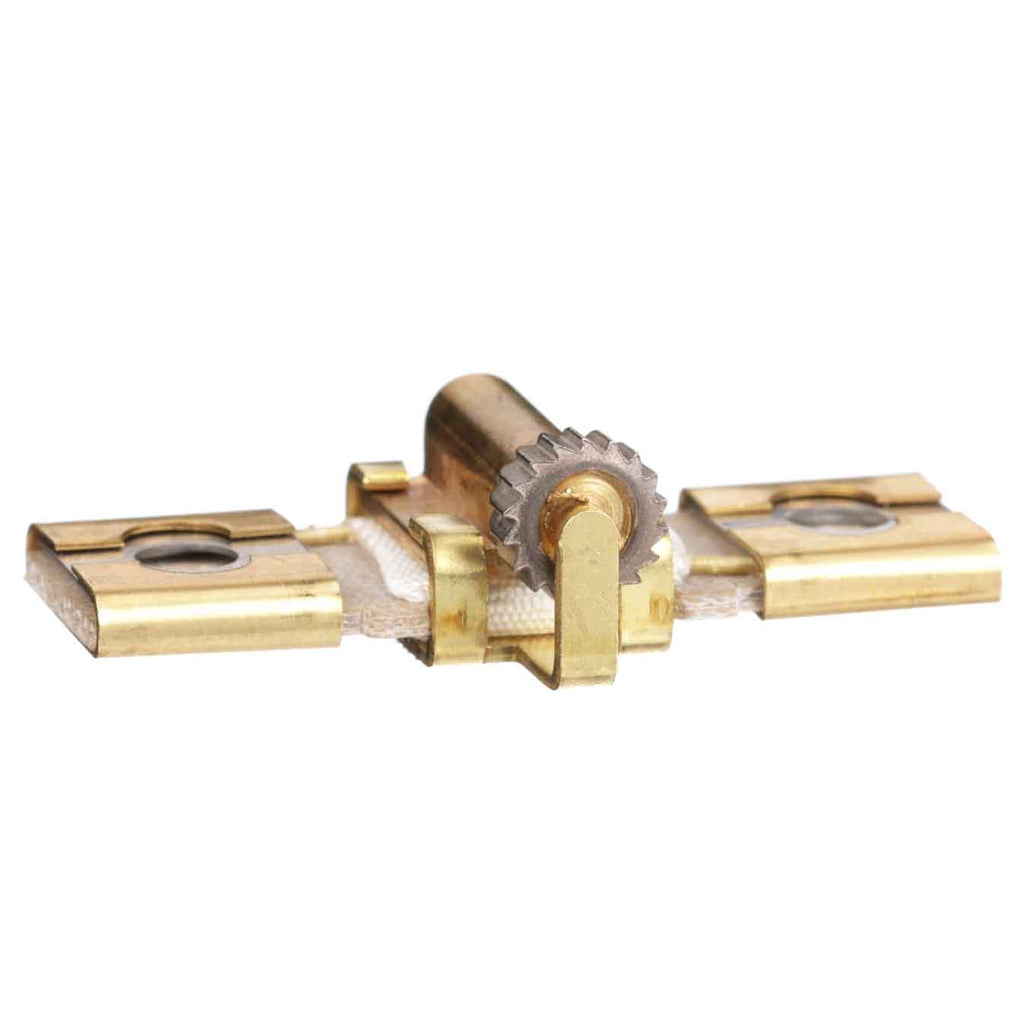

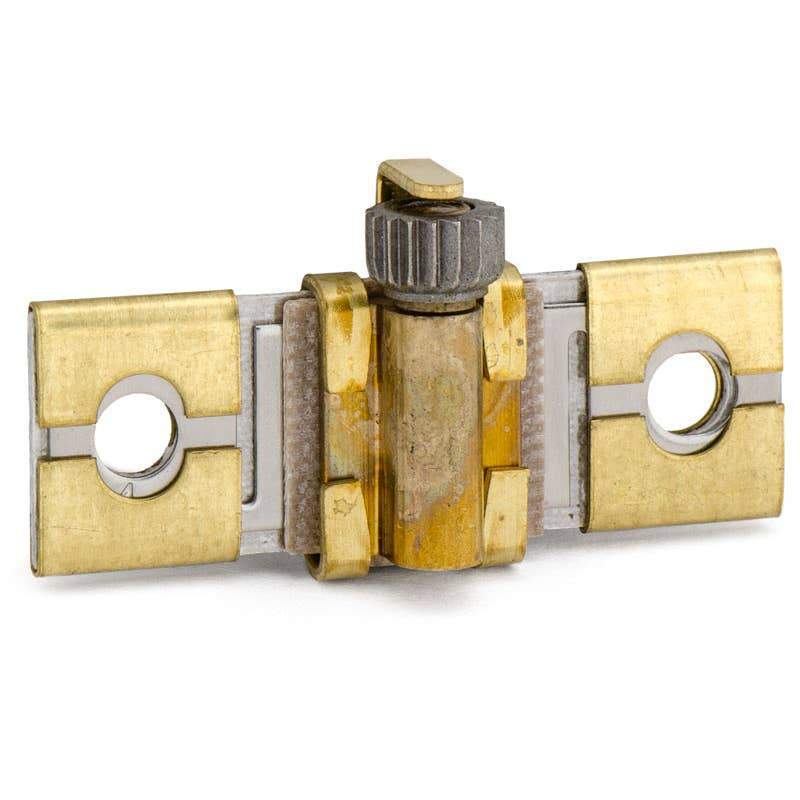

B7.70 is a Square D thermal overload relay unit designed for motor control applications.This thermal unit features a melting alloy sensing method with a motor tripping class 20 standard trip. It supports a full load amperage range of 5.69 to 6.27 amps and is rated for up to 600 volts maximum. The unit is plug-in mounted for easy installation and is compatible with a variety of overload relays in NEMA sizes 00-7.
- Key Specifications
- Manufacturer: Square D by Schneider Electric
- Part Number: B7.70
- Full Load Amps: 5.69 to 6.27 A
- Voltage Rating: 600 V maximum
- Trip Class: 20 (Standard Trip)
- Sensing Method: Melting Alloy
- Mounting Type: Plug-In
- Compatible NEMA Sizes: 00-7
- Interrupt Rating: Not specified
- Certifications: Not specified
- Part Number: B7.70
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Heater Element
- Full Load Amps : 4.93 to 6.27
- UPC : 785901587446
- GTIN : 00785901587446
- Country of Origin : Mexico
- Dimensions : Width 0.79 in (20 mm) Height 0.24 in (6 mm)
- Weight : 0.05
- Certification : CE
