B390H - Siemens 90 Amp 240V 3-Pole Molded Case Circuit Breaker Type BL

B390H

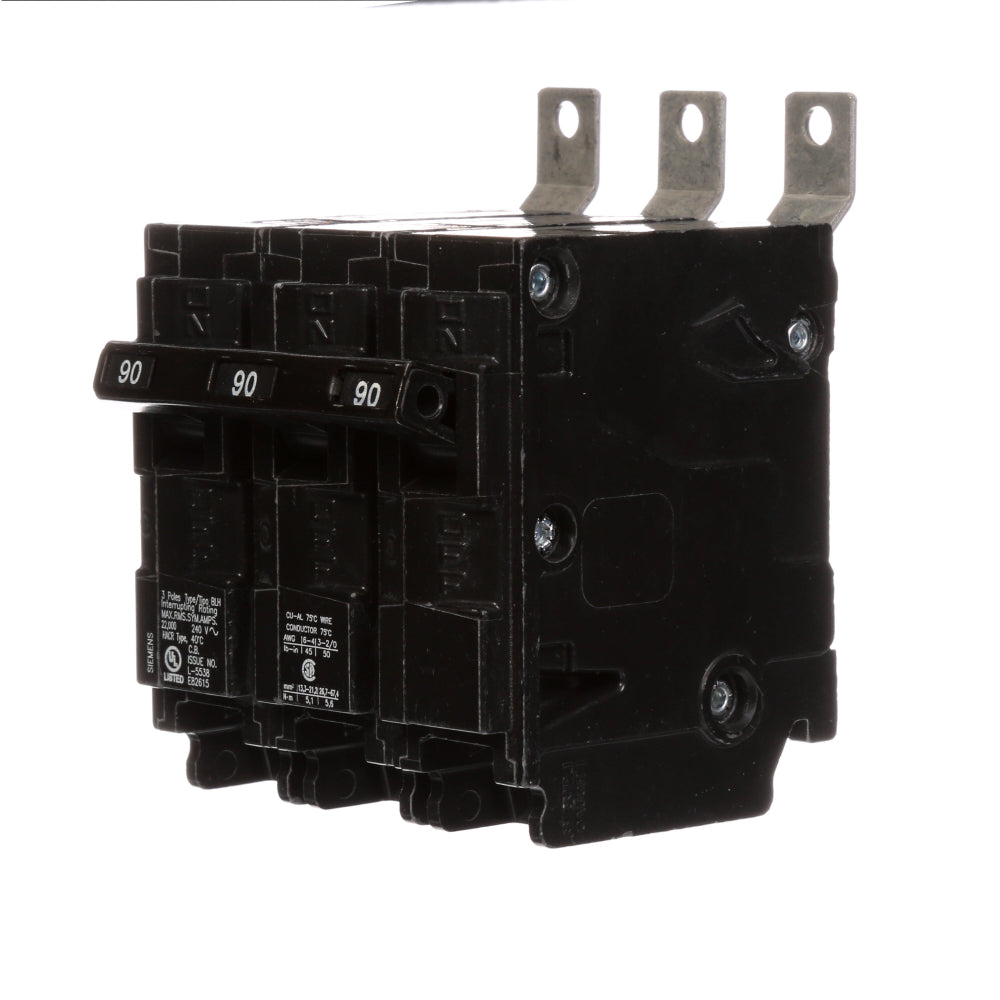

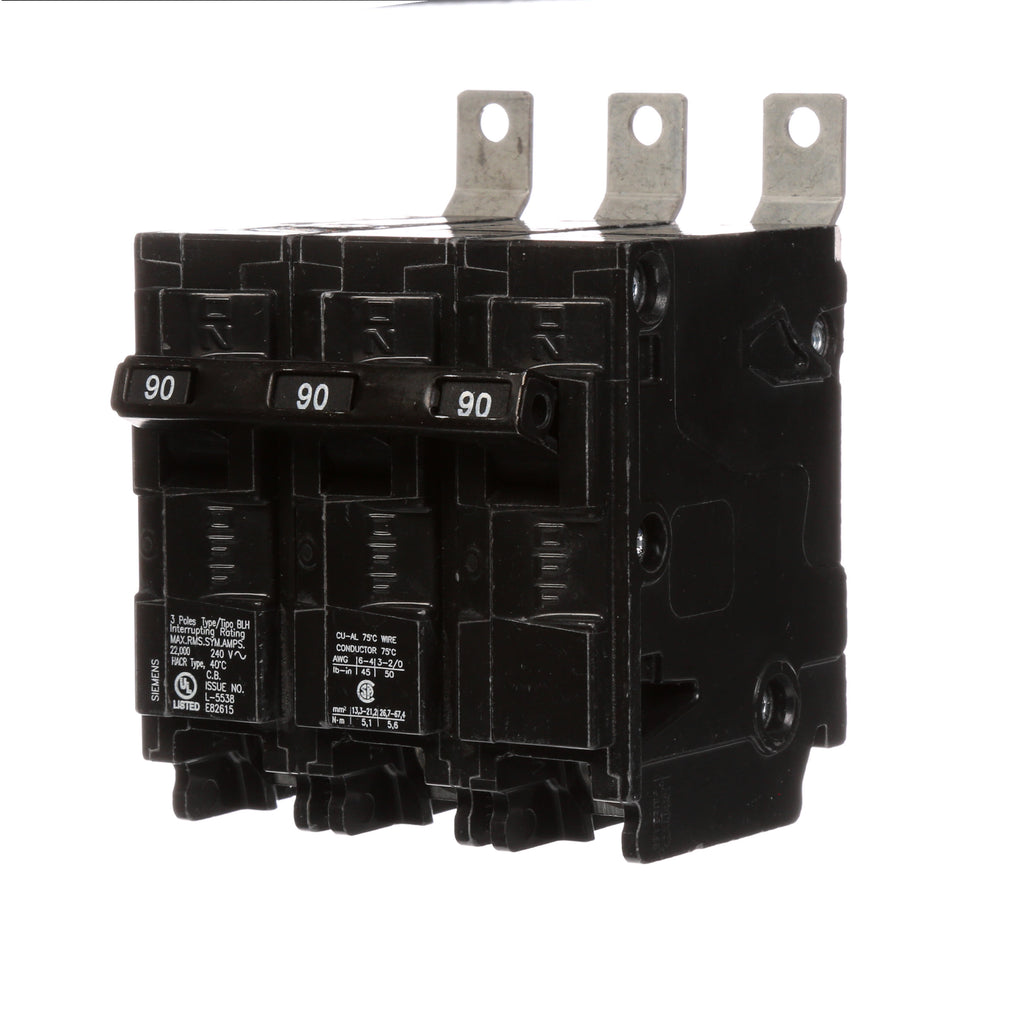

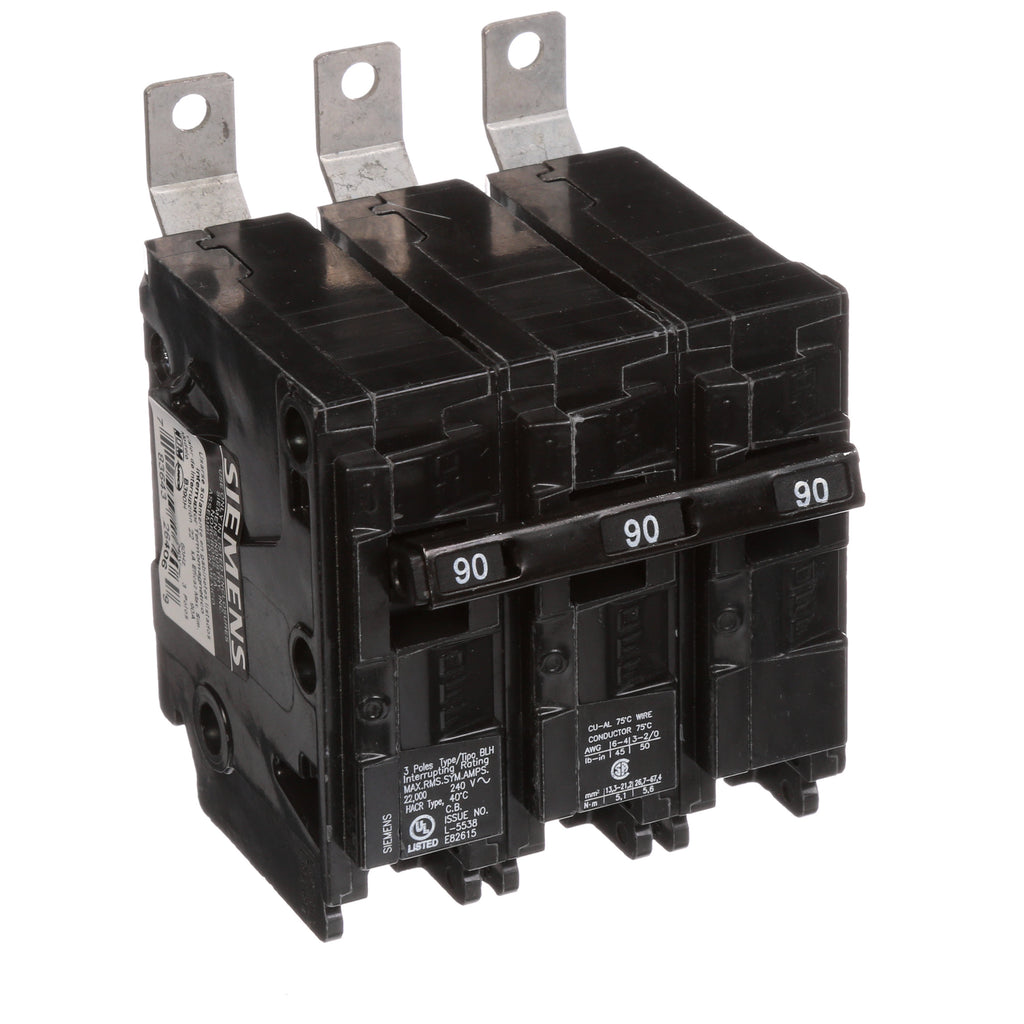

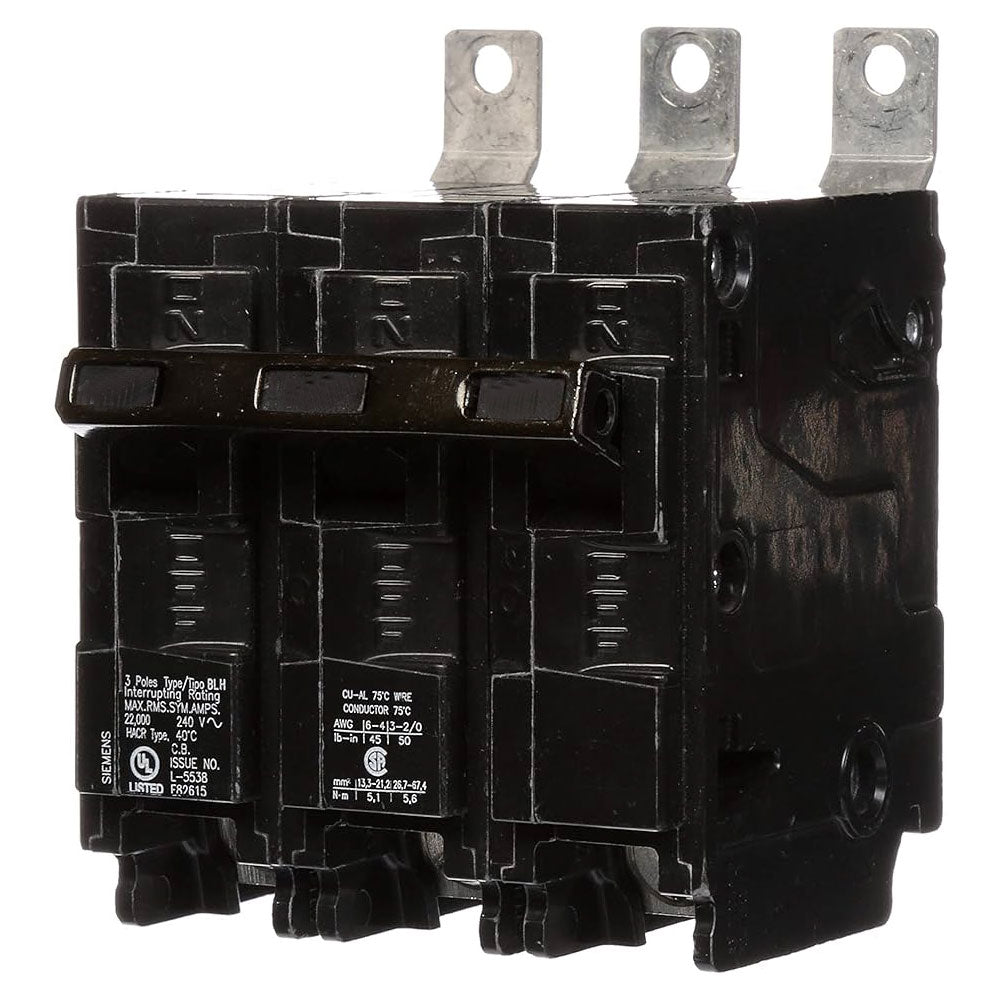

B390H is a Siemens 3-pole molded case circuit breaker designed for panelboard mounting with a 90 ampere rating and 240 volt AC voltage rating.This circuit breaker features a thermal magnetic trip unit, Type BL frame, and an interrupt rating of 22 kAIC, providing reliable overcurrent protection for low voltage electrical distribution systems. It is UL 489 certified and suitable for use in a variety of industrial and commercial applications.

• Manufacturer: Siemens
• Part Number: B390H
• Amperage: 90A
• Voltage Rating: 240V AC
• Number of Poles: 3
• Mounting Type: Panelboard Mounting (Bolt-On)
• Interrupt Rating: 22 kAIC
• Frame Type: BL
• Trip Unit: Thermal Magnetic
• Standards: UL 489 Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B390H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264069
• GTIN : 00783643264069
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
