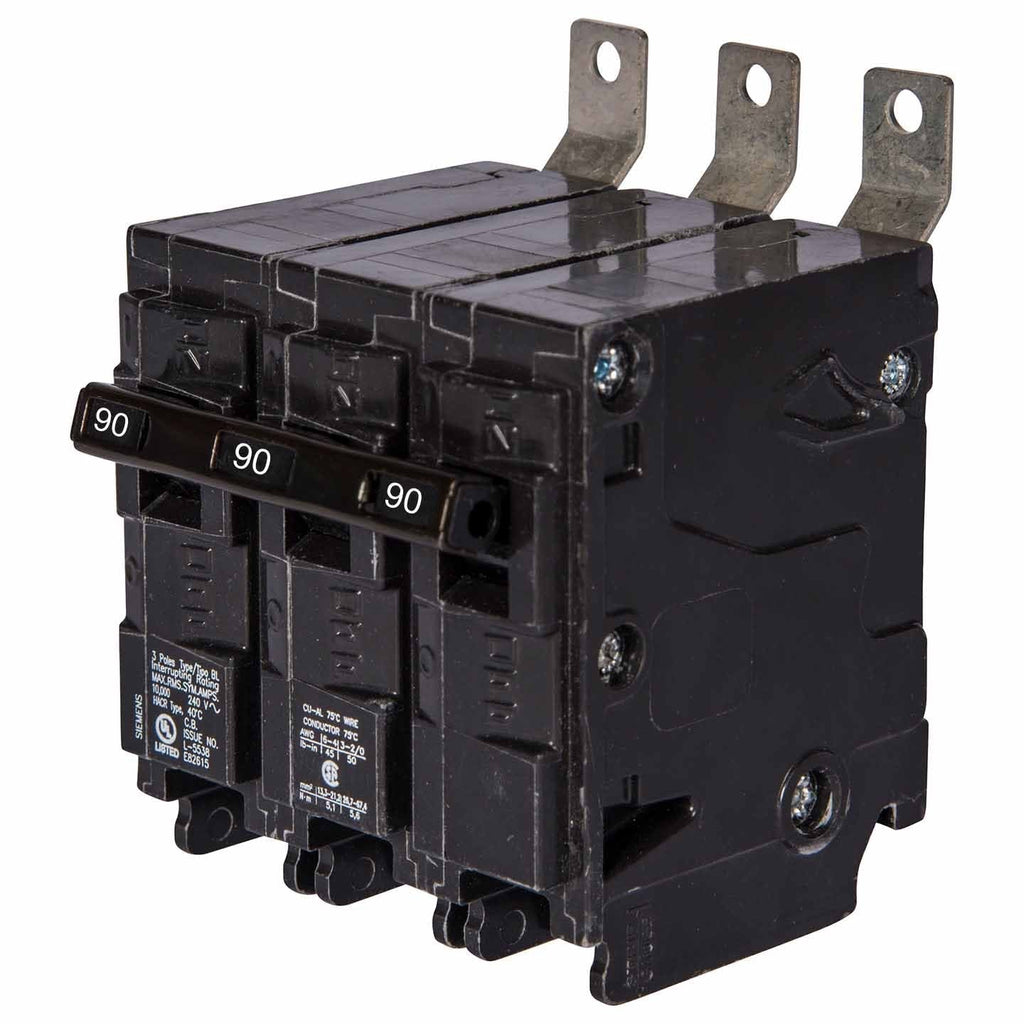

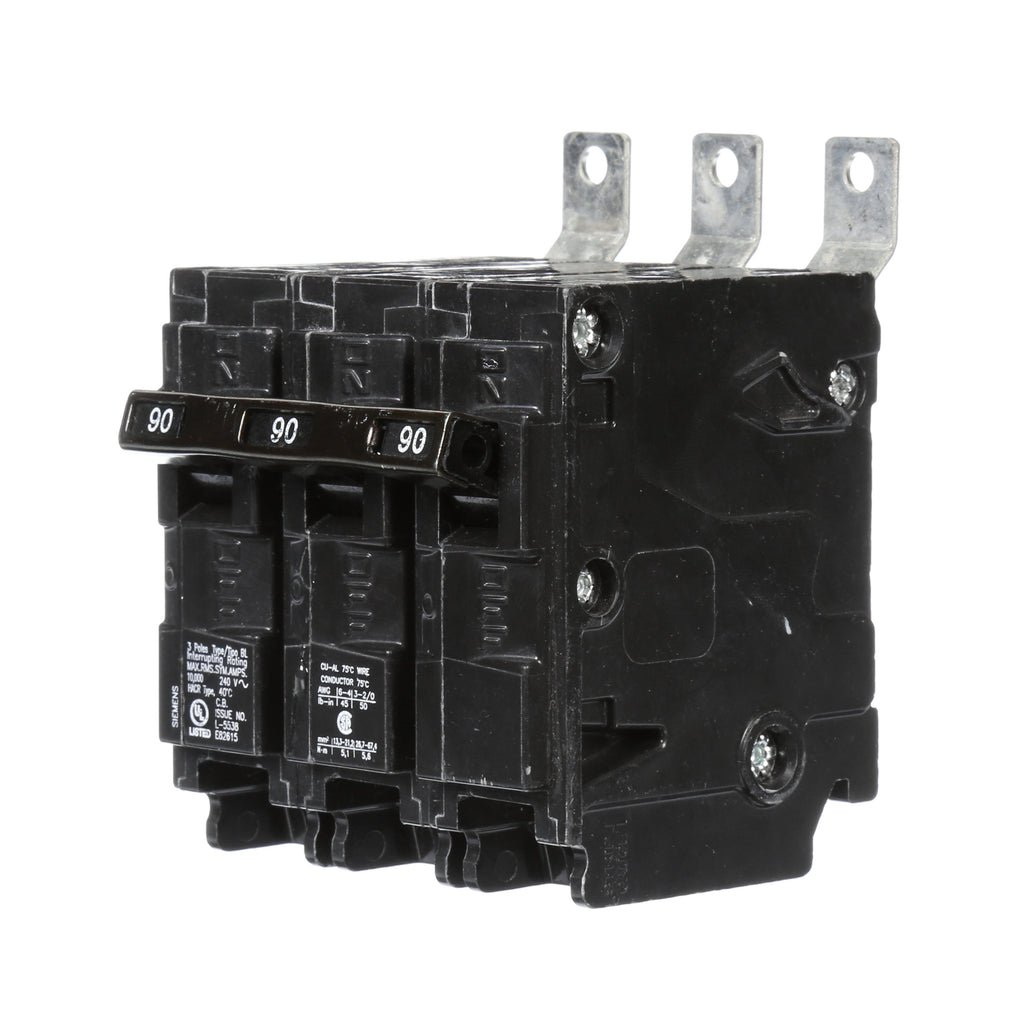

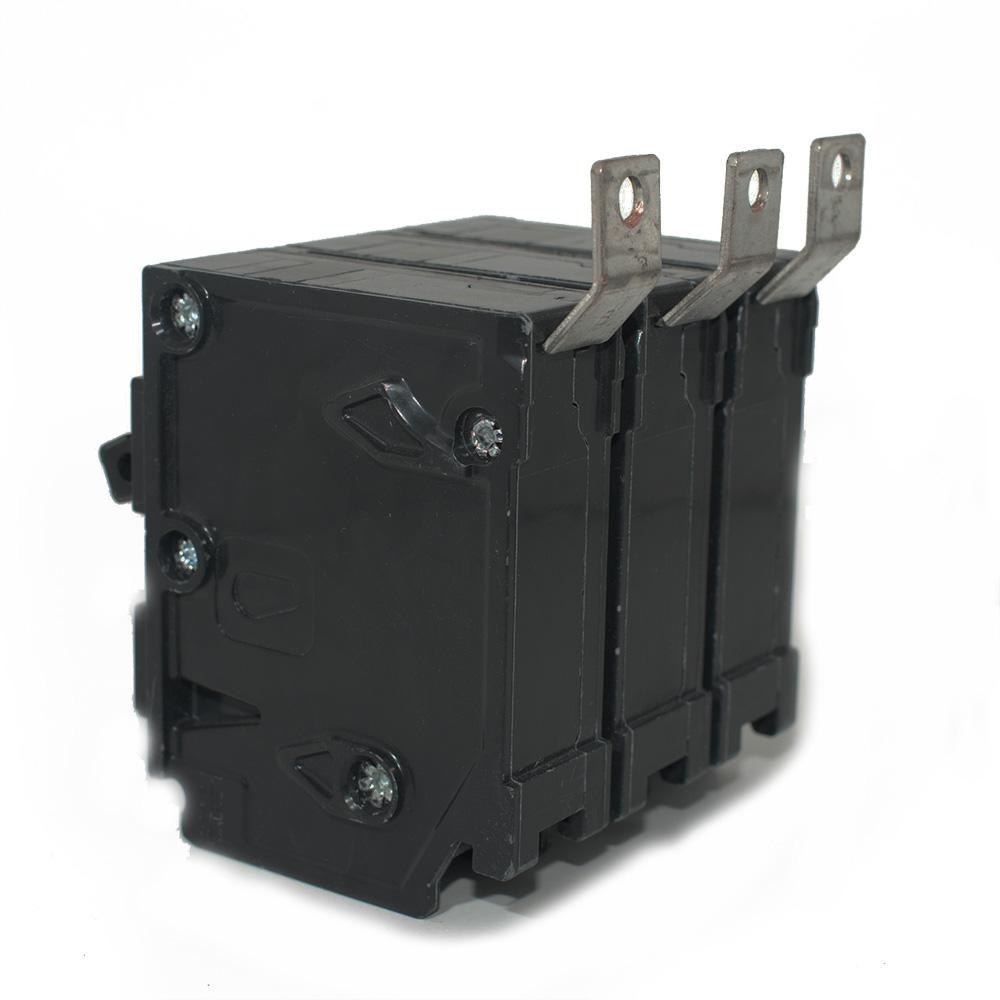

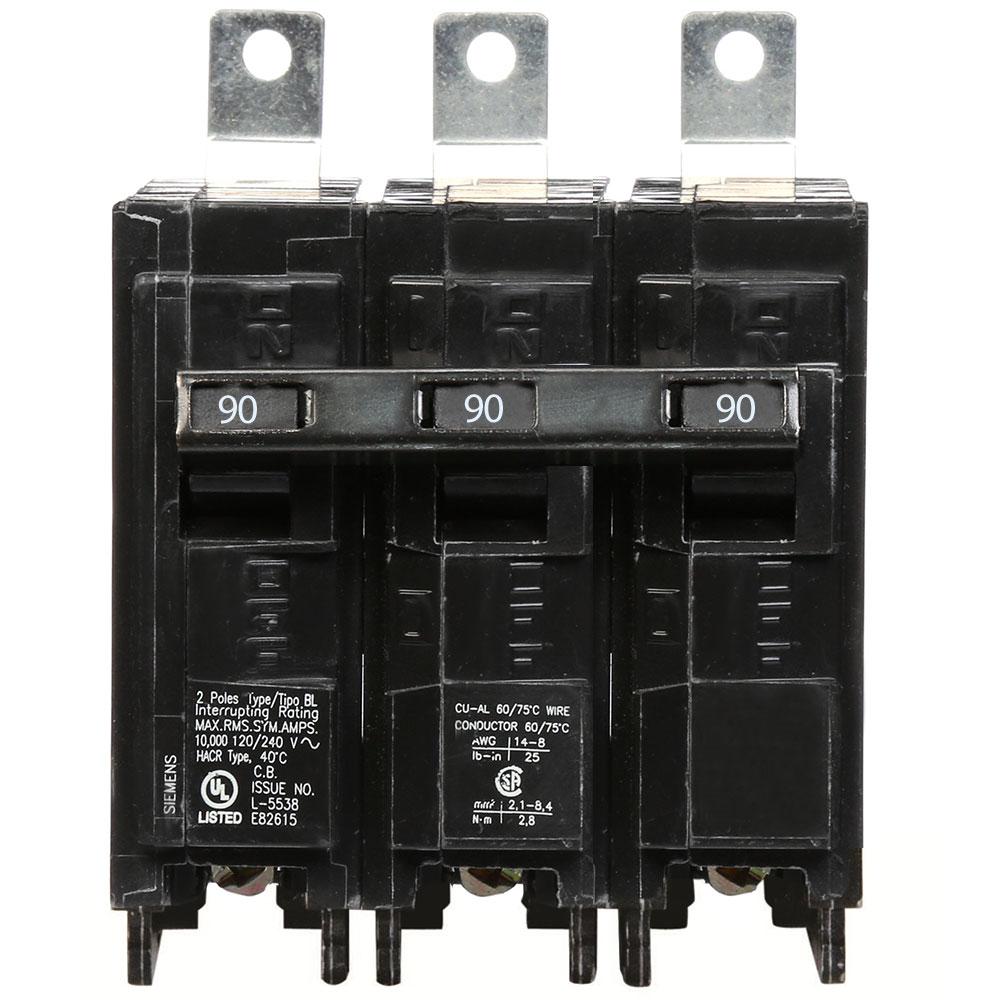

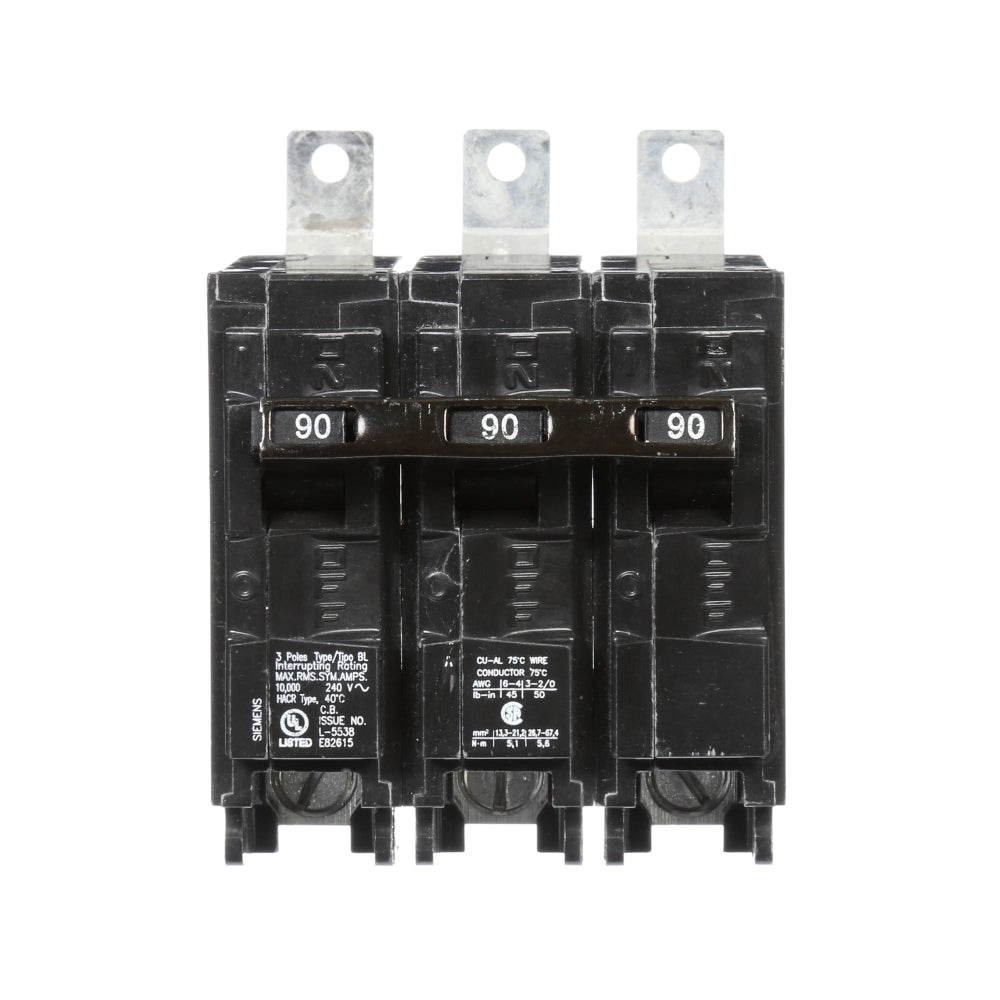

B390 - Siemens 90A 240V 3-Pole Molded Case Circuit Breaker Type BL 10kA Interrupt Rating

B390

B390 is a Siemens 3-pole molded case circuit breaker designed for electrical distribution with a 90 ampere rating and 240 volt capacity.This Siemens Type BL circuit breaker features a thermal magnetic trip unit, 10 kA interrupt rating, and bolt-on mounting for reliable panelboard installation.

Key Specifications
• Manufacturer: Siemens
• Part Number: B390
• Amperage Rating: 90 A
• Voltage Rating: 240 V AC
• Number of Poles: 3
• Interrupt Rating: 10 kA (10,000 AIC)
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Series/Frame: Type BL
• Standards: UL 489 Listed, HACR Reverse Feed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B390
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263796
• GTIN : 00783643263796
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
