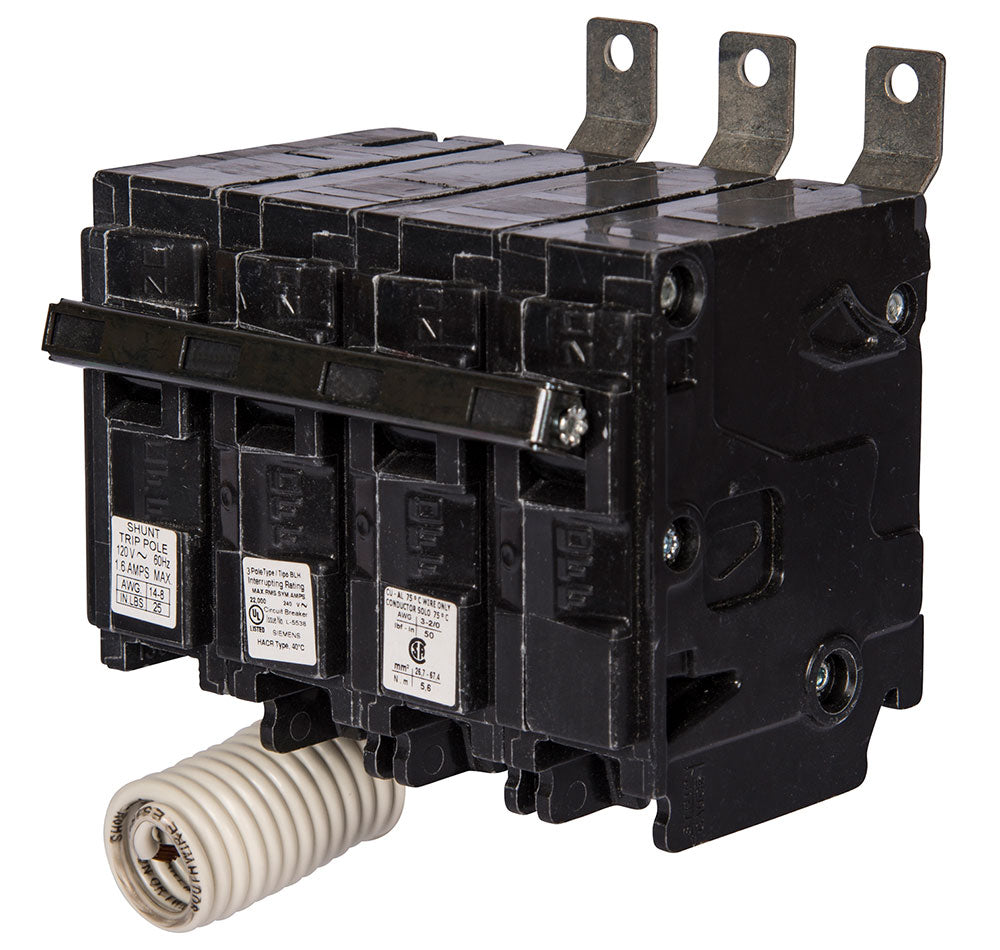

B380HH00S01 - Siemens 80 Amp 3 Pole 240VAC Bolt-On Molded Case Circuit Breaker, 65kA Interrupt, Type HBL Series, Thermal Magnetic Trip

B380HH00S01

B380HH00S01 is a Siemens 3 pole, 80 amp, 240VAC molded case circuit breaker designed for reliable low voltage power distribution.

This circuit breaker features a bolt-on mounting type, thermal magnetic trip unit, and is part of the Type HBL (BL Series) family. It is engineered for commercial and industrial applications requiring robust circuit protection and high interrupting capacity.

Key Specifications
• Amperage: 80A
• Voltage: 120/240VAC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 65kA at 240V
• Series/Frame: Type HBL (BL Series)
• Trip Unit: Thermal magnetic
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B380HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/HBL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643269422
• GTIN : 00783643269422
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.937 x 3.937 inch
• Weight : 1.565
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
