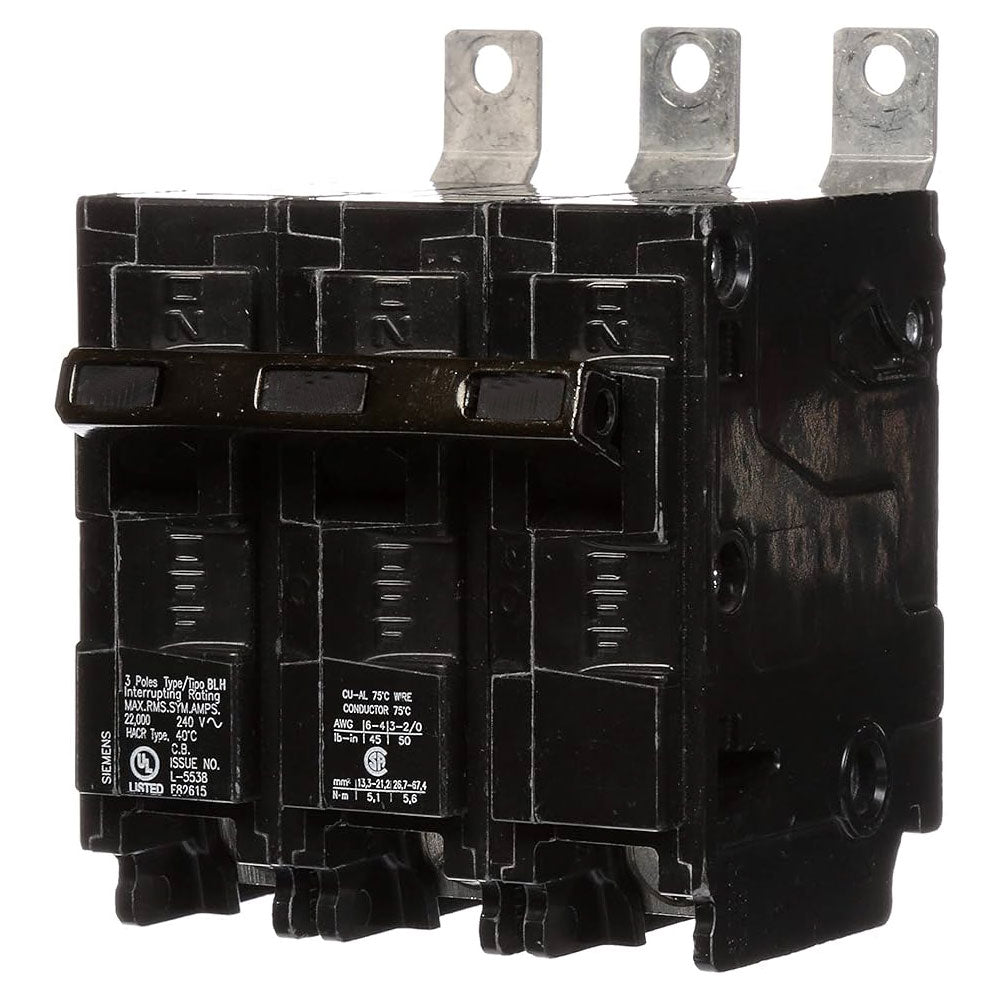

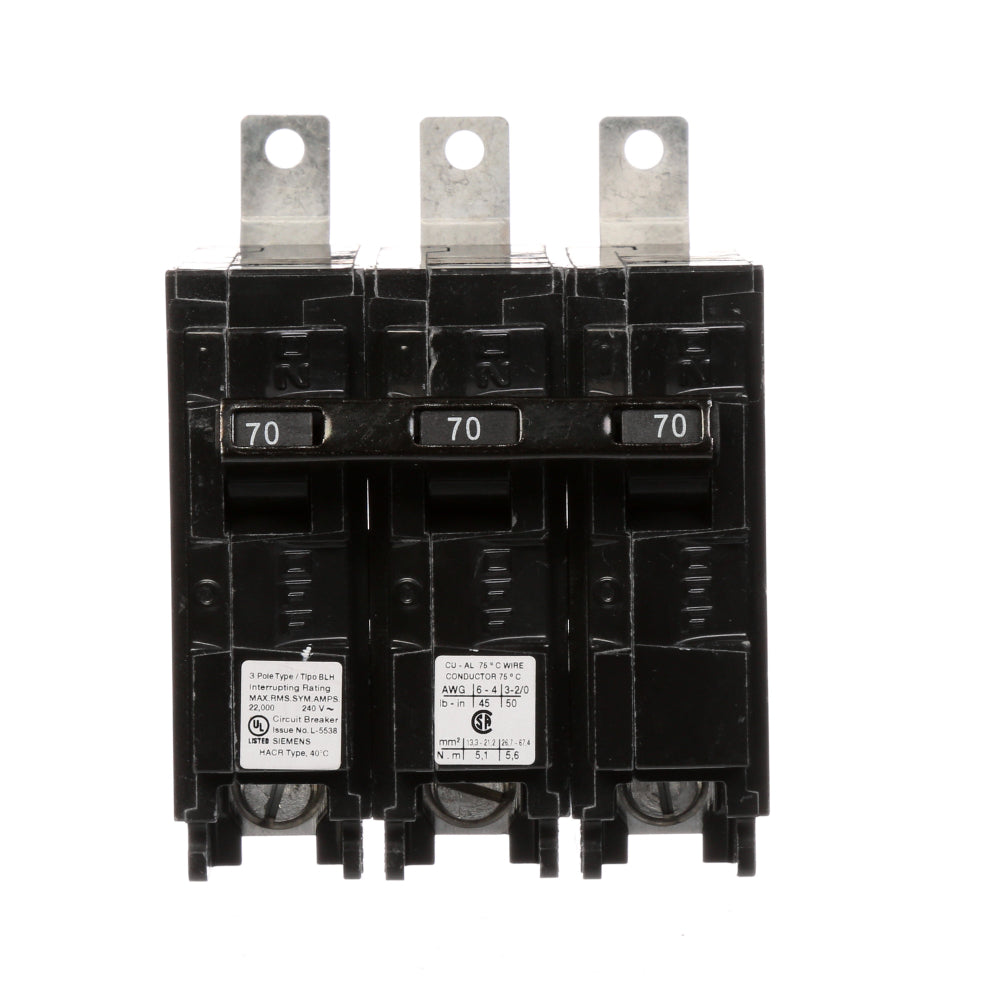

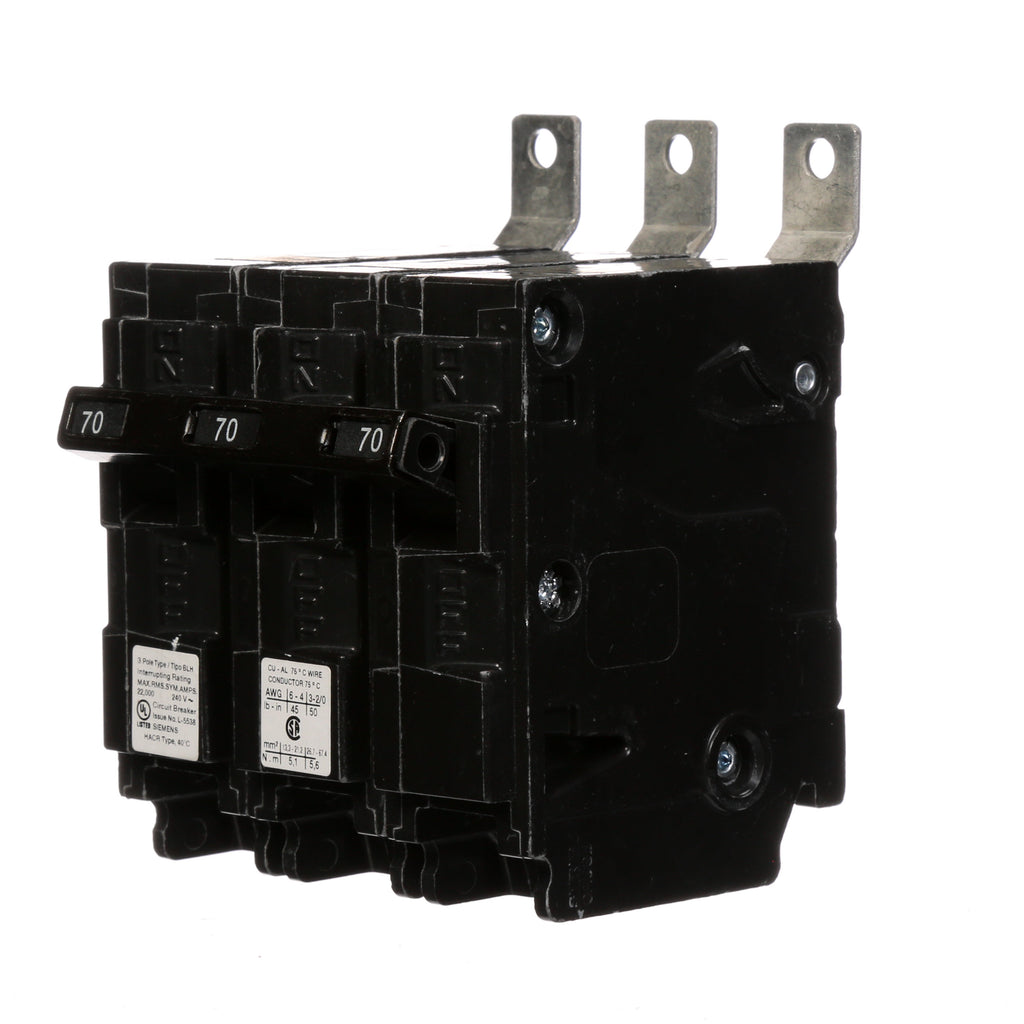

B370H - Siemens 70A 3-Pole 240V Bolt-On Circuit Breaker 22kA Interrupt Rating Type BLH

B370H

B370H is a Siemens 70 Amp, 3-Pole, 240 Volt bolt-on circuit breaker designed for reliable electrical distribution protection.This Siemens Type BLH molded case circuit breaker features a thermal magnetic trip unit, a 22 kA interrupt rating at 240 VAC, and bolt-on mounting for panelboard applications. It complies with UL 489 standards and is ideal for low voltage electrical distribution systems requiring robust circuit protection.

Key Specifications
• Amperage: 70A
• Voltage: 120/240 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA
• Trip Unit: Thermal Magnetic
• Series/Frame: BLH
• Standards: UL 489
• Application: Electrical Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B370H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264045
• GTIN : 00783643264045
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
