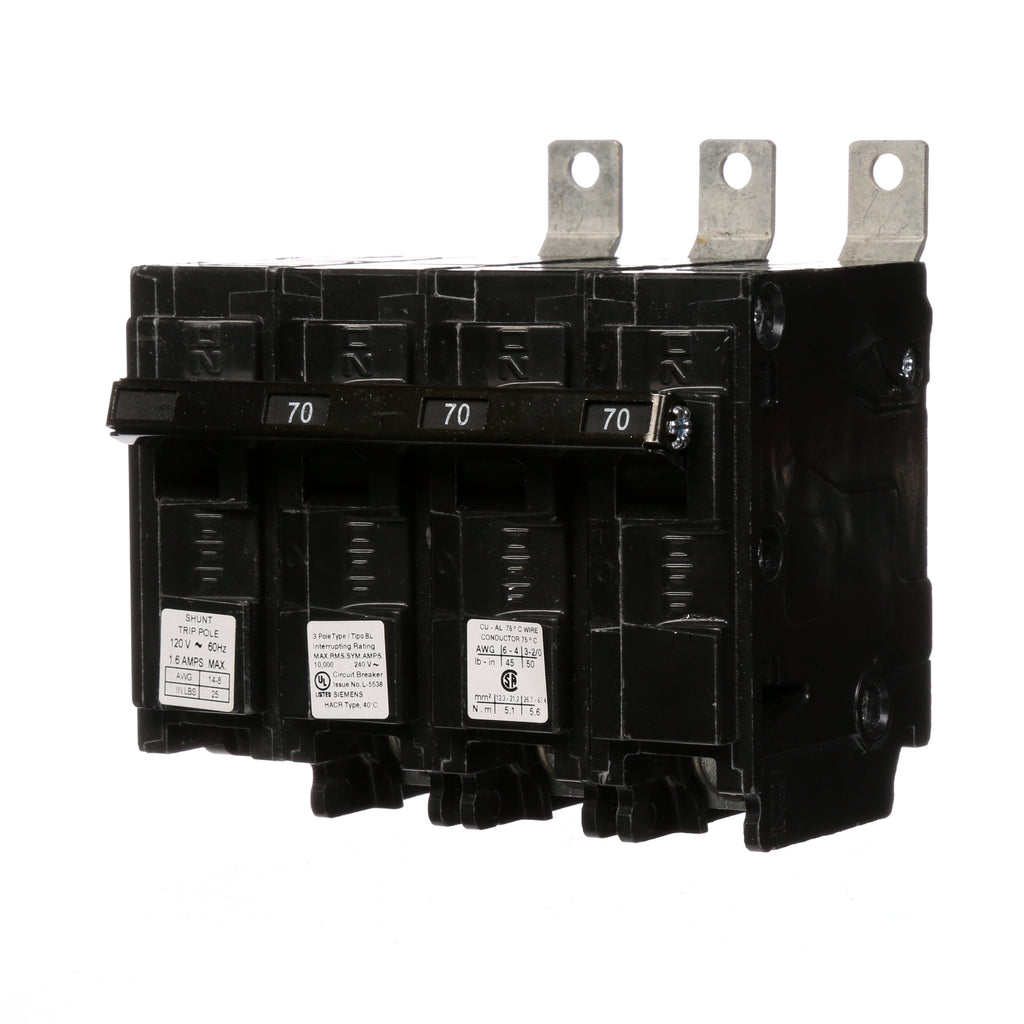

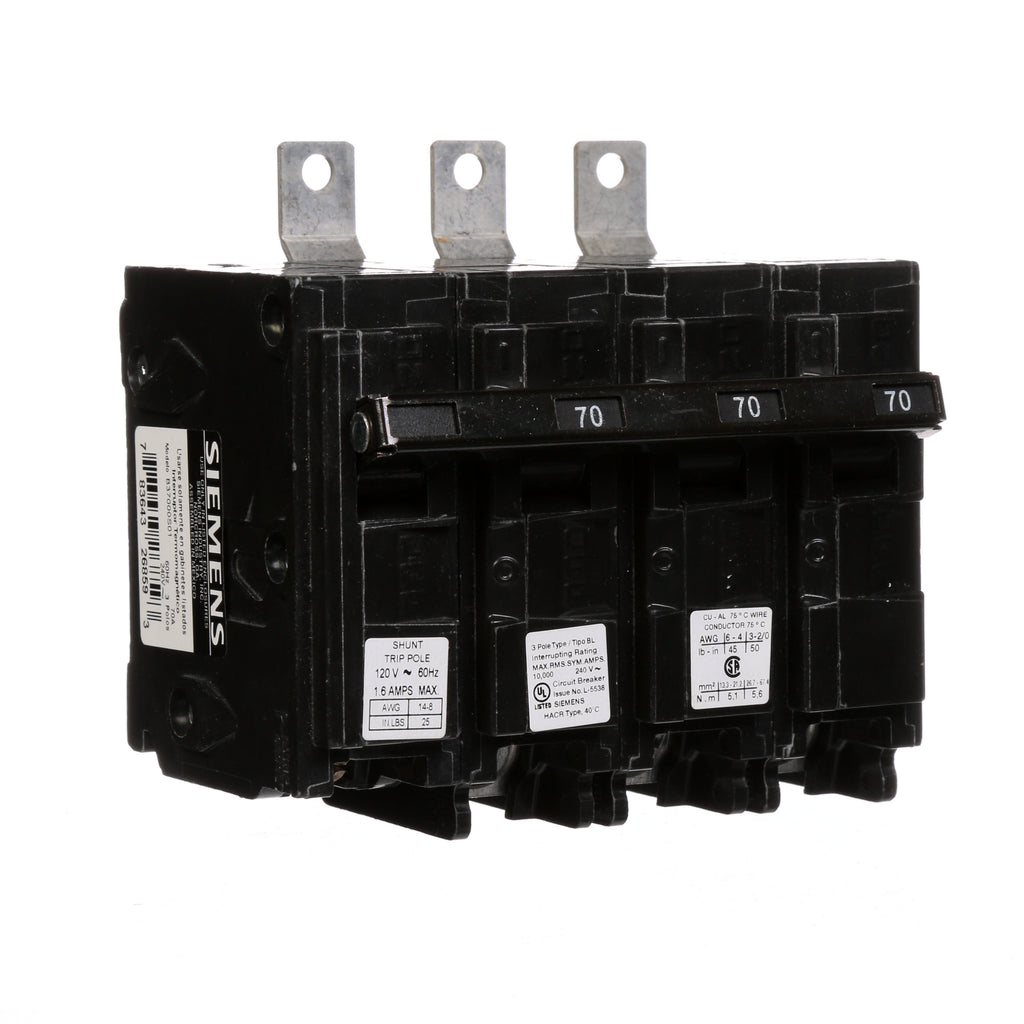

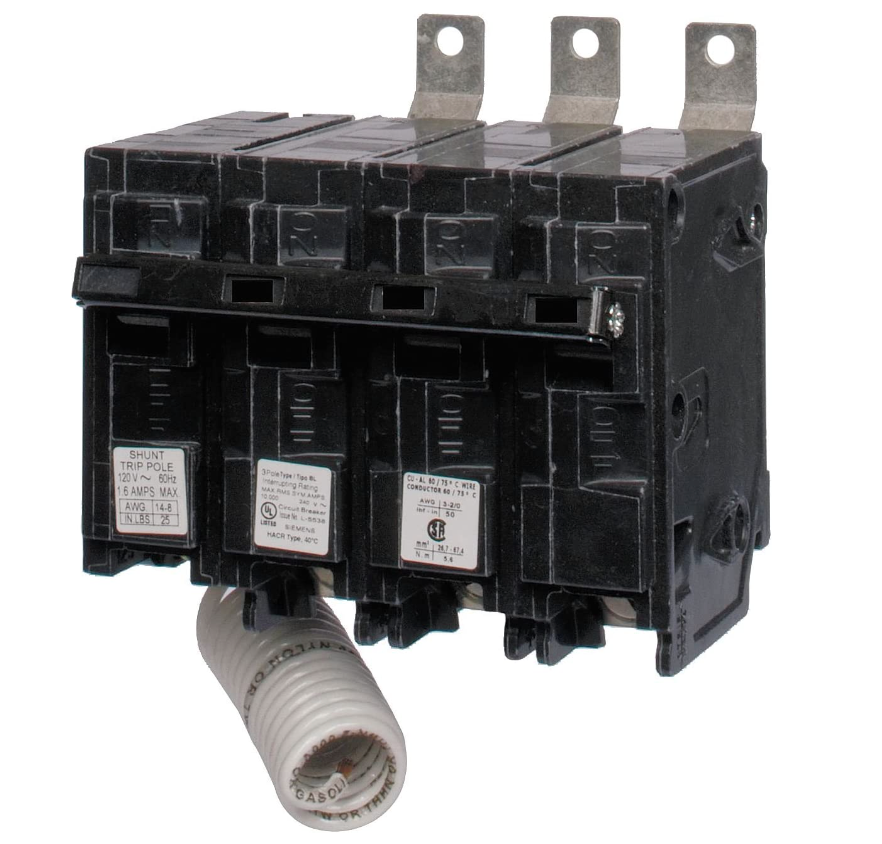

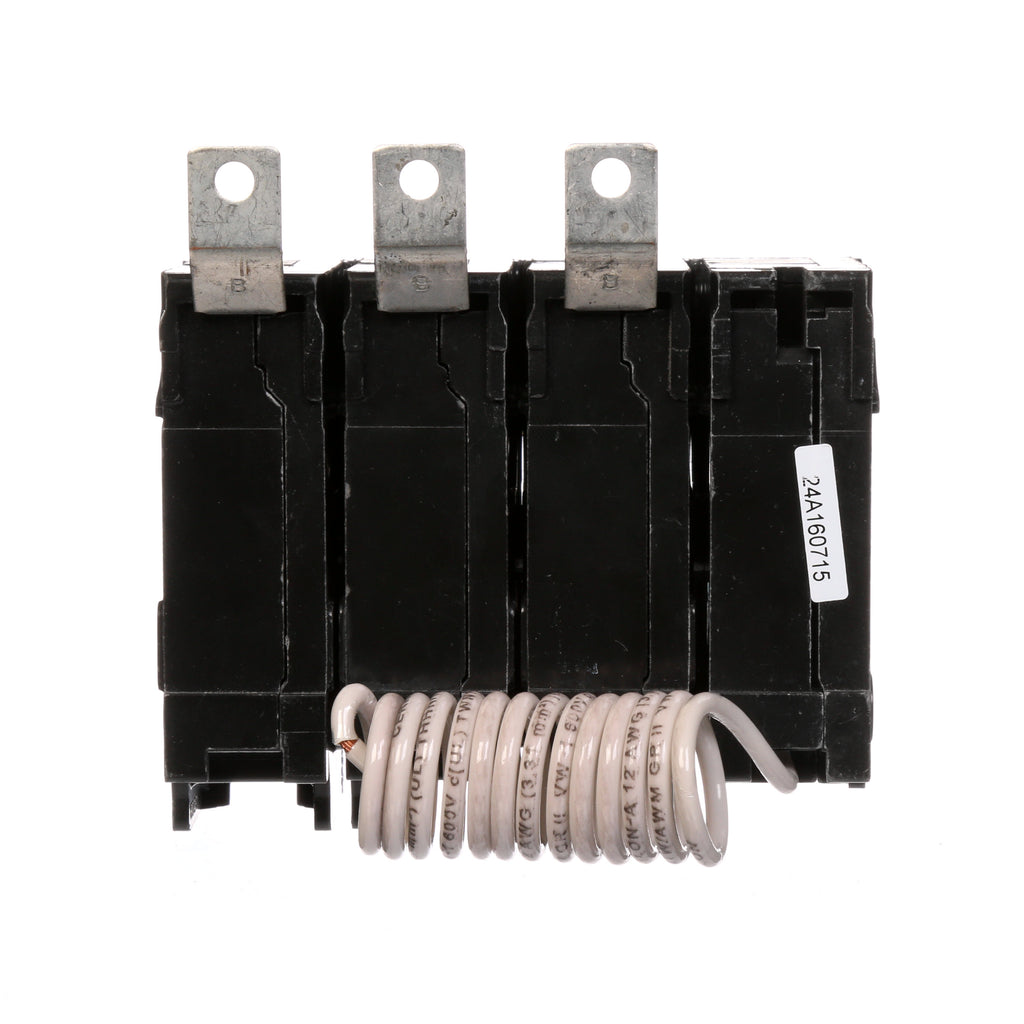

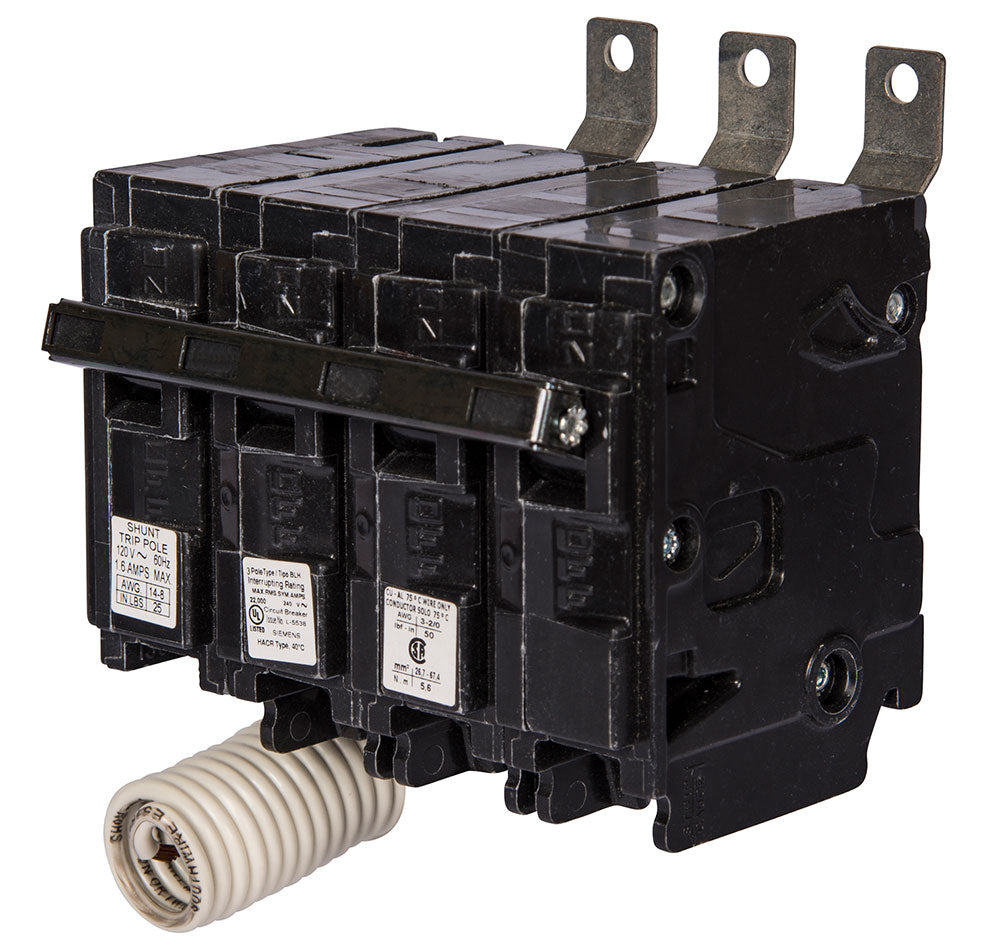

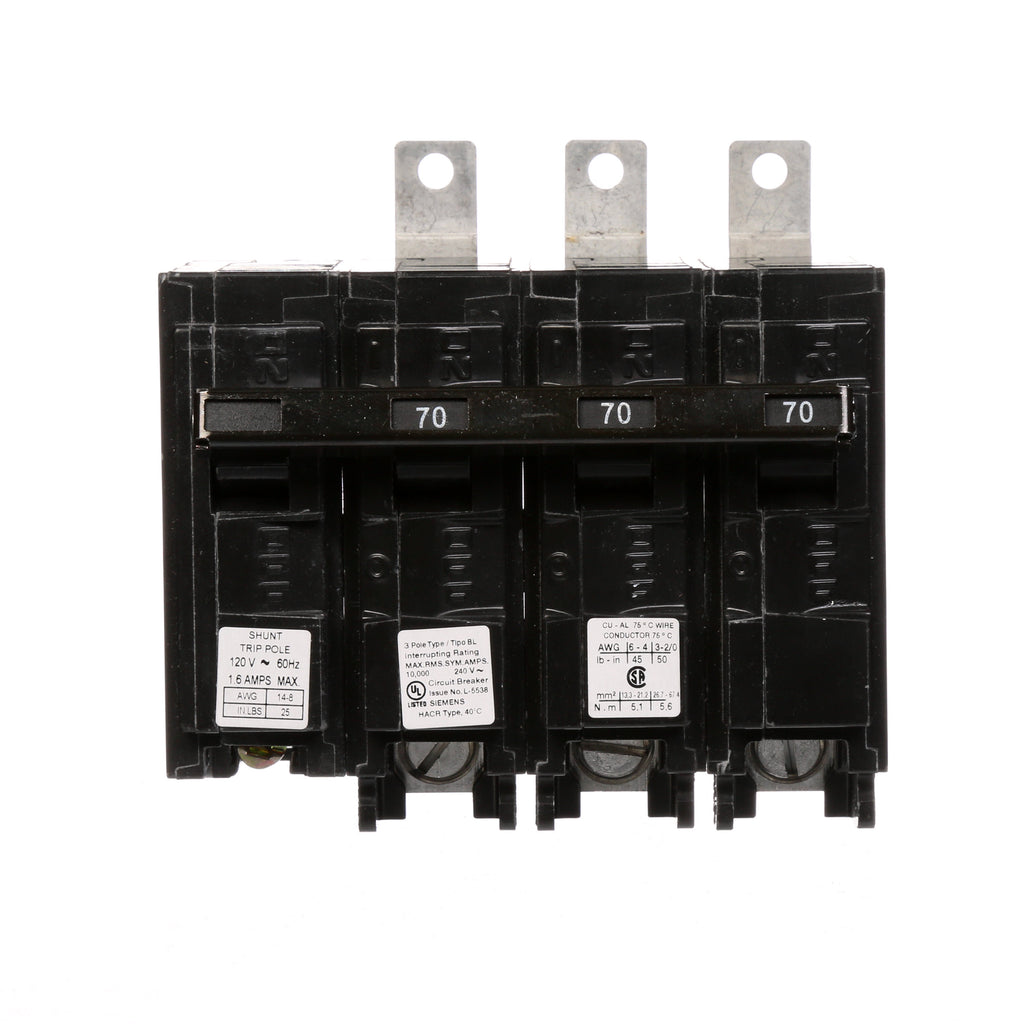

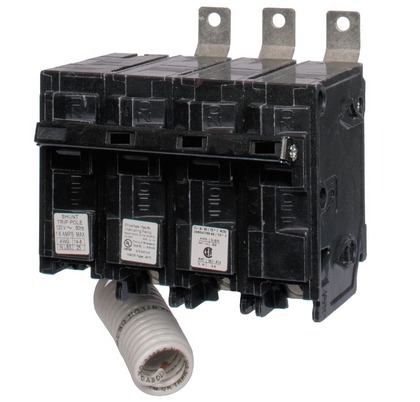

B37000S01 - Siemens 70 Amp 240V 3-Pole Bolt-On Thermal Magnetic Circuit Breaker with 120V Shunt Trip

B37000S01

B37000S01 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 70 amps and 240 volts AC with a 120V shunt trip feature.This Siemens B37000S01 circuit breaker features a B series bolt-on frame, 10kA interrupt rating at 240V, and includes long time and instantaneous trip functions. It is designed for low voltage applications with 3-phase protection and a thermal magnetic trip unit for reliable circuit interruption.

Key Specifications
• Amperage: 70 Amps
• Voltage: 240 Volts AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 AIC at 240V
• Series/Frame: B Series
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Phase: 3 Phase
• Trip Functions: Long Time and Instantaneous
• Voltage Type: AC
• Certifications: UL Listed (implied by standard Siemens circuit breaker specs)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B37000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268593
• GTIN : 00783643268593
• Country of Origin : Mexico
• Dimensions : 2.563 x 4.00 x 3.122 inch
• Weight : 1.257
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
