B350HH - Siemens 50A 3-Pole 240V Bolt-On Molded Case Circuit Breaker 65kA Interrupt Type BL Frame

B350HH

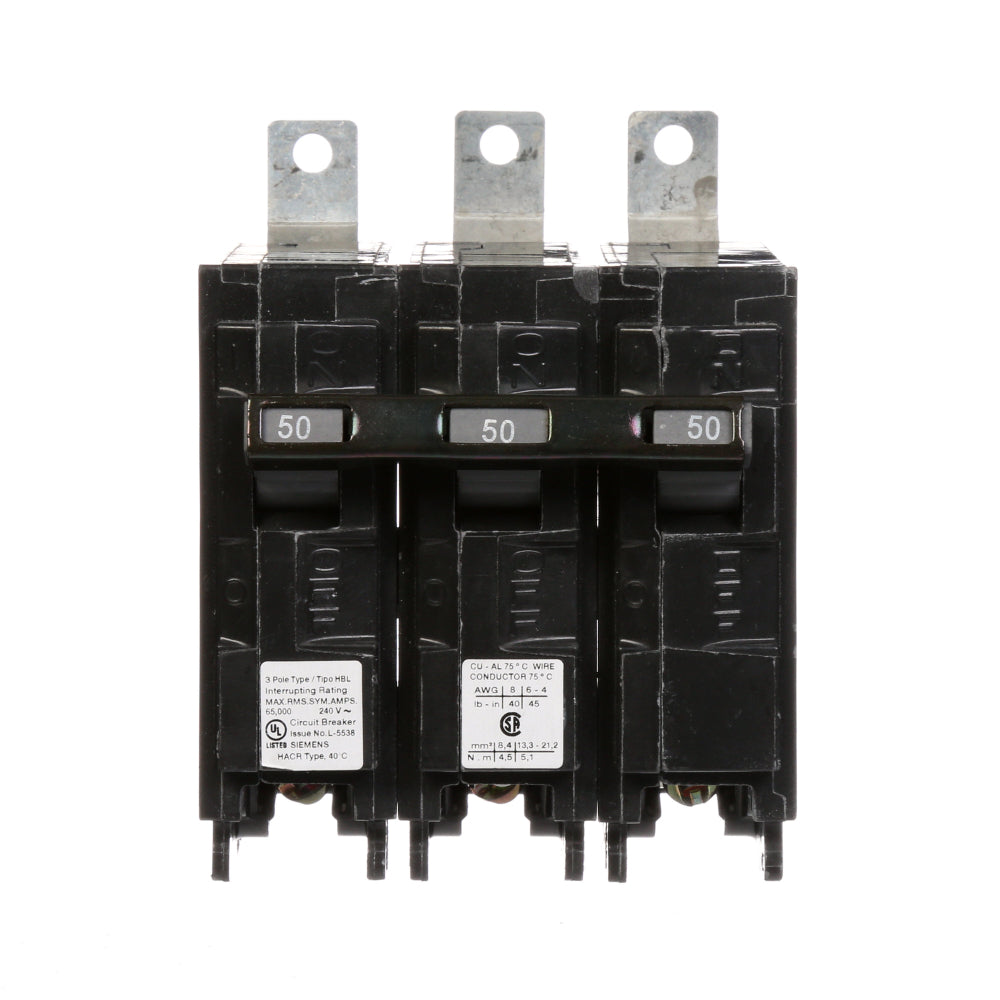

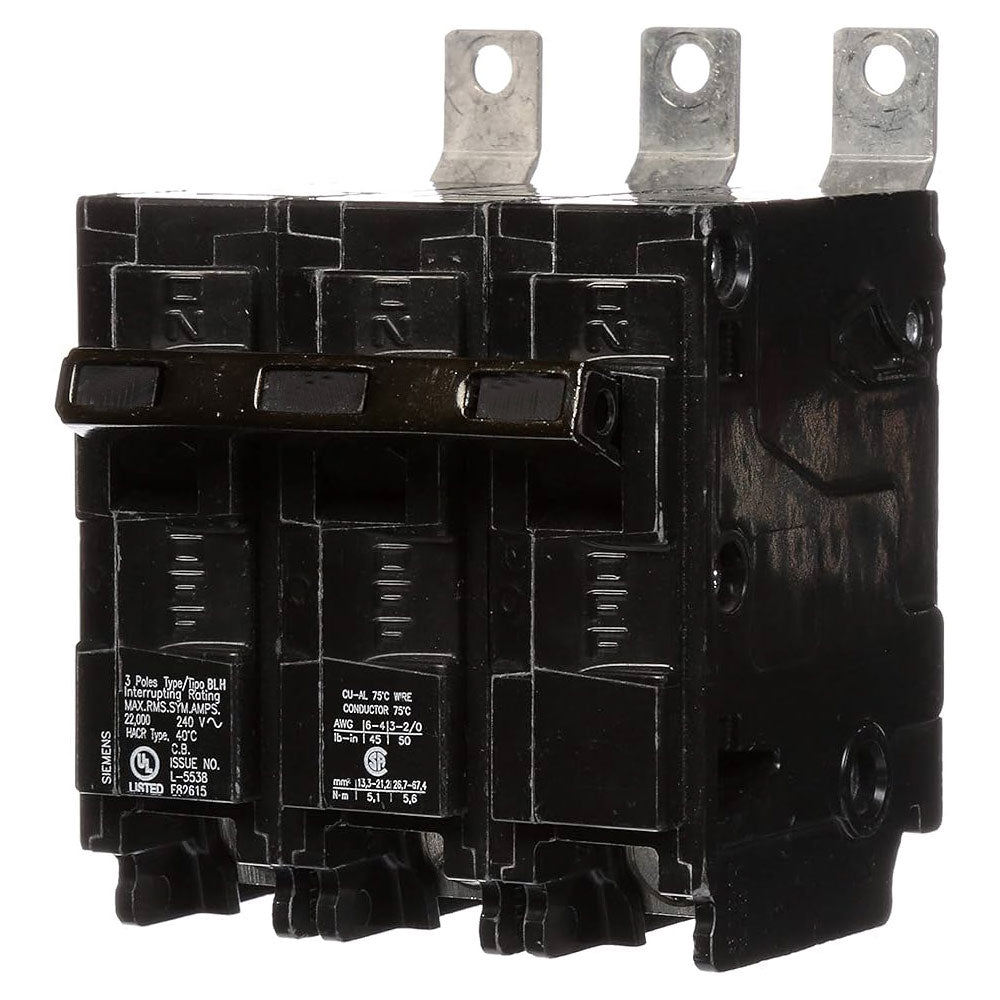

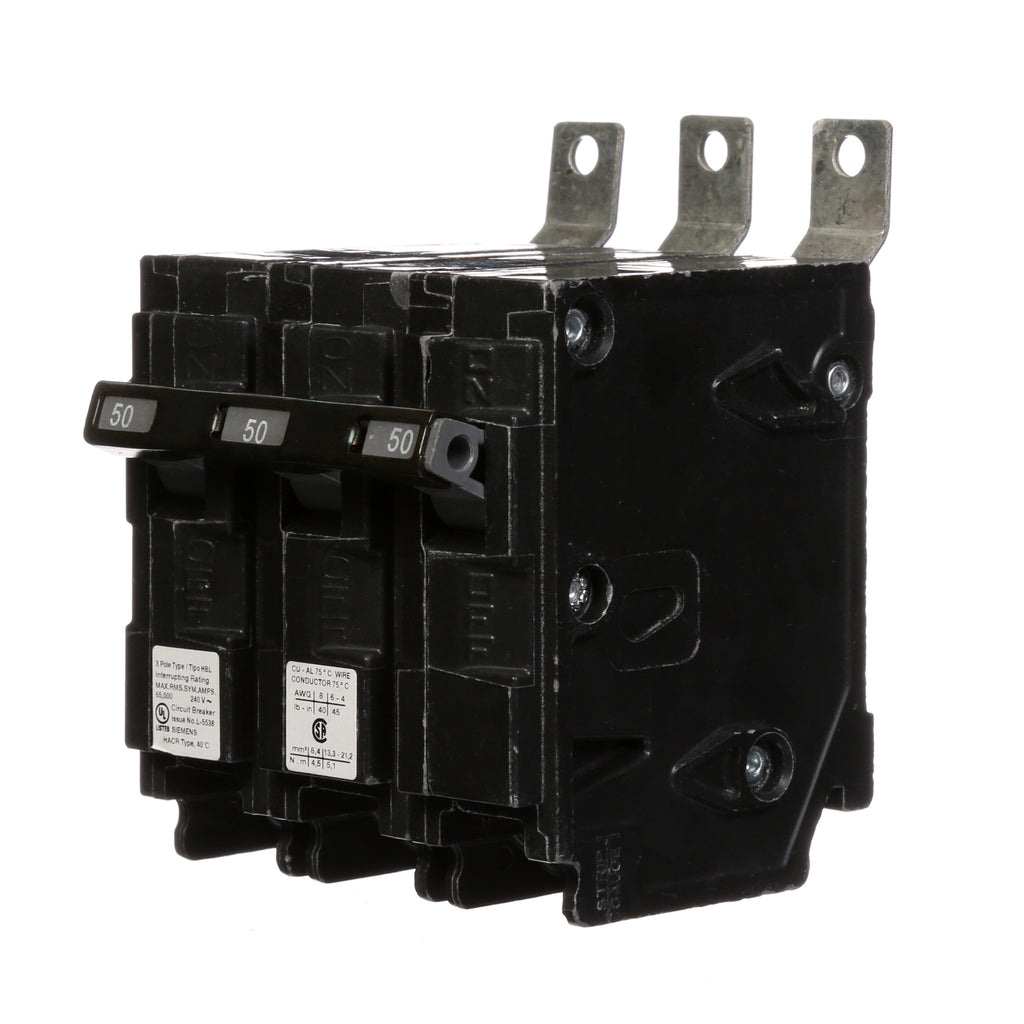

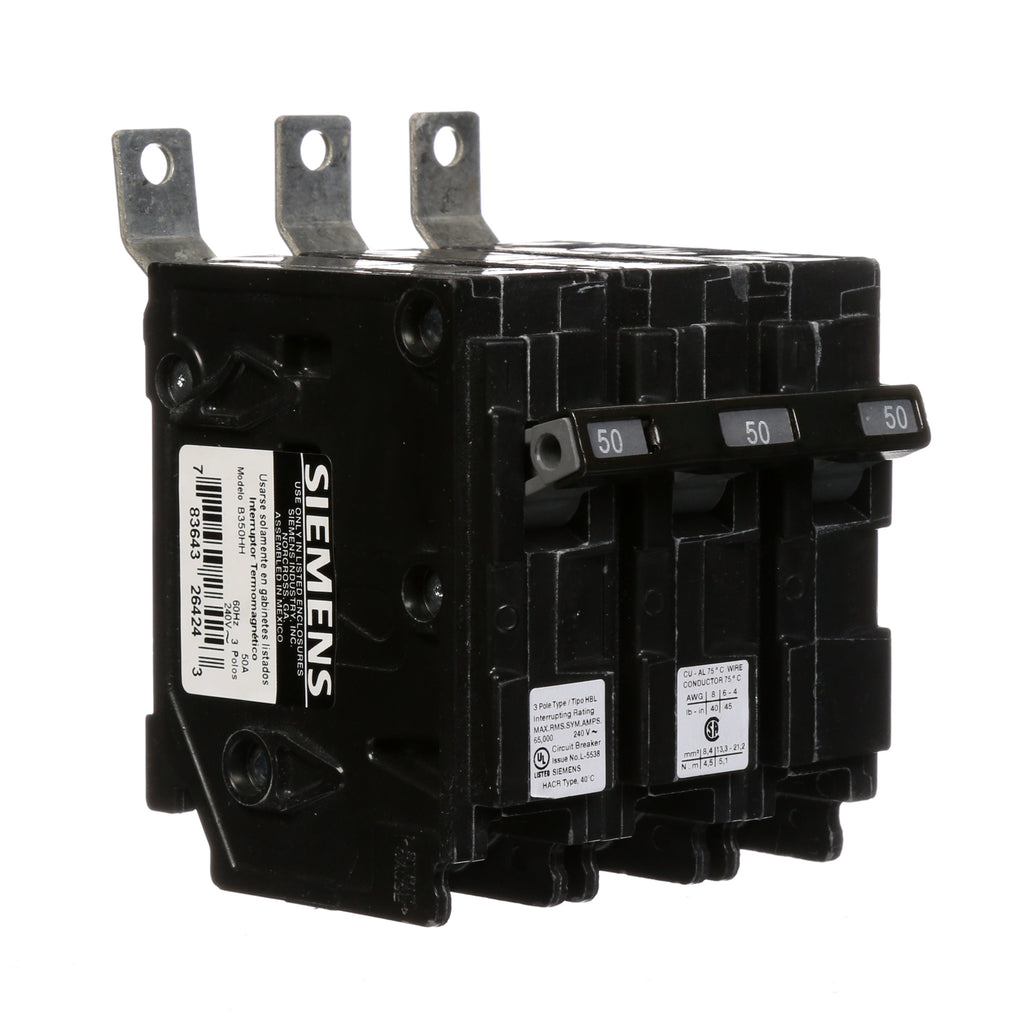

B350HH is a Siemens 50 amp, 3-pole, 240 VAC molded case circuit breaker designed for panelboard mounting with bolt-on connection.This Type BL frame breaker features a thermal magnetic trip unit, a 65,000 amp interrupt rating at 240 volts AC, and is suitable for low voltage applications. It supports 3-phase power with a toggle actuator and is rated for 60 Hz frequency. The breaker measures 12.8 inches long, 4.5 inches wide, and 3.7 inches high, and is compatible with wire sizes from 8 to 4 AWG.

Key Specifications
• Amperage Rating: 50 Amps
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Interrupt Rating: 65 kA at 240 VAC
• Frame Type: BL
• Mounting Type: Bolt-On Panelboard Mounting
• Trip Unit: Thermal Magnetic
• Frequency: 60 Hz
• Actuator Type: Toggle
• Wire Range: 8 to 4 AWG
• Dimensions: 12.8 in L x 4.5 in W x 3.7 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: B350HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/HBL
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 783643264243
• GTIN : 00783643264243
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
