Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B35000S01

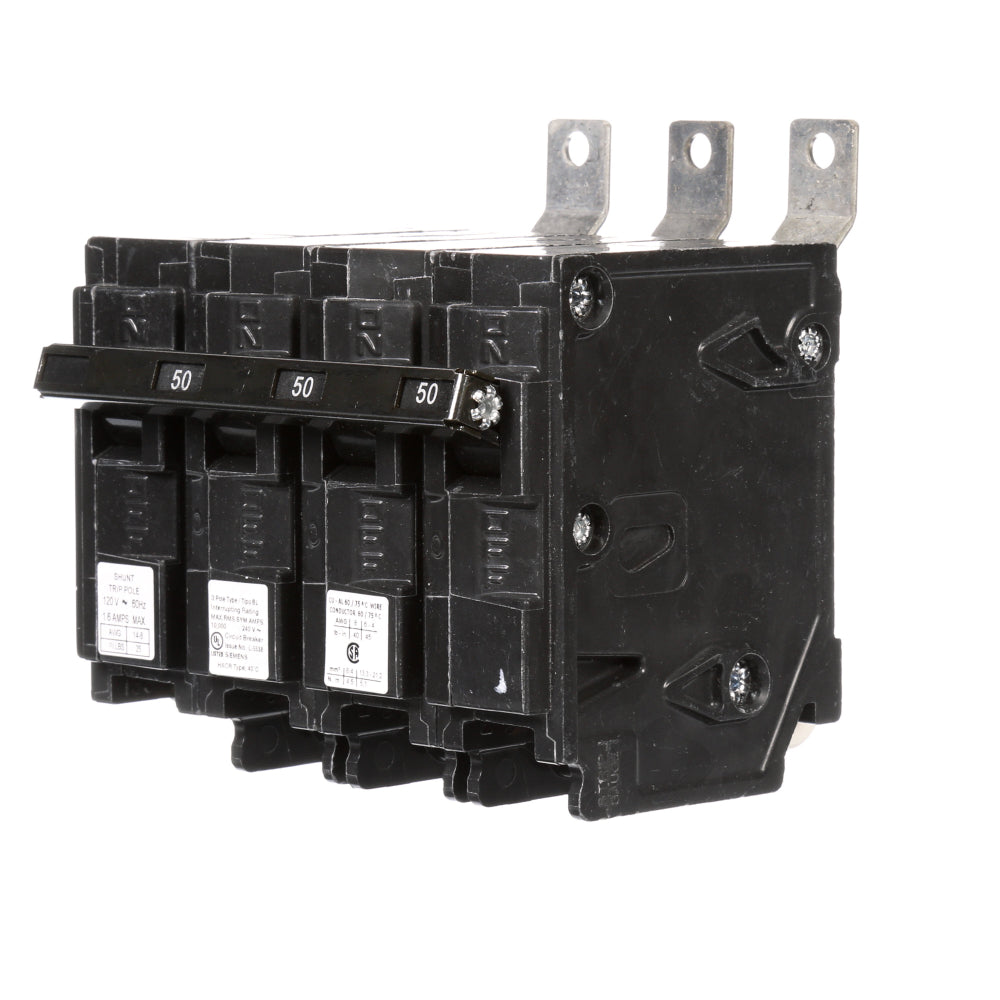

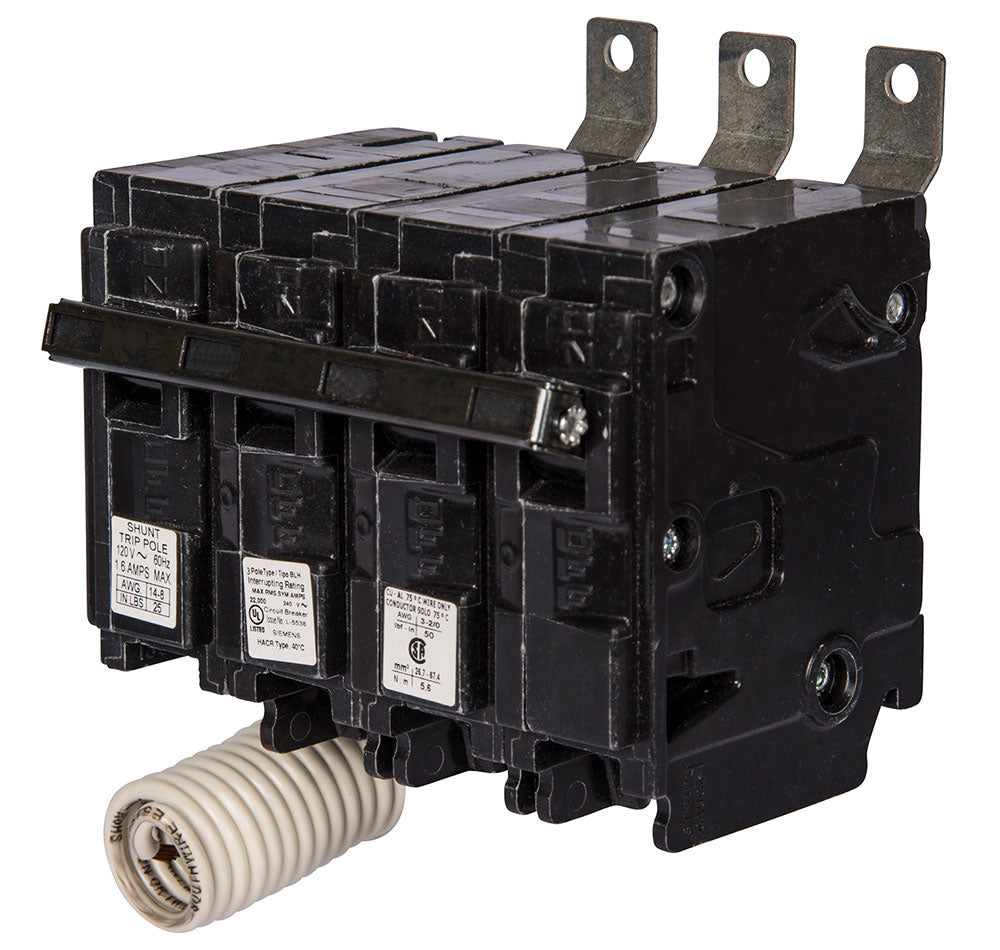

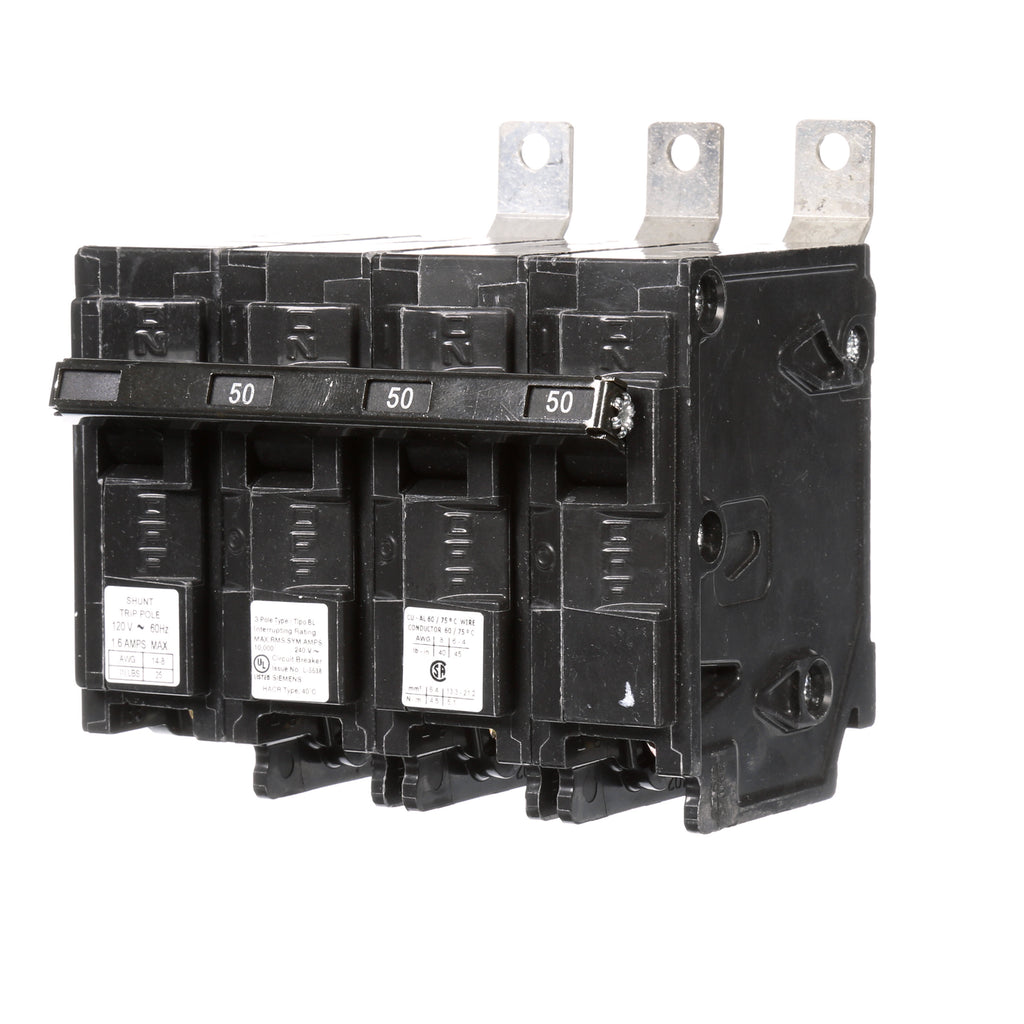

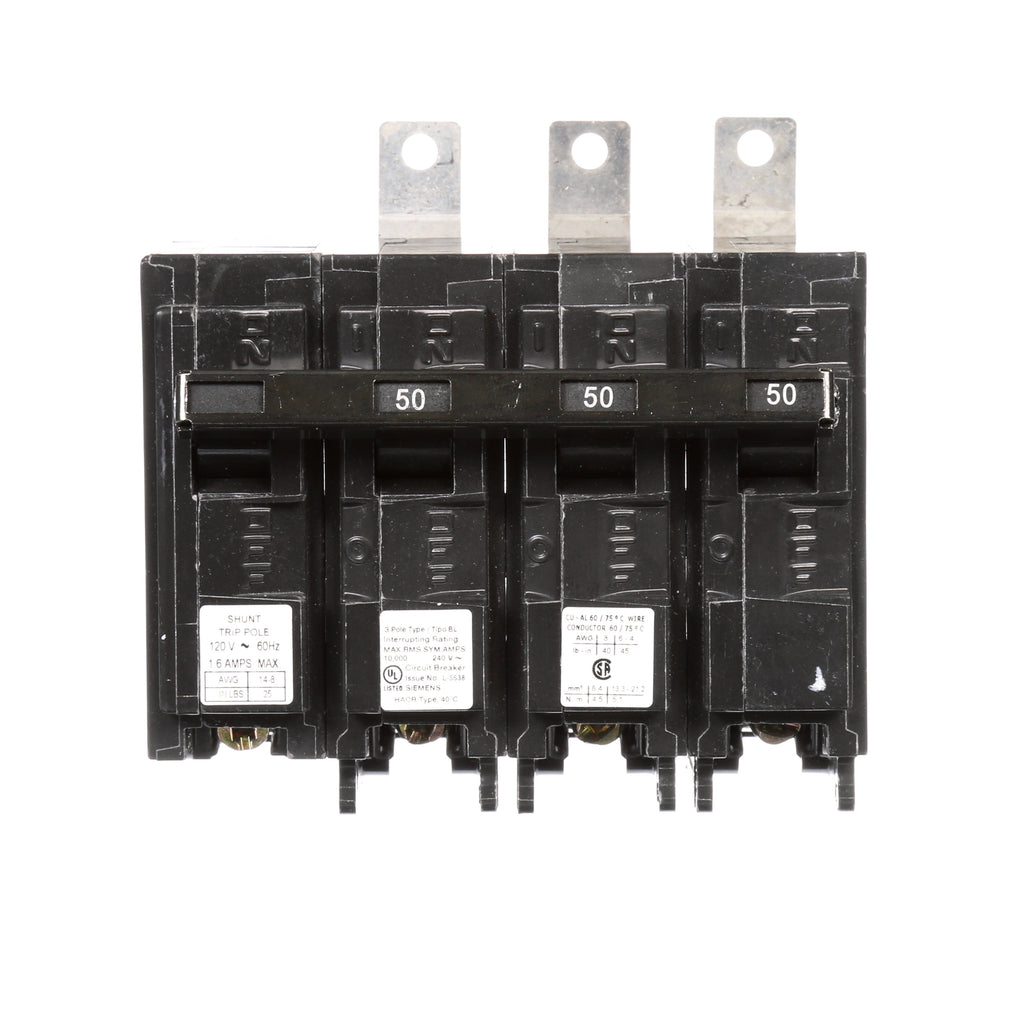

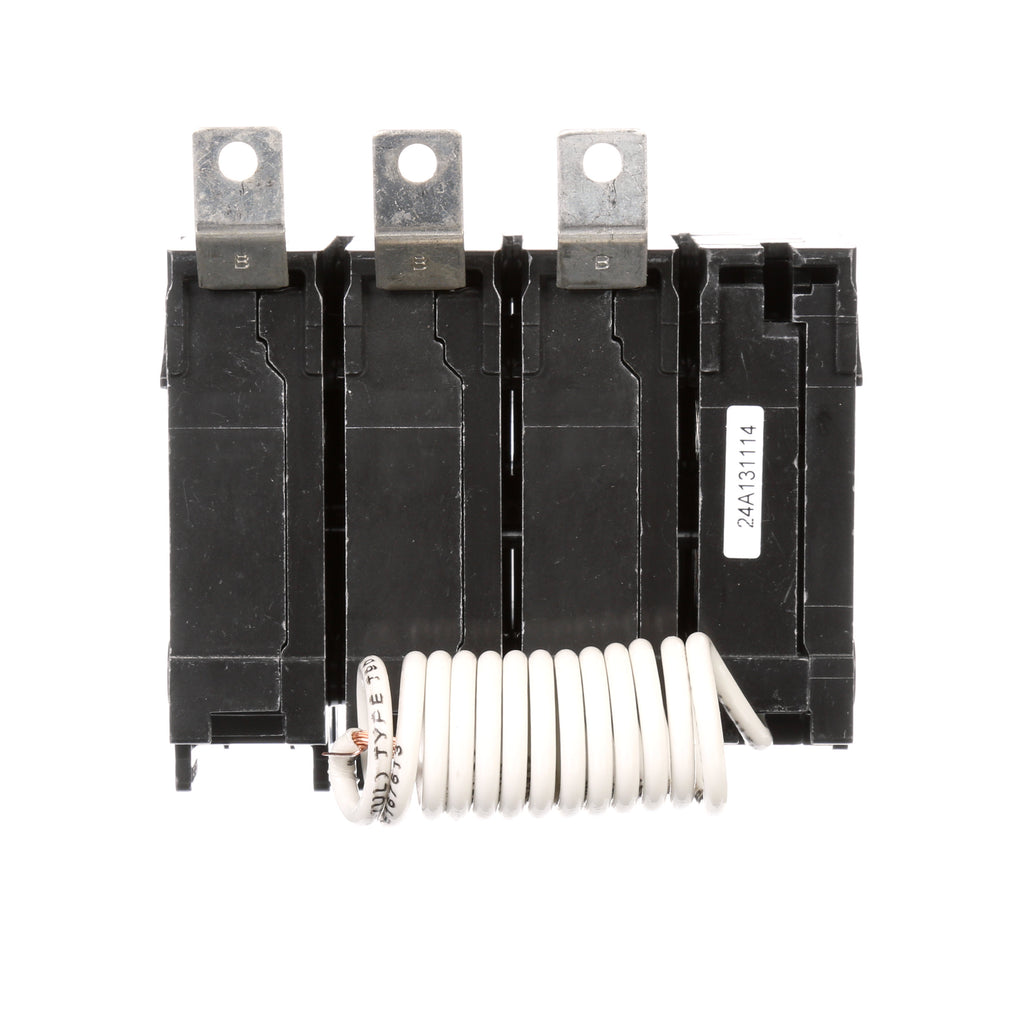

B35000S01 is a Siemens 3 pole, 50 amp, 240 volt bolt-on molded case circuit breaker with shunt trip and thermal magnetic trip unit. This Type BL breaker provides reliable low voltage protection with a 10 kA interrupt rating. It is designed for bolt-on mounting and suitable for 120/240 VAC systems. Certified for industrial and commercial applications, it ensures safe circuit interruption.
- Amperage: 50 Amps
- Voltage: 120/240 VAC
- Poles: 3 Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kA
- Series/Frame: Type BL
- Trip Unit: Thermal Magnetic with Shunt Trip
- Certifications: UL Listed
- Application: Low Voltage Molded Case Circuit Breaker
Specifications
- Part Number: B35000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 240
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/BL
- MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643268562
- GTIN : 00783643268562
- Country of Origin : Mexico
- Dimensions : 2.563 x 4.00 x 3.122 inch
- Weight : 1.257
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
