B345H - Siemens 45 Amp 240 VAC 3-Pole Bolt-On Molded Case Circuit Breaker Type BL

B345H

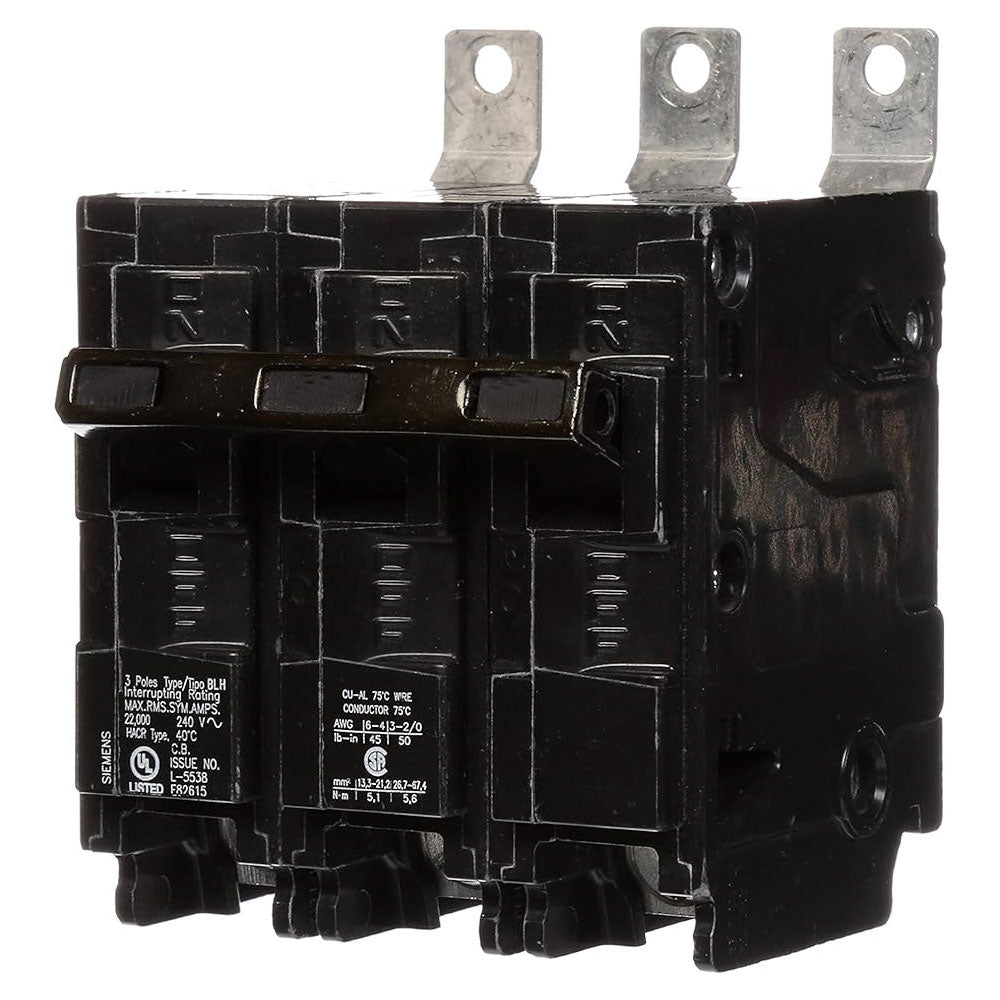

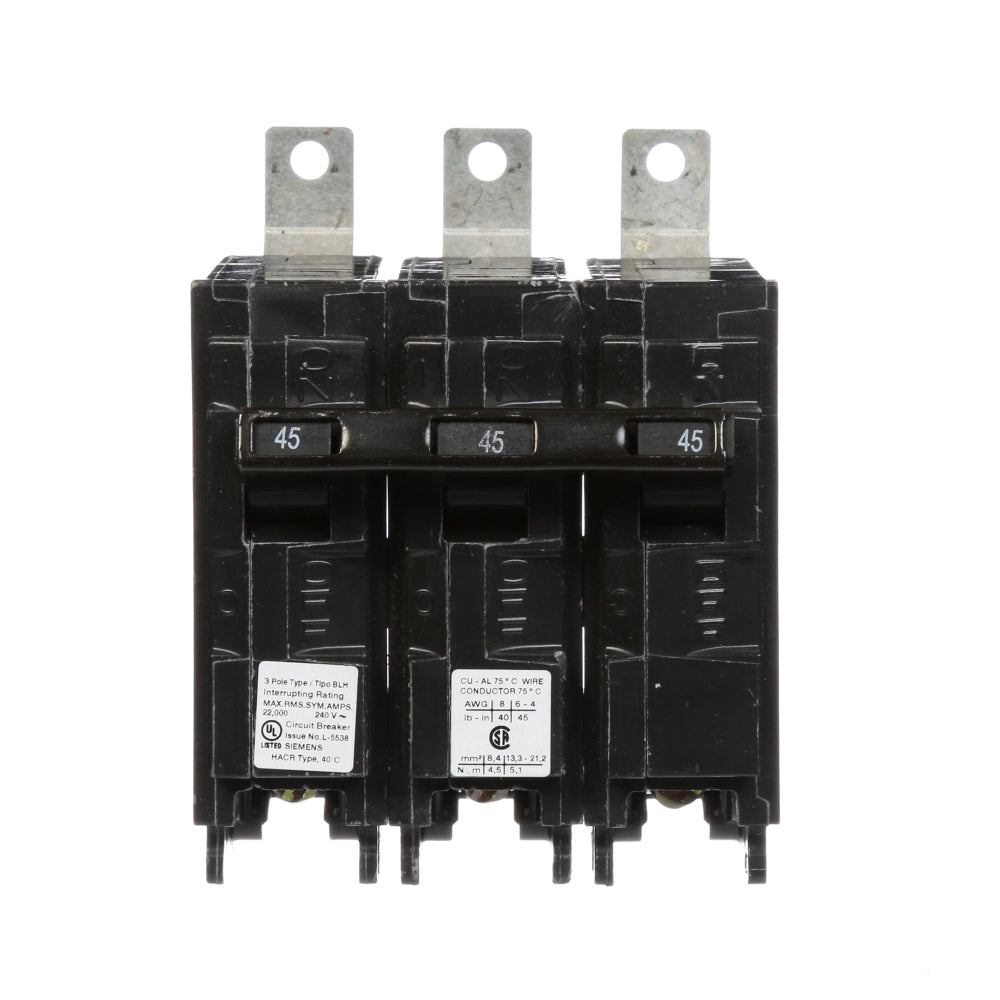

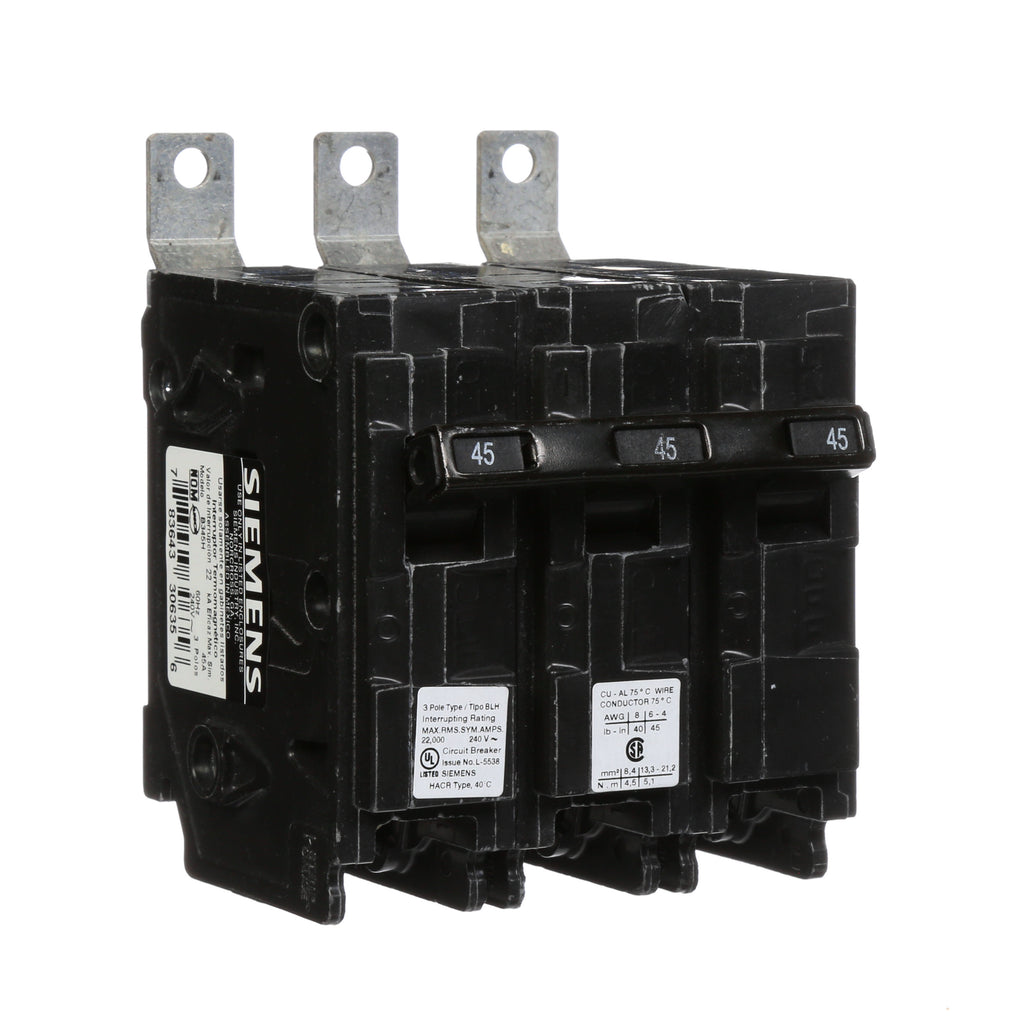

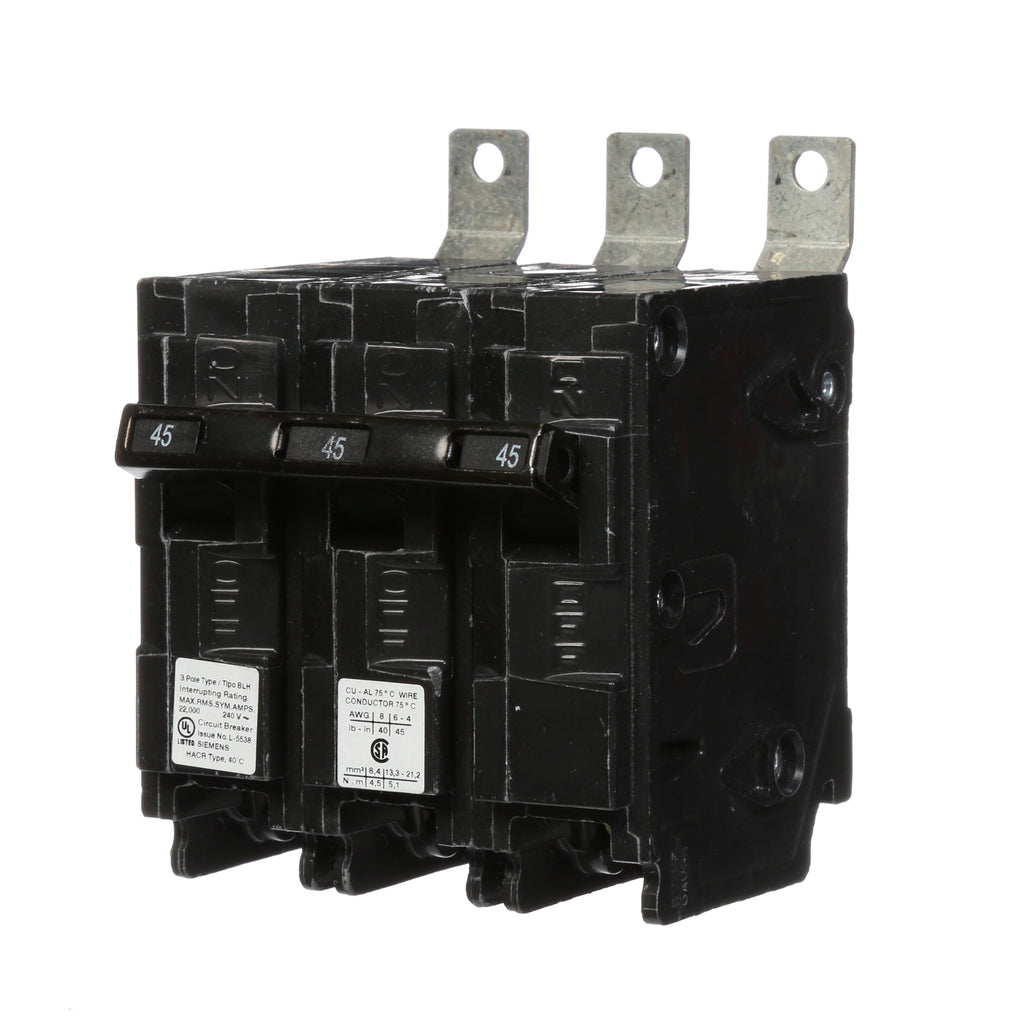

B345H is a Siemens 3-pole, 45 amp, 240 VAC bolt-on molded case circuit breaker designed for reliable circuit protection.This Siemens B345H circuit breaker features a thermal magnetic trip unit with a 22 kA interrupt rating at 240 VAC. It is part of the Type BL series and mounts on panelboards using a bolt-on method. The breaker includes busbar line side terminations and lug load side terminations for secure connections.

Key Specifications
• Amperage: 45 Amps
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA at 240 VAC
• Series/Frame: Type BL
• Trip Unit: Thermal Magnetic
• Line Side Termination: Busbar
• Load Side Termination: Lug (included)
• Certifications: Standard UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: B345H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 783643306356
• GTIN : 00783643306356
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
