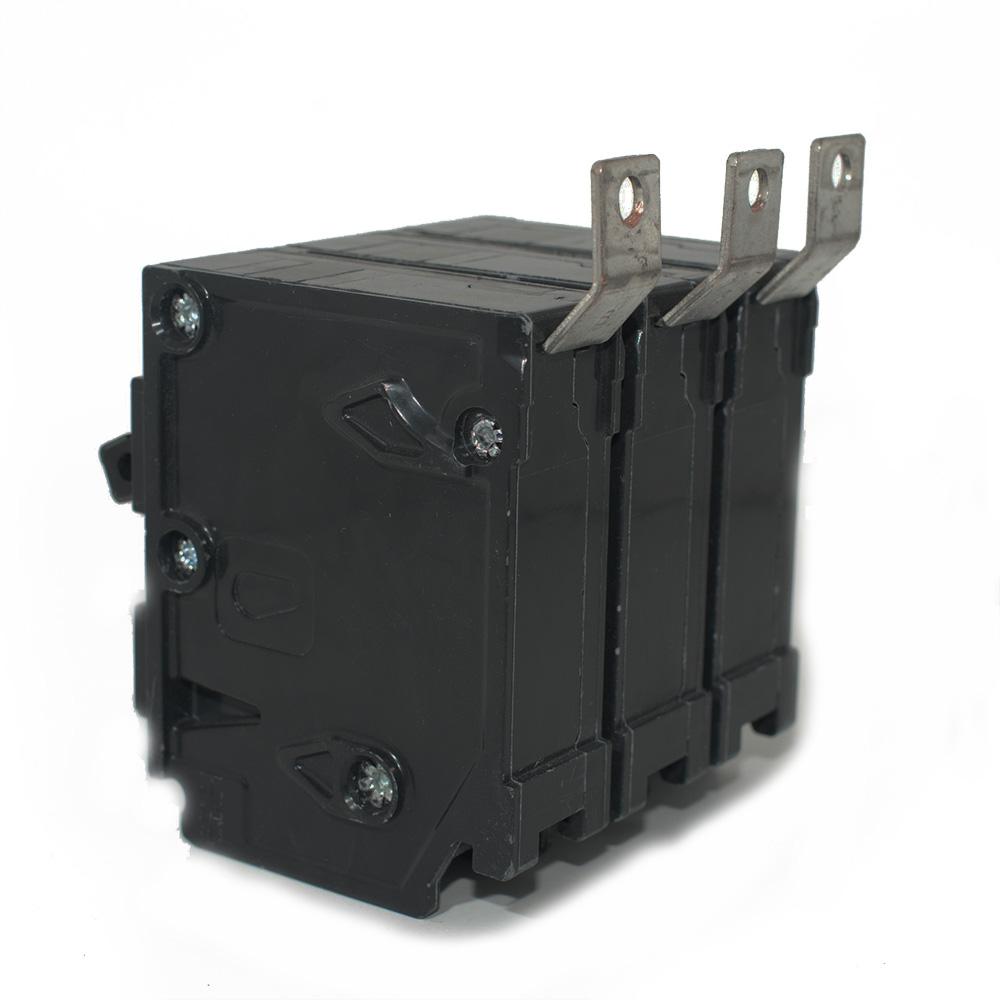

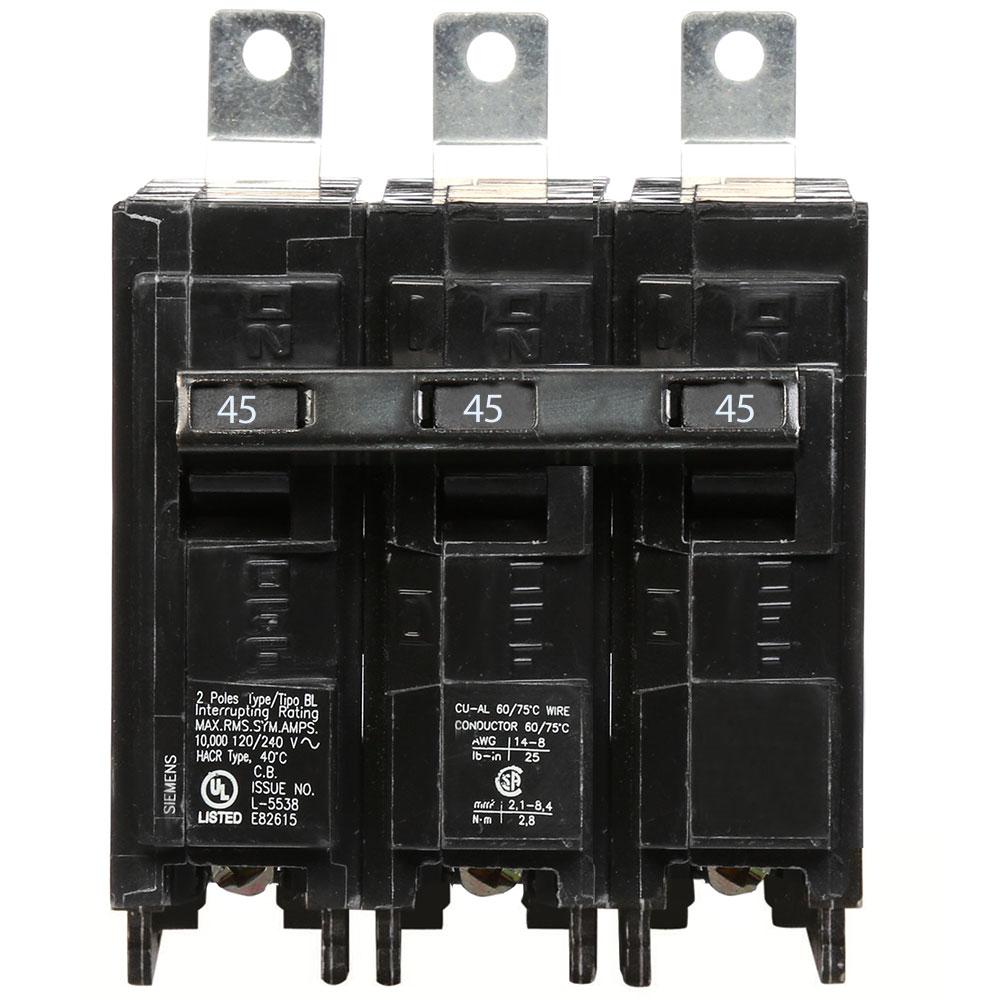

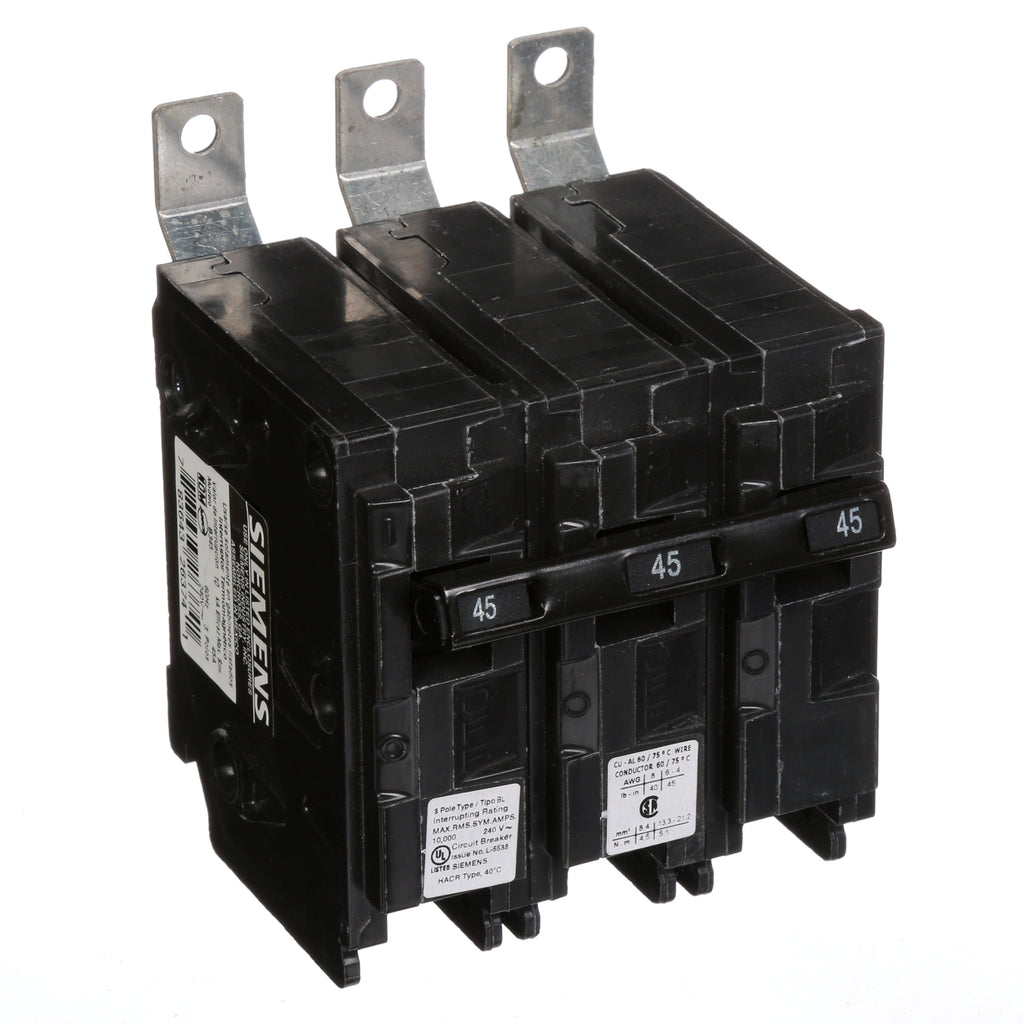

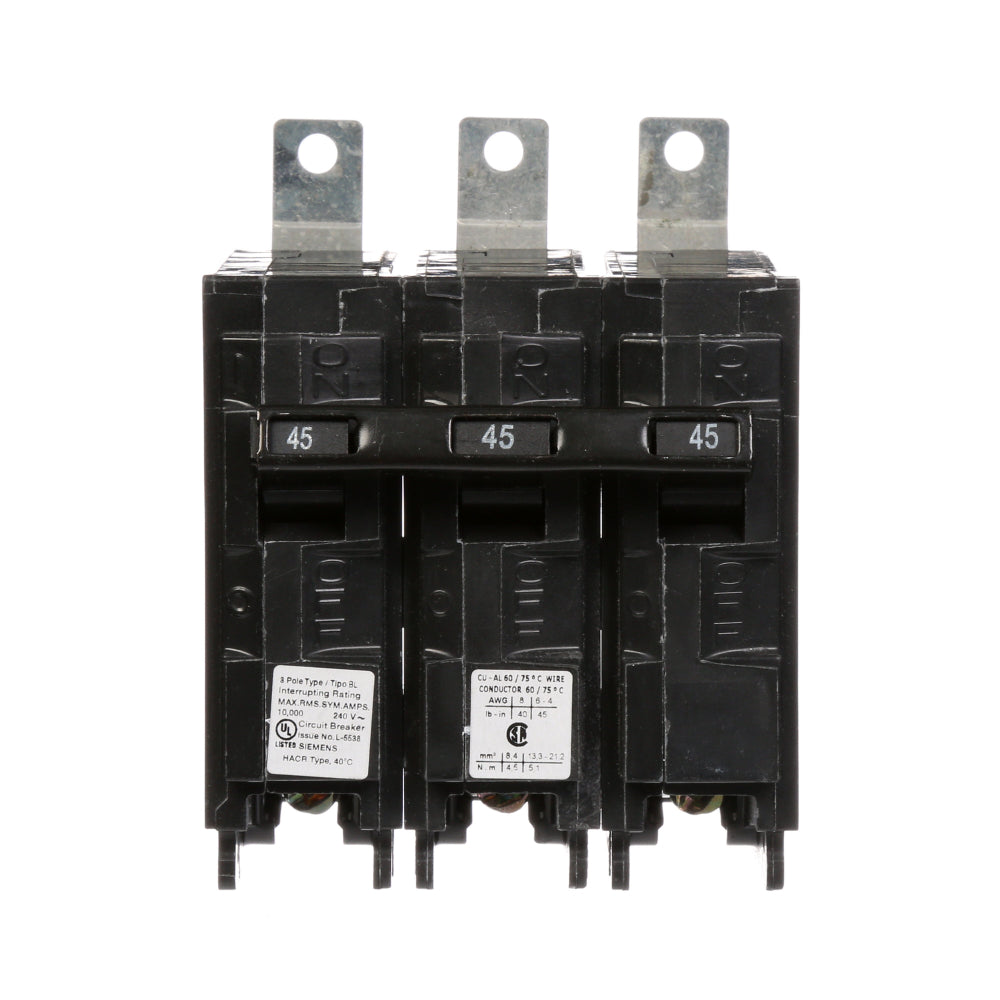

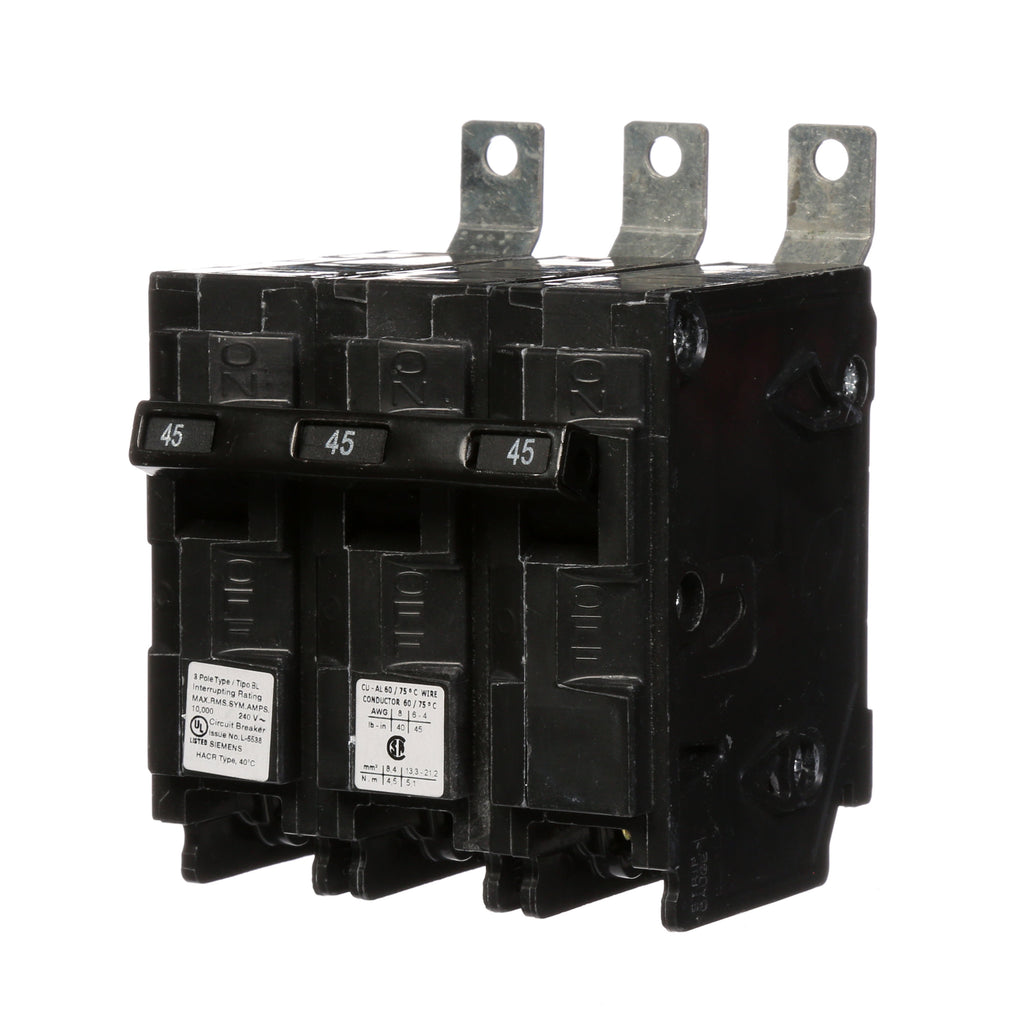

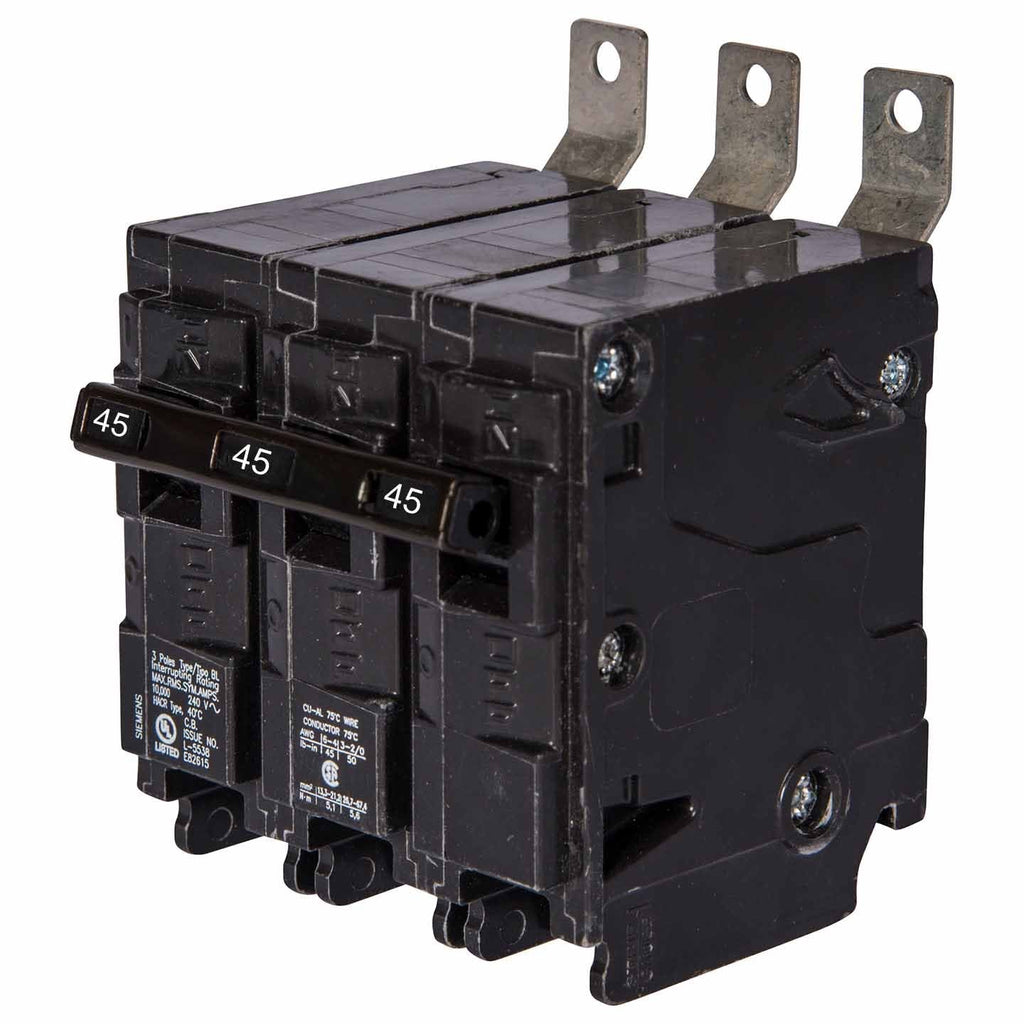

B345 - Siemens 45 Amp 240V 3 Pole Bolt-On Molded Case Circuit Breaker Type BL

B345

B345 is a Siemens 45 Amp, 3 Pole, 240 Volt Bolt-On Molded Case Circuit Breaker designed for reliable low voltage circuit protection.This Siemens B345 circuit breaker features a Type BL frame with thermal magnetic trip unit, a 10 kA interrupt rating at 240 VAC, and is UL Listed, CSA Certified, HACR Rated, and NOM Certified. It mounts via bolt-on connection and is suitable for panelboard applications requiring 3-pole protection.

• Manufacturer: Siemens
• Amperage: 45 Amp
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps (10 kA)
• Series/Frame: Type BL
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, HACR Rated, NOM Certified
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B345
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263741
• GTIN : 00783643263741
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
