B340H00S01 - Siemens 40 Amp 240V 3-Pole Type BLH Molded Case Circuit Breaker with 120V Shunt Trip, 22 kAIC, Panel Mount

Name: B340H00S01 - Siemens 40 Amp 240V 3-Pole Type BLH Molded Case Circuit Breaker with 120V Shunt Trip, 22 kAIC, Panel Mount
Brand: Siemens
SKU: B340H00S01-New
Price: 191.08 USD
Availability: InStock

Save $1,230.92

SKU: B340H00S01-New

Condition: New

Variant

Price:

$191.08 $1,422.00

Stock:

11 In stock, ready to be shipped

Quantity:

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

Enter your ZIP code:

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Manufacturer:Siemens
Sub-Category:Molded Case

B340H00S01 Siemens Molded Case Circuit Breaker BL Series 40A 240V - Essential Electric Supply

B340H00S01 - Siemens Bolt-on 240VACV 40A 3 pole circuit breaker 22kA@240V - Essential Electric Supply

B340H00S01 - Siemens 40 Amp 240V 3-Pole Type BLH Molded Case Circuit Breaker with 120V Shunt Trip, 22 kAIC, Panel Mount - Essential Electric Supply

Roll over image to zoom in Click on image to zoom Images are for reference only

B340H00S01

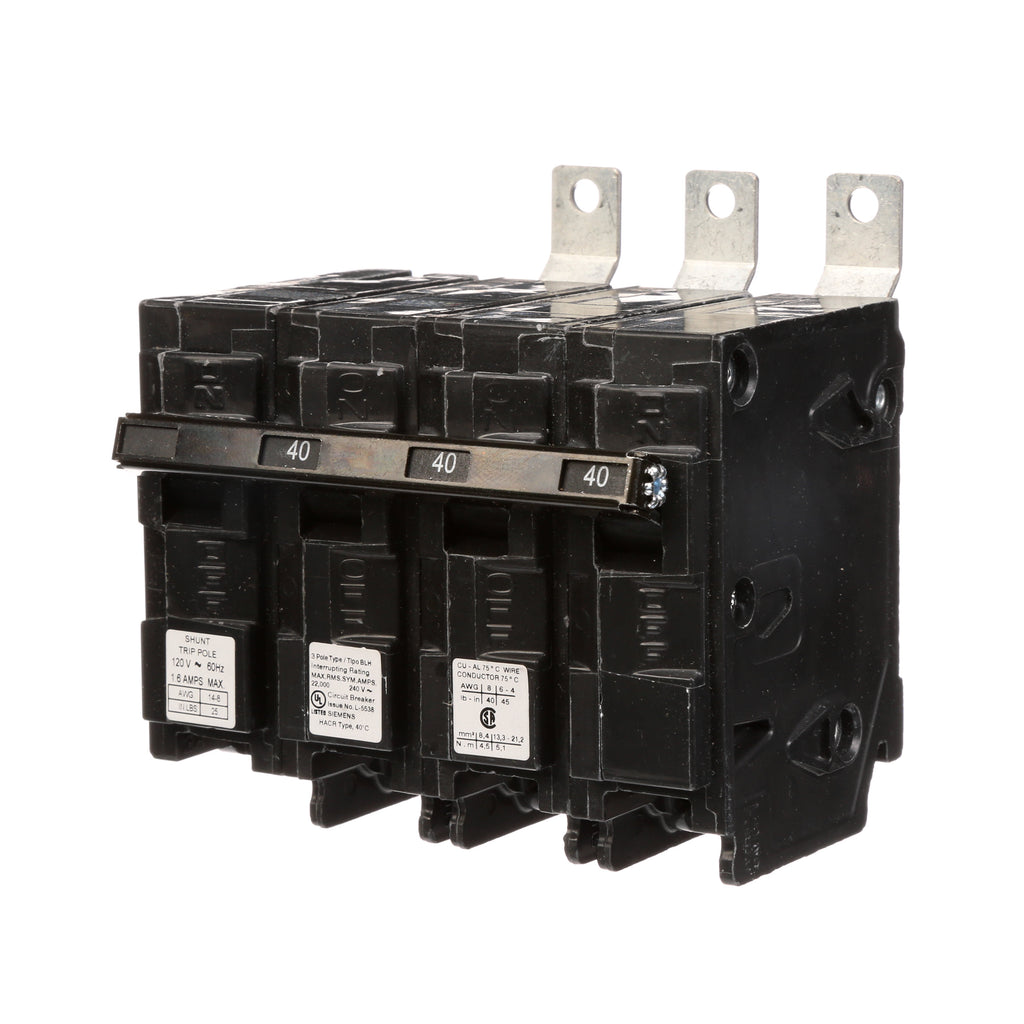

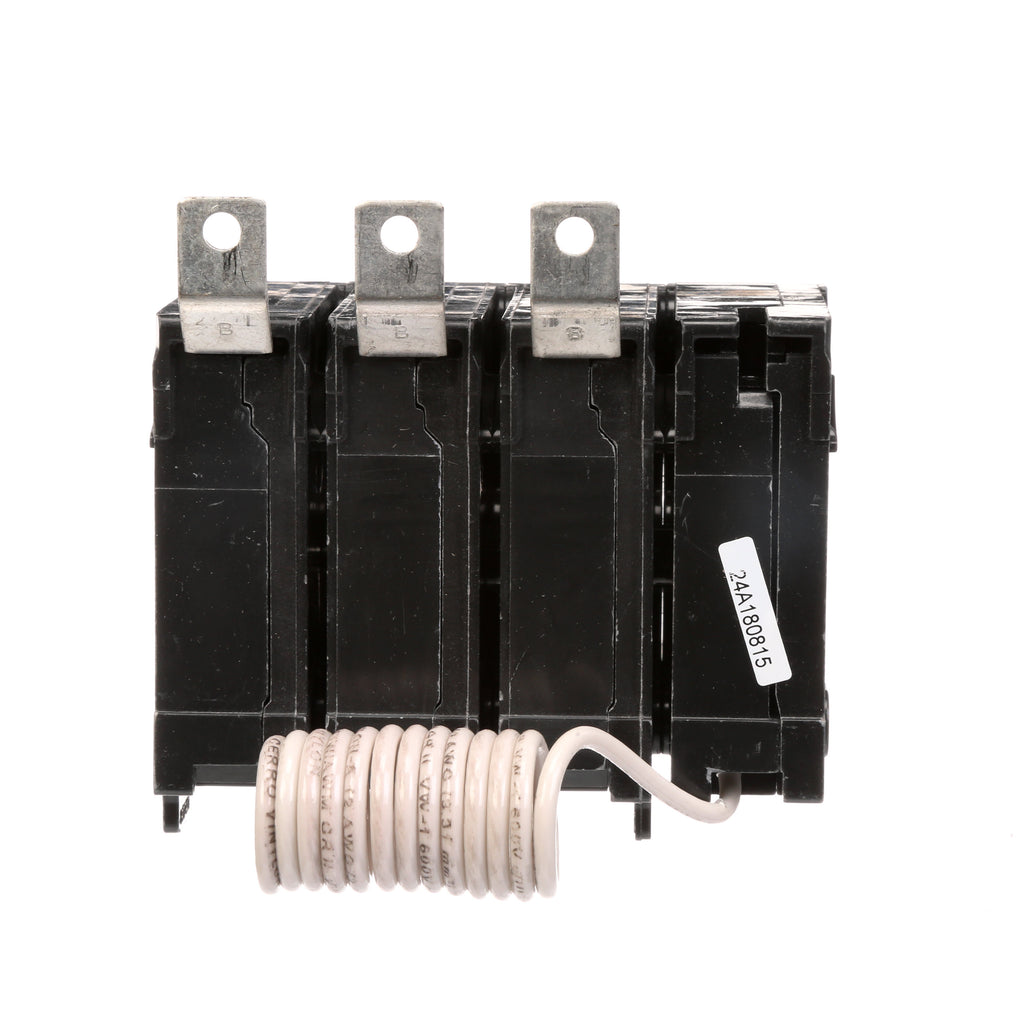

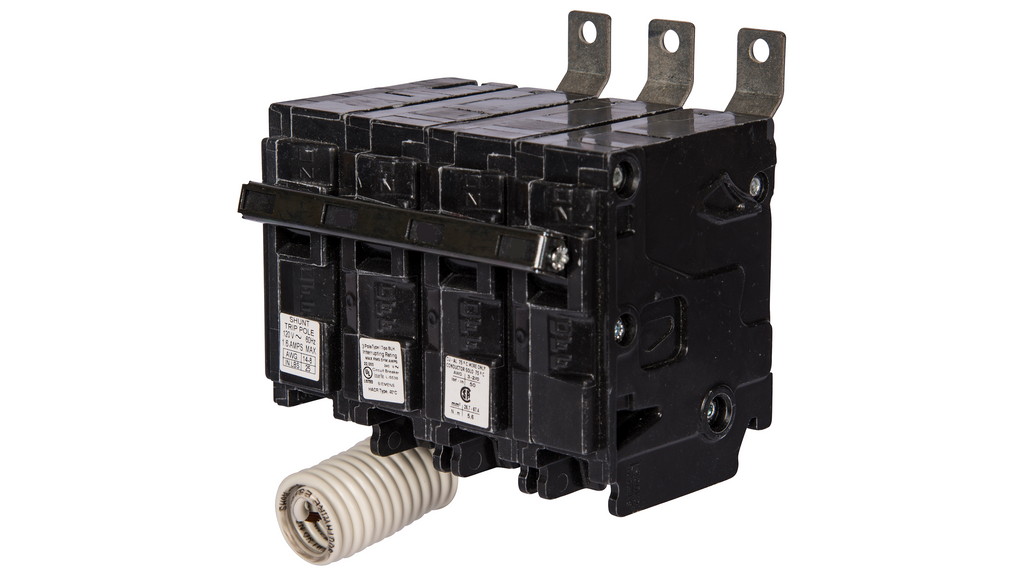

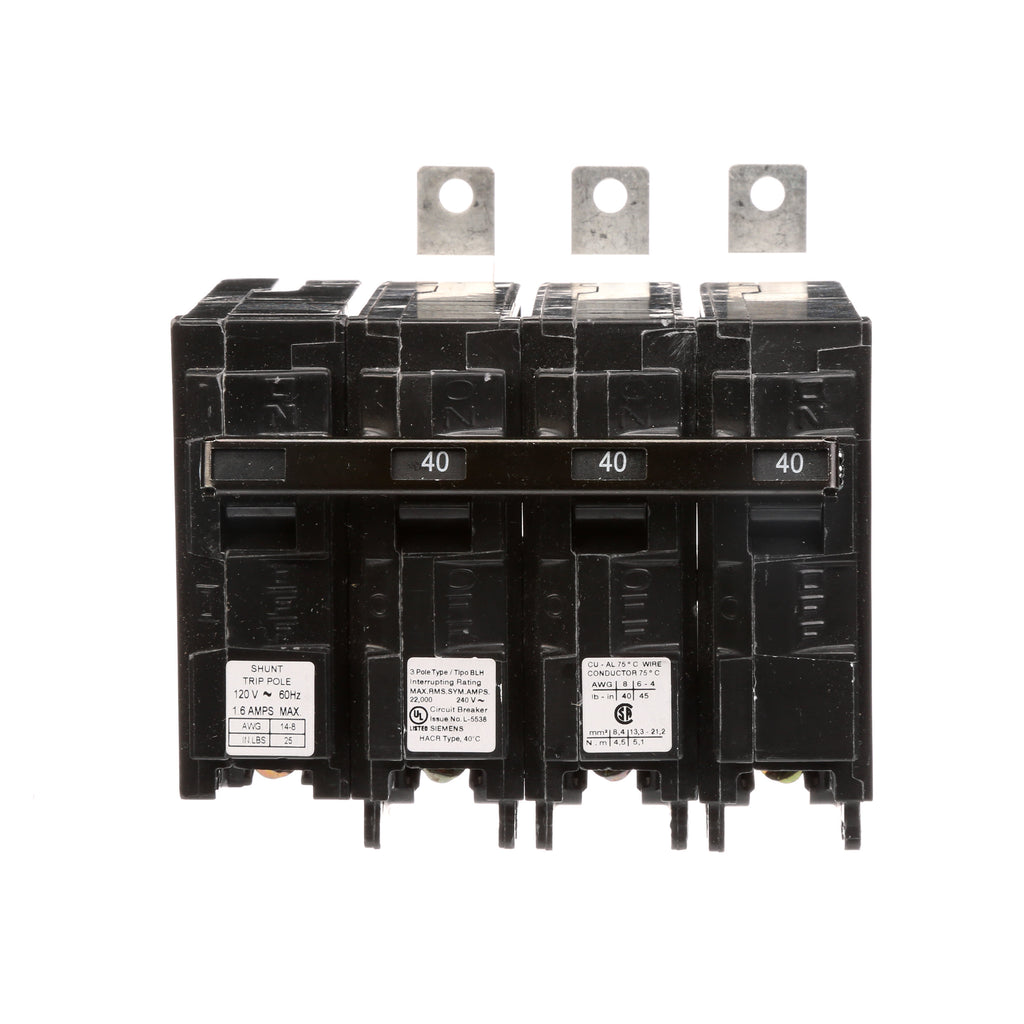

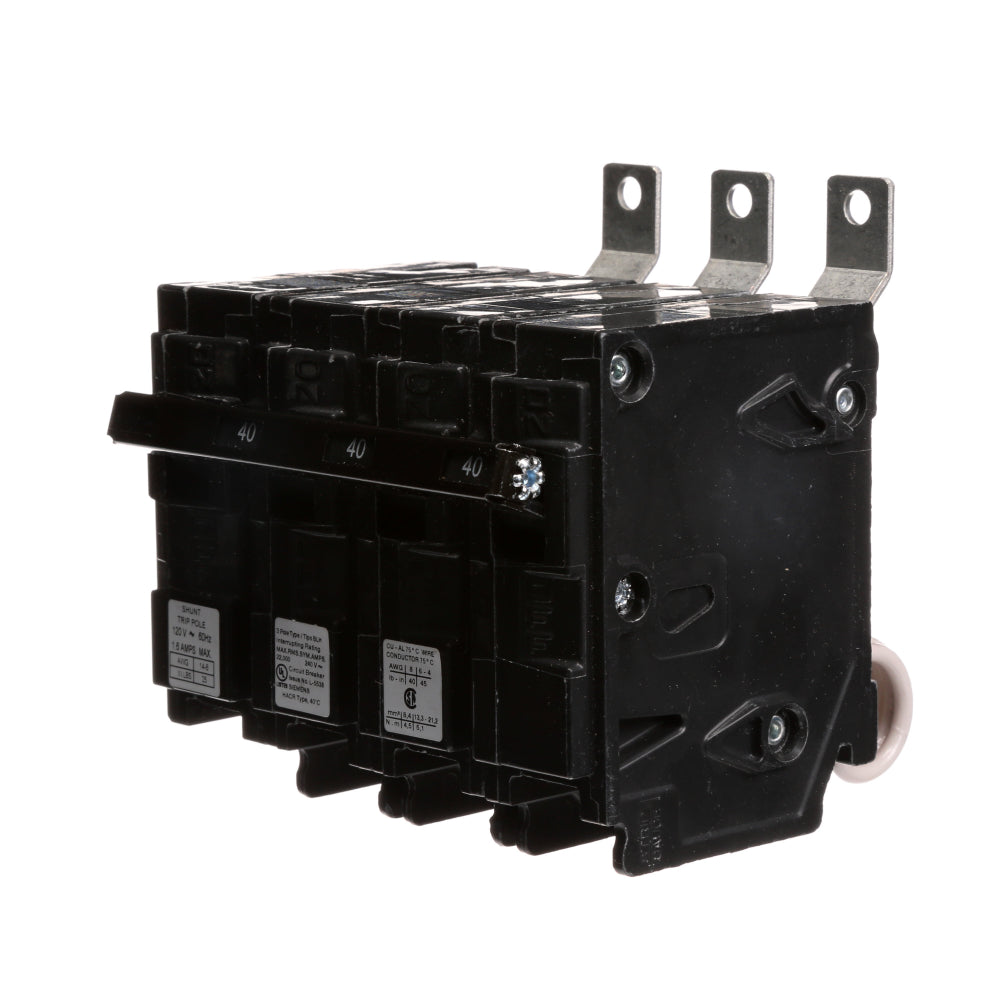

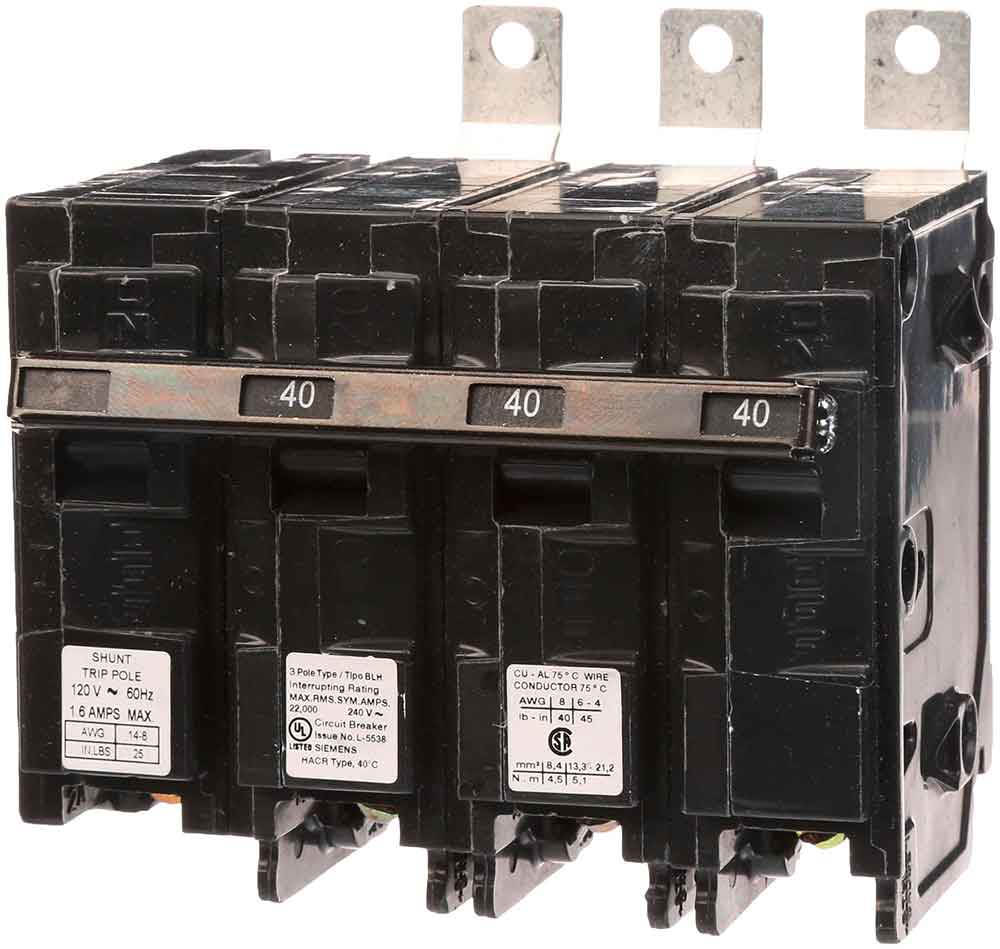

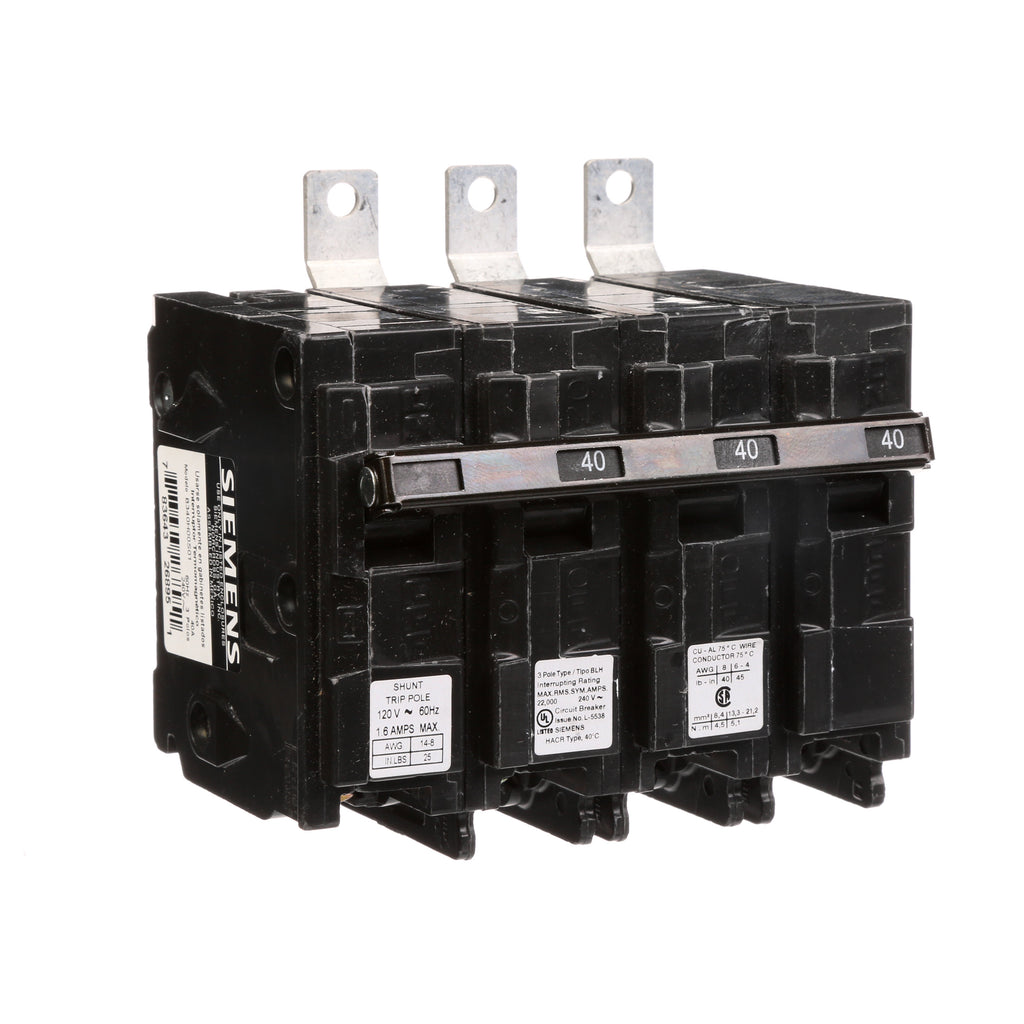

B340H00S01 is a 3-pole molded case circuit breaker from Siemens designed for 240 volt AC applications with a 40 amp current rating and 120 volt shunt trip capability.

This BL Series thermal magnetic circuit breaker features a 22,000 amp interrupting rating at 240 volts AC and bolt-on mounting for panel installation. The shunt trip mechanism enables remote tripping functionality, making it suitable for applications requiring emergency disconnect or automated control. Wire termination accepts 8 to 6 AWG copper or 8 to 4 AWG aluminum conductors with lugs included.

Amperage: 40 Amps
Voltage: 240 Volts AC
Poles: 3
Series: BL Series
Type: BLH
Interrupting Rating: 22,000 Amps at 240V AC
Shunt Trip: 120 Volts AC
Mounting: Bolt-On
Wire Size: 8 to 6 AWG Copper, 8 to 4 AWG Aluminum
Termination: Lug (Included)
Weight: 1.44 lbs
Depth: 3 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

Part Number: B340H00S01
Manufacturer : Siemens
Brand : Siemens
Category : Circuit Breaker
Item Subcategory : Molded Case
Family : BL Series
Type : BLH
Voltage : 240
Amperage : 40
Phase : 3
Poles : 3
AIC rating : 22kA@240V
Connection : Bolt-on
Functions : Long Time and Instantaneous Trip
Terminal Connection : Lug
Frame Size : 125A/BL
Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
Breaker Type : Shunt Trip
Protection : Thermal Magnetic

Product Data

UPC : 783643268951
GTIN : 00783643268951
Country of Origin : Mexico
Dimensions : 2.563 x 4.00 x 3.122 inch
Weight : 1.257
Panel Type : Siemens P1 Panelboards
Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed

Accesories

Part	Manufacture	Sub Category
SBLBD	Siemens	Mounting Hardware
TA1Q1	Siemens	Lug Terminal Kit

Related Products

Part	Manufacture	Voltage	Amperage	Phase	AIC	Connection	Poles	Functions
b340h	Siemens	240V	40	3	22kA@240V	Bolt-on	3	Long Time and Instantaneous Trip
b340h00s01	Siemens	240V	40	3	22kA@240V	Bolt-on	3	Long Time and Instantaneous Trip
